1 3
SHADOW HILLS INDUSTRIES  |  SKU: 1126

Mastering Compressor

Dual Compressors

Mastering compressor with dual compression sections, optical for dynamic reduction, discrete for precise control, sidechain filter, variable output transformers, and more

$13,895.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

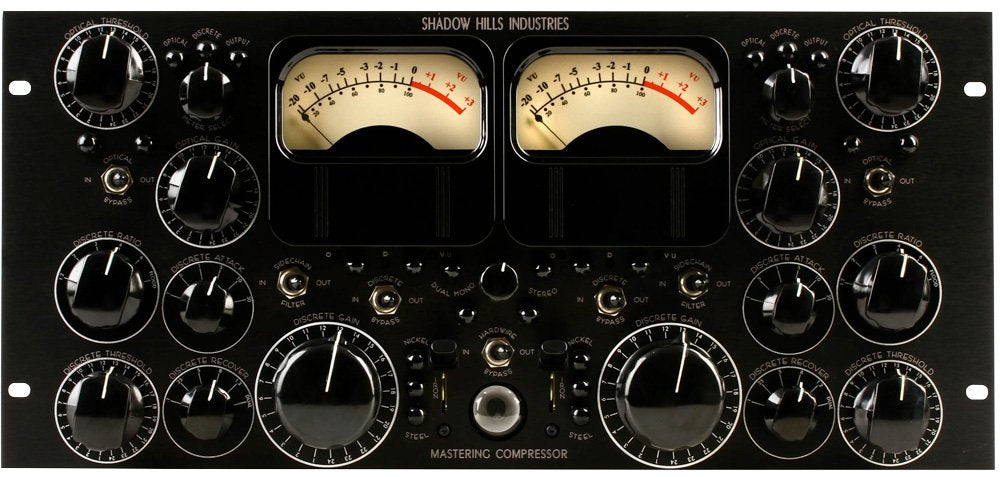

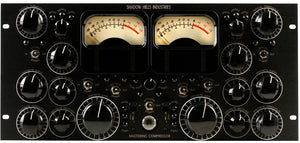

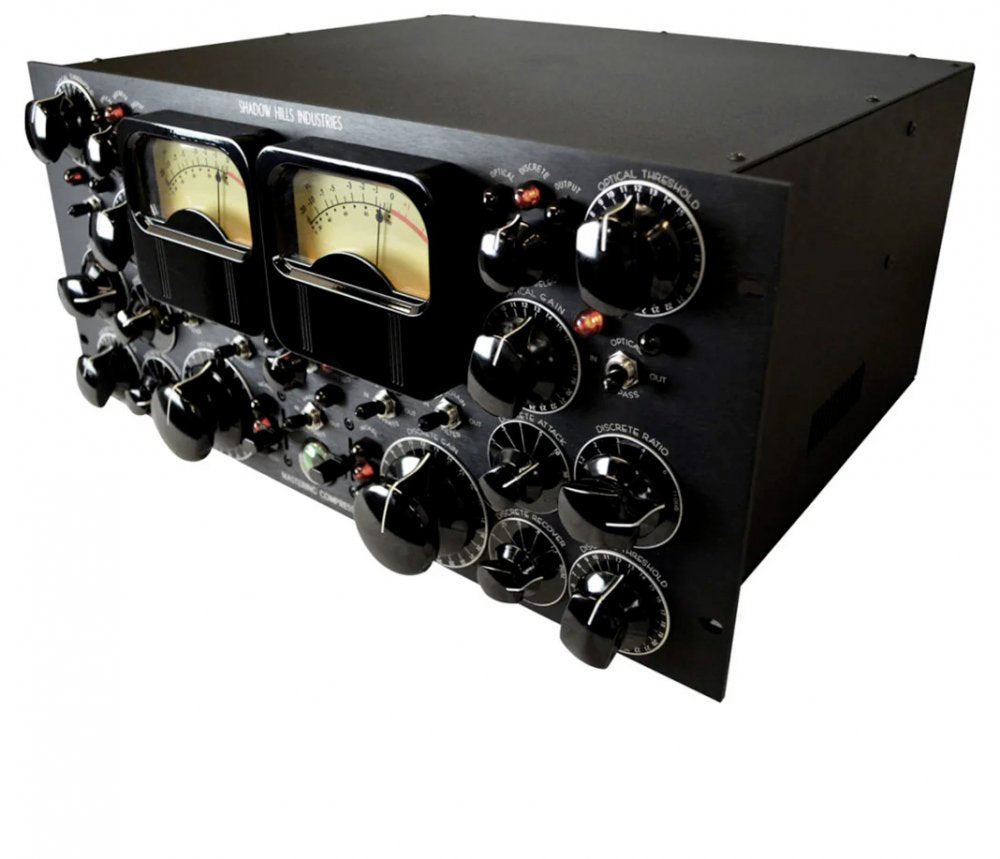

The Shadow Hills Mastering Compressor is a premium, multi-functional audio processor designed for professionals in the music and audio production industry. Developed by the engineers at the Shadow Hills Austin Research Facility, this mastering compressor is equipped with advanced technology to precisely control audio dynamics. It features dual compression sections: an Optical section with an Electroluminescent Optical Attenuator for smooth, musical gain reduction, and a Discrete section with a Voltage Controlled Amplifier for more surgical dynamic control. These sections allow for fine-tuning of audio material, ensuring the highest quality output.

Additionally, the Shadow Hills Mastering Compressor offers a Sidechain Filter, which prevents frequencies below 90 Hz from triggering compression, and an Output Transformer Switching Technology with options to switch between Nickel, Iron, and Steel transformers to alter the tonal characteristics of the output. The unit also includes comprehensive metering with VU meters and a Magic Eye Indicator Tube, enabling precise monitoring of output levels and gain reduction. It can operate in both dual mono and stereo modes, providing flexibility for different mixing and mastering scenarios. This compressor is built for those who demand the utmost precision and versatility in their audio processing toolkit.

Features

Compression Sections

Optical Section

Uses Electroluminescent Optical Attenuator for primary level adjustment.

Two-stage release time for dynamic range control: 80% fast release, 20% slow.

Controls: Optical Threshold and Optical Gain for precise attenuation and gain.

Discrete Section

Employs a discrete Voltage Controlled Amplifier.

Includes Discrete Threshold, Discrete Gain, Discrete Ratio, Discrete Attack, and Discrete Recovery controls.

Six-position Discrete Ratio Switch offers compression ratios from 1.2:1 to 20:1.

Adjustable Discrete Attack for transient retention and Discrete Recovery for signal return timing.

Sidechain Filter

Filters out frequencies below 90 Hz from triggering compression in both Optical and Discrete sections.

Output Transformer Switching Technology


Offers three transformer settings for varied frequency response and distortion

Nickel: Low distortion, enhanced high frequencies with a 10 kHz boost.

Iron: Colored sound with a 100 Hz boost.

Steel: Most colored sound with a 40 Hz boost, adding tight cue response.

Indication Metering

Features two medium-sized VU meters and a Magic Eye Indicator Tube.

Meters can display Optical Gain Reduction, Discrete Gain Reduction, or Output Level.

Meter Select Switch allows independent meter settings for Stereo operation.

Stereo Operation

Operates in either Dual Mono or Stereo mode.

In Stereo, left-hand controls manage all compressor features, except the Meter Select Switch.

Specifications

General

Type: Analog mastering compressor

Channel Configuration: Dual mono, stereo, or mid-side processing

Format: 3U 19" rack-mountable unit

Compressors


Two stages of compression

Optical Compressor: Gain reduction based on light-dependent resistors

Discrete VCA Compressor: Voltage-controlled amplifier for dynamic range control

Controls

Threshold: Separate controls for Optical and Discrete sections

Ratio: Switchable, varies per section (Optical: 2:1, 4:1; VCA: 2:1, 3:1, 4:1, 6:1)

Attack: Separate controls for each section, adjustable

Release: Separate controls for each section, adjustable

Makeup Gain: Separate for Optical and Discrete sections

Transformer Selection: 3 switchable settings (Nickel, Iron, Steel) for tone shaping

Metering

Metering Type: Analog VU meters

Metering Function: Gain reduction, output level

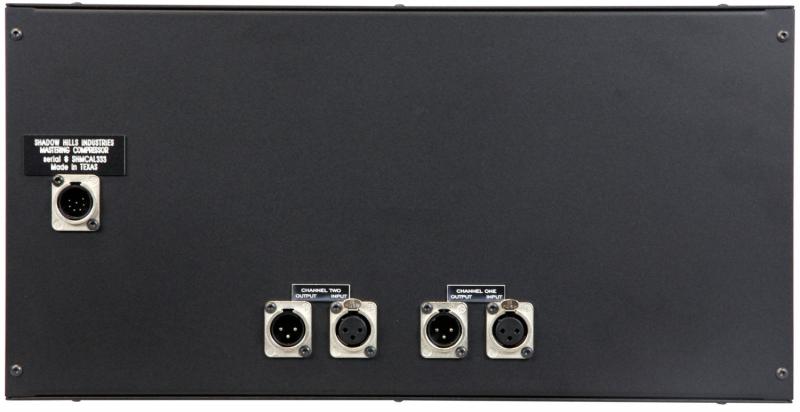

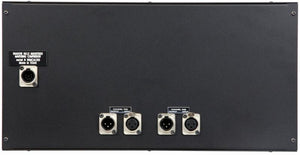

Connectivity

Input: XLR (balanced)

Output: XLR (balanced)

Power

Power Supply: External power supply unit (Not Included)

Additional Features

Bypass: True bypass for each section

Sidechain: External sidechain insert points

Dimensions

3U

Height: 5.25 inches (13.34 cm)

Width: 19 inches (48.26 cm)

Depth: 13.75 inches (34.93 cm)

Weight

Unit Weight: Approximately 23 lbs (10.4 kg)
