SPL  |  SKU: 22708

Pre One

Dual-channel mic preamp with discrete design, 48V phantom power, Hi-Z instrument input, gain range +8 to +62 dB, high-pass filter, phase reverse, Flair and Contour EQ features


$989.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

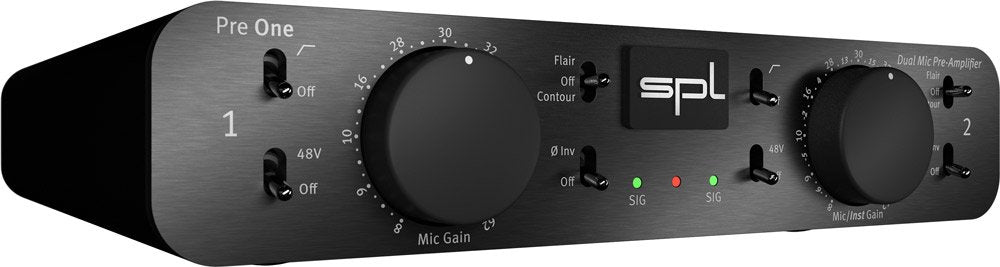

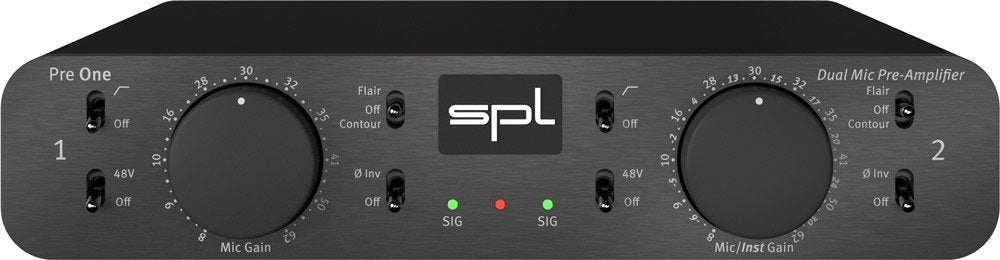

The SPL Pre One is a high-performance dual-channel microphone preamplifier designed to deliver outstanding sound quality through its discrete technology. Ideal for both professional audio recording and live performances, the Pre One is equipped with two preamplifiers that ensure an open and transparent sound, perfect for capturing the nuances of both vocals and instruments. One of its standout features is the inclusion of a Hi-Z instrument input, allowing instruments like electric guitars to benefit from the high-quality preamp sound, making it versatile for a variety of recording setups.

Both preamps come with adjustable gain control ranging from +8 to +62 dB, making it compatible with demanding microphones. Each channel also features 48V phantom power, a high-pass filter to eliminate low-frequency noise, and phase reverse functionality for greater sound control. The Pre One also offers unique EQ settings with the Flair and Contour functions, enhancing the high frequencies for a silky sound or creating a more compact mix. With its high-quality Neutrik XLR mic inputs and separate line outputs, this preamplifier is a professional-grade addition to any recording setup.

Features

Dual-channel microphone preamplifiers

Hi-Z instrument input for electric instruments

Gain control for adjusting preamplification

48V phantom power for condenser microphones

High-pass filter to reduce low-frequency noise

Phase reverse function for signal polarity

Flair and Contour EQ presets for enhanced sound

PAD function to handle high-level signals

Separate line outputs for each preamp

Built with high-quality components in Germany

External power supply with internal regulation for optimal performance

Specifications

General

Product type: Dual-channel microphone preamplifier

Technology: Discrete

Series: Series One

Preamplifiers

Number of channels: 2

Gain control: +8 dB to +62 dB

Phantom power: +48 V (independent for each channel)

High-pass filter: 6 dB/octave, 80 Hz

Phase reverse: 180 phase inversion

PAD switch: -20 dB (rear DIP switches)

Flair: Enhances high frequencies for silky highs

Contour: Smooths the mix while maintaining presence

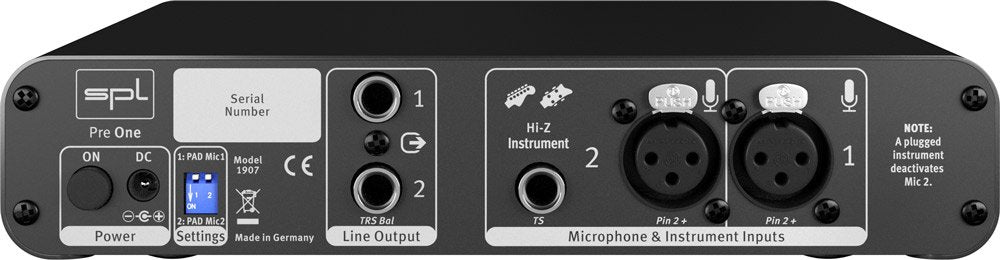

Inputs

Mic inputs: 2x Neutrik XLR (balanced, gold-plated contacts)

Hi-Z instrument input: 1 (on preamplifier 2, disables mic input 2 when used)

Input impedance (Mic): 10 kohm

Input impedance (Line): 1.1 Mohm

Maximum input gain (Mic, +8 dB Gain): +13.5 dBu

Maximum input gain (Inst, -6 dB Gain): +23.5 dBu

Outputs

Line outputs: 2x TRS (balanced)

Output impedance: 75 ohm

Maximum output gain: +22 dBu

Performance

Frequency range: 10 Hz " 200 kHz

Equivalent input noise (EIN): -126 dBu

Noise (Mic Preamp, 150 ohm, 30 dB Gain): -95 dBu

Noise (Mic Preamp, 150 ohm, 62 dB Gain): -68 dBu

Common mode rejection (1 kHz, Mic): >75 dB

THD+N ratio (1 kHz, 30 dB Gain): 0.003%

THD+N ratio (1 kHz, 62 dB Gain, Max): 0.018%

Dynamic range: 117 dB

Signal LED threshold: -25 dBu

Power

Power supply: External plug-in, 12 V DC (100 V " 240 V AC input, 50 Hz/60 Hz)

Internal operating voltages: +/-17 V for analog, +/-12 V for relays and LEDs

Power consumption: Max 7 VA

Dimensions & Weight

Dimensions (W x H x D): 210 x 49.6 x 220 mm (8.23 x 1.95 x 8.66 inch)

Unit weight: 1.5 kg (3.3 lbs)

Shipping weight: 2 kg (4.4 lbs)

Additional

Made in: Germany

Compatible with SPL Marc One for monitoring and recording applications
