PMC

PMC10 SUBXBD

Subwoofers

Active bass cabinet, 10" LF driver, 1000W Class-D power, ATL™ with LaminairX™, SoundAlign2 DSP EQ, expands PMC10 to XBD for increased low-end headroom and control

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

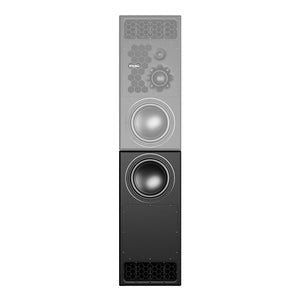

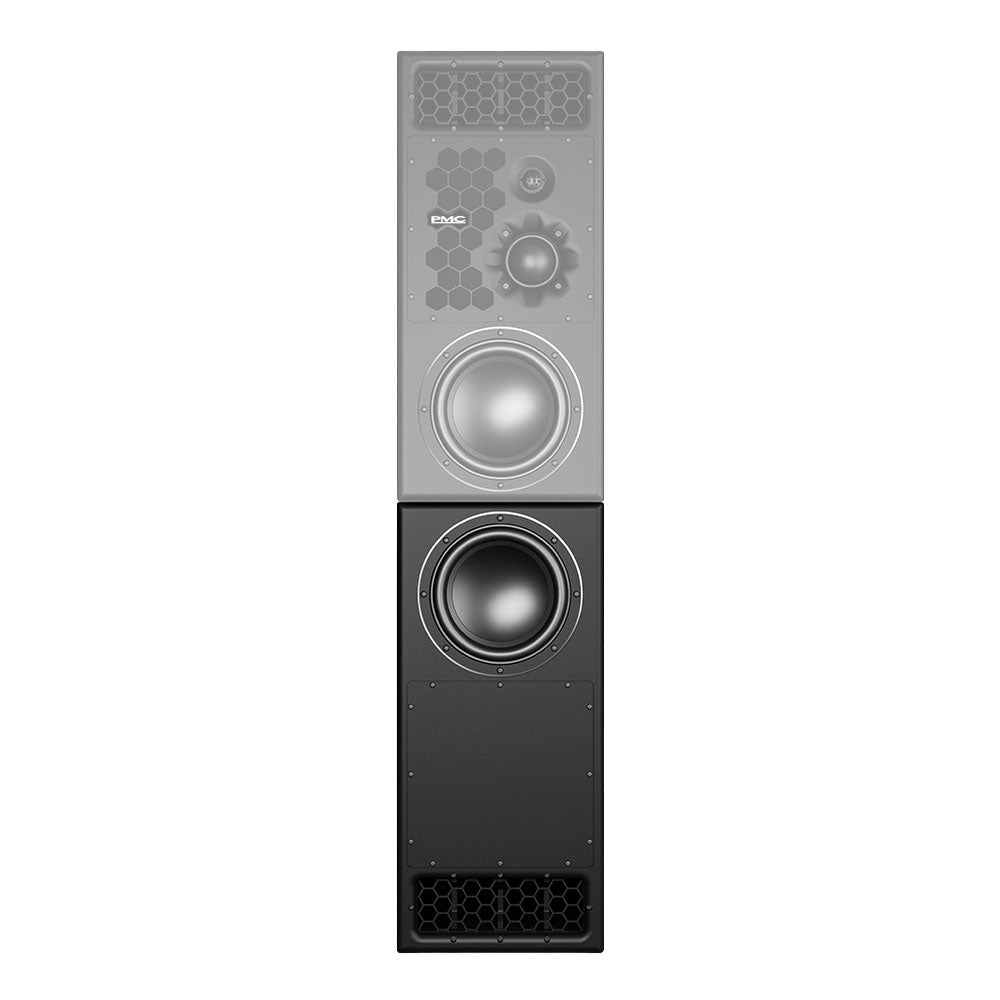

The PMC10 SUBXBD is a dedicated low-frequency extension cabinet designed to transform the PMC10 into a full-scale XBD monitoring system, significantly enhancing bass performance and in-room control. Ideal for professional environments that demand greater low-end headroom and installation flexibility, this add-on integrates effortlessly with the PMC10 master monitor, whether arranged vertically as a tower, positioned side-by-side, or soffit-mounted for a seamless studio aesthetic.

Featuring the same in-house-engineered 10-inch long-throw driver found in the PMC10, the SUBXBD uses PMC’s Advanced Transmission Line (ATL™) enclosure paired with LaminairX™ venting to deliver deep, tight, and highly controlled bass. Powered by the master36 amplifier unit already included with the PMC10, the SUBXBD receives 1000W of Class-D amplification, with full DSP functionality for crossover optimization, system protection, and room EQ via the SoundAlign2 interface. With its compact footprint and powerful performance, the PMC10 SUBXBD offers an elegant and scalable solution for expanding monitoring capability without compromising tonal integrity.

Features

Dedicated Bass Extension for PMC10
Transforms the PMC10 into a full XBD system with increased low-frequency power and precision.

Matched 10-Inch Long-Throw Driver
Uses the same custom woofer as the PMC10 for seamless integration and consistent LF character.

Advanced ATL™ Cabinet with LaminairX™
Transmission Line design ensures clean, controlled bass with reduced distortion and optimized airflow.

1000W DSP Amplification
Powered by the PMC10’s existing Master36 unit, delivering high-output Class-D performance.

Integrated DSP Control via SoundAlign2
Allows room EQ, crossover tuning, and protection with browser-based remote access.

Flexible Setup Options
Can be configured vertically, horizontally, or soffit-mounted to suit different studio environments.

Professional I/O Support
Accepts analogue and digital signals up to 192kHz for broad system compatibility.

Compact Yet Powerful
Delivers expanded bass headroom without increasing system complexity or footprint.

Specifications

General Specifications
Device Type: 1-way ATL™ active bass cabinet for addition to PMC10 to create PMC10 XBD
Cabinet Configuration: PMC10 SUBXBD (extension to PMC10 main monitor)
Cabinet Size: H 770 mm x W 355 mm x D 420 mm (+10 mm LF driver surround)
Weight per Cabinet: 42 kg
Cabinet Construction: ATL™ with LaminairX™ venting
System Management: Controlled by existing PMC10’s Master36 DSP/Amplifier
Control Interface: SoundAlign2 with full DSP Room Alignment EQ
Amplifiers Included: Supplied by PMC10’s Master36
Total System Power: 1000 W per cabinet
Amplifier Class: Class-D
Finish: Studio Black

Drive Units
Low Frequency: 1 x 10-inch in-house-designed long-throw LF driver

Amplification
LF Power: 1000 W (via PMC10’s Master36 DSP/Amplifier)

Transmission Line
Effective ATL™ Length: 3.6 m (11.8 ft)

Input/Output
Inputs: Analogue & Digital (up to 192 kHz)
System Status: Illuminated front-panel logo on cabinet
