PMC

PMC12 SUB

Subwoofers

Active subwoofer, 12" LF driver, 1000W Class-D power, ATL™ with LaminairX™, SoundAlign2 DSP EQ, ultra-low distortion, scalable low-end for pro monitoring setups

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

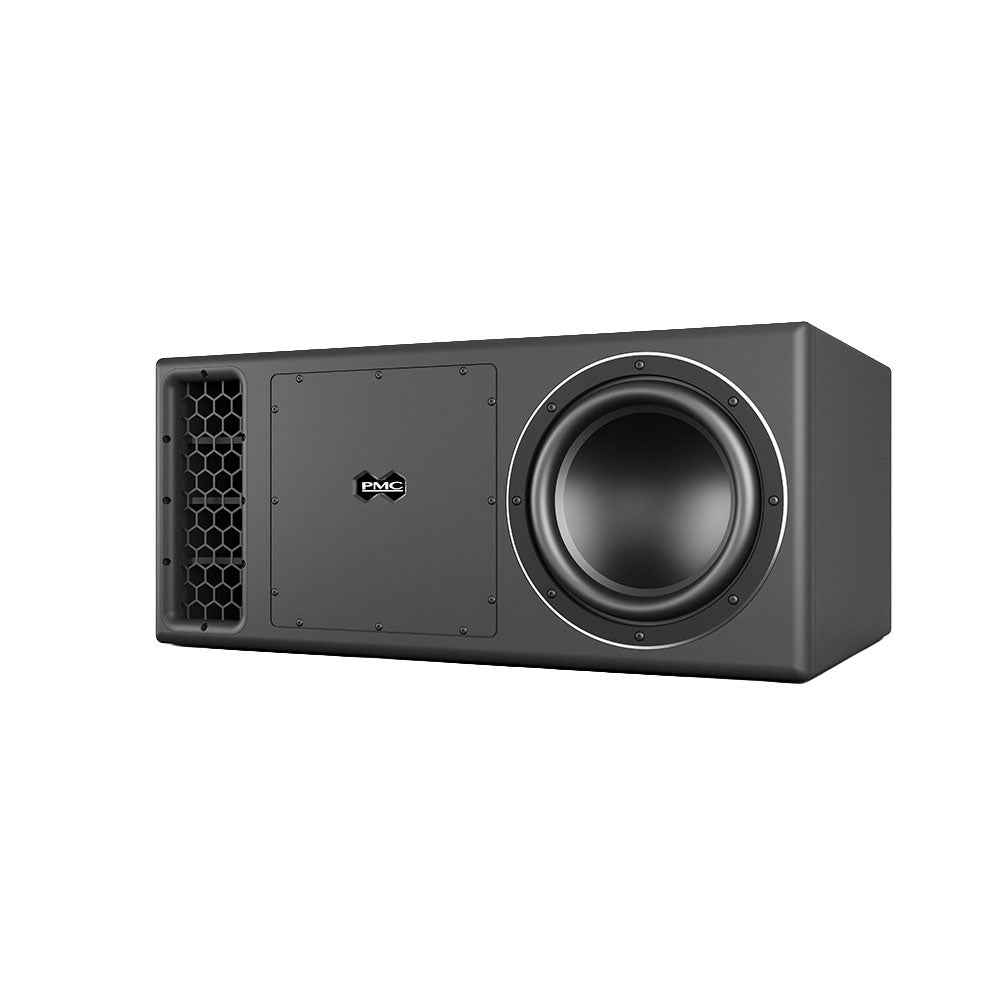

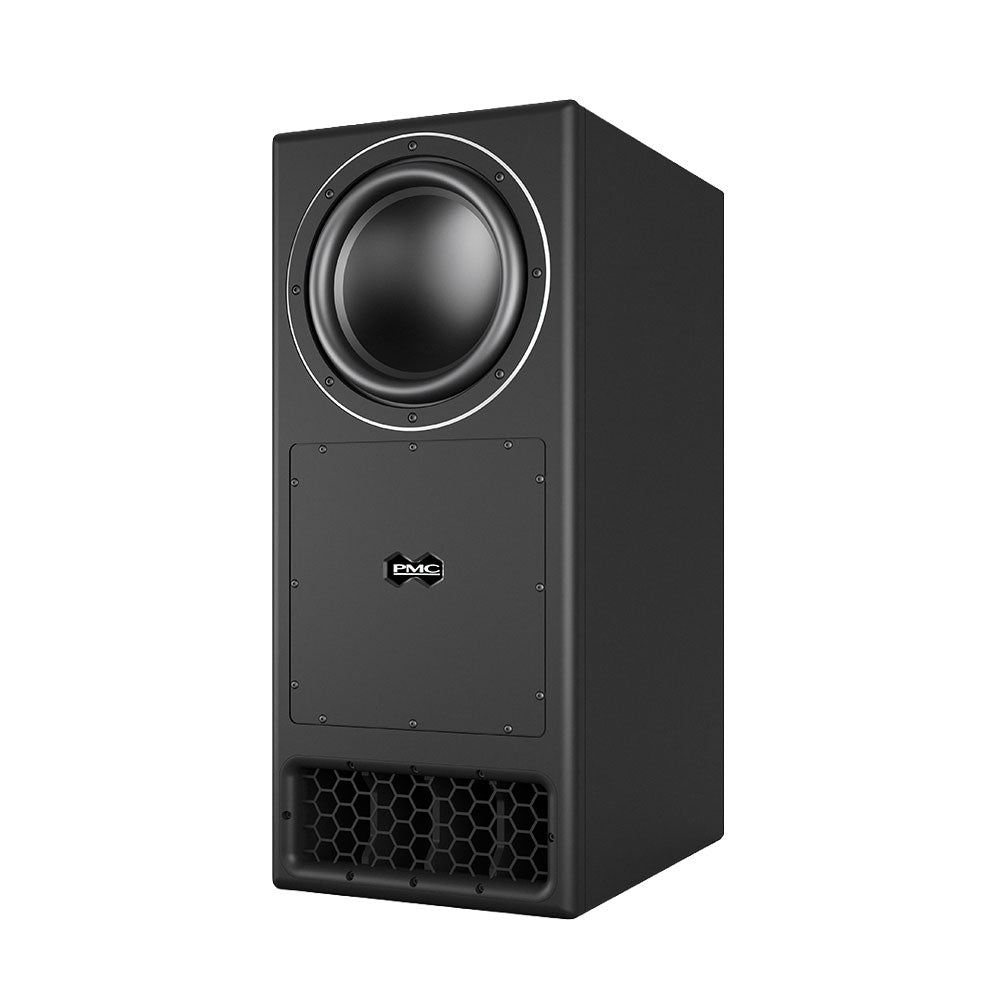

The PMC12 SUB is a high-performance active subwoofer designed to deliver deep, ultra-clean low-frequency energy for professional music, broadcast, and film environments. As a standalone low-frequency extension, it’s purpose-built to integrate seamlessly with any PMC monitoring system, bringing powerful bass reinforcement without compromising speed or precision. Its advanced design mirrors the full-range PMC12 monitor, utilizing the same ATL™ (Advanced Transmission Line) enclosure with LaminairX™ venting to ensure controlled airflow, improved efficiency, and tight, impactful bass response.

At the heart of the PMC12 SUB is a newly developed 12-inch bass driver that combines double-stacked magnets, a three-inch triple-layer voice coil, and a highly stable suspension system. This allows for extended pistonic movement while maintaining linearity, producing exceptionally low distortion and performance on par with typical 15-inch designs. Powered by PMC’s master36 DSP/amplifier, the sub receives 1000W of Class-D amplification, with additional features like optimized crossover filtering, excursion protection, and full room EQ via the SoundAlign2 web interface. When more LF power is needed, a second PMC12 SUB can be daisy-chained to scale headroom while maintaining full control and tonal consistency.

Features

Powerful Studio Subwoofer
Engineered to deliver deep, accurate low-end for music, film, and immersive production environments.

Advanced 12-Inch Driver Design
Custom-built woofer with double-stacked magnets and long excursion for ultra-low distortion and extended response.

ATL™ Cabinet with LaminairX™ Vents
Delivers efficient, clean bass performance with consistent airflow and tonal control.

1000W Class-D Amplification
Powered by the Master36 amp with DSP-optimized output tailored for the 12" driver.

Precision DSP Integration
Includes optimized filters, transparent protection, and room EQ via SoundAlign2 browser control.

Scalable Bass Expansion
Daisy-chain a second sub for 2000W total power and increased low-frequency headroom.

Flexible Connectivity
Accepts analogue and digital sources up to 192kHz for seamless integration into any setup.

Compact Yet Impactful
Performs like a 15" system while maintaining a smaller studio-friendly footprint.

Specifications

General Specifications
Device Type: 1-way ATL™ active reference subwoofer
Cabinet Configuration: PMC12 SUB standalone subwoofer
Cabinet Size: H 870 mm x W 380 mm x D 535 mm (+10 mm LF driver surround)
Weight per Cabinet: 52 kg
Cabinet Construction: ATL™ with LaminairX™ venting

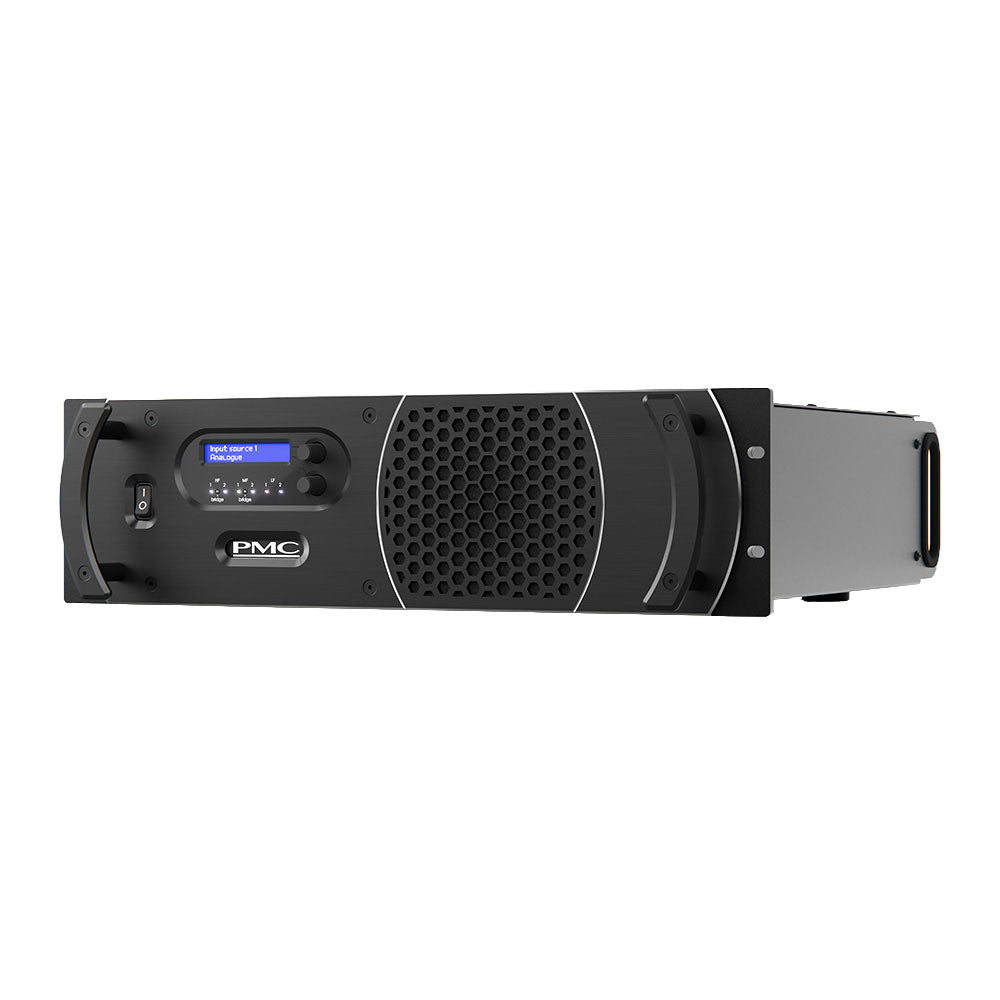

System Management: PMC Master36 DSP/Amplifier
Control Interface: SoundAlign2 with full DSP Room Alignment EQ
Amplifiers Included: 1 x Master36 per channel (supports daisy-chaining 2 subs)
Total System Power: 1000 W per cabinet (2000 W with second unit daisy-chained)
Amplifier Class: Class-D
Finish: Studio Black

Drive Units
Low Frequency: 1 x 12-inch in-house-designed LF driver with double-stacked magnets, 3-inch 3-layer voice coil, and high-stability suspension

Amplification
LF Power: 1000 W

Transmission Line
Effective ATL™ Length: 3.5 m (11.5 ft)

Input/Output
Inputs: Analogue & Digital (up to 192 kHz)
System Status: Illuminated front-panel logo on primary cabinet
