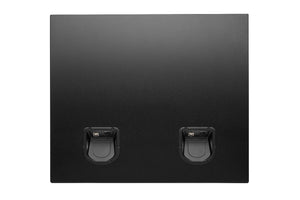

SCS240iW Pro

Subwoofers

In-wall subwoofer, dual 15" drivers, remote amps, stereo I/O, phase and low-pass control, flush mount design, ideal for SCM300 pairing in large studios

$19,999.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The ATC SCS240iW Pro is a reference-grade, in-wall active subwoofer system engineered for professional studios requiring precise, extended low-frequency response in immersive audio environments. Designed for seamless integration alongside ATC's SCM300AiW Pro main monitors, the SCS240iW Pro delivers deep, accurate bass performance with high SPL capability which is ideal for Dolby Atmos®, multichannel mixing, or high-end stereo mastering rooms.

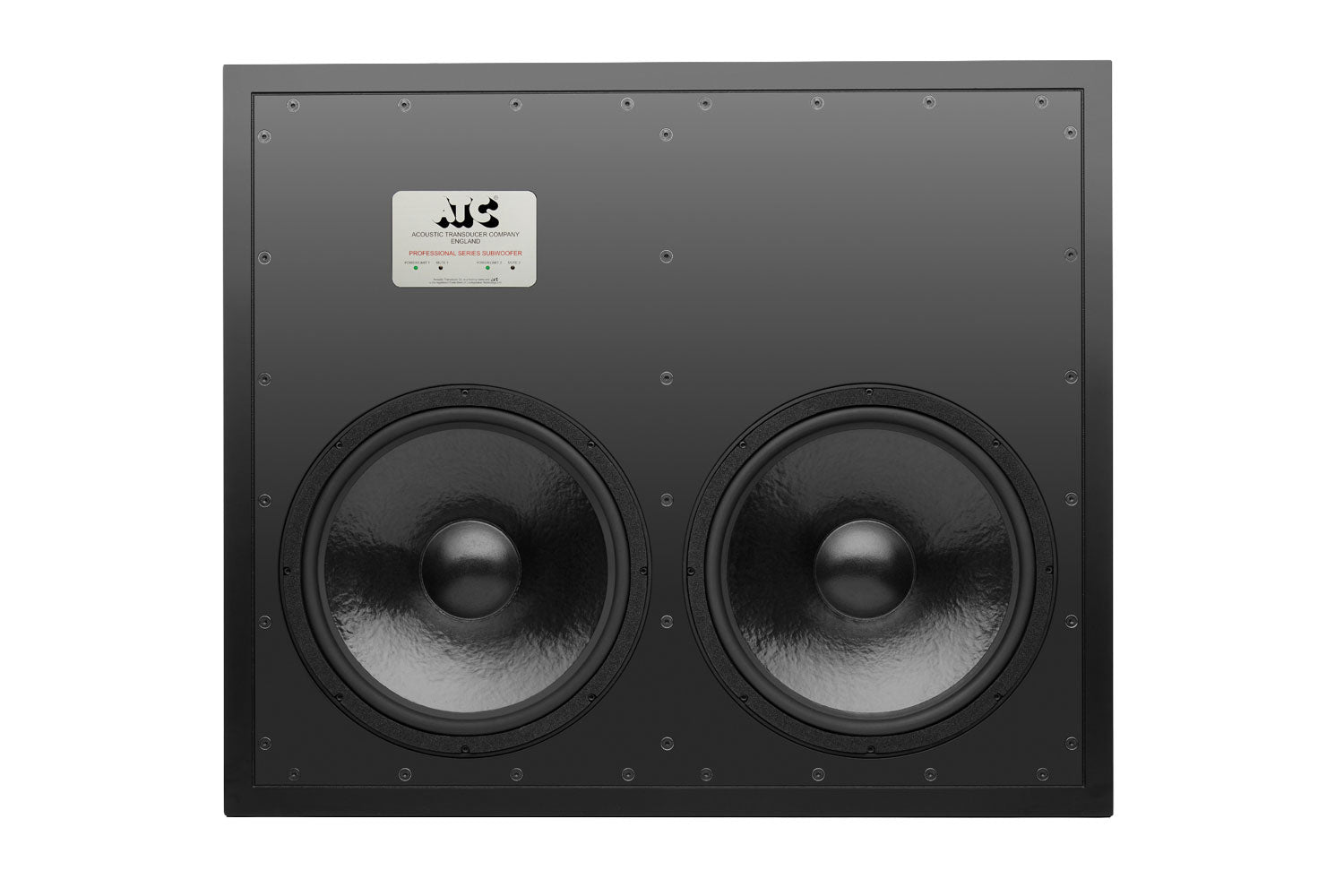

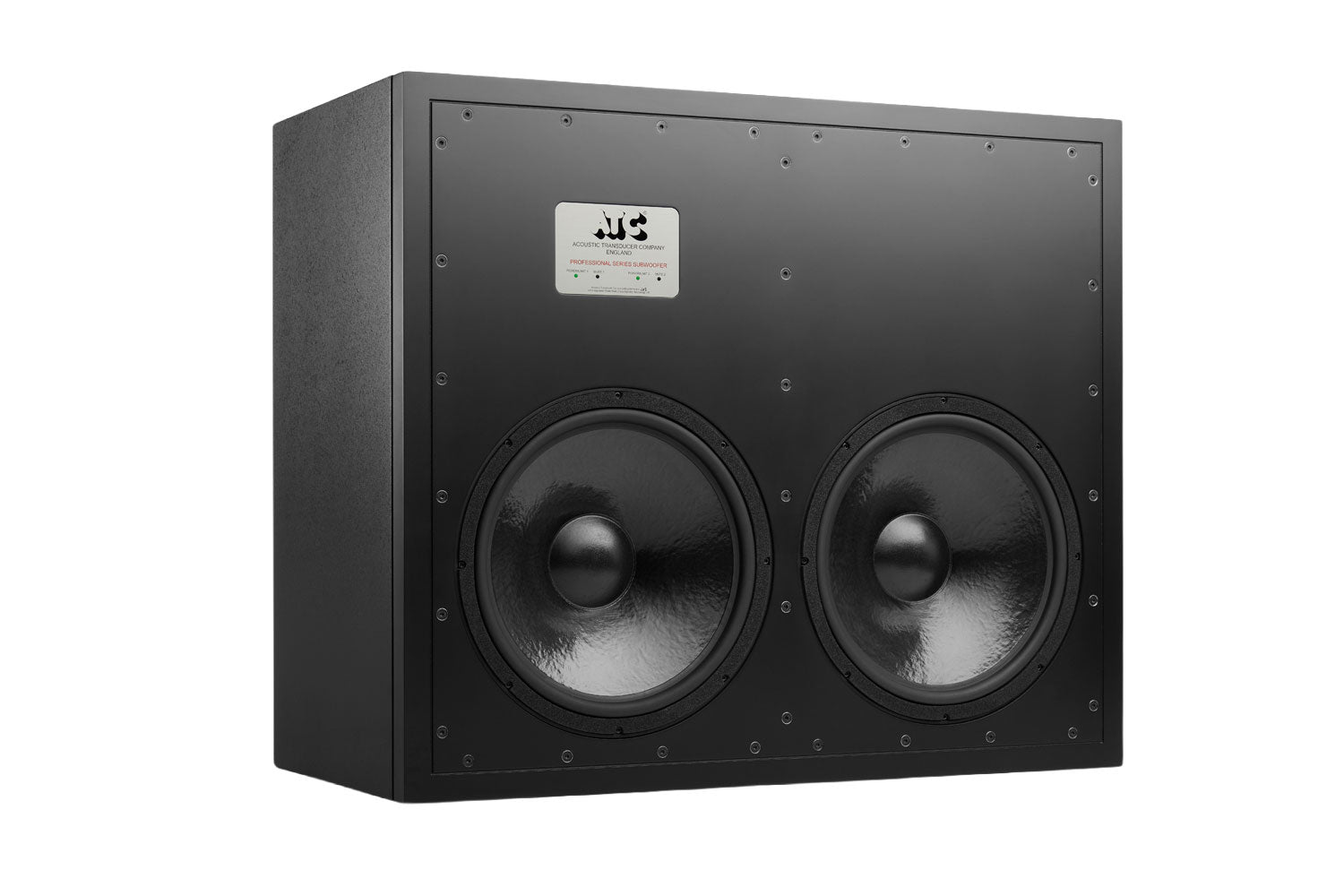

Housed in a custom in-wall cabinet, the SCS240iW Pro features dual 15” (375 mm) ATC sub drivers meticulously hand-built to deliver high output with low distortion and unmatched transient accuracy. The design allows the sub to be flush-mounted into studio walls, with recessed input panels for a clean aesthetic. Amplification is provided via dual R1-1500 rack-mounted remote amplifiers, ensuring powerful performance with easy access to controls and connectivity.

Features

Powerful Dual 15" Drivers
Delivers deep, high-impact bass performance for large control rooms and immersive setups.

Flush In-Wall Installation
Designed to mount cleanly into walls or soffits with recessed panels for a seamless studio finish.

Optimized for Professional Studios
Perfect companion for ATC SCM200AiW Pro monitors and high-end multi-channel environments.

High-Power Rack Amplifiers Included
Comes with two external R1-1500 rackmount amplifiers (7U/19") for precise, remote power control.

Flexible Connectivity and Tuning
Equipped with stereo balanced inputs, link outputs, and user controls for level, phase, and low-pass filtering.

Remote Muting Capability
Supports external footswitch muting for convenient subwoofer control during sessions.

Built to ATC Standards
Handcrafted in the UK using premium ATC components.

Specifications

General Specifications
Device Type: Quad 12” Active In-Wall Subwoofer
Mounting Type: Flush in-wall (soffit) installation
Application: Very large control rooms; stereo, multichannel, and immersive audio setups
Cabinet Width: Matches SCM300AiW Pro monitors for integrated installation
Driver Type: ATC hand-built SS75-314SC
Driver Size: 4 × 12" / 314 mm
Amplification: 2 × Dual R1-300 remote rackmount amplifiers (14U/19" total rack space)

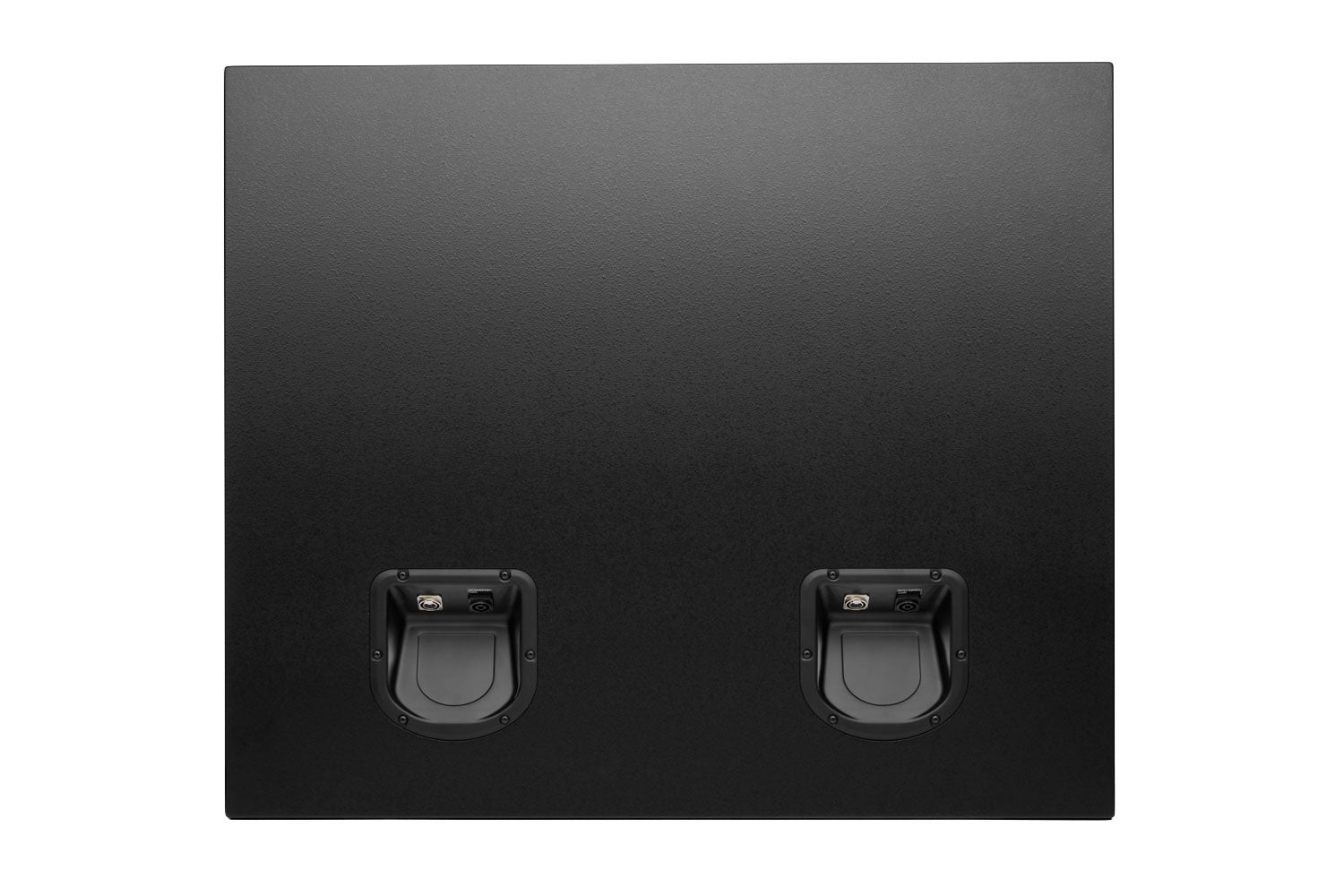

Input Panels: Recessed for clean installation
Construction: Hand-built in England

Connectivity
Amplifier Connection: NL4 speaker connectors & 5-pin XLR LED cables (cables sold separately)
Audio Inputs: Stereo balanced inputs
Audio Outputs: Stereo balanced link outputs
Remote Mute: Footswitch input (latching type, 1/4” / 6.35 mm jack, footswitch sold separately)

Controls
Level Control: Adjustable
Low-Pass Frequency Control: Adjustable
Phase Control: Adjustable

Additional Information
Ideal Pairing: SCM300AiW Pro
