SUMMIT  |  SKU: 608

EQP-200B

The EQP-200B is an indispensable component to many key task's in the studio. From tracking to final touches and audio sweetening, the EQP-200B is the goto EQ!


$6,085.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

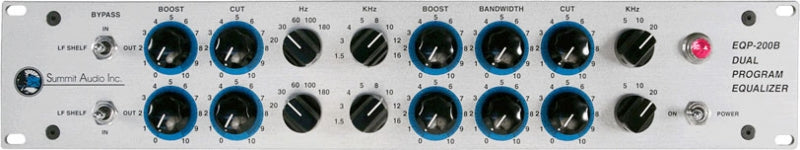

The EQP-200B combines the best of solid state and tube technology in one excellent stereo program equalizer. The EQP-200B is a passive EQ, using vacuum tube amplification for gain make-up. An incredibly smooth, fat, warm EQ, the EQP-200B is designed for broad tonal shaping and master applications. Offering high and low frequency peak boost as well as high and low frequency shelf attenuate, 105 dB dynamic range, a pure, transformerless signal path, and balanced I/O, this equalizer has great capability, and impeccable specs and quality. Ready to add the finishing touch to your mixes Get the EQP200B.

Passive EQ Coveted by top professionals for decades, passive EQs have better phase coherence than active designs, and the inductors offer a rich, smooth harmonic quality.

Take the buss! The EQP-200B is the perfect finishing tool for any mix - just insert it across the master buss of your mixing console or DAW. The sonic benefits from the EQP-200B's exceptional passive tube circuit are apparent even with the EQ circuit in bypass mode.

Hand-crafted in the USA Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.

Features

Two independent channels

Switch selectable frequencies

Continuously variable boost or cut

Silent in/out switch

Balanced input

990 Balanced output stage

105 DB dynamic range

Ease of operation

Transformerless signal path

Hand crafted in the USA

Specifications

Size and Weight


Height: 3.5 inches (8.89 cm)
Width: 19 inches (48.26 cm)
Depth: 10 inches (25.40 cm)
Weight: 17 pounds (7.71 kg)

Power Configuration


Internal AC Supply
35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)
Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC

Selectable Frequencies


Low Frequency Shelf / In / Out
3 position togle: 6 dB per octave shelving filter starting at 50 Hz, or standard engaged operation, or
bypass mode
Low Frequency Boost and Cut
20, 30,60, 100, 180 Hz frequencies.
Mid-High Frequency Boost and Cut
1.5k, 3k, 5k, 8k, 10k, 12k, and 16k Hz frequencies.
High Frequency Cut
select at 5k, 10k and 20k Hz frequencies.

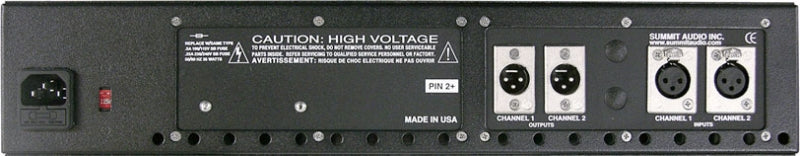

Connections


Inputs: +4 dB female XLR (2)
Outputs: +4 dB male XLR (2)

Max level


Max input level (XLR): +23dB
Max output level (XLR): +23dB
Max gain: +/-20dB

Operating Measurements


Frequency response: Tube: 12Hz-45kHz -0.5dB
Signal to noise ratio: Tube: 125dB average 20Hz-20kHz
THD + Noise: Tube: 0.057% 12Hz-20kHz
Vacuum tubes: three 12AX7A
