BLACKMAGIC DESIGN  |  SKU: 23814

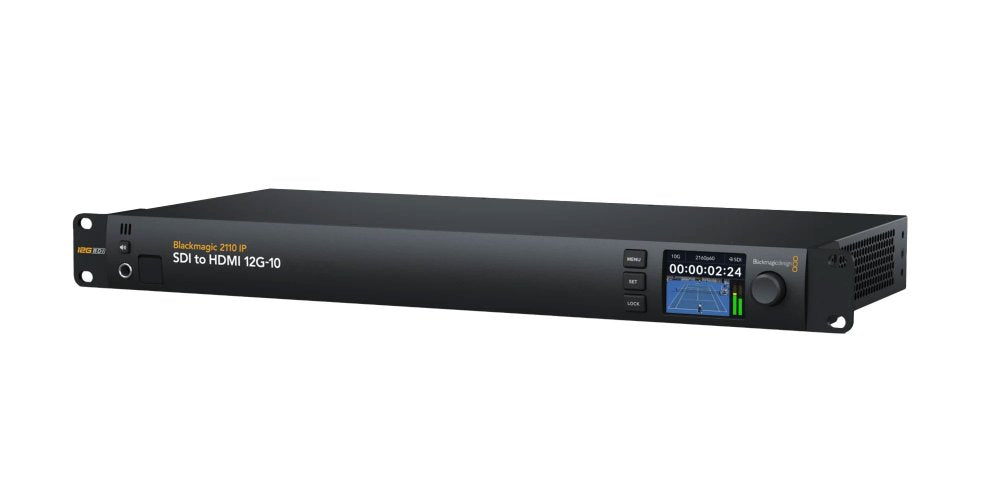

2110 IP SDI to HDMI 12G-10 converter

Conversion Hardware

12G-SDI, 2110 IP, SD to 4K, 3D LUTs, 10 XLR audio outs with delay, OLED TV calibration, LCD, speaker, headphone out, USB webcam, rackmount design

$1,185.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Blackmagic 2110 IP SDI to HDMI 12G-10 is the ultimate converter for environments where color precision and immersive audio playback are essential. Whether you're working in a color grading suite, a broadcast mastering room, or a digital cinema setup, this unit delivers flawless conversion of SMPTE-2110 IP and 12G-SDI video to HDMI with support for all standard and high-definition formats up to 4K DCI. With integrated 3D LUTs, it allows for accurate HDMI display calibration"ideal for professional reference monitors and OLED TVs used in critical viewing scenarios.

What truly sets this model apart is its advanced audio monitoring capability. It features 10 independent balanced analog XLR outputs, each with remote level control and customizable delay"perfect for aligning multichannel audio playback in theater or AV installations. The front panel provides a practical interface with a 2.2-inch LCD for real-time status display, built-in speaker, and a headphone jack. In addition to versatile video and audio I/O, the unit includes a USB-C webcam output, Ethernet for SMPTE 2110 IP traffic and control, and REST API support for seamless integration into managed production environments. With its high-performance design and broadcast-grade reliability, the 12G-10 model is built for today's most demanding monitoring applications.

Features

High-Quality Video Conversion

Converts both 12G-SDI and SMPTE 2110 IP video to HDMI.

Supports SD, HD, Ultra HD, and full 4K DCI formats.

Ideal for use in color grading suites and professional theaters.

Color Accurate Monitoring

Includes 3D LUT support for precise HDMI display calibration.

Designed for color-critical work using the latest OLED TVs.

Advanced Audio Output

Features 10 independent balanced XLR audio outputs.

Offers remote volume control and adjustable delay for perfect AV sync with TVs and projectors.

Front panel speaker and headphone output for direct local monitoring.

Integrated Monitoring and Control

Front LCD displays video, audio meters, and menu navigation.

Includes built-in control panel with buttons and knob for easy adjustments.

Can be remotely controlled via Ethernet or USB-C using REST API.

Robust Connectivity

HDMI 2.0 output for high-resolution video playback.

SDI input and loop output, with full audio embedding.

10G Ethernet for IP video, audio, and configuration.

Flexible Power Options

Operates on internal AC or external 12V DC via 4-pin XLR.

Rack-mountable in a 1RU chassis for streamlined integration.

Compliance & Standards

Fully compatible with SMPTE 2110 IP video, audio, and metadata standards.

Supports NMOS for networked device discovery and management.

Specifications

General Specifications

Rack mount design for professional monitoring

Converts SMPTE-2110 IP and 12G-SDI video to HDMI

Supports SD, HD, Ultra HD, and 4K video formats

3D LUTs for color-accurate HDMI calibration

Ideal for color grading rooms and theaters

10 analog XLR audio outputs with remote level and delay control

Built-in front panel LCD for video monitoring, meters, and menu navigation

Integrated speaker and 6.35 mm headphone jack

Video Connections

SDI Inputs: 1

SDI Loop Outputs: 1

HDMI 2.0 Outputs: 1

SMPTE 2110 Input/Output: 1 x 10G Ethernet

Webcam Output: 1 x USB'C up to 1080p60

Audio Connections

SMPTE ST 2110 IP Audio: 16 channels embedded I/O over 10G Ethernet

SDI Audio: 16 channels embedded input and output

HDMI Audio: 8 channels embedded input and output

Analog Audio Outputs: 10 channels professional balanced (3-pin XLR)

Headphone Jack: 1 x 6.35 mm

Networking & Interfaces

Ethernet: 10/100/1000/10G BASE'T for video I/O, configuration, and updates

Computer Interface: USB'C for webcam out, updates, and configuration

External Control: RJ-45 (10Gb/s Ethernet) and USB'C

REST API over Ethernet for HTTP-based external control

Video Standards

SD: 525i59.94 NTSC, 625i50 PAL

HD: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98-60, 1080PsF23.98-30

2K DCI: 2Kp/PsF23.98-60

Ultra HD: 2160p23.98-60

4K DCI: 4Kp23.98-60

HDMI Video Standards

HD: Same as HD above

Ultra HD: 2160p23.98-62

4K DCI: 4Kp23.98-60

HDMI Color Precision: 4:2:2

HDMI Color Space: YUV

Color & Audio Processing

Color Precision: 8/10-bit RGB 4:4:4 (less than/equal to1080p30), 8/10-bit YUV 4:2:2 (all modes)

Color Spaces: Rec. 601, Rec. 709, Rec. 2020

Audio Sampling: 48 kHz, 24-bit

IP Video Compliance

SMPTE 2110-20: Uncompressed Video

SMPTE 2110-21: Traffic Shaping (Narrow, Wide, Async)

SMPTE 2110-30: PCM Audio (Level C)

SMPTE 2110-40: Ancillary Data (incl. RP188, captions, HDR metadata)

Codec: Blackmagic IP10 for 2160p59.94/60 over 10G 2110 IP

Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2

NMOS: IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01

Control Interface

Built-in Control Panel: 4 buttons, spin knob, 2.2" color LCD

External Control: REST API over Ethernet

Display

Built-in 2.2" LCD for video/audio/status monitoring and menu control

Operating Systems Compatibility

macOS: 13.0 Ventura, 14.0 Sonoma or later

Windows: 10 and 11

Power Requirements

Internal Power Supply: 100 - 240V AC, 50/60Hz

Power Inputs: IEC C14 socket, 4-pin XLR for +12V DC external input

Power Usage: TBD

Physical Installation

Form Factor: 1 rack unit (full width)

Environmental Specifications

Operating Temperature: 0 to 40 degreeC (32 to 104 degree F)

Storage Temperature: -20 to 45 degree C (-4 to 113 degree F)

Relative Humidity: 0% to 90% non-condensing

Included Items

Blackmagic 2110 IP SDI to HDMI 12G-10

Welcome wallet with QR code for software download
