LECTROSONICS

ZS-DSSM (E07-941: 941 - 959 MHz)

Wireless Systems

Water-resistant micro digital transmitter (941–959 MHz), IP57 rated, 10/25/50mW (D2) or 4mW (HDM), LEMO 3-pin input, AES 256-bit encryption, 6-hour runtime, includes CHSDSSM 4-bay charger.

$3,700.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

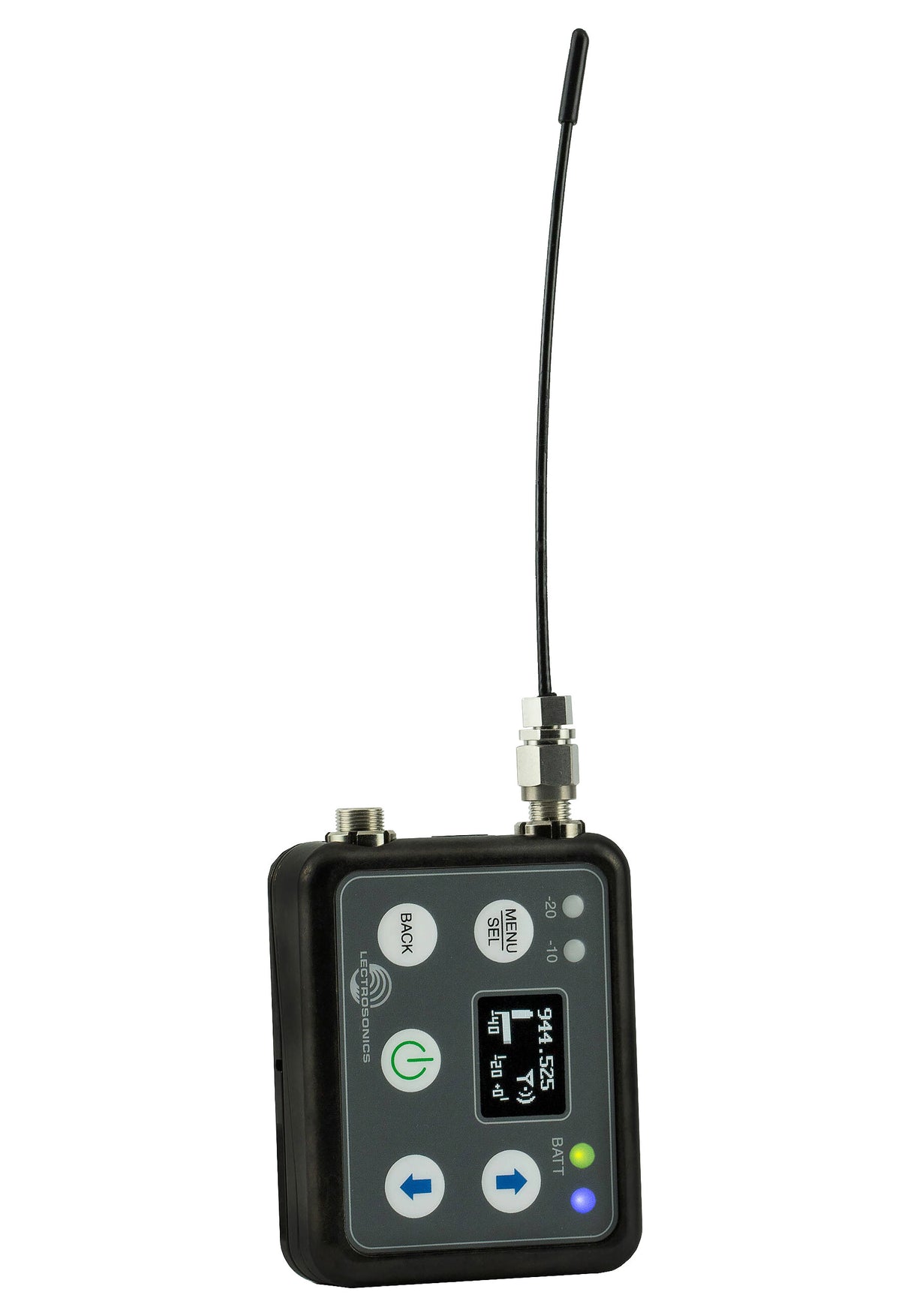

The Lectrosonics DSSM Water-Resistant Micro Digital Wireless Transmitter is a compact and rugged wireless solution designed for professional audio applications where discreet placement and environmental durability are essential. With its IP57 rating, the DSSM is built to endure both dust and brief water immersion which is ideal for theater, sports, broadcast, and film productions in demanding environments. Its solid aluminum housing, LEMO 3-pin connector, and removable SMA-mounted antenna contribute to a robust design, while AES 256-bit CTR encryption ensures secure audio transmission across sensitive applications including corporate and government use.

Despite its small footprint, the DSSM packs in powerful capabilities. It delivers selectable RF output power levels, 10, 25, or 50 mW in D2 mode, and 4 mW in high-density (HDM) mode which provides flexibility for varying range and battery life requirements. The servo bias input accommodates electret lav mics, dynamic mics, or line-level inputs, and a DSP-controlled limiter with over 30 dB of range protects the signal from distortion. A bright OLED display and intuitive control panel make operation simple, and the removable LB-50 battery offers up to 6 hours of runtime with fast recharging using the included CHSDSSM 4-bay drop-in charger.

The DSSM is compatible with a wide array of Lectrosonics digital receivers, including DSQD, DCHR, M2Ra, DSR, DSR4, and DCR822, making it a flexible choice for existing setups. With field-updatable firmware via the internal USB port and remote configuration through the LectroRM mobile app, the DSSM is engineered for seamless integration, ease of use, and consistent performance in high-stakes environments.

Features

Ultra-Compact Digital Wireless Transmitter
DSSM is Lectrosonics' smallest water-resistant digital transmitter, ideal for theater, film, TV, and live production.

IP57 Water Resistance
Built to withstand dust and submersion in water up to 3.3 ft for 30+ minutes which is perfect for demanding environments.

Wide Compatibility
Works with DSR, DSR4, DSQD, DCR822, DCHR, and M2Ra digital receivers.

LEMO 3-Pin Input with Servo Bias
Supports electret lavaliers, dynamic mics, and line-level sources with precision input control.

Selectable RF Power
Transmit at 10, 25, or 50mW in D2 mode, or 4mW in High Density (HDM) mode.

Built-In DSP Limiter and Low-Cut Filters
Protects against audio overload and enables selectable low-frequency roll-off from 35 to 150 Hz.

AES 256-Bit CTR Encryption
Offers secure transmission with four key management policies for professional and confidential applications.

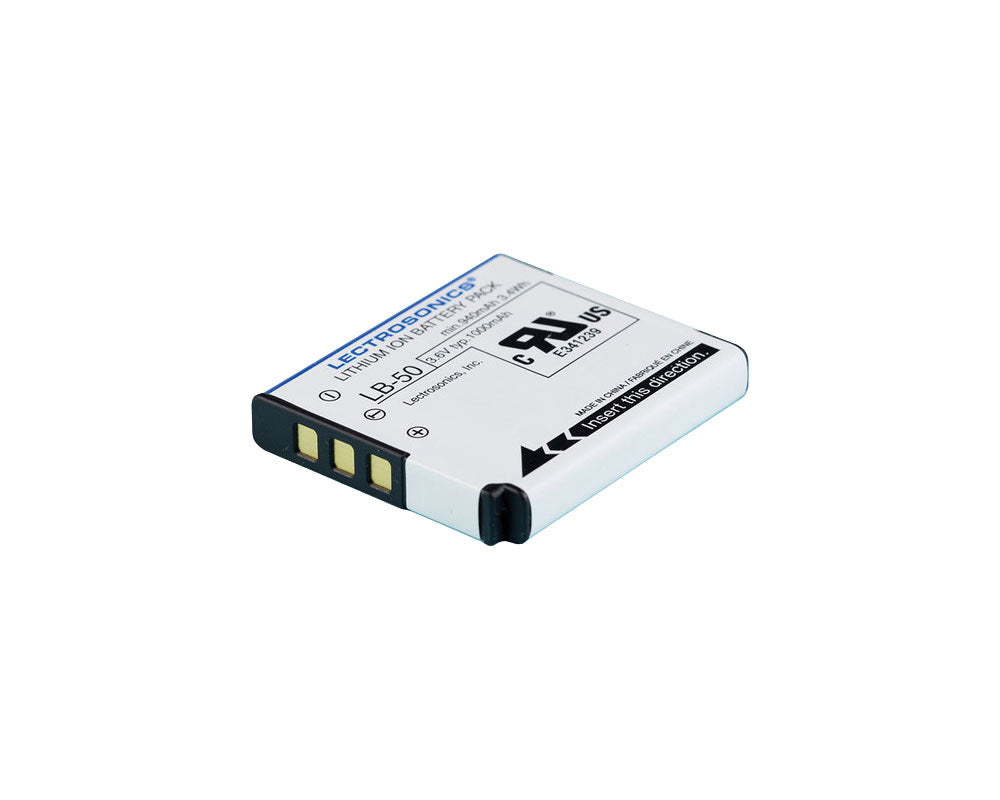

Rechargeable LB-50 Battery
Runs up to 6 hours per charge; easily removed and replaced in the field.

OLED Display with Membrane Controls
Provides easy access to settings with a clear interface and intuitive navigation.

Remote Control via LectroRM App
Make adjustments wirelessly from iOS or Android devices using encoded audio tones.

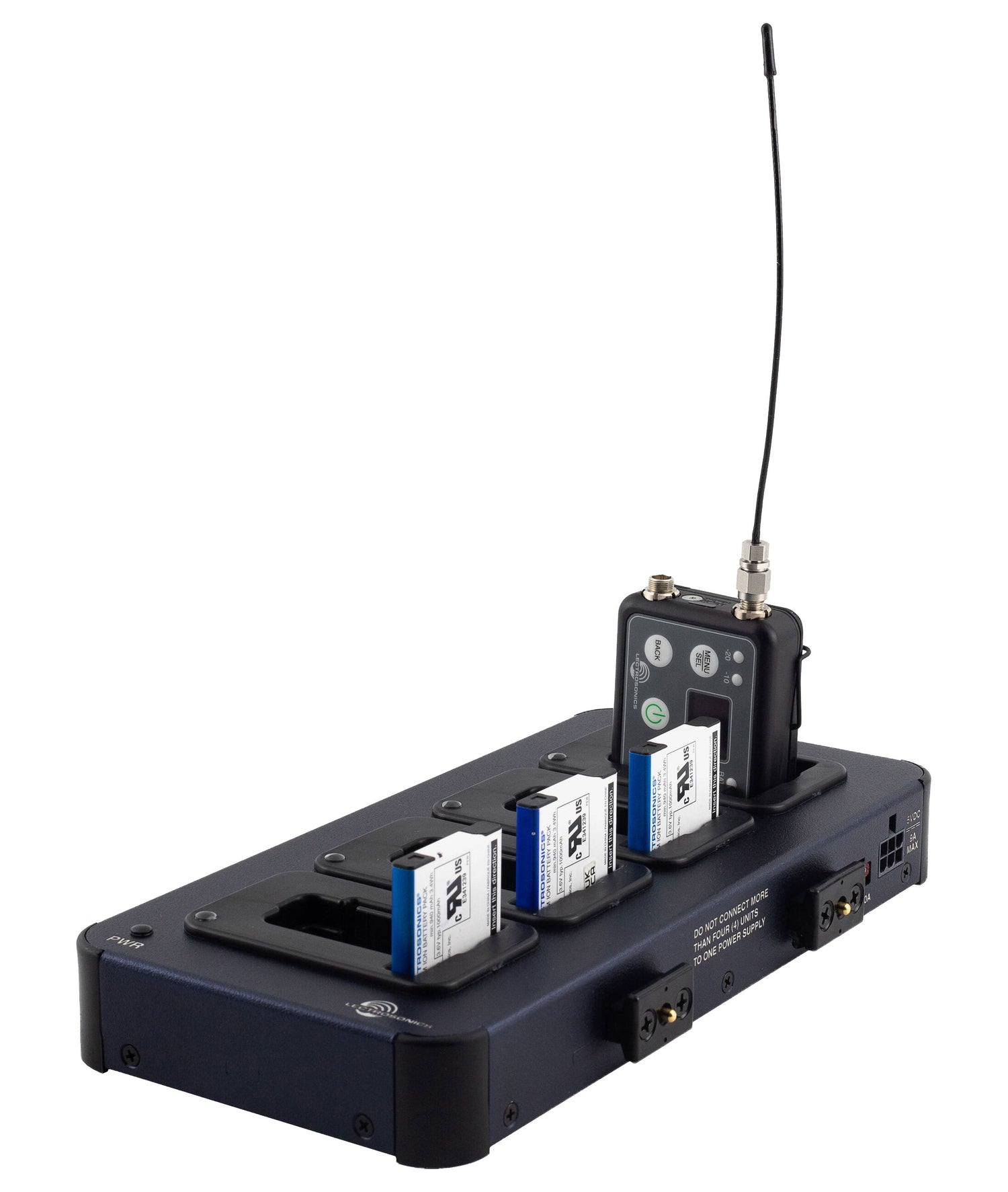

4-Bay Charger for DSSM and LB-50
The CHSDSSM drop-in charger can charge up to four DSSM transmitters or LB-50 batteries simultaneously.

Expandable Charging System
Daisy-chain up to 4 charging units (16 batteries or transmitters) with one DCR5/9AU power supply (sold separately).

Charge Status LEDs
Each bay has a red/green LED to indicate charging progress at a glance.

Fast Charging
Fully charges each battery or unit in approximately 3 hours.

Compact and Rack-Friendly
Measures just 8.5 x 4.4 x 1.2", ideal for mobile kits or larger charging stations.

Specifications

General Specifications
Device Type: Water-Resistant Micro Digital Wireless Transmitter
Frequency Range: 941.525 to 959.825 MHz
Wireless Technology: Digital UHF
Compatibility: DSQD, DCHR, M2Ra, DSR, DSR4, DCR822
Encryption: AES 256-bit CTR (Universal, Shared, Standard, Volatile)
Construction: Machined aluminum alloy, ebENi finish
Water Resistance: IP57 (dust protected, immersion up to 3.2 ft for 30 min)
Display: OLED
Control Interface: Membrane switches, LectroRM App (iOS/Android), IR Sync
Firmware Updates: USB Micro port (internal, via Wireless Designer software)

Audio Specifications
Input Connector: LEMO 3-pin
Input Types: Microphone, Instrument, Line-level
Bias Power: 4 V Plug-in Power
Frequency Response: 35 Hz to 20 kHz
Limiter: DSP-controlled analog limiter with >30 dB range, dual-release envelope
Low Frequency Roll-Off: Selectable at 35, 50, 70, 100, 120, 150 Hz
Gain Adjustment: 1 dB steps
Muting/Auto Gain: Not supported

RF Specifications
RF Output Power (D2 Mode): 10 / 25 / 50 mW
RF Output Power (HDM Mode): 4 mW
Antenna: Removable flexible whip, SMA mount

Power Specifications
Battery Type: LB-50 Li-ion rechargeable, 1000 mAh (included, replaceable)
Battery Life: Up to 6 hours (on full charge)
Charging Time: 3 hours (via CHSDSSM charger)

Physical Specifications
Dimensions: 2.6 x 1.9 x 0.7 in / 66 x 49 x 17 mm
Weight: 3.5 oz / 100 g (with battery)

Charging Station (CHSDSSM) Specifications
Capacity: Charges up to 4 DSSM transmitters or LB-50 batteries
Chaining Capability: Up to 4 units (16 slots total) with single DCR5/9AU PSU
Charging Status: Individual LED indicators (Red = Charging, Green = Charged)
Fuse Protection: Individual 10A one-time fuse per bay
Power Input: 100–240 VAC, 50/60 Hz, 2 A (AC adapter not included)
Dimensions: 8.5 x 4.4 x 1.2 in / 216 x 111 x 29.4 mm
Weight: 1 lb / 471.7 g
