WISYCOM  |  SKU: 22668

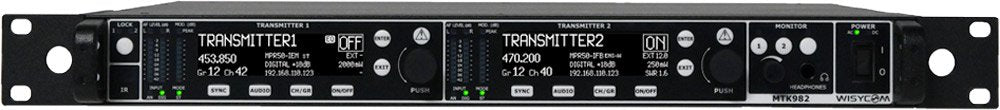

MTK982

Wireless Transmitters

UHF Rack Dual Transmitter, Mono/Stereo/Intercom digital direct synthesis (DDS), Up to 300 MHz bandwidth in 470/1260 MHz range (USA/Canada)

$0.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Wisycom MTK982 is a versatile dual wideband, stereo IEM/IFB transmitter. The MTK982 provides the highest audio quality, extremely low spurious emissions, and is capable of generating multiple types of RF modulations.

Options: DC: DC power supply (10-28VDC)

Features

330 MHz Bandwidth

Direct Digital Synthesis (DDS) of signal for the highest flexibility and quality

Stereo, mono, and intercom audio modulation

DSP audio processing (40bit floating point / 2Gflops) with multi-companding

Low interference output stage with wideband intermodulation phase cancellation

2400 user-defined frequencies (40 groups by 60 channels.)

Analog & digital input (AES3)

Output power up to 2 Watt

Redundant power supply 230/110 Vac & 12 VDC (DC option)

SWR (Stationary Wave Ratio) sensing on antenna outputs

Primary/Secondary outputs for distributed applications

Specifications

Frequency ranges:
EU: 470-700 MHz
US/CA: 470-663 MHz
JP1: 470-714 MHz
JP3: 1240-1260 MHz

Switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window: 330 MHz tuneable
Frequencies: 5 kHz steps
RF Power: switchable typ. 10,20,30,50,75,100,150,200,250,400,500,750,1000,1200,1500,2000 mW (ERP)
Max RF output power: 2 Watt

NOTE: RF power can be limited on frequency base accordingly to specific country restrictions (software based)


Antenna connector: 2 x BNC type female
M-S I/O: 2 x SMA BNC type female connectors
RF impedance: 50 Ω
Modulation: FM, MPX Stereo or mono, selectable with dedicated menu
Peak deviation: ±56 kHz for mono wideband, ±35 kHz for mono narrowband, ±48 kHz for stereo (preset mode)
Spurious emissions: < 2 nW
Noise Reduction system:
ENR , ENC, ENS
NONE-d50, no compander, pre-emphasis 50 μs
NR, to work with Wisycom Intercom system
Other compander on request

AF bandwidth:
20÷20kHz (mono)
30÷15kHz (stereo)
NOTE: custom setting can change audio bandwidth (3/4/12/15/20kHz)

Audio input connector: XLR-3 / 1/4" (6,3mm) jack combo socket, electronically balanced
Audio input level: +18dBu
Pin Assignments:
XLR: 1=ground 2=hot 3 =cold
6.35mm (1/4") TRS: Tip=hot Ring=cold Sleeve=ground
Digital output: AES3 on XLR-3M (32kHz ÷108 kHz)
Monitor output: 6.35mm (1/4") jack socket, balanced
Monitor output level: 20+120mW@24Ω , 80+80mW@150Ω
Monitor out impedance: 25Ω for auricle
Managing interface: 10/100 Base TX Ethernet port on RJ45 connector
Display: 64 x 256 OLED (yellow)
Power supply: 90 - 264 V AC, 47/63 Hz
MPX Pilot tone: 19kHz
Tone squelch:
32.789Hz (for Wisycom wireless microphone, i.e. ENR/ENC)
131,8 (for Wisycom intercom, i.e. NR)

NOTE: custom setting can change the Tone squelch (30-260Hz and 18-38KHz)


DC options: 10-28 Vdc, 6A max
Temperature range -10 ÷ +55 C
Dimensions: 19"/1U 43,8 x 483 x 349 mm (HxWxD) with brackets
Weight: 4 Kg
