TEGELER AUDIO  |  SKU: 17930

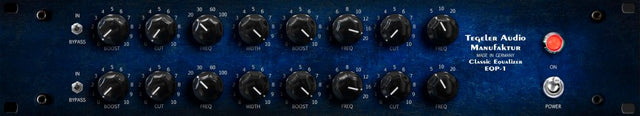

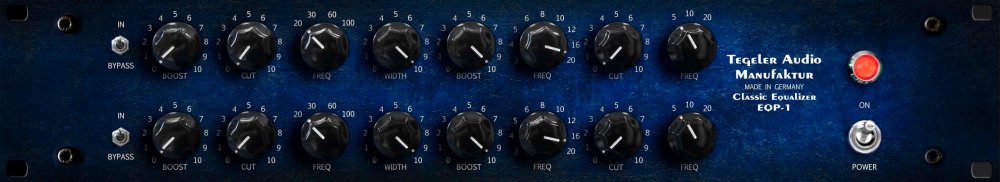

Classic Equalizer EQP-1 - Passive Tube Equalizer

Classic Equalizer EQP-1 is a dual-channel passive EQ based on the legendary Pultec EQP-1


$2,625.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Classic Equalizer EQP-1 was built after the model of classic vintage equalizers with passive components (condenser and inductor) in the EQ section which accounts for it´s special sound.

The EQP-1 consists of three parts: Bass Boost and Cut, Treble Boost with adjustable bandwidth and a High Frequency Cut.

WHAT IS THE TUBE STAGE DOING The Classic Equailzer is equipped with a tube stage and high quality input and output transformers.

Beside the open and airy sound of the equalizer the signal will get more density and additional presence by the tube and the transformers. The low end becomes more transparent and defined. The highs will sound more rounded and pleasant to the ears.

This effect will already take place as soon as the device is in the signal path and even if the equalizer is not used.

Features

Low boost/attenuation (Low shelf):

20Hz, 30Hz, 60Hz, 100Hz

High boost (Peak with variable bandwidth):

3kHz, ,4kHz, ,5kHz, 6kHz, 8kHz, 10kHz, 12kHz, 16kHz, 20kHz

High attenuation: (High shelf) 5kHz, 10kHz, 20kHz

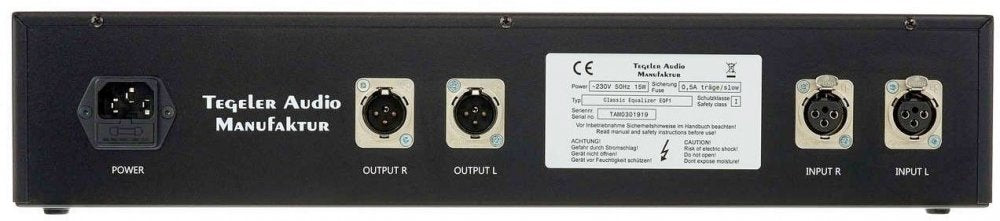

Balanced input and output

Input and output transformer

Bypass switch

internal power supply

Height: 88,1mm (2HE), width:483mm, depth:220mm

Specifications

Frequency Response: 20Hz - 22kHz

Maximum Input Level: +20 dBu

Input Impedance: 2.4k

Output Impedance: < 600

Maximum Output Level: +22 dBu

Dynamic Range: 95 dB

Voltage: 230 V~/50Hz or 115V~/60Hz

Fuse: 500mA träge

Maximum Power Consumption: < 25 W (0,01A at 230 V)

Dimensions: 2 U, H:88.1 mm, W:483 mm, D:250 mm
