SANKEN  |  SKU: 14661

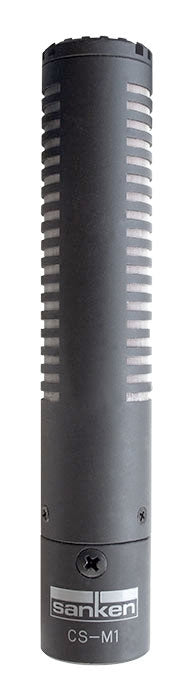

CS-M1

From professional boom pole drama and film location recording to DSLR camera mounted applications, the CS-M1 delivers pristine quality audio with sharp directivity.


$1,238.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

At only 4" in length and weighing less than 2 oz., the unobtrusive CS-M1 can be used in tight mic situations to faithfully capture the story. Like all Sanken shotguns it is rugged and dependable with a wide range of applications where sound clarity and noise rejection are critical requirements.

The CS-M1's lightweight, rugged design and unique components assure optimum resistance to humidity and adverse temperature changes.

The mic is especially suited to shoots where tight patterns and premium sound are the goal. It can be camera mounted without interfering with even a short lens, yet still provide the quality of audio demanded by today's professionals, all at an affordable price.

Features

Unique Sanken lightweight design

Sharp directivity

Clear sound

Short 4 length, lightweight (less than 2oz) for easy operation

Ideal for boom pole operation on drama and film shoots

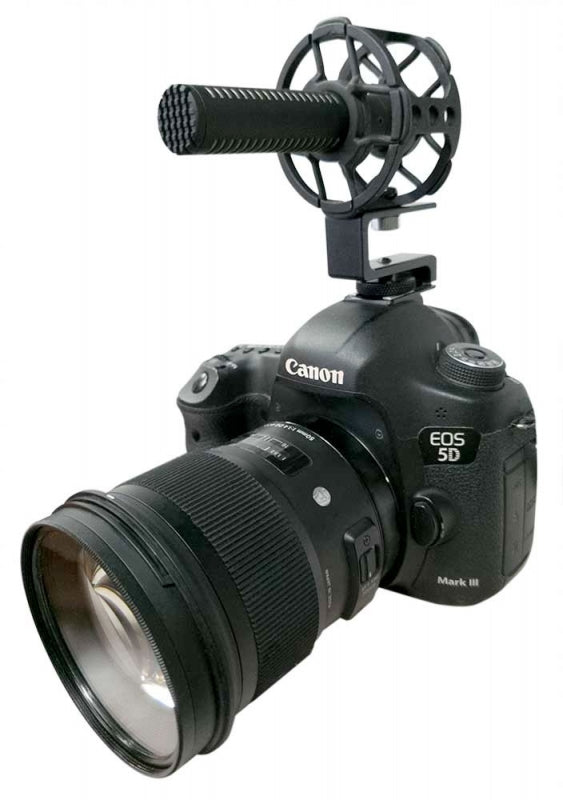

Ideal for mounting on cameras with short lens

Suitable for ENG applications

Standard 19 mm diameter

Advanced RFI rejection

Wide 100Hz - 18kHz frequency range

Rugged and dependable design

Specifications

Model Name: CS-M1

Transducer: Back Electret Condenser

Directivity: Super Cardioid / lobar

Frequency response: (100Hz - 18kHz)

Sensitivity (at 1kHz): 79mV/Pa (-22dB, 0dB=1V/Pa)

Equivalent noise level (A weighted): 16dB SPL

Max SPL (1% THD): 137dB SPL

Output impedance( 1kHz ): 140 ohms

Powering: +48V±4V Phantom Powering

Current consumption: 4mA

Weight: 1.9oz (55g)

Dimensions: 4.1 (103mm) length, 0.75 (19mm) diam.

Surface finish: Matte Black

Connector: XLR-3-12C(M) equivalent, 1: GND, 2: Hot, 3: Cold

Included Accessories:

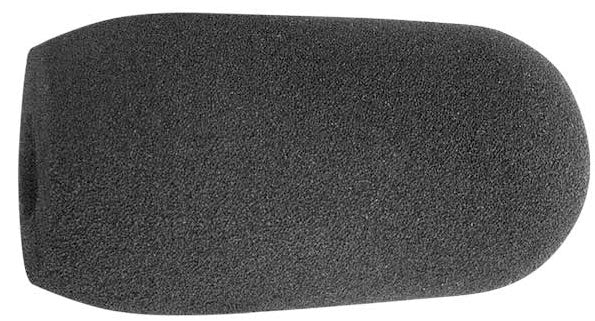

WSM1 Foam Windscreen

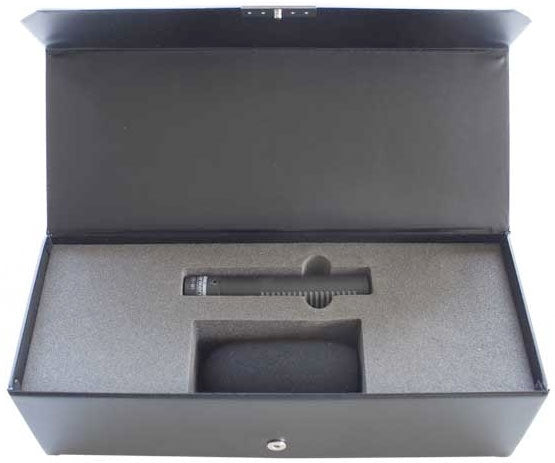

CS-M1 Vinyl Case
