WAVES

Hear Technologies WSG Bridge for Dante

Soundgrid

64ch Dante-SoundGrid bridge, bidirectional routing, 0.52-0.78ms latency, 44.1-96kHz, 1RU rack, plugin-ready, redundant PSU support, Waves plugin integration

$4,470.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Waves WSG Bridge is a 1U rack-mountable interface that seamlessly connects Dante and SoundGrid networks, enabling bidirectional routing of up to 64 channels at sample rates from 44.1 to 96 kHz. Designed for live sound, broadcast, and studio applications, the WSG Bridge allows you to integrate Waves' acclaimed real-time plugin processing into any Dante-based system using a SoundGrid server (sold separately).

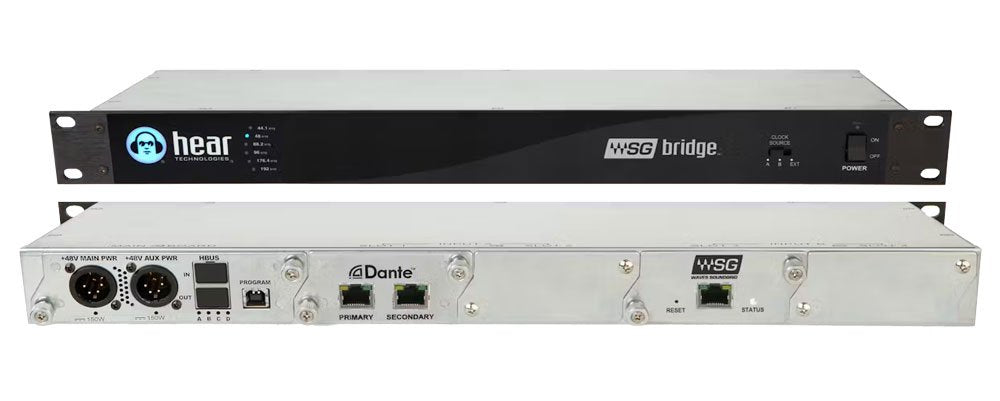

Engineered for ultra-low latency performance-as low as 0.52 ms one-way at 96 kHz-the WSG Bridge features robust I/O with dedicated RJ45 ports for both Dante and SoundGrid, USB connectivity for firmware updates, and support for future expansion via HBUS ports and optional clock modules. Redundant power input options ensure uninterrupted operation in mission-critical setups. Bring professional-grade plugin processing and flexible network audio routing together with the WSG Bridge.

Features

Seamless Dante-SoundGrid Integration: Routes up to 64 audio channels bidirectionally between Dante and SoundGrid networks.

Add Waves Plugins to Dante: Enables real-time processing with Waves and third-party plugins via a connected SoundGrid Server.

Ultra-Low Latency: Typical latency under 0.8 ms at 44.1-96 kHz sample rates for real-time performance.

Professional I/O Support: Handles 64 channels at lower sample rates or 32 channels at higher rates (88.2/96 kHz).

Rugged 1U Rackmount Design: Compact and road-ready with a standard rack-mountable enclosure.

Flexible Clocking: Supports clocking via SoundGrid, Dante, or future external options.

Future-Ready Connectivity: Includes USB port for firmware updates and HBUS jacks for expansion.

Redundant Power Option: Dual 48V DC inputs for primary and optional secondary power supply (sold separately).

Compatible with Studio and Live Environments: Ideal for touring, broadcast, and installed AV systems requiring high-end plugin processing.

Specifications

General Specifications

Product Type: Dante to SoundGrid audio network bridge

Function: Bidirectional routing of 64 channels between Dante and SoundGrid

Enclosure: 1 RU rack mountable

Weight: 6.3 lb or 2.8 kg

Dimensions: 1.75 in H x 19 in W x 8.5 in D

Audio Routing

Dante I/O: 64 channels at 44.1 or 48 kHz, 32 channels at 88.2 or 96 kHz

SoundGrid I/O: 64 channels at all supported rates

Latency: 0.787 ms at 44.1 kHz, 0.778 ms at 48 kHz, 0.580 ms at 88.2 kHz, 0.520 ms at 96 kHz, Round-trip latency is double

Supported Sampling Rates

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

176.4 kHz and 192 kHz (clocking supported)

Clocking and Synchronization

Clock Sources: A: Dante input, B: SoundGrid input

EXT: Optional future external word clock input, Synchronization: Via Ethernet

Connectivity

Dante Interface: 8 pin RJ45 100BaseT or 1000BaseT

SoundGrid Interface: 8 pin RJ45 1000BaseT

USB: USB 2.0 for firmware updates and future use

HBUS: RJ45 input and output for future expansion

Power Requirements

Main Power: 48 VDC, 400 mA

Secondary Power (Redundant): 48 VDC, 400 mA

External Supply Input Voltage: 100 to 240 VAC, 50 or 60 Hz
