MILLENNIA  |  SKU: 9237

HV-32

Mono Mic-Preamps

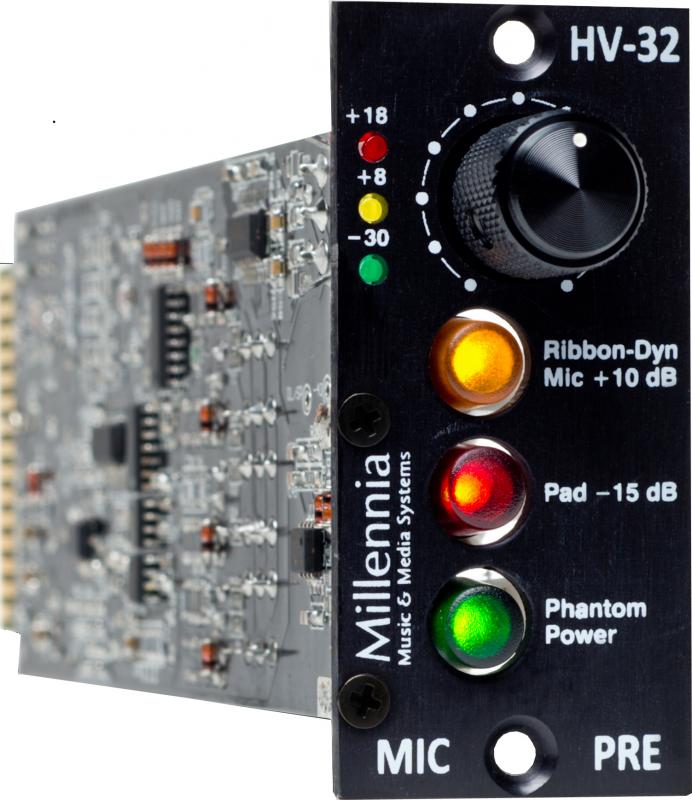

The Millenia HV-32 is a high quality 200 Series preamp that fits API Legacy and Vision consoles.

$819.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

  • Continuously variable gain control
  • Front panel instrument input
  • DC coupled ribbon mic with 10dB gain boost setting
  • 80 Hz rolloff filter
  • 48V phantom power
  • 15 dB Pad
  • Polarity flip
  • API 200 series compatible format
    •

    Specifications

    Minimum Gain : 8.5 dB

    Maximum Gain (continuously variable) : 60 dB (70 dB in Ribbon Mode)

    Frequency Response : +0 / -3 dB sub 3 Hz to beyond 300 kHz

    Noise 60 dB Gain, 10 Hz - 30 kHz, Inputs common : -130 dB EIN

    Total Harmonic Distortion + Noise : 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out < .001%, Typ. < .0005% (< 5 ppm)

    Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out : < .0009%

    Phase Response 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out : < 2 degrees deviation

    Common Mode Rejection Ratio 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M. : > 65 dB, Typ > 85 dB

    Slew Rate 35 dB Gain, +27 dBu Out : > 25 Volts per microsecond

    Maximum Input Level 20 Hz - 40 kHz : +20 dBu (no attenuator pads required)

    Maximum Output Level 20 Hz - 40 kHz : +28 dBu

    Phantom Input Impedance 1 kHz : 6,750 ohms

    Output Impedance : 24.3 Ohms (x2)

    Phantom Powering : +48 V dc, +/- 2 V dc

    Dimensions/Shipping Weight : 1-1/8" W x 2-5/8" H x 5-7/8" D, .25 lbs.
