TUBE-TECH  |  SKU: 10029

MP2A

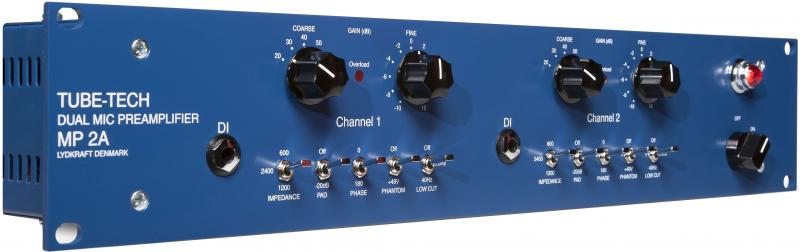

The MP 2A is a combined mic preamp/DI, based on a classic TUBE-TECH design, but featuring even higher fidelity and a few new features.


$5,595.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The MP 2A is a combined mic preamp/DI, based on a classic TUBE-TECH design, but featuring even higher fidelity and a few new features: An impedance switch to match the input perfectly to all types of microphones, an overload indicator and 2 dB gain steps.

MP2A is the second in the new range of upgraded microphone preamplifier/DI's.( The modular PM1A was the first.) These new preamps features even higher headroom and fidelity than the earlier TUBE-TECH micpre''s. Serious listening tests of the MP 2A have revealed a sound quality second to none, placing it among a handful of the worlds very best designs.

The MP 2A DI continues the TUBE-TECH tradition of extremely good sounding DI's, delivering world class sound for bass and guitar DI recordings. You simply won't find a better DI than this!

Features

The TUBE-TECH MP2A is a combined Microphone Preamplifier and Direct Instrument amplifier.

The input provides switchable +48 V phantom power, selectable mic. impedance of 600/1200/2400 Ohm,

phase reverse switch, low-cut filter (20 Hz/40 Hz/off), as well as a switchable -20 dB pad.

Gain is adjustable from +10 dB to +70 dB.( 10db steps, coarse +2 dB steps, fine.)

The Direct Instrument Input are unbalanced with a gain ranging from + 10 dB to + 60 dB.

The amplifier is all tube. Input transformer is enclosed in a MU-metal can. Input and output transformers come with a static screen between the primary and secondary wirings. The input and output are balanced as well as fully floating.

Specifications

All-tube design featuring push-pull output amplifier

Frequency response @ -3 dB: 5 Hz to 60 kHz

Typical noise: 5 dB @ 200

CMRR: > 60 dB @ 10 kHz

Gain: +10 dB to +70 dB in 2 dB steps - DI gain: 0-60 dB

Selectable mic input impedance: 600 /1.2 k/2.4 k

Selectable pad in front of input transformer (-20 dB)

Selectable +48 V phantom power

Low cut filter (20 Hz/40 Hz/Off)

Phase reverse

Overload indicator

Gold plated switches

DI jack input for a variety of instruments

DI input impedance > 1 M

MU-metal shielded input transformer

In- and outputs are transformer balanced and fully floating
