RADIAL ENGINEERING  |  SKU: 21285

Nuance Select

Monitoring Controls

Monitor controller with two source inputs, mono summing, mute and dim switches, speaker A/B and sub outputs, independent headphone level control and aux output for external devices

$839.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Nuance Select is a studio monitor controller designed so you can hear every single detail through your speakers, with a distortion profile so low that it cannot be measured by most audio testing equipment.

Control without Coloration The Nuance Select is a studio monitor controller designed so you can hear every single detail through your speakers, with a distortion profile so low that it cannot be measured by most audio testing equipment. Complete audio transparency is achieved through an innovative circuit that allows you to hear the true mix through your speakers without any sacrifice in audio quality, all while still providing you with total control over your monitor setup.

Looking the Part Housed in a robust steel enclosure with a milled aluminum faceplate, the Nuance Select will fit the aesthetic of any studio space and easily incorporate into your workflow, with an ‘everything you need and nothing that you don't' approach to the feature set. Backlit monitor selection and control switches are complemented by oversized chrome knobs on the headphone and master level controls.

Inputs, Outputs, and Useful Add-ons The Nuance Select features two sets of stereo source inputs, along with two sets of balanced TRS outputs for powered speakers. A full-range subwoofer output is also included that can be activated with either set of speakers as desired. Two independent headphone amplifiers are available for monitoring or control room tracking " each headphone output can be assigned to its own stereo source so you can feed a cue mix to an artist while monitoring the main mix yourself. The headphone outputs are provided on easily accessible front panel jacks, and a stereo Aux output is available on the rear panel that can be used to feed an additional headphone amplifier for live room tracking.

Features

Transparent Monitoring: Provides clear, uncolored audio for accurate mixing.

Multiple Input Sources: Switch between two input sources for flexibility.

Mono, Mute, and Dim Controls: Mono sums channels, Mute cuts output, and Dim lowers volume by -15dB.

Switchable Speaker Outputs: Toggle between two sets of speaker outputs, with independent subwoofer control.

Independent Headphone Monitoring: Two headphone outputs with individual volume controls and source selection.

Aux Output: Direct feed to additional audio devices like headphone amplifiers.

Stepped Level Control: Precise level adjustments with consistent left-right balance.

High-Quality Build: Class-A signal path for ultra-low distortion.

Specifications

General Specifications

Monitoring system designed for transparency without sound coloration

Class-A signal path, capacitor-free design with DC servos

21-position stepped attenuator for main level control, matched within 0.1 dB

Construction: Milled aluminum faceplate with 18-gauge steel chassis

Dimensions: 10" x 5.25" x 3" (254 x 133 x 76 mm)

Power: +15V, +5V DC, 29W max (external power supply included)

Operating temperature: +5C to +40C

Audio Specifications

Frequency response: 2 Hz - 200 kHz ±0.25 dB @ +4 dBu

Maximum input: +27 dBu

Maximum output: +26 dBu

Input impedance: 20 kΩ

Output impedance: 112 Ω

Total Harmonic Distortion (THD): <0.00001%, -140 dB balanced outputs @ 1 kHz @ +18 dBu

Signal-to-noise ratio: 125 dB, 127 dB A-weighted

Crosstalk: -125 dB @ 1 kHz, -110 dB @ 10 kHz

Headphone Amplifier Specifications

Output impedance: 2.5 Ω

Output power: 33 mW x 2 @ 22 Ω, 100 mW x 2 @ 68 Ω

THD: 0.00012%, -118 dB

Signal-to-noise ratio: 112 dB

Connectivity

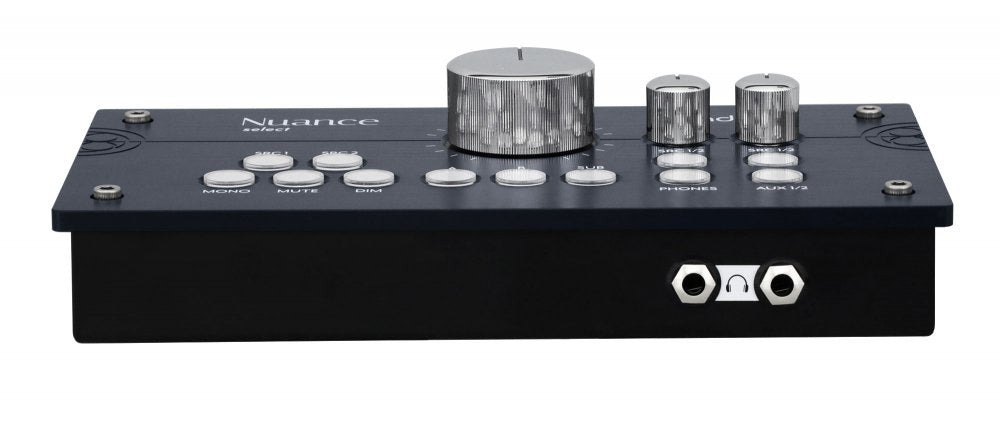

Front panel:2 headphone outputs (1/4" TRS), Independent source selection and volume control for each headphone output

Rear panel: 2 balanced line-level stereo inputs (Source 1 & 2, 1/4" TRS), 2 balanced line-level stereo outputs for speakers (Speaker A & B, 1/4" TRS), Balanced line-level mono subwoofer output (1/4" TRS), Stereo unbalanced Aux output (1/4" TRS)

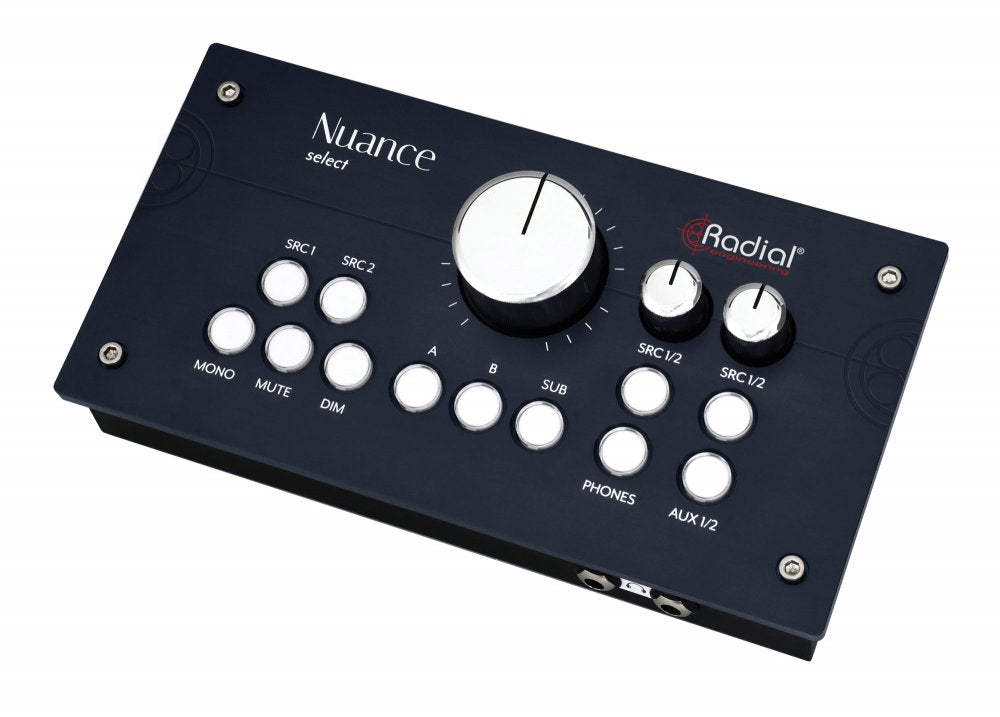

Front Panel Controls

Source selection (SRC 1 & SRC 2)

Mono switch (sums left and right channels)

Mute switch (cuts speaker and sub outputs)

Dim switch (-15 dB volume reduction)

Speaker output selection (A & B)

Subwoofer activation

Level control (for speaker and sub outputs)

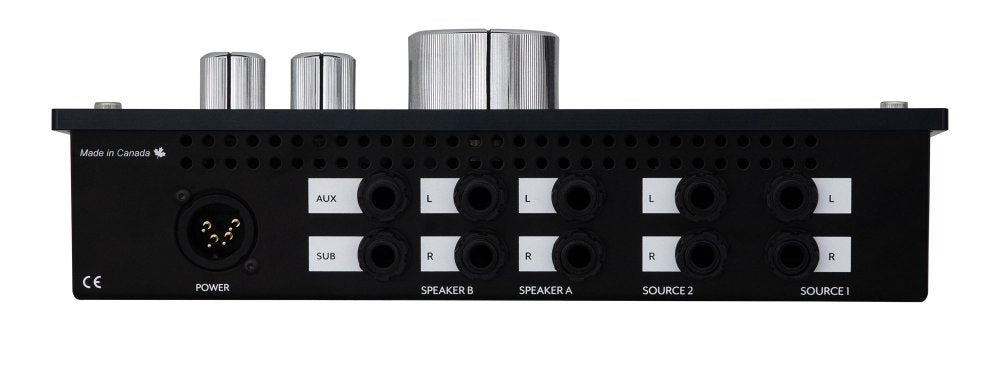

Rear Panel Features

Power connection: Locking connector for external power supply

Balanced line-level outputs for speakers and subwoofer

Unbalanced stereo Aux output for external headphone amplifiers or other devices
