FERROFISH  |  SKU: 18818

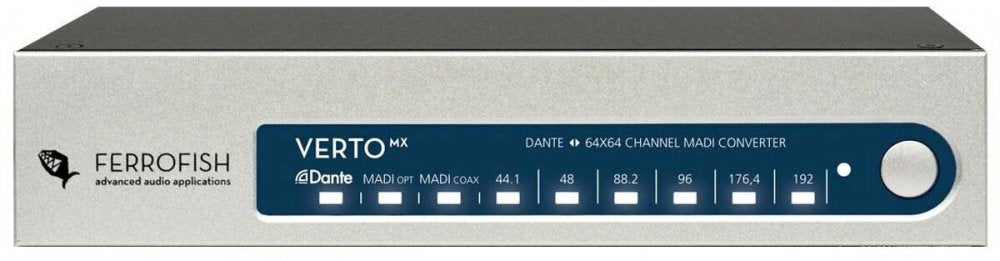

Verto MX

64 x 64 MADI from/to Dante converter


$2,319.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Dante is the de facto standard for networking audio equipment. With the Verto MX it's now possible to easily integrate your existing beloved MADI equipment into a Dante network. Whether mixer or MADI converter " the Verto MX makes all 64 x 64 MADI channels immediately avalilable in the network: "plug and play".

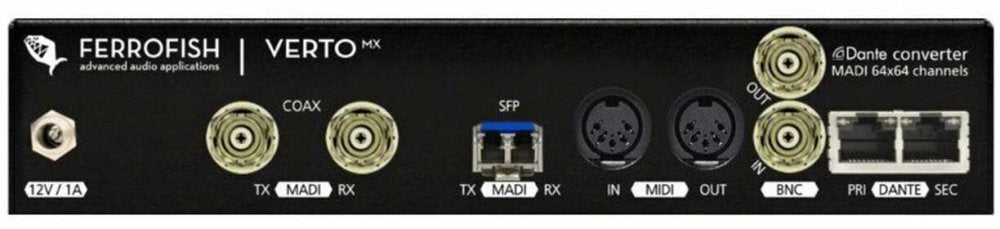

The ultra compact device has two MADI interfaces, so both optical and coaxial equipment can be connected. If the MADI signal fails, the other interface is automatically switched so that secure redundant operation can be configured. On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto MX supports up to 192kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.

Features

Dante Plug & Play Eco System


Integrate the Verto MX seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto MX turns into a MADI audio interface.

Redundant MADI I/O


The VERTO MX has two MADI interfaces: optical and coaxial. These are operated redundantly if required, by switching to the other port in case of failure. The optical interface is modular: The MADI SFP module can be easily replaced, for example, with a Singlemode module.

Additional features


The VERTO MX is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

Specifications

Dante I/O


2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
64 x 64 channel I/O (Dante Brooklyn II board built-in)

MADI I/O (AES10)


Coaxial I/O (2 x BNC)
Optical I/O (2 x LC port via SFP, Multimode " Singlemode SFP module optional)

Channel count:
64 x 64 channels at 44.1, 48kHz
32 x 32 channels @ 88.2, 96kHz
16 x 16 channels @ 176.4, 192 kHz

MIDI I/O


2 x DIN5 connector for MIDI embedding/de-embedding
Conversion MIDI <> MIDI over MADI possible

Wordclock I/O


BNC: 1 x input, 1 x output
75 Ohm Termination set by default (switchable via Dante)

Power Supply


14.4VA (1.2A at 12V)
Polyfuse internal, self-resetting
1 x power supply included

Operation


Temperature range: 41F up to 113F (+5C up to +45C)
Humidity: <75%, non-condensing

Weight/Size


Weight: 0,9 kg
Dimensions: 22 x 9 x 4,5 mm (without rack ears)

Optional accessories

19" Rack mountain kit, metal (for mounting 1 x Verto in a 19" rack-space)

Multi-range Power Supply 12V (EU)

MADI Singlemode Module

MADI SC / LC Adapter
