APOGEE

Symphony I/O MkII 32X32SE-TB-DAN

Multi-Channel Converters

32 line in, 32 line out, dual 16x16 modules, Thunderbolt, Pro Tools HD and Dante connectivity, AD/DA conversion, Dolby Atmos ready, modular I/O system

$16,635.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

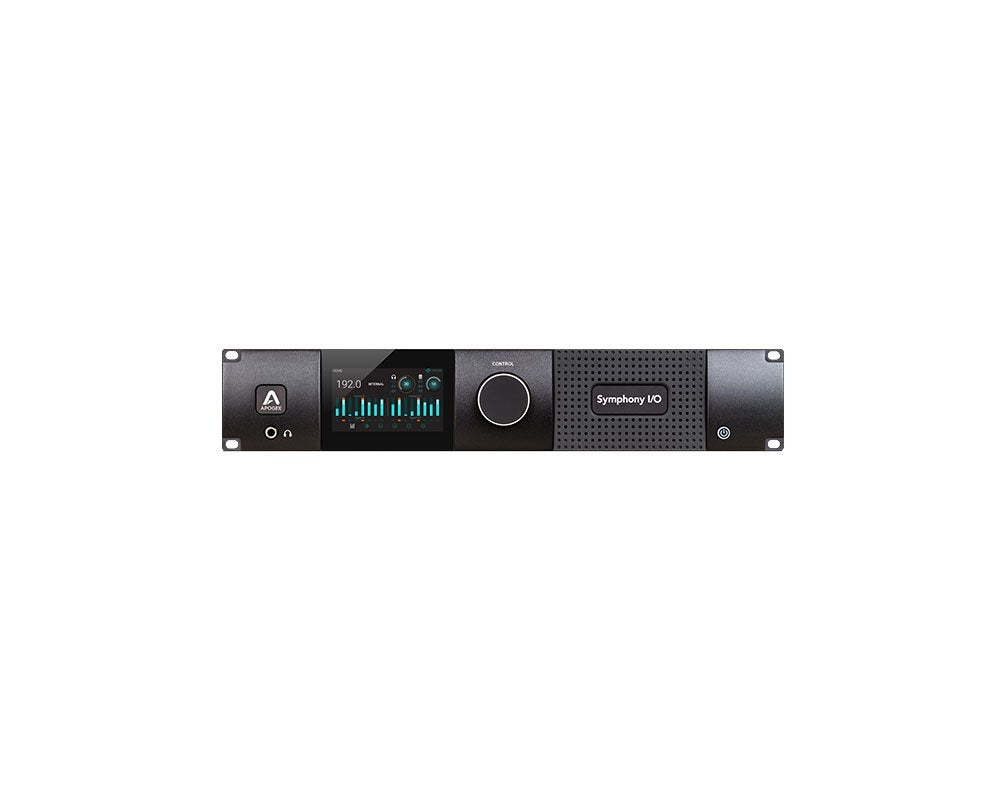

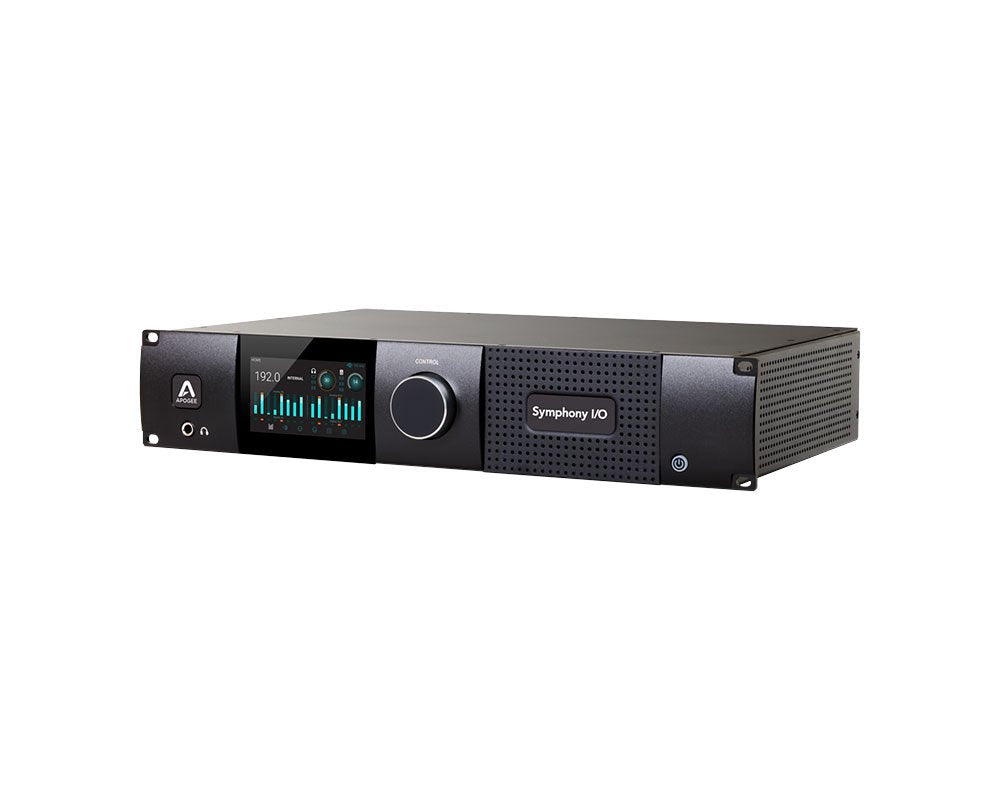

The Symphony I/O MkII 32X32SE-TB-DAN is Apogee's ultimate solution for high-capacity, high-performance audio interfacing in professional studio environments. Designed for engineers and producers working with expansive setups or immersive audio formats, this configuration includes dual 16-16 Special Edition line I/O modules, delivering a staggering 32 analog inputs and 32 outputs. These are routed through four DB25 connectors per module and supplemented with S/PDIF digital connectivity.

Equipped with Thunderbolt, Pro Tools HD Plus, and Dante interface cards, this unit provides maximum flexibility for hybrid workflows across Mac and PC platforms. Whether you're integrating into a Pro Tools HDX system, routing over a Dante network, or relying on Thunderbolt for ultra-low latency, this interface is ready for anything. Built for demanding applications like Dolby Atmos or large-scale multitrack production, the Symphony I/O MkII 32X32SE-TB-DAN merges elite conversion quality with expansive I/O and robust control to form the centerpiece of any world-class audio rig.

Features

Features two 16-16 Special Edition line I/O modules for a total of 32 inputs and 32 outputs.

Includes Thunderbolt, Pro Tools HD Plus, and Dante connectivity for maximum studio flexibility.

SPDIF coaxial digital I/O included for additional digital routing options.

Dolby Atmos ready with support for immersive multichannel speaker configurations.

Delivers top-tier AD/DA conversion with exceptional clarity and dynamic range.

Modular design allows full customization and future expansion.

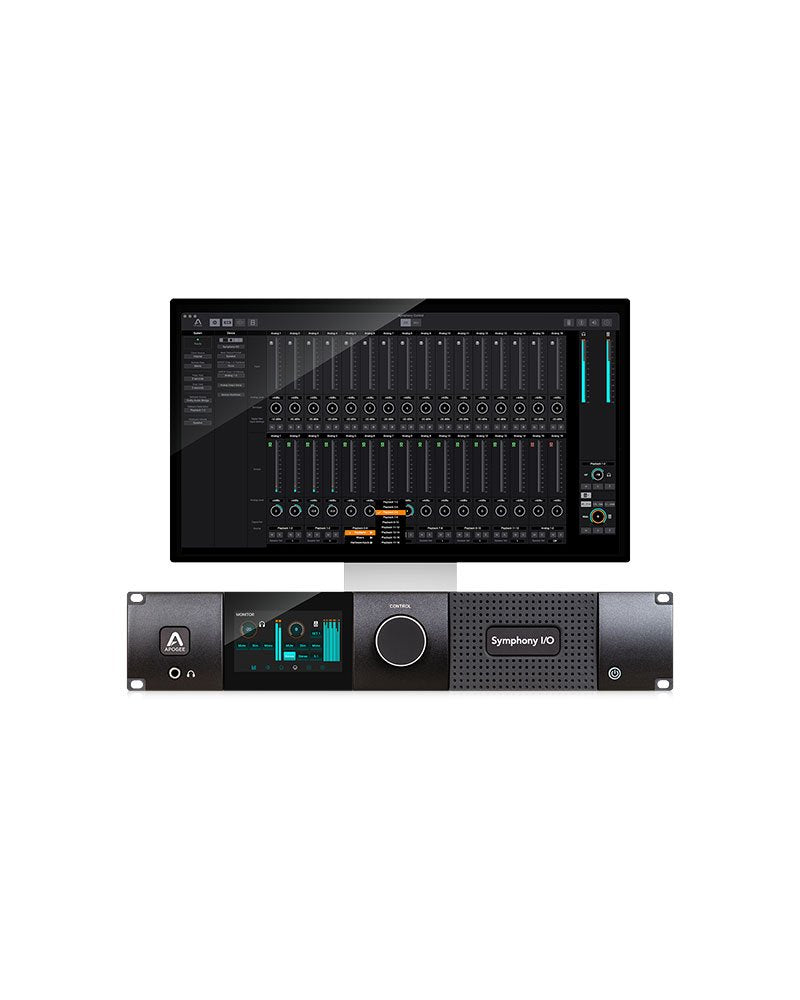

Touchscreen control for easy monitoring, routing, and session management.

Ideal for high-end recording, mixing, mastering, and immersive audio production.

Built in the USA for professional durability and performance.

Specifications

General Specifications:

Product: Apogee Symphony Mk II

Model: Symphony I O MkII 32X32SE TB DAN

Configuration: 32 Line Inputs, 32 Line Outputs, S PDIF Coaxial, Thunderbolt, Pro Tools HD Plus, and Dante connectivity

Display: Intuitive touchscreen interface

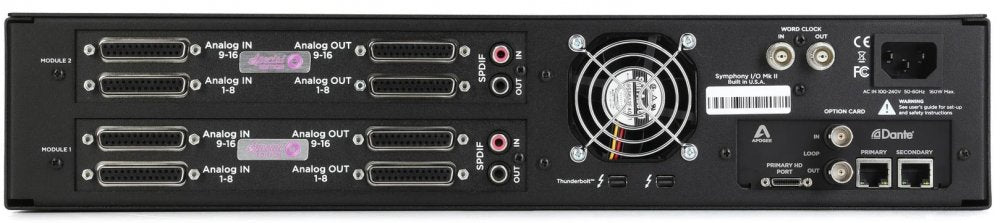

Modularity: Two 16x16 SE line I O modules with 4 DB25 connectors each

Power: 90 to 240 VAC, 50 to 60 Hz, 150 W

Build: Designed and built in the USA

Dolby Atmos Ready: Supports immersive audio workflows with up to 32 speaker outputs

Analog to Digital Conversion:

THD plus N: minus 115 dB at 22 dBu unweighted

Dynamic Range: 122 dB A weighted

Max Input Levels: plus 24 dBu at plus 4 dB setting, plus 6 dBV at minus 10 dB setting

Frequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dB

Input Impedance: 10 kilo Ohm

Digital to Analog Conversion:

THD plus N: minus 119 dB at 21 dBu unweighted

Dynamic Range: 126 dB A weighted

Max Output Levels: infinity to plus 24 dBu

Frequency Response: DC to 20 kHz plus minus 0.05 dB

Output Impedance: 50 Ohm

Balanced Outputs: Apogee Perfect Symmetry Circuitry

Headphone Output:

Connector: 1 stereo quarter inch front panel

THD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 Ohm

Dynamic Range: 121 dB A weighted

Output Design: Apogee Constant Current Drive

I O Configuration:

Line Inputs: 32 total across two 16x16 SE modules

Line Outputs: 32 total across two 16x16 SE modules

Digital I O: S PDIF Coaxial

Connectivity Options:

Platform: Thunderbolt, Pro Tools HD Plus, Dante

Thunderbolt Compatibility: Mac OS 10.10 and above

Pro Tools HD Compatibility: Mac or PC with Pro Tools HD 9 or greater

Dante Compatibility: PC compatible

Use Case:

Ideal for high channel-count professional studios requiring simultaneous Thunderbolt, Pro Tools HD, and Dante support

Optimized for Dolby Atmos and other immersive audio environments

SKU and Configuration:

SKU 1: SYM2 32X32SE

SKU 2: SYM2 DANTE CARD

Configuration: Interface with two 16x16 SE line I O modules and triple connectivity platform
