BAE

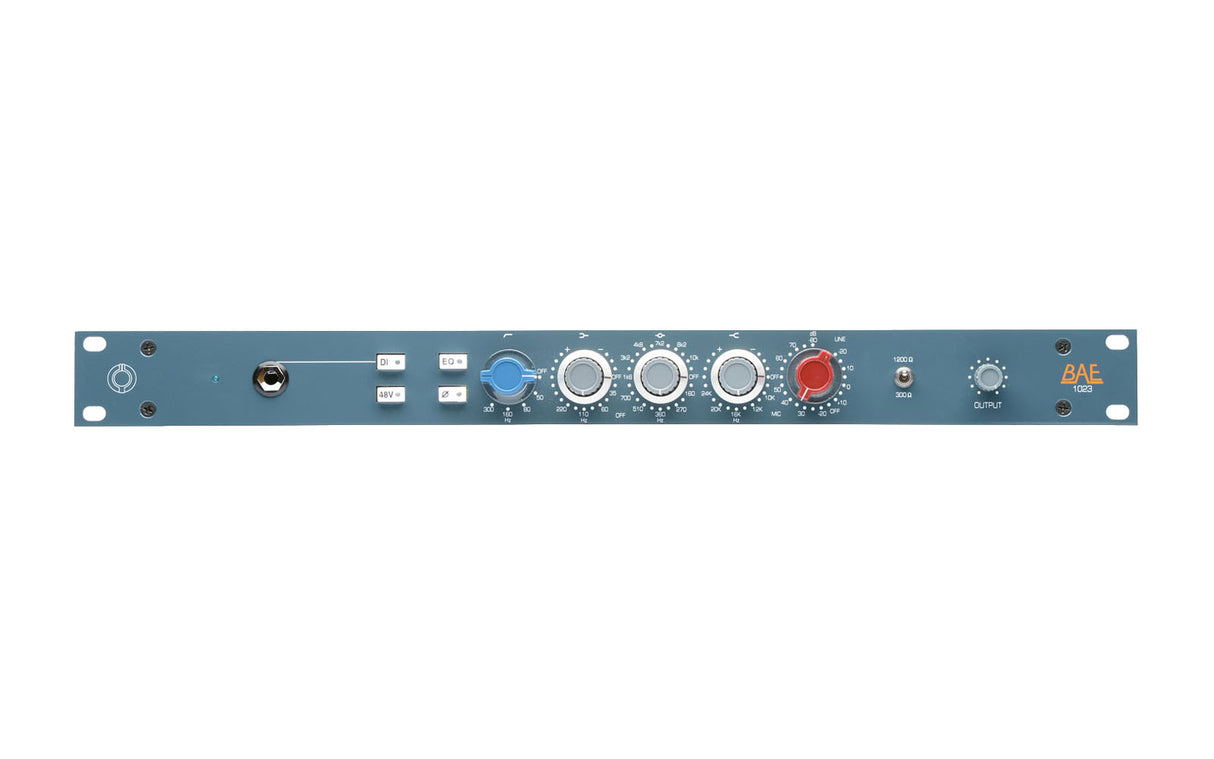

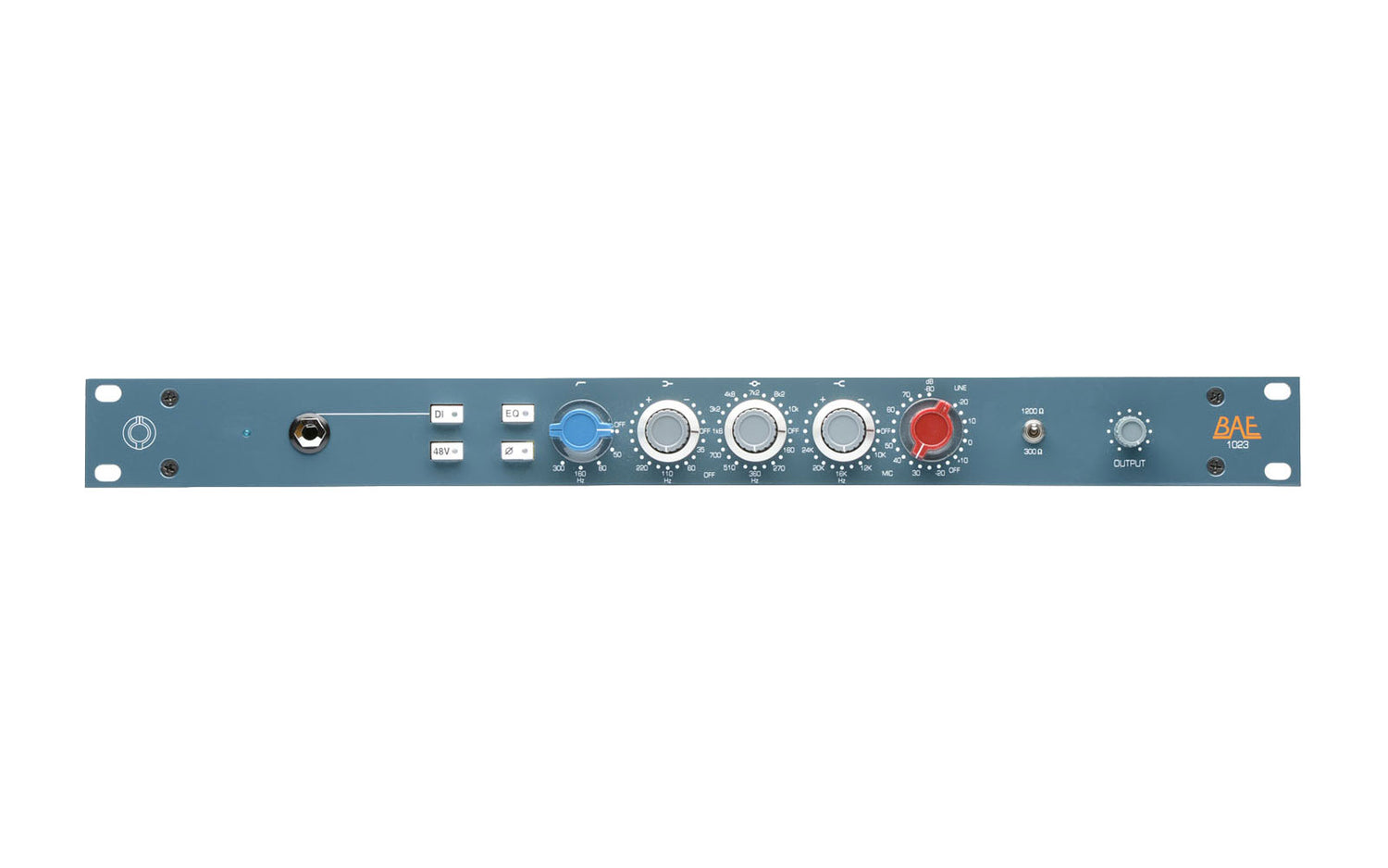

1023 - Mic Pre/EQ 19'' Rackmount Pair with PSU

Preamp EQ

Mic preamp and EQ pair, 3-band EQ with extended frequency selection, Carnhill transformers, high pass filter, 80 dB gain, rackmount design, power supply included

$9,725.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The 1023 Mic Pre/EQ 19" Rackmount Pair with PSU is a handwired dual-channel unit that brings classic analog character together with expanded tonal control. Built with Carnhill transformers and based on the same revered mic/line preamp design as the 1073, it delivers a rich, full-bodied sound that suits everything from vocals and instruments to full mixes. Housed in a convenient 1RU rack format with an included power supply, it offers a ready-to-use solution for studio environments that value both sound quality and workflow efficiency.

What sets the 1023 apart is its extended EQ flexibility, offering more selectable frequencies in both the mid and high ranges for deeper and more precise tone shaping. This added control allows users to creatively blend the mid band with the high and low shelves, opening up a wider range of musical possibilities. With its intuitive layout, broad gain range, and detailed equalization options, the 1023 pair provides a versatile and expressive front end for recording and mixing applications.

Features

Classic 1073-Style Preamp
Features the same renowned mic/line preamp design as the 1073, delivering rich, musical analog character.

Expanded EQ Control
Offers more frequency options than traditional designs, giving greater flexibility for detailed tone shaping.

Creative Midrange Shaping
Mid EQ can interact with high and low shelves, allowing unique and musical tonal blending.

Powerful 3-Band Equalizer
High, mid, and low bands provide broad control for shaping everything from subtle warmth to bold tonal changes.

Switchable High Pass Filter
Removes unwanted low-end rumble while preserving clarity and definition.

Handwired Premium Build
Constructed with high-quality transformers for classic analog sound and long-term reliability.

Wide Gain Range
Handles everything from delicate sources to high-level signals with clean, controlled amplification.

Phase and EQ Controls
Simple switching for phase inversion and EQ bypass allows quick adjustments during recording.

Dual-Channel Rackmount Design
Two channels in a single 19" unit make it ideal for stereo recording and space-efficient setups.

Included Power Supply

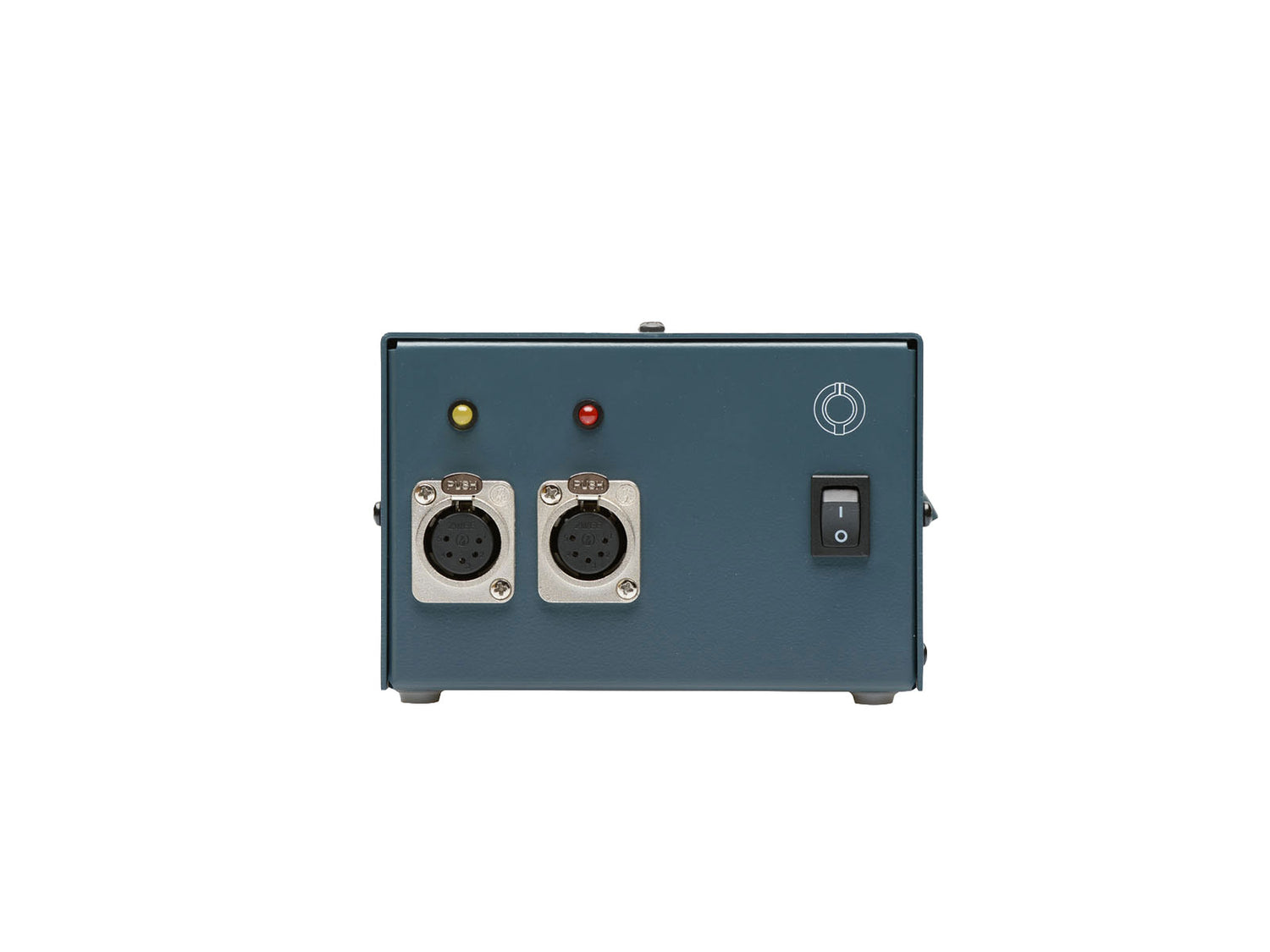

Comes ready to use with a dedicated PSU for stable and reliable operation.

Specifications

General Specifications
Device Type: Dual-Channel Microphone Preamplifier and Equalizer
Configuration: 19" rackmount pair with integrated power supply
Circuit Design: Based on 1073 mic/line preamp topology
Transformer: Carnhill (St. Ives) transformers
Construction: Handwired
Rack Size: 1RU

Preamp
Gain Range: 0 dB to 80 dB
Equivalent Input Noise: -110 dBu (unweighted, 300 kHz bandwidth)
Maximum Output Level: +27.4 dBu @ 600 Ω
Common Mode Rejection Ratio: ≥100 dB @ 60 Hz

Equalizer
EQ Type: 3-band EQ with high and low shelving, mid peaking
EQ Bypass: On/Off switch

High Frequency EQ
Type: Shelving
Gain Range: ±16 dB
Frequencies: 10 kHz, 12 kHz, 16 kHz, 20 kHz, 24 kHz

Mid Frequency EQ
Type: Peaking (bell)
Gain Range: ±12 dB or ±18 dB
Frequencies: 160 Hz, 270 Hz, 360 Hz, 510 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz, 8.2 kHz, 10 kHz

Low Frequency EQ
Type: Shelving
Gain Range: ±16 dB
Frequencies: 35 Hz, 60 Hz, 110 Hz, 220 Hz

High Pass Filter
Slope: 18 dB/octave
Frequencies: 45 Hz, 70 Hz, 160 Hz, 360 Hz

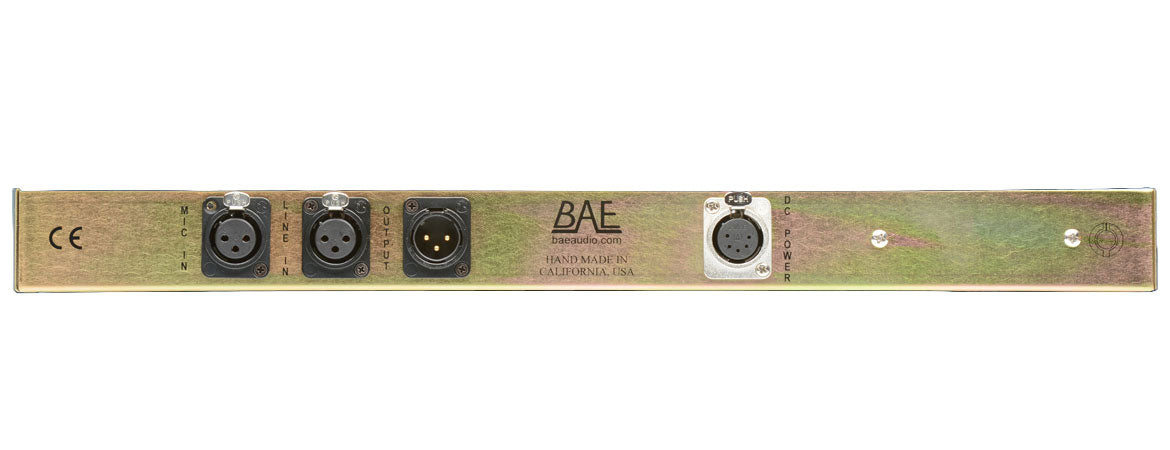

Input/Output
Mic Input Impedance: ≈1200 Ω / 300 Ω
Line Input Impedance: 10 kΩ
DI Input Impedance: ≈150 kΩ
Output Impedance: 65 Ω

Audio Performance
Frequency Response: 10 Hz to -3 dB at 55 kHz

Controls
Phase: 180° invert
EQ Enable: Switchable

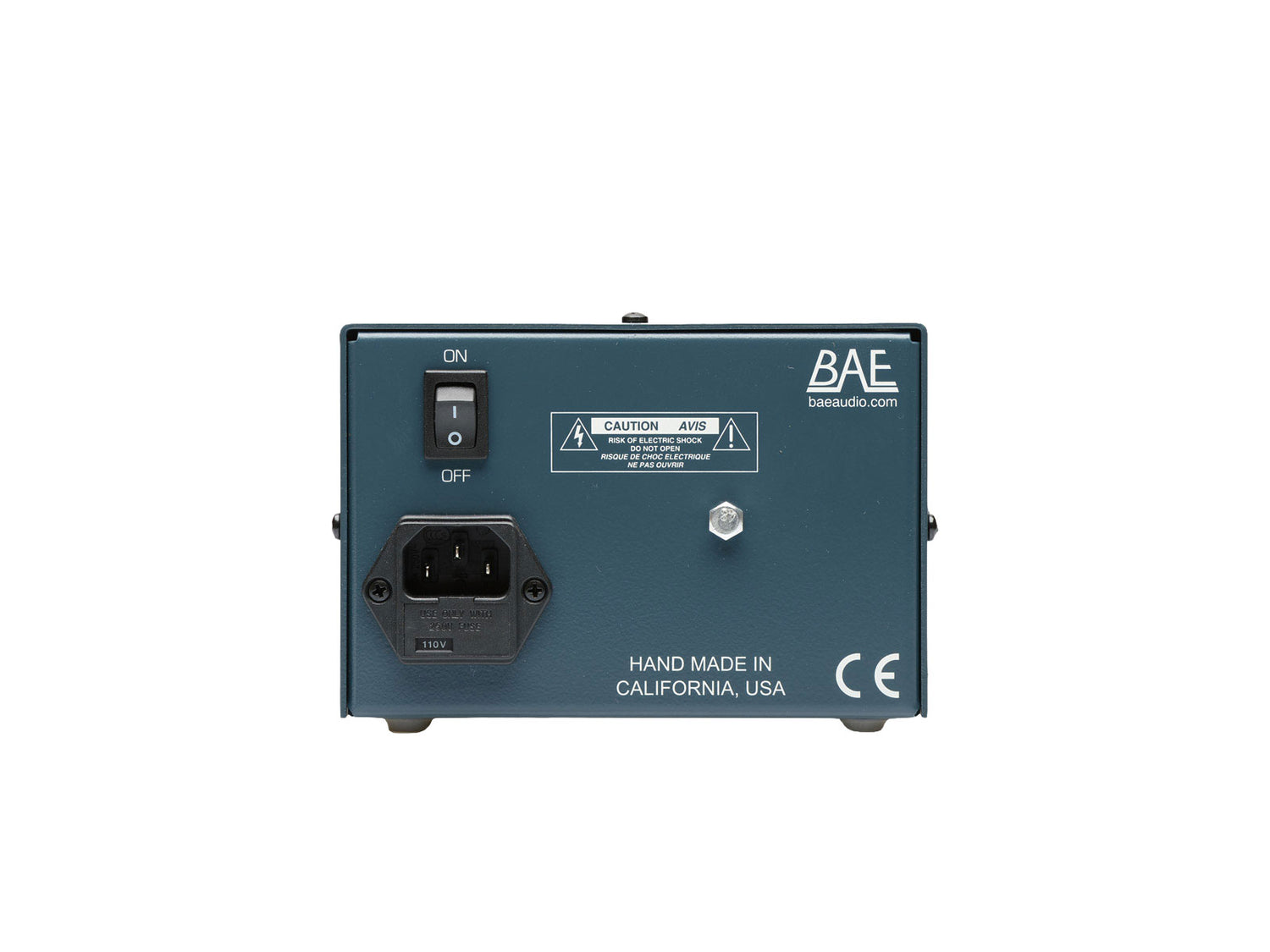

Power
Power Requirements: 115/230 VAC
Power Consumption: 28 W

Physical
Weight: 10 lbs (4.54 kg
Dimensions: 19" (W) × 1.75" (H) × 9" (D)
