BAE

1023 - Mic Pre/EQ 19'' Rackmount without PSU

Preamp EQ

Mic preamp and EQ, 3-band EQ with extended frequency selection, Carnhill transformers, high pass filter, 80 dB gain, rackmount design

$4,875.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

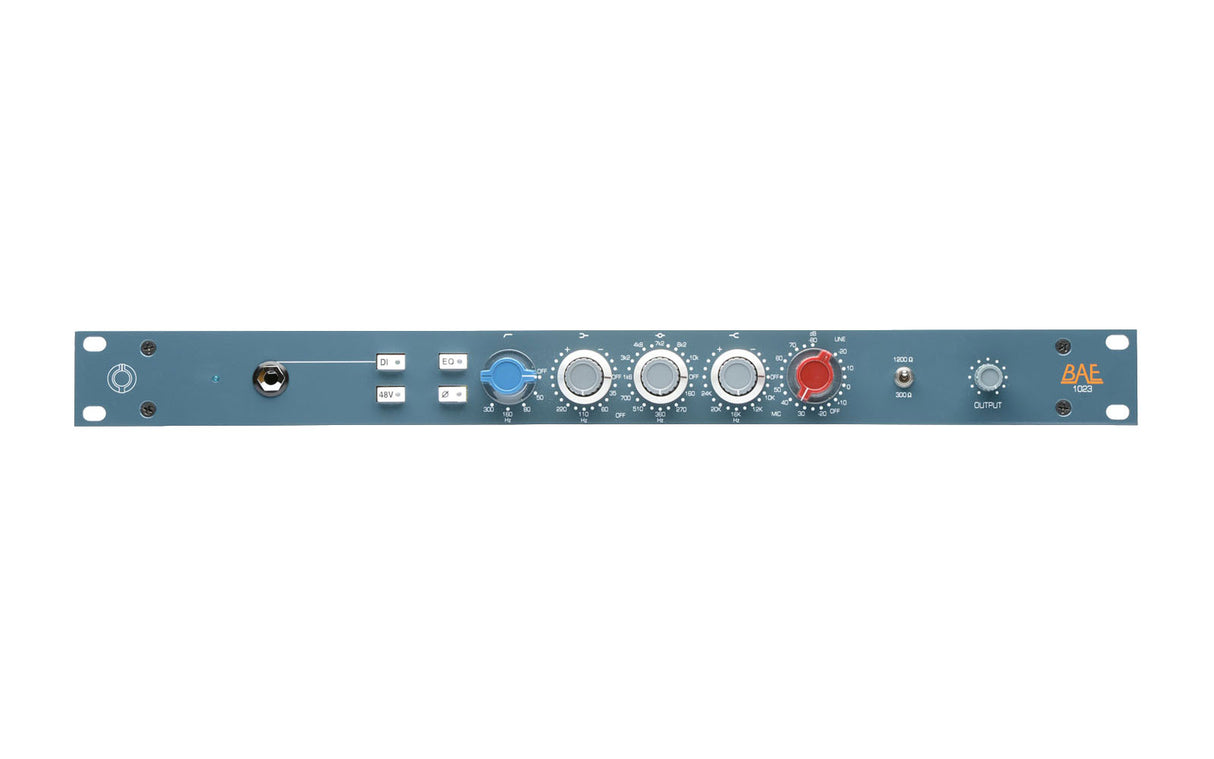

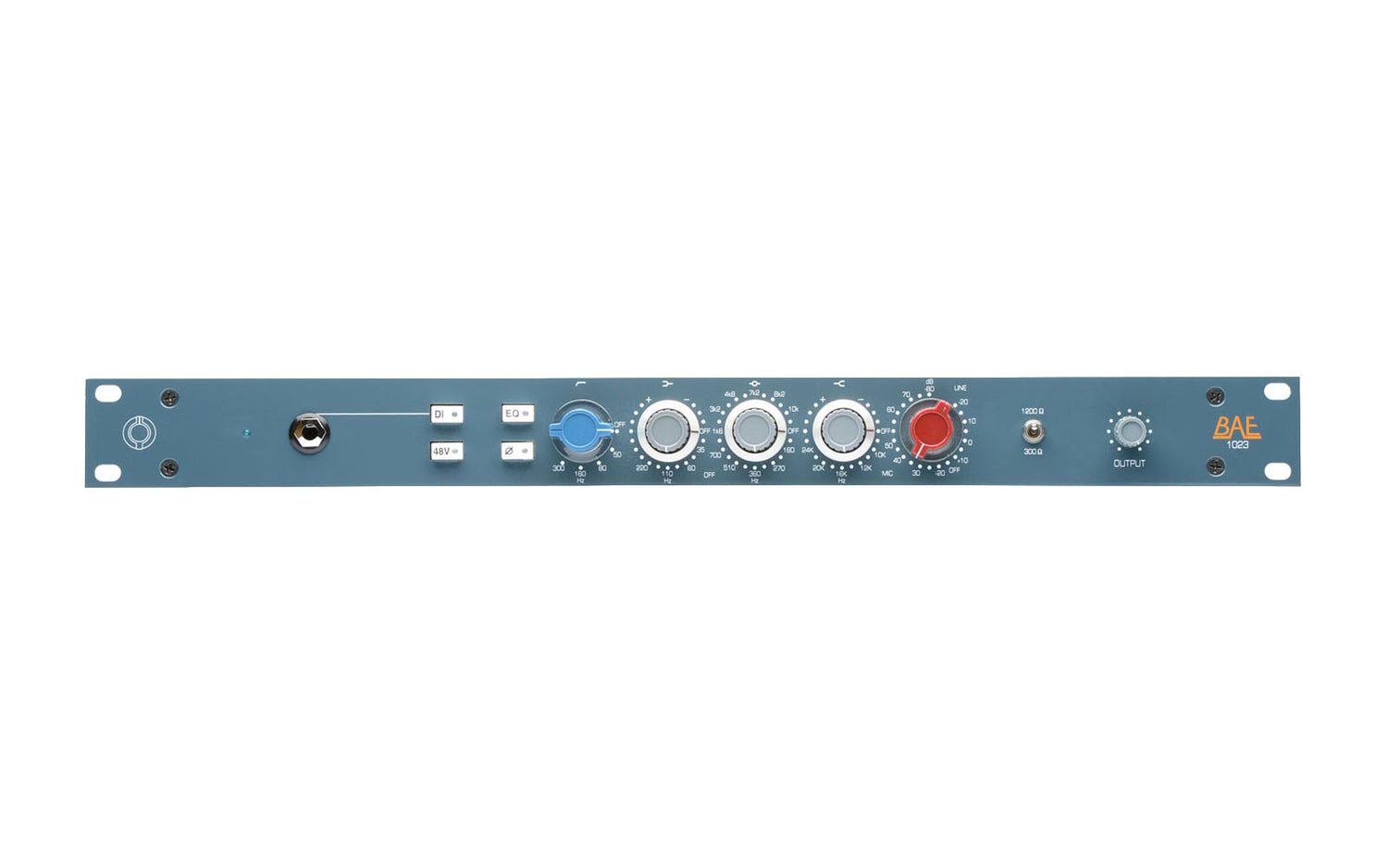

The 1023 Mic Pre/EQ 19" Rackmount without PSU is a handwired, single-channel unit that delivers classic analog tone with enhanced control over sound shaping. Built with Carnhill transformers and based on the same respected mic and line preamp design as the 1073, it provides a rich and detailed character that suits a wide range of recording applications, from vocals to instruments. Its 1RU rack format allows for easy integration into studio setups that already have a compatible external power solution.

A key strength of the 1023 lies in its expanded equalization section, offering a wider selection of frequencies in the mid and high bands for more precise tonal adjustments. This flexibility allows for creative interaction between the mid peak and the high and low shelves, giving users greater control when shaping a sound. With a broad gain range, selectable filtering, and a clear, hands-on layout, the 1023 offers a versatile and musical approach to recording and processing audio.

Features

Classic 1073-Style Preamp
Delivers the iconic analog tone and warmth of the legendary 1073 design.

Expanded EQ Flexibility
Offers a wider selection of frequencies for more precise and creative sound shaping.

Musical EQ Interaction
EQ bands can overlap, allowing rich and expressive tonal blending.

Versatile 3-Band Equalizer
High, mid, and low controls provide powerful shaping for a variety of sources.

Switchable High Pass Filter
Reduces unwanted low-end noise while keeping the signal clean and clear.

Handwired Premium Build
Crafted with high-quality components for durability and classic analog performance.

Wide Gain Range
Handles everything from subtle inputs to strong signals with smooth amplification.

Quick Control Options
Includes phase reverse and EQ bypass for fast and efficient workflow adjustments.

Single-Channel Rackmount Design
Fits easily into standard racks while delivering professional-grade sound.

Flexible Power Setup
Designed for use with an external power supply, allowing adaptable studio integration.

Specifications

General Specifications
Device Type: Microphone Preamplifier and Equalizer
Configuration: Single-channel 19" rackmount without power supply
Circuit Design: Based on 1073 mic/line preamp topology
Transformer: Carnhill (St. Ives) transformers
Construction: Handwired
Rack Size: 1RU

Preamp
Gain Range: 0 dB to 80 dB
Equivalent Input Noise: -110 dBu (unweighted, 300 kHz bandwidth)
Maximum Output Level: +27.4 dBu @ 600 Ω
Common Mode Rejection Ratio: ≥100 dB @ 60 Hz

Equalizer
EQ Type: 3-band EQ with high and low shelving, mid peaking
EQ Bypass: On/Off switch

High Frequency EQ
Type: Shelving
Gain Range: ±16 dB
Frequencies: 10 kHz, 12 kHz, 16 kHz, 20 kHz, 24 kHz

Mid Frequency EQ
Type: Peaking (bell)
Gain Range: ±12 dB or ±18 dB
Frequencies: 160 Hz, 270 Hz, 360 Hz, 510 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz, 8.2 kHz, 10 kHz

Low Frequency EQ
Type: Shelving
Gain Range: ±16 dB
Frequencies: 35 Hz, 60 Hz, 110 Hz, 220 Hz

High Pass Filter
Slope: 18 dB/octave
Frequencies: 45 Hz, 70 Hz, 160 Hz, 360 Hz

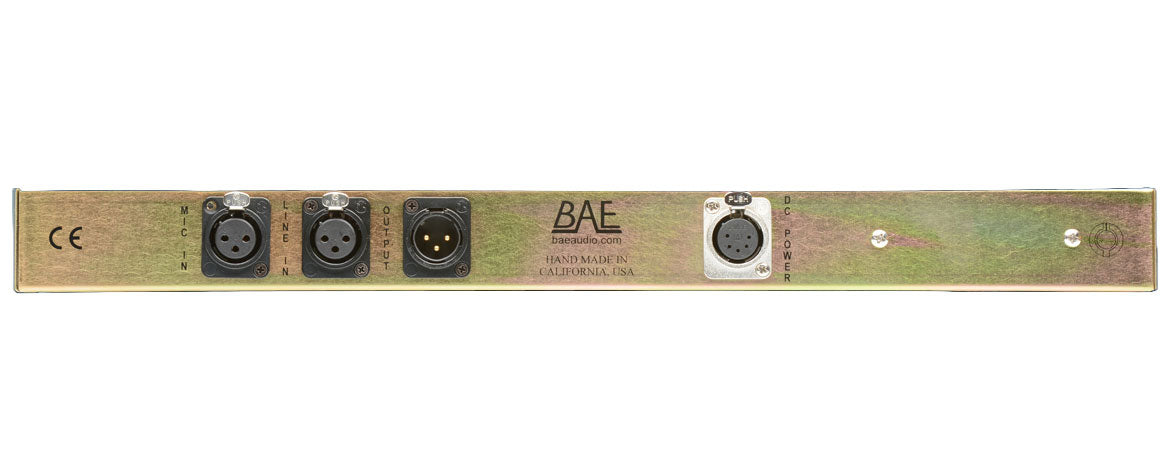

Input/Output
Mic Input Impedance: ≈1200 Ω / 300 Ω
Line Input Impedance: 10 kΩ
DI Input Impedance: ≈150 kΩ
Output Impedance: 65 Ω

Audio Performance
Frequency Response: 10 Hz to -3 dB at 55 kHz

Controls
Phase: 180° invert
EQ Enable: Switchable

Power
Power Supply: External required
Power Requirements: 115/230 VAC
Power Consumption: 28 W

Physical
Weight: 10 lbs (4.54 kg)
Dimensions: 19" (W) × 1.75" (H) × 9" (D)
