CLEAR-COM  |  SKU: 14873

TW-47

IFB/IEM Accessories

Clear-Com/RTS 2-Way Radio Interface, connects Clear-Com or RTS to any 2-way radio

$1,280.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The TW-47 is a stand-alone interface designed to connect a 2-way radio or walkie-talkie into a single channel of a standard Clear-Com, RTS, or compatible 2-wire party-line intercom system. It provides both audio connection and "push-to-talk" transmitter keying, using standard Call signals.

Note: Two-way radio must have headset and microphone jacks.

Features

Interfaces any 2-way radio to a single channel of Clear-Com, RTS or compatible system

Accepts any walkie-talkie or radio with headset and microphone jacks

Individual transmit and receive level controls

Bi-color LED audio level indicator

Powered by the intercom line

Specifications

Radio to Partyline

Line Chracteristics

Frequency Response: 200-20KHz ± 3dB

Max Gain: >=-5dBu

Distortion:

Noise:

Max Level Before Clipping: >=+17dBu

Green LED Threshold: -22dBu ± 3dB

Red LED Threshold: -16dBu ± 3dB

Input Impedance: 400 ± 100

Partyline to Radio

Line Characteristics

Frequency Response: 200-8KHz ± 3dB

Max Gain J7 ON, J8 ON: -12dBu ± 3dB

Max Gain J7 OFF, J8 ON: +2dBu ± 3dB

Max Gain J7 OFF, J8 OFF: +27dBu ± 3dB

Distortion:

Noise:

Max Level Before Clipping: >=0dBu

Power Requirements

Input Voltage Range: 20-30VDC

Quiescent Current:

Current with Audio:

Current with Call:

Rear Panel Connectors

(1) XLR3F

(1) DB-9F

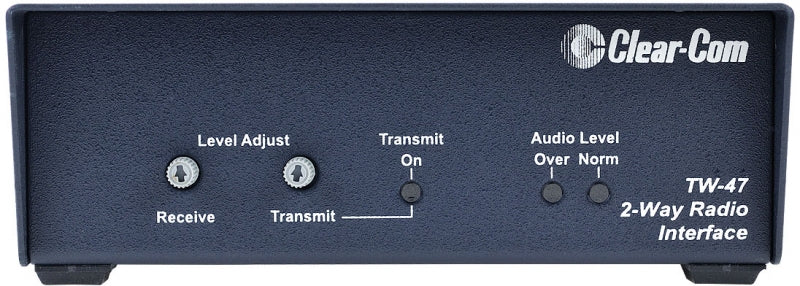

Front Panel Controls and Indicators

Transmit: (1) Red LED

Audio Level Hi: (1) Red LED

Audio Level Norm: (1) Green LED

Receive Level Adjust: (1) Control

Transmit Level Adjust: (1) Control

Dimensions

1.63 in. H x 4.75 in. W x 5.15 in. D

(41.4 mm x 121 mm x 131mm)

Weight

1 lb. 4 oz. (0.6 kg)
