CLEAR-COM  |  SKU: 19199

U-Box X3

IFB/IEM Accessories

Encore Surface Mount: 1Ch, Desk/Wall for KB Speaker Stations, 3-PinXLR-M/F Connector

$545.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

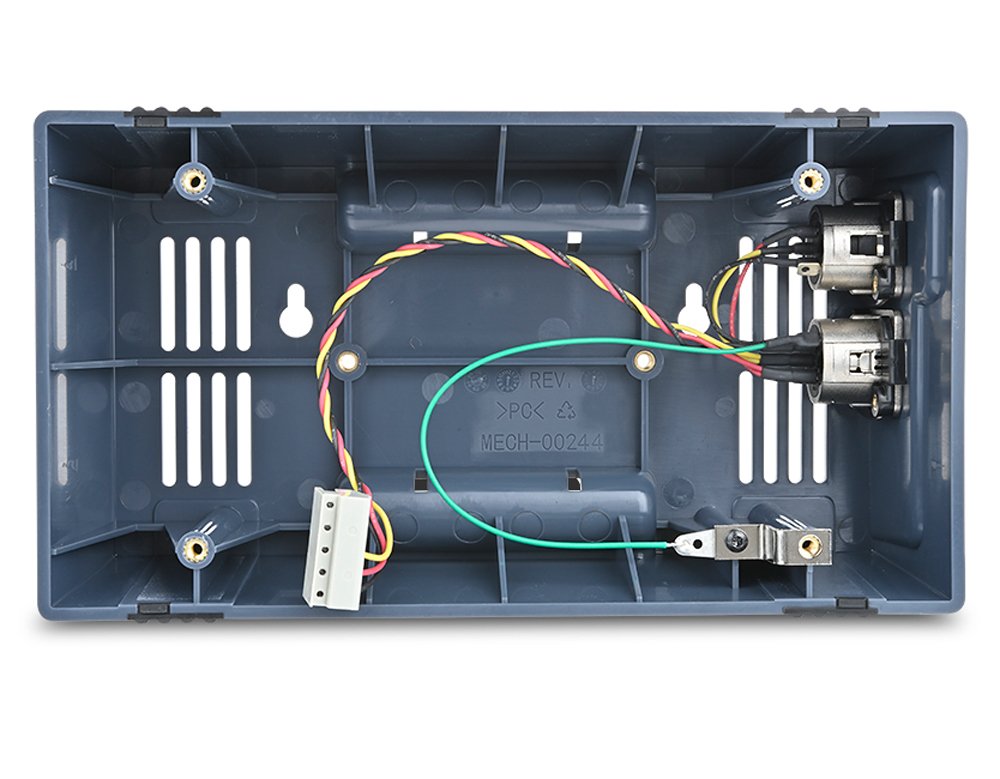

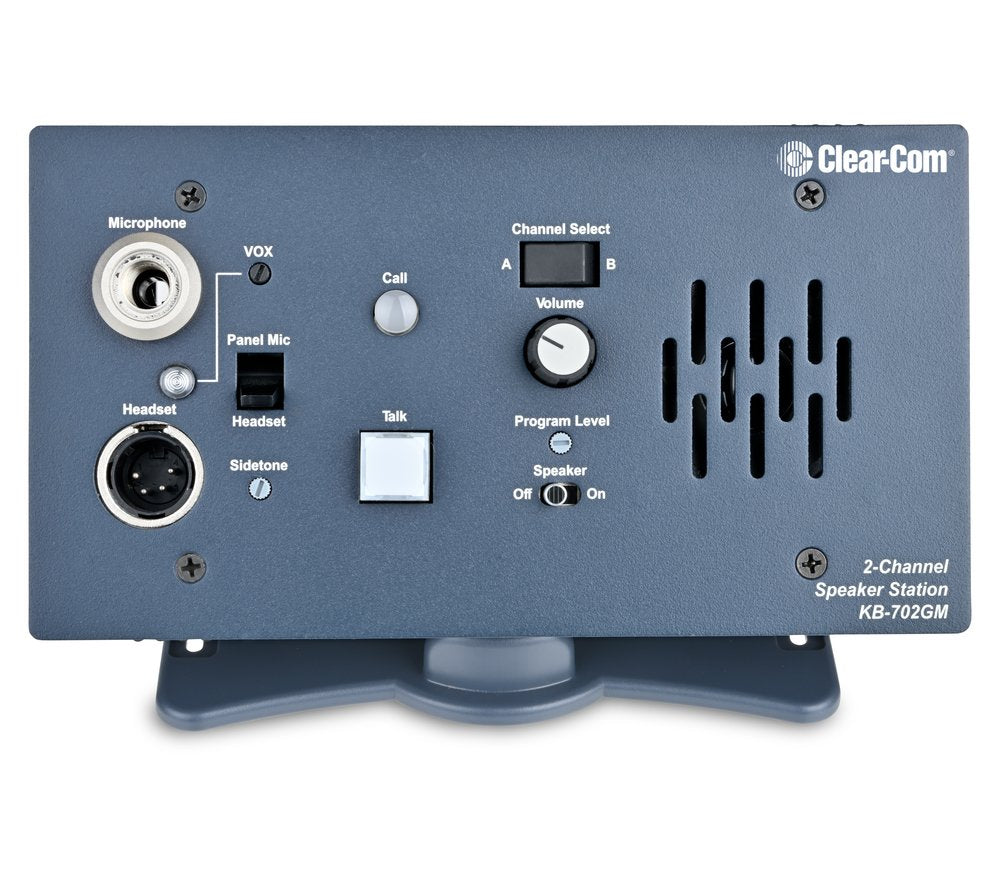

The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation.

Features

Enclosure for KB speaker station

Permanently installed or portable

Integrated handles

Vertical or angled KB installation

Desktop or wall mount

VESA 75 mounting option

Rugged enclosure

Available wired for single or dual-channel partyline and 4-wire

Specifications

Following included with U-Box:


280038Z-SP: Screw Kit to fasten KB / HB " (4 screws) 6-32 x 1/2"
MECH-00246-SP: Mounting Bracket Kit

Connectors


U-Box-X3
XLR Partyline: 3-pin XLR-M/F

U-Box-X6
XLR Partyline: "Switchcraft-style"* 6-pin XLR-M/F

U-Box-RJ45
Four-Wire: etherCON RJ45

Input Power Connector: DC 2.1mm Co-axial

Environmental


32 " 158F (0 " 70C)

Mounting


U-Box

Keyholes Center-to-Center: 4.0in (101.6mm)
Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
VESA Sockets Center-to-Center: 2.95in (75mm)
VESA Thread Type: M4x10

Mounting Bracket

Keyholes Center-to-Center: 5.9in (149.9mm)

Dimensions


U-Box
4.5 x 8.2 x 2.8in (HxWxD)
(113.79 x 208.79 x 70.23mm)

U-Box in Mounting Bracket
5.4 x 8.3 x 6.1in (HxWxD)
(136.19 x 209.55 x 154.37mm)

Weight


U-Box: 0.71lbs (0.32kg)
U-Box with Mounting Bracket: 0.90lbs (0.41kg)
U-Box with KB Speaker Station: 1.97lbs (0.89kg)
