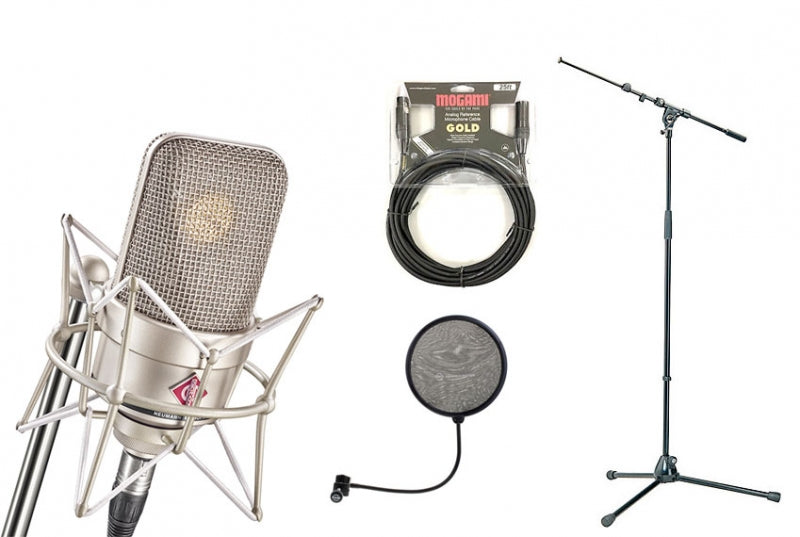

TLM 49 with K&M 210/9, K&M 23966 and Mogami Gold Studio 25'

Same capsule as legendary Neumann U 47 and M 49 microphones

Cardioid pattern

Classic sound for silky vocals

Large, acoustically open headgrille

Transformerless solid state circuit with tube sound characteristics

Very low self-noise

Acoustical operating principle:

Pressure gradient transducer

Directional Pattern:

Cardioid

Frequency Range:

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm:

13 mV/Pa = -38 dBV ± 1 dB

Rated Impedance:

50 ohms

Rated load impedance:

1 kohms

Equivalent noise level, CCIR 1:

23 dB

Equivalent noise level, A-weighted 2:

12 dB-A

Maximum SPL for THD 0.5% 3:

110 dB

Maximum SPL for THD < 5 % 4:

129 dB

Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5:

71 dB

Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6:

82 dB

Maximum output voltage:

-1 dBu

Supply voltage (P48, IEC 61938):

48 V ± 4 V

Current consumption (P48, IEC 61938):

3.2 mA

Matching connector:

XLR 3 F

Weight:

825 g

Diameter:

78 mm

Length:

165 mm

Includes:

1 x Neumann TLM 49
1 x K&M 210/9 Black

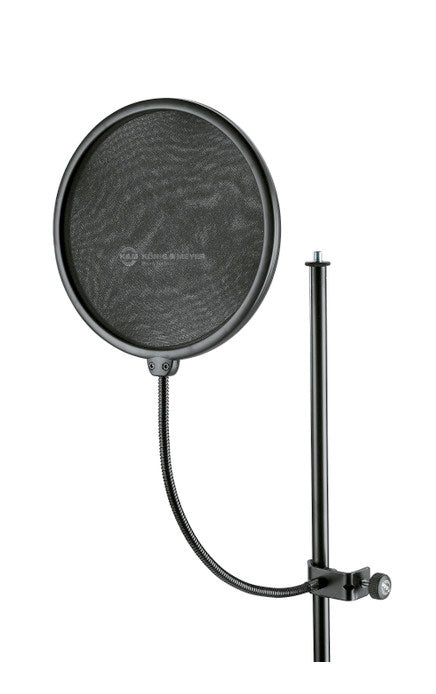

1 x K&M 23966

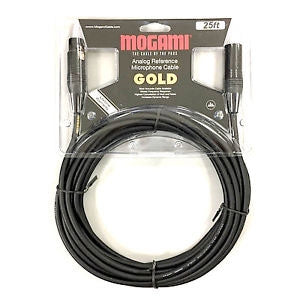

1 x Mogami Gold Studio XLR-XLR 25'
