DPA

ANT202P

Wireless Antennas

Directional passive antenna, wideband 420–1300 MHz frequency range, LPDA design, 6 dBi gain, BNC connector, wireless system reception

$233.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

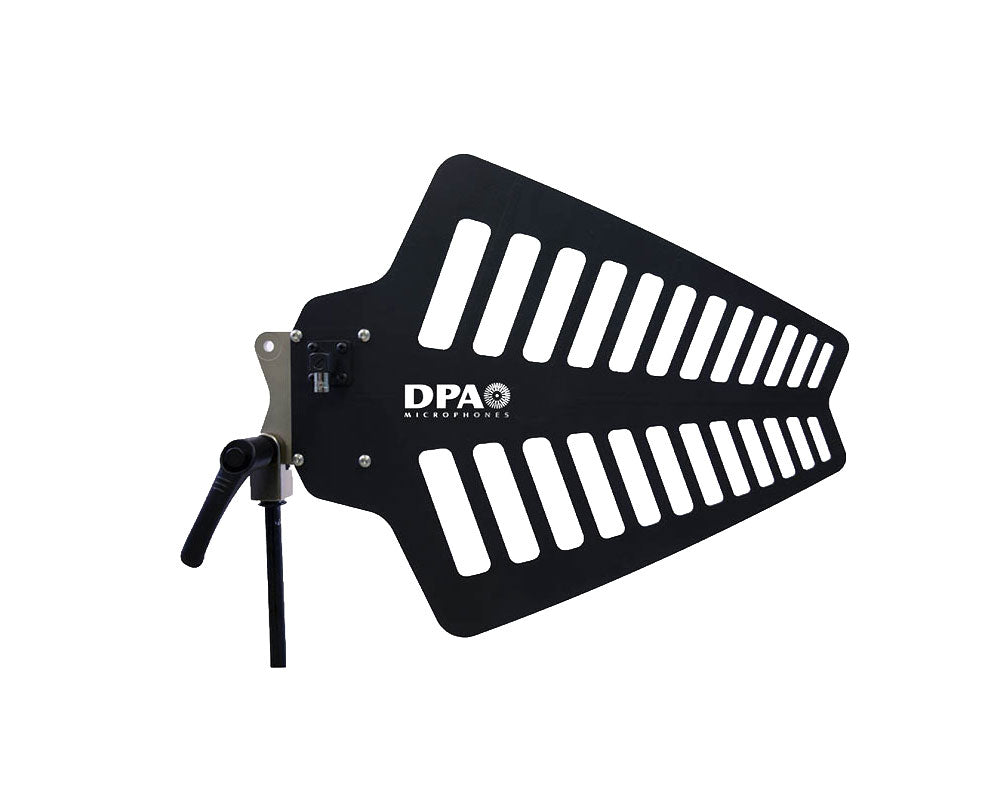

The ANT202P Directional Passive Antenna is a wideband log periodic dipole array designed to improve wireless signal reception in professional RF systems. Covering an extensive 420–1300 MHz frequency range, it supports a wide variety of wireless microphone and in-ear monitoring systems, offering flexibility for complex RF environments and future frequency allocations.

Its directional LPDA design provides approximately 6 dBi of gain with a typical beamwidth of 140°, helping focus reception toward the desired signal while reducing interference from other directions. This passive antenna requires no external power, making it a straightforward and reliable solution for wireless installations where signal distribution systems already provide the necessary RF infrastructure.

Constructed from epoxy fiberglass with copper cladding and finished in a durable black matte coating, the ANT202P is built for dependable performance in both indoor and outdoor environments. Its rugged metal support structure, weather resistant coating, and flexible mounting options make it well suited for touring, broadcast, and fixed installations where stable wireless reception is essential.

Features

Directional Wireless Antenna
A directional antenna designed to improve wireless signal reception in professional RF environments.

Passive Signal Design
Operates without built-in amplification, delivering clean signal reception without added electronic gain.

Wideband Frequency Coverage
Supports a broad frequency range, making it compatible with many wireless microphone systems.

Focused RF Reception
The directional LPDA design helps capture signals from a targeted area while reducing unwanted interference.

Compact Directional Gain
Provides enhanced signal pickup while maintaining a compact and lightweight antenna structure.

Durable Weather-Resistant Construction
Built with strong materials and protective coating to withstand demanding live production and outdoor environments.

Standard BNC Connectivity
Equipped with a BNC connector for easy integration with professional wireless receivers and RF distribution systems.

Flexible Mounting Options
Compatible with common mounting hardware for easy placement on stands or installation rigs.

Specifications

General Specifications
Device Type: Passive Directional Antenna
Antenna Type: Log Periodic Dipole Array (LPDA)
Frequency Range: 420 MHz – 1300 MHz
Radiation Pattern: Directional
Polarization: Vertical

RF Specifications
Rated Output Impedance: 50 Ω
Standing Wave Ratio (SWR): < 1:1.5
Typical SWR: 1:1.4
Antenna Gain: 6 dBi
Beamwidth: 140°

Connectivity
RF Connector: BNC

Construction
Material: Epoxy Fiberglass (Copper-Clad)
Finish: Black Matte
Coating: Weather-Resistant Textured Coating
Sealing: Waterproof Gasket Sealing

Mounting
Mounting Thread: 5/8 in
Adapter Compatibility: 3/8 in Adapter

Physical Specifications
Height: 276 mm
Width: 336 mm
Depth: 61 mm
Weight: 500 g
