DPA

N-DR1

Wireless Receivers

Digital wireless receiver, dual-channel system, wideband 470–870 MHz operation, Dante network audio output, true diversity RF reception

$5,025.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

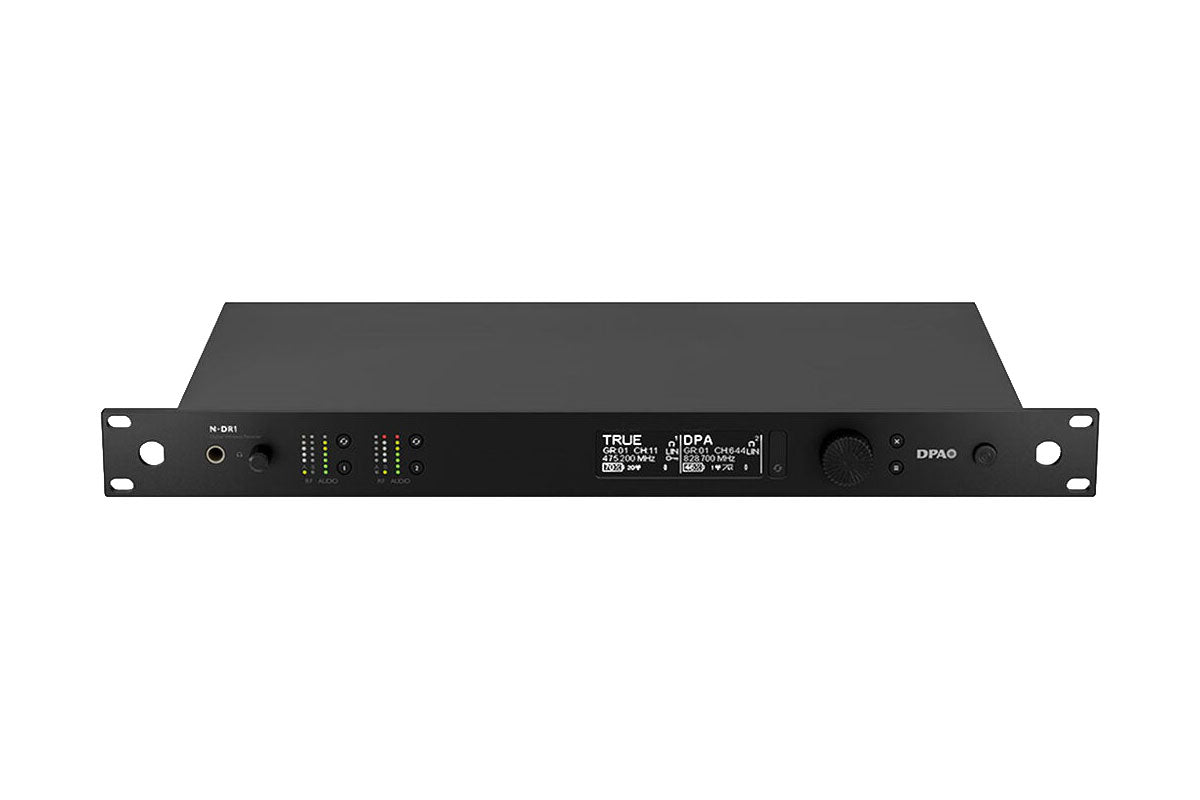

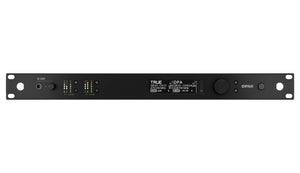

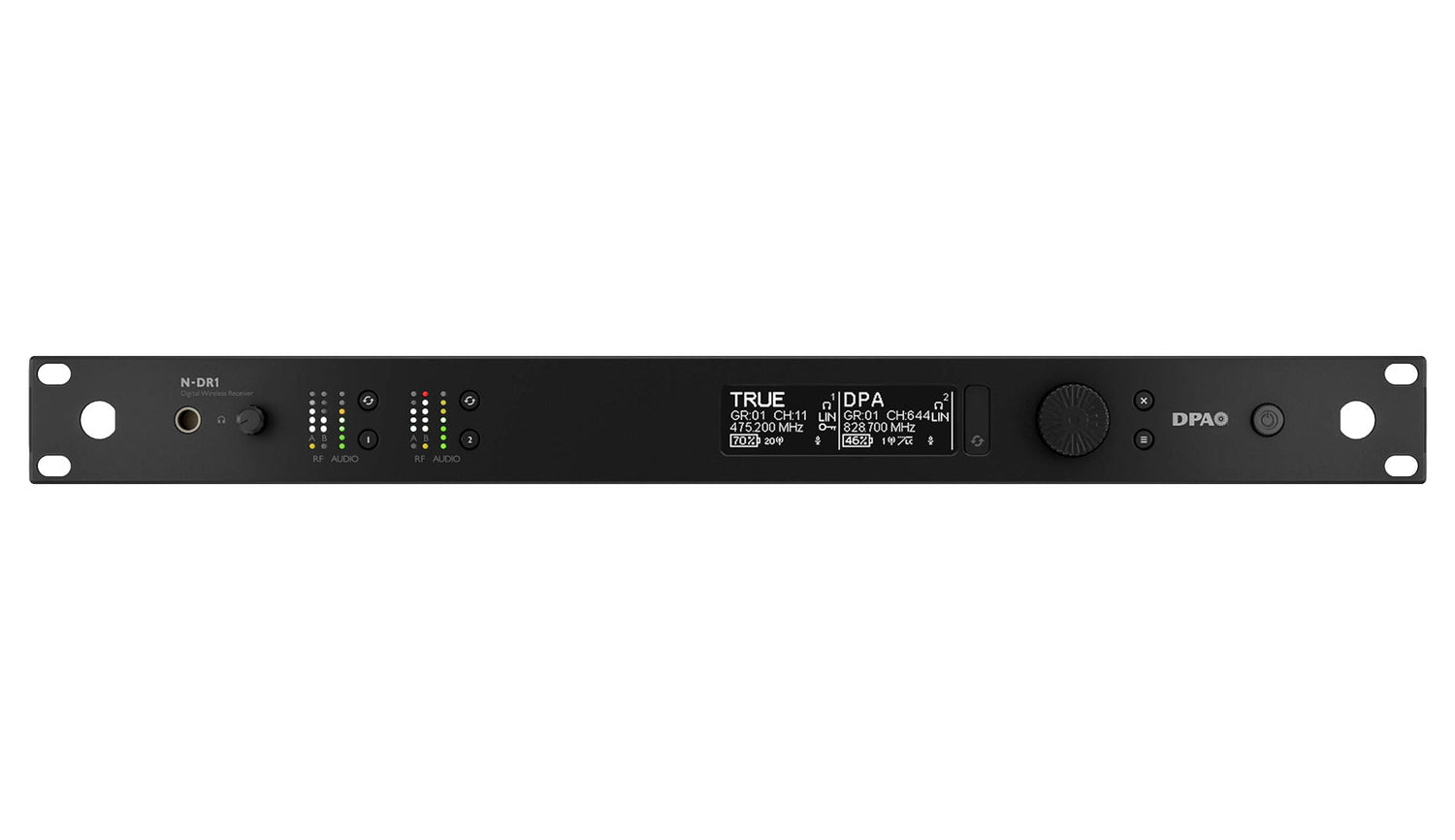

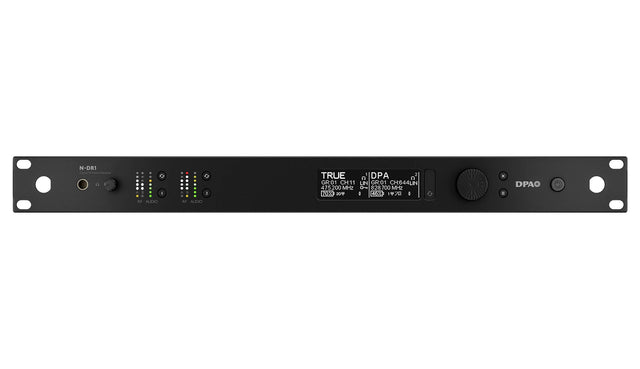

The DPA N-DR1 is a dual channel digital wireless receiver designed for the DPA N-Series wireless system, delivering reliable RF performance and high quality digital audio for professional live sound, broadcast, and theater applications. With wideband operation across 470–870 MHz, each unit provides flexible frequency coordination, making it easier to operate wireless systems even in crowded RF environments.

The receiver features a true radio diversity architecture, where each antenna input is connected to its own dedicated radio circuit. This design improves signal stability and reliability compared to traditional antenna diversity systems, helping maintain consistent reception and reduce dropouts during performances. With a true 126 dB dynamic range and a frequency response covering the full audio spectrum, the N-DR1 preserves the detail and clarity captured by DPA microphones throughout the wireless signal path.

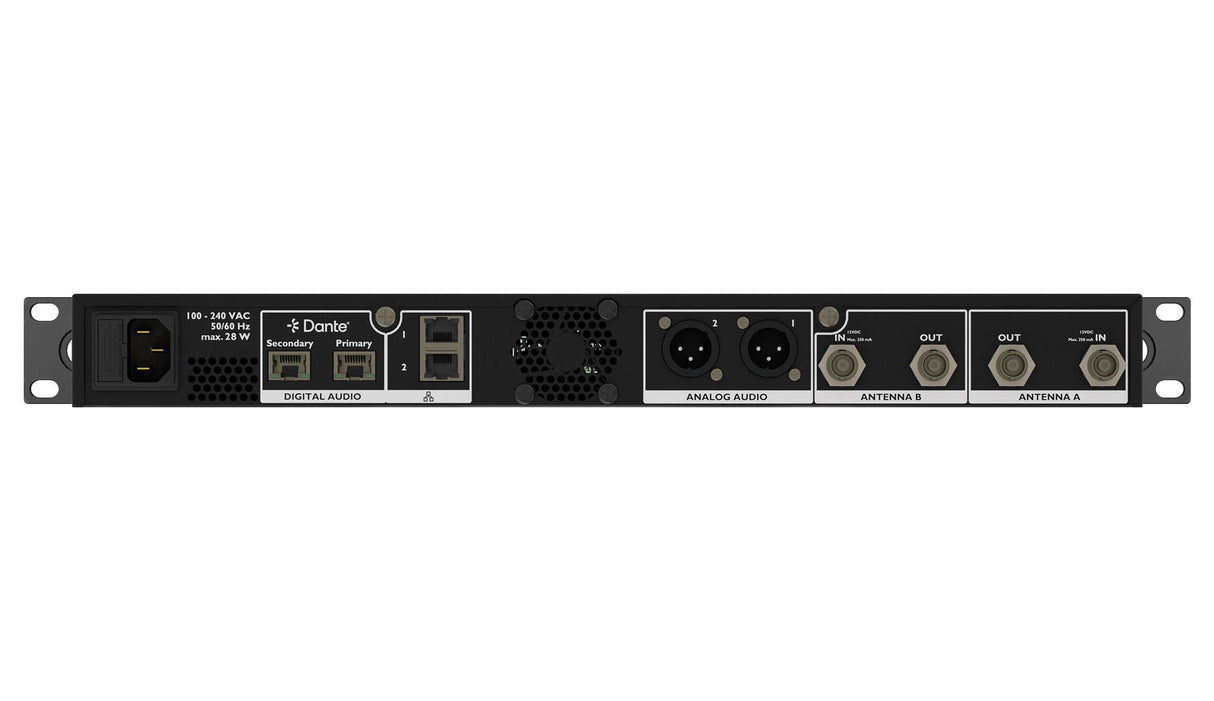

Designed for modern digital audio workflows, the N-DR1 includes Dante network audio output, allowing direct integration with digital mixing systems while maintaining signal quality in the digital domain. Dante can operate in both standard and redundant network modes for additional reliability. The receiver also supports network control via Ethernet, provides power for active antennas, and offers a clean front panel layout for quick monitoring and setup. With its robust steel and aluminum construction and advanced wireless features, the N-DR1 provides a dependable foundation for high performance digital wireless microphone systems.

Features

Dual-Channel Digital Wireless Receiver
A professional wireless receiver designed to manage two wireless channels with clarity and reliability.

Dante Network Audio Output
Provides direct digital audio integration with Dante-enabled audio networks for seamless professional workflows.

True Diversity RF Reception
Dual radio circuitry ensures stable signal reception by processing signals from two antennas simultaneously.

Wideband Wireless Coverage
Broad frequency range allows flexible operation across many wireless environments and RF conditions.

High Dynamic Range Audio
Delivers detailed, transparent sound while preserving the full dynamics of the original source.

Low-Latency Digital Transmission
Maintains fast audio transmission for live sound, broadcast, and performance applications.

Network Control and Monitoring
Ethernet connectivity allows remote system control, monitoring, and configuration across networked environments.

Expandable Professional RF Setup
Supports active antennas and RF distribution systems for scalable wireless deployments.

Durable Rackmount Design
Built with strong metal construction for reliable use in touring, broadcast, and installed audio systems.

Specifications

General Specifications
Device Type: Dual-Channel Digital Wireless Receiver
Wireless Technology: Digital UHF
Receiver Channels: 2 Channels
RF Frequency Range: 470 MHz – 870 MHz
RF Tuning Step Size: 25 kHz
Operating Range: 100 m / 330 ft
System Dynamic Range: 126 dB
System Latency: < 2.9 ms

RF Specifications
RF Input Impedance: 50 Ω
RF Sensitivity: –96 dBm
RF Input Bias Voltage: 12 V (Max 250 mA per Antenna)
RF Input Connector: BNC
Diversity Type: True Radio Diversity

Audio Performance
Audio Frequency Response: 20 Hz – 20 kHz (±1 dB)
Audio Polarity: Positive Sound Pressure Produces Positive Output Voltage
Digital Trim Adjustment: –20 dB to +40 dB (1 dB Steps)

Digital Audio Interface
Network Audio Protocol: Dante
Dante Connection Mode: Primary / Secondary Redundant Connections
Dante Sample Rates: 44.1 kHz
Dante Sample Rates: 48 kHz
Dante Sample Rates: 88.2 kHz
Dante Sample Rates: 96 kHz

Network Specifications
Network Interface: Dual-Port Switched Ethernet
Network Speed: 100 Mbps
Network Addressing: DHCP or Manual IP

Analog Output (Optional Configuration)
Analog Output Impedance: 66 Ω
Analog Output Level: Switchable Line or Mic (–30 dB Pad)
Analog Reference Level: 0 dBu – 20 dBu (1 dB Steps)

Power Requirements
Power Input: 100 V AC – 240 V AC (Auto-Sensing)
Maximum Power Consumption: 28 W

Environmental Specifications
Operating Temperature: –10 °C to 50 °C
Storage Temperature: –20 °C to 50 °C

Construction
Housing Material: Steel and Aluminium
Finish: Matte Black

Physical Specifications
Height: 44 mm
Width: 482 mm
Depth: 246 mm
Weight: 3.6 kg
