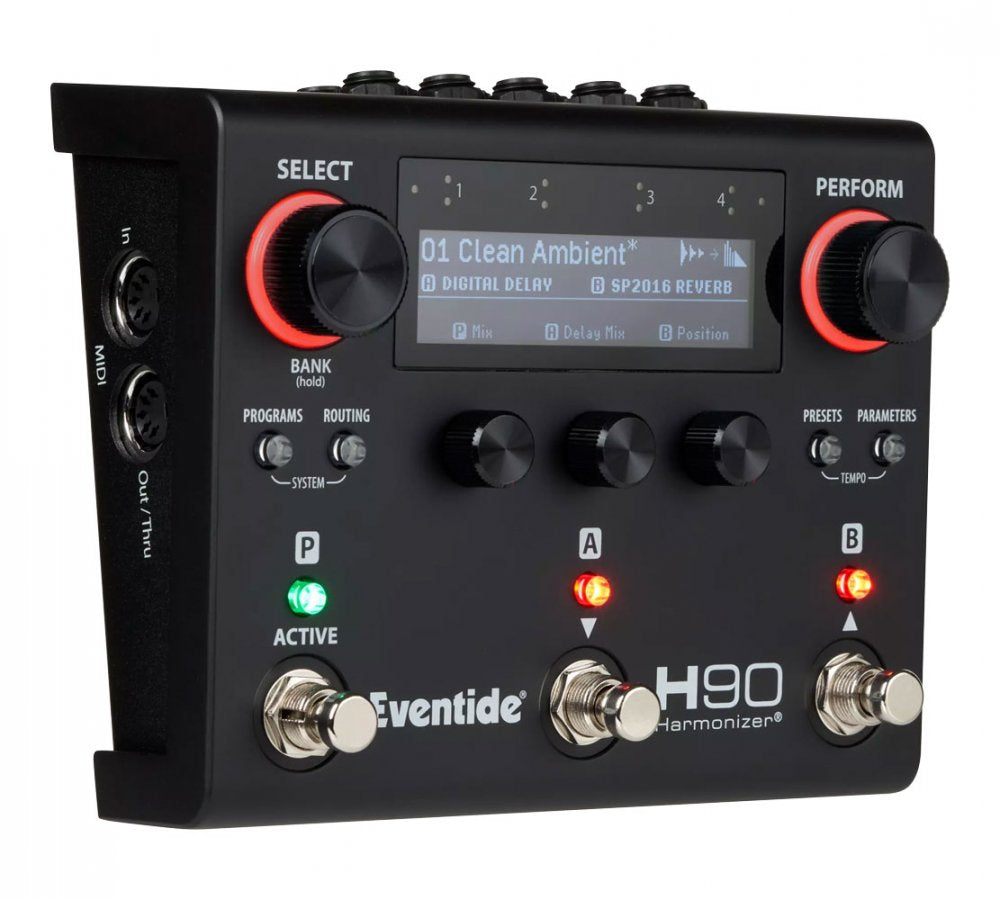

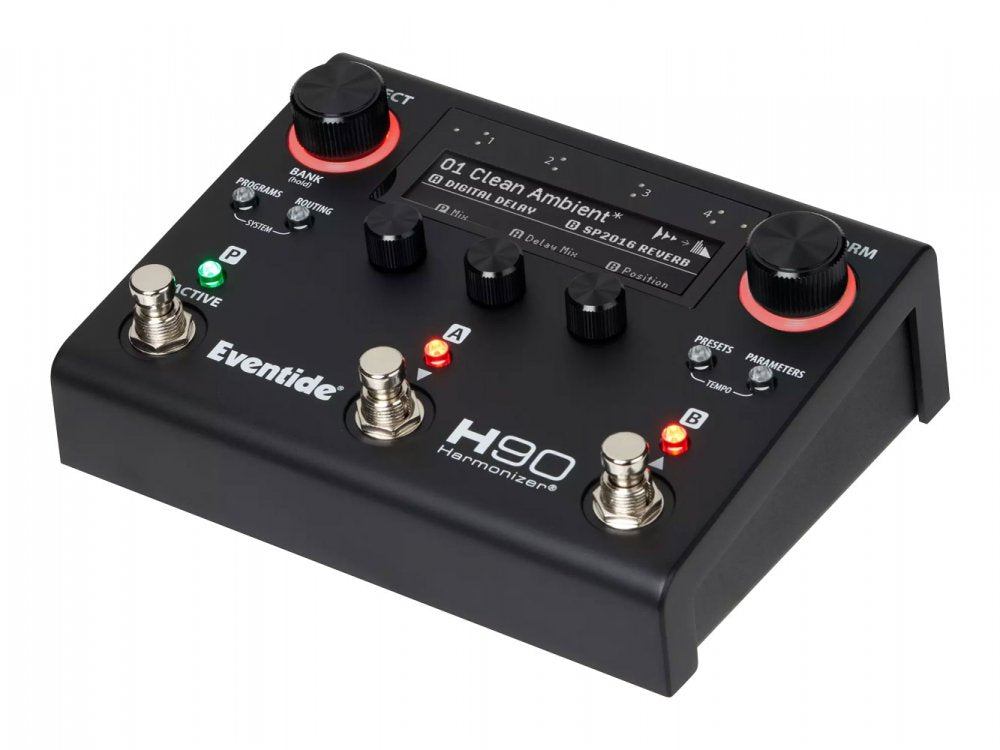

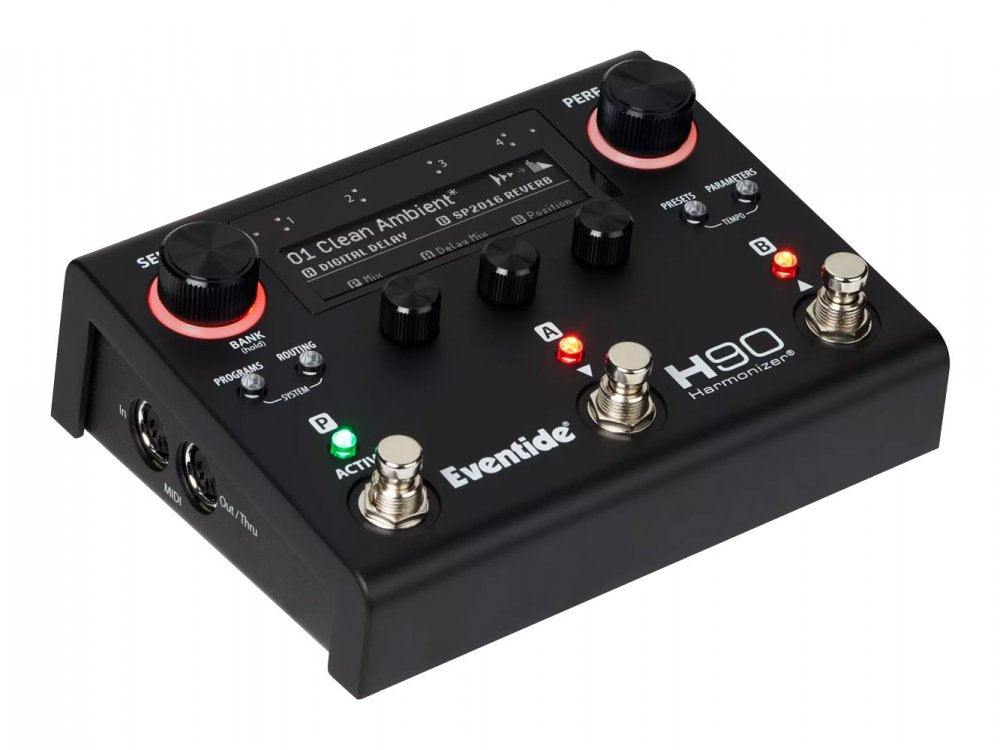

H90 Dark

Dark Edition Build
Eye-catching finish designed for durability on stage or in the studio.

Dual-Effect Engine
Runs two high-quality effects at the same time for complex sound design.

Massive Preset Library
Comes with hundreds of ready-to-use effect combinations and user slots for saving your own.

Advanced Algorithms
Includes a wide variety of Eventide’s signature effects like reverb, delay, pitch shift, modulation, distortion, and more.

Instrument and Line Level Support
Works with guitars, synths, or other line-level instruments for flexible setup.

Flexible Routing Options
Offers multiple input/output configurations for stereo, dual mono, and series/parallel setups.

Performance Modes
Includes hands-on Play and Perform modes for live control and quick access to key functions.

HotSwitch and Expression Control
Lets you switch between sound variations or sweep effect parameters with a footswitch or expression pedal.

MIDI and USB Integration
Can be controlled by MIDI hardware or software, and supports USB for updates and audio interfacing.

Looper Functionality
Includes a built-in looper for real-time performance and creative layering.

Customizable Footswitches
Three onboard switches can be assigned to different functions for personalized control.

Tuner Included
Built-in tuner available at any time with a footswitch press.

Companion App Support
Works with H90 Control software for editing, managing presets, and updating the device from a computer.

True Bypass or Buffered Bypass
Choose between true analog bypass or a buffered signal path to match your rig.

General Specifications
Multi-effects pedal with dual algorithm processing
66 total effect algorithms included
14 new algorithms exclusive to H90 platform
Includes all 52 algorithms from H9 Max with enhancements
ARM-based architecture for advanced DSP performance
SIFT technology enables low-latency polyphonic pitch shifting
Supports instrument or line level operation
True spillover between Programs
Built-in high precision tuner
Supports firmware updates via Mac or PC

Algorithms and Effects:
Polyphony spectral pitch shifter with Freeze function
Prism Shift 3 voice staggered arpeggiator
Even-Vibe stereo Uni-Vibe emulation
Head Space vintage four-head tape delay
Bouquet Delay BBD with modulation, LoFi, and Modern modes
Wormhole hyper-modulated pitch warped reverb
Weedwacker dual stage serial overdrive
Polysynth fully polyphonic guitar-to-synth engine
PolyFlex pitch flexing with detune and pedal steel emulation
Aggravate vintage-inspired octave fuzz
Sticky Tape classic tape echo with drive and wow and flutter controls

Signal Processing and Routing
Run two effect algorithms simultaneously per Program
Effects can be routed in series or parallel
Dual mode for two independent stereo signal paths
Two mono or one stereo insert configurable anywhere in chain

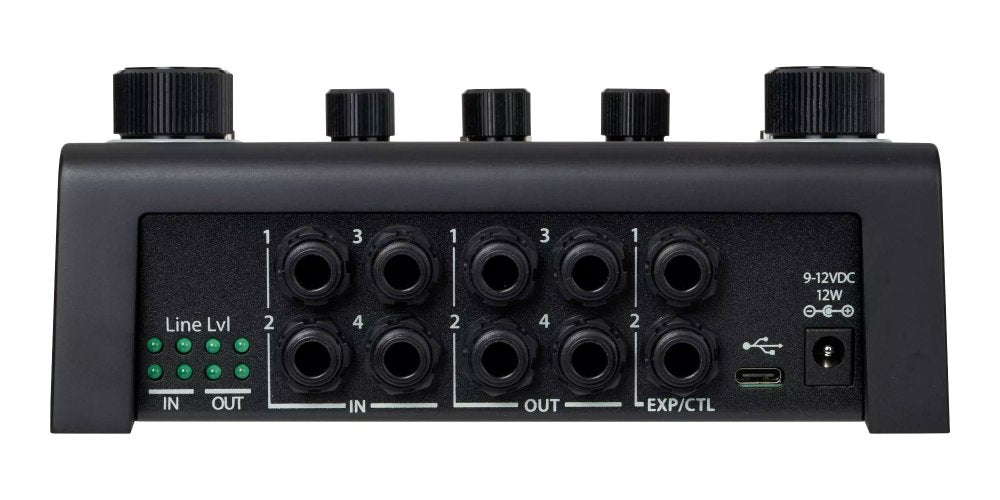

I/O and Control
Stereo input and output
Two control inputs for expression pedals, CV, or triple switch
USB for H90 Control software and firmware updates
MIDI In Out Thru for advanced external control
Supports external routing with insert flexibility

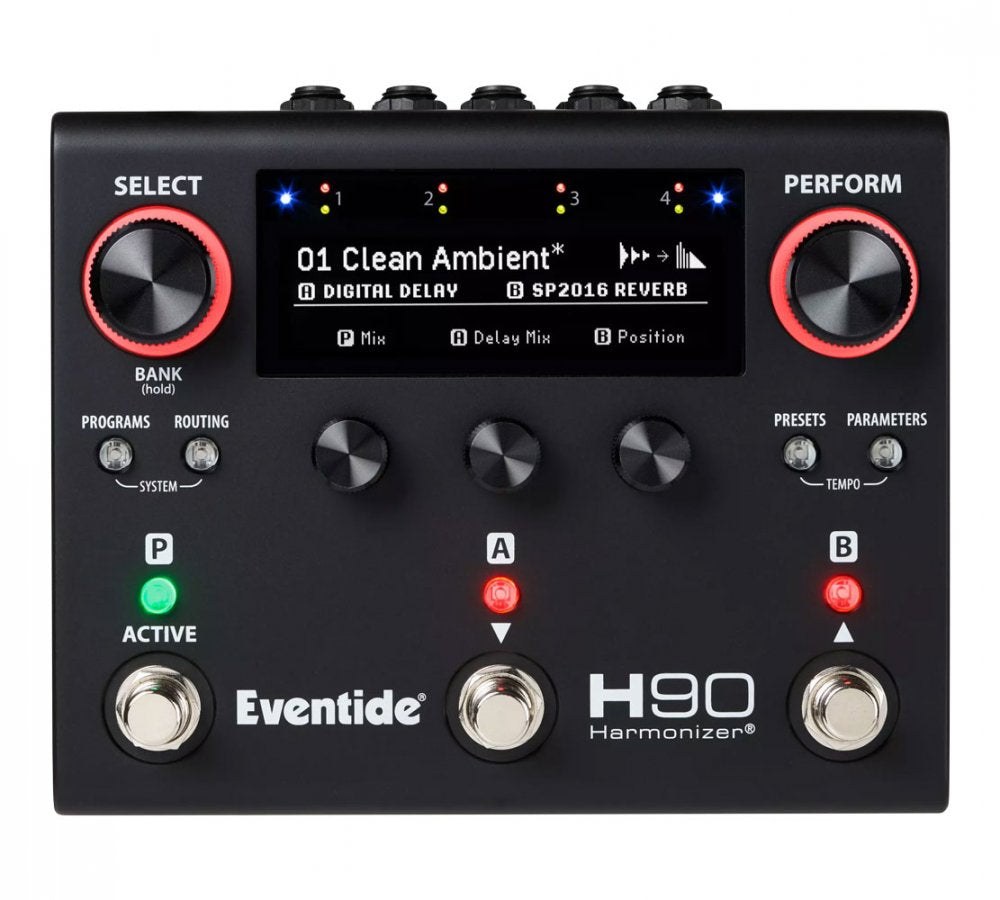

User Interface and Operation
Hi-res OLED display for real-time parameter feedback
Five push-turn encoder knobs
Seven backlit LED buttons
Two large push knobs for SELECT BANK PERFORM modes
Six assignable footswitches in PERFORM mode
Three HotSwitches for instant parameter morphing
Tap tempo and momentary function assignment
Bank and Program navigation with Playlist support
Use H90 Control software on Mac, PC, or iPad for deep editing and organization

Construction and Form Factor
Rugged metal chassis
Designed for live performance and studio use
Front panel optimized for tactile control and visibility
