FLOCK AUDIO

PATCH se

Patchbays

Digitally-controlled analog patchbay, 48-point routing, 24 in/24 out, DB-25 Tascam, TRS/XLR front I/O, app-controlled, multing, no AD/DA, USB, expansion support.

$1,499.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Flock Audio PATCH SE is a streamlined, software-controlled analog patchbay designed for professional studios seeking flexible routing without sacrificing signal integrity. With 48-point connections (24 inputs and 24 outputs), it provides a fully analog, digitally controlled routing solution that eliminates the need for traditional patch cables or manual rerouting. The front panel includes one combo TRS/XLR input and one XLR output, ideal for quickly plugging in mics or instruments without reaching behind your rack.

This unit integrates with Flock Audio’s intuitive PATCH APP and PATCH APP DX software (compatible with macOS and Windows), allowing users to create, store, and instantly recall complex routing setups. The PATCH SE supports advanced multing configurations without impedance issues, thanks to its multi-patented Flock Audio Matrix Technology. With no AD/DA conversion, it maintains a 100% transparent analog signal path. The 1U rackmount unit is built for scalability too—multiple PATCH models can be linked for system expansion. It includes an external power supply, a 10-foot USB 2.0 cable, and uses DB-25/D-SUB Tascam standard pinout connectors for seamless studio integration.

Features

Flexible Audio Routing
Connect 24 inputs and 24 outputs for versatile signal flow options.

Software-Controlled Patchbay
Use PATCH APP or PATCH APP DX on Mac or Windows to manage routing.

Fast Routing Recall
Save and instantly recall complex routing setups.

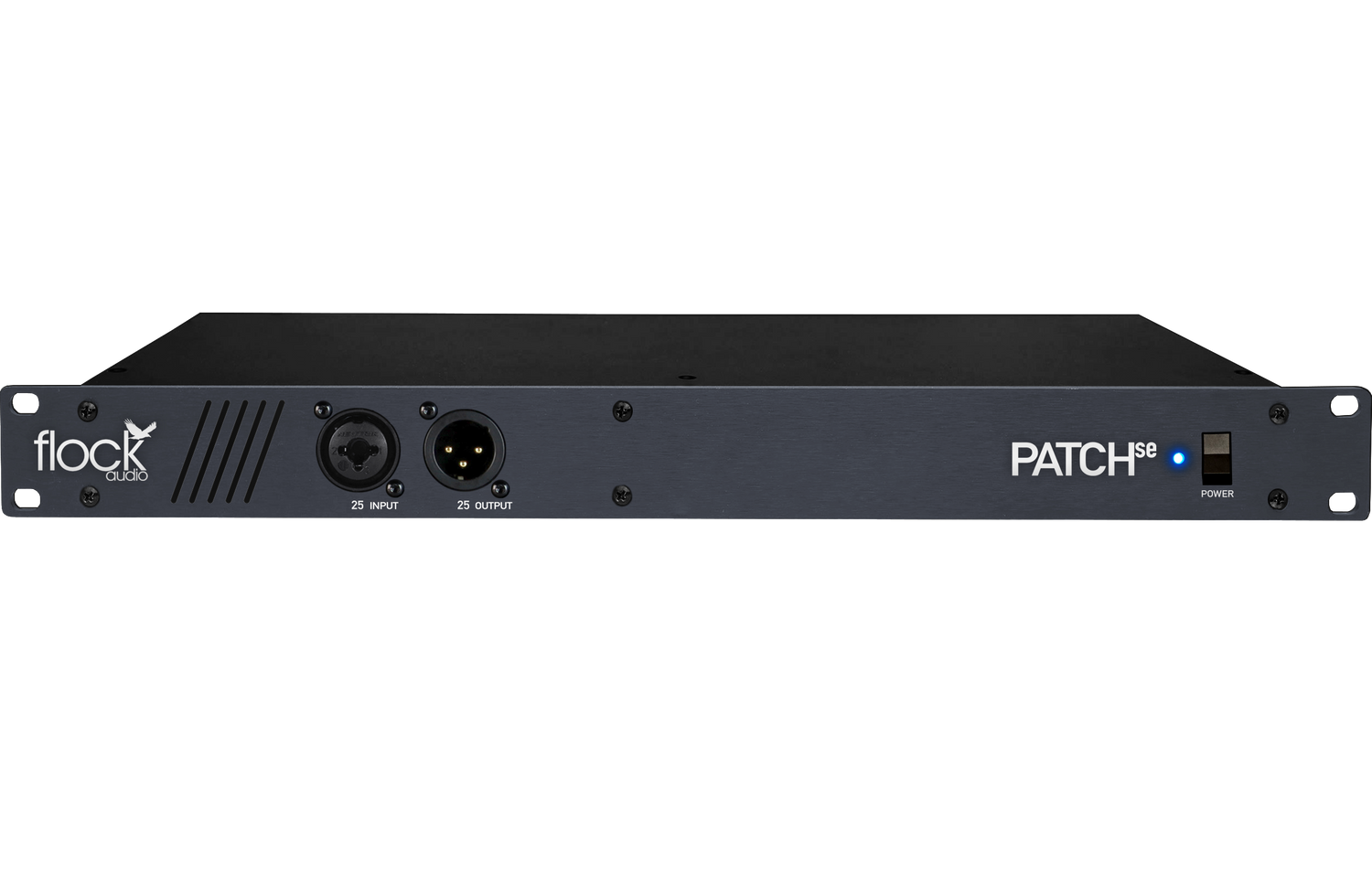

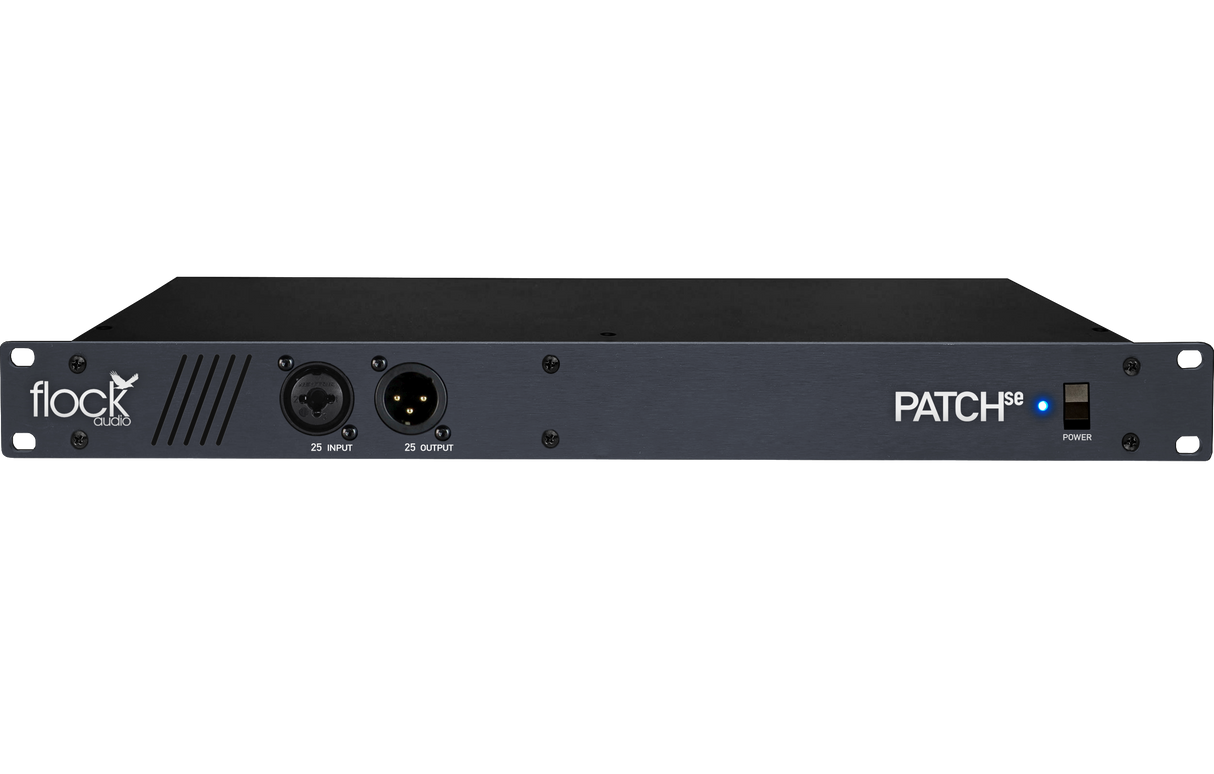

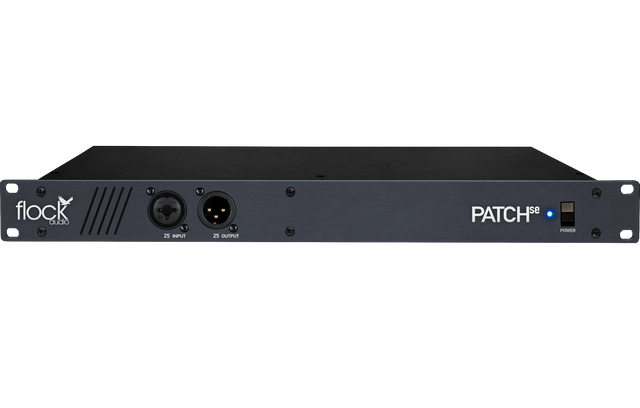

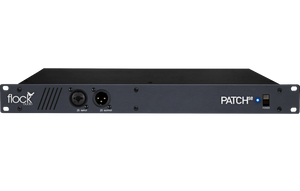

Front Panel Access
Easily connect one TRS/XLR input and one XLR output from the front.

Transparent Analog Path
Maintains pure analog signal with no digital conversion.

No Impedance Issues
Create multing combinations without affecting signal integrity.

Expandable System
Link with other PATCH models for larger setups.

Reliable Connectivity
Uses standard DB-25/D-SUB connectors for simple integration.

External Power Included
Comes with its own power supply and USB cable for setup.

Compact Design
Fits into a standard 1U rack space for streamlined studio use.

Specifications

General Specifications
Device Type: Digitally-Controlled Analog Patchbay
Connection Points: 48 Total (24 Inputs / 24 Outputs)
Compatibility: PATCH APP & PATCH APP DX (macOS & Windows)
Routing Features: Store, Recall, and Mult Routing Configurations
Signal Path: 100% Transparent Analog, No AD/DA Conversion
Technology: Multi-Patented Flock Audio Matrix
Expansion: Supports Multiple Unit Expansion with Any PATCH Model
Construction: 1U Rackmount
Dimensions: 1.75” (H) x 19” (L) x 8” (D)
Weight: 10 lbs

Input/Output

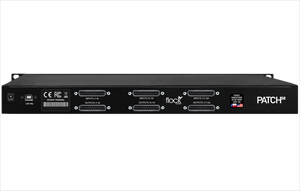

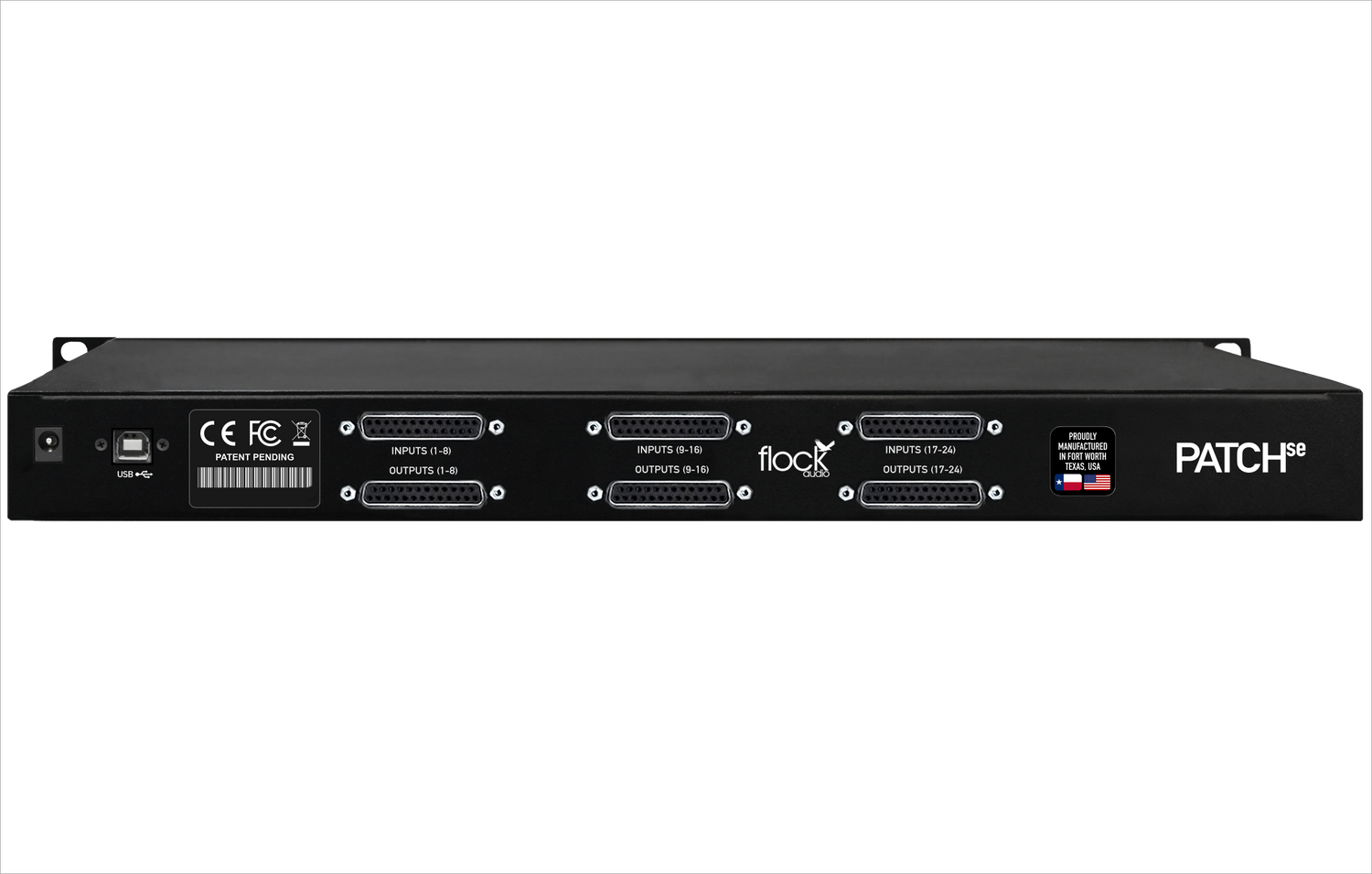

Rear Connections: DB-25/D-SUB, Tascam Standard Pinout
Front Panel Inputs: 1 Combo TRS/XLR
Front Panel Outputs: 1 XLR

Control Interface
Software: PATCH APP, PATCH APP DX
Operating Systems: macOS, Windows
Connection Type: USB 2.0 (USB-A to USB-B), 10 ft Cable Included

Power
Power Supply: External with IEC Cable Included
