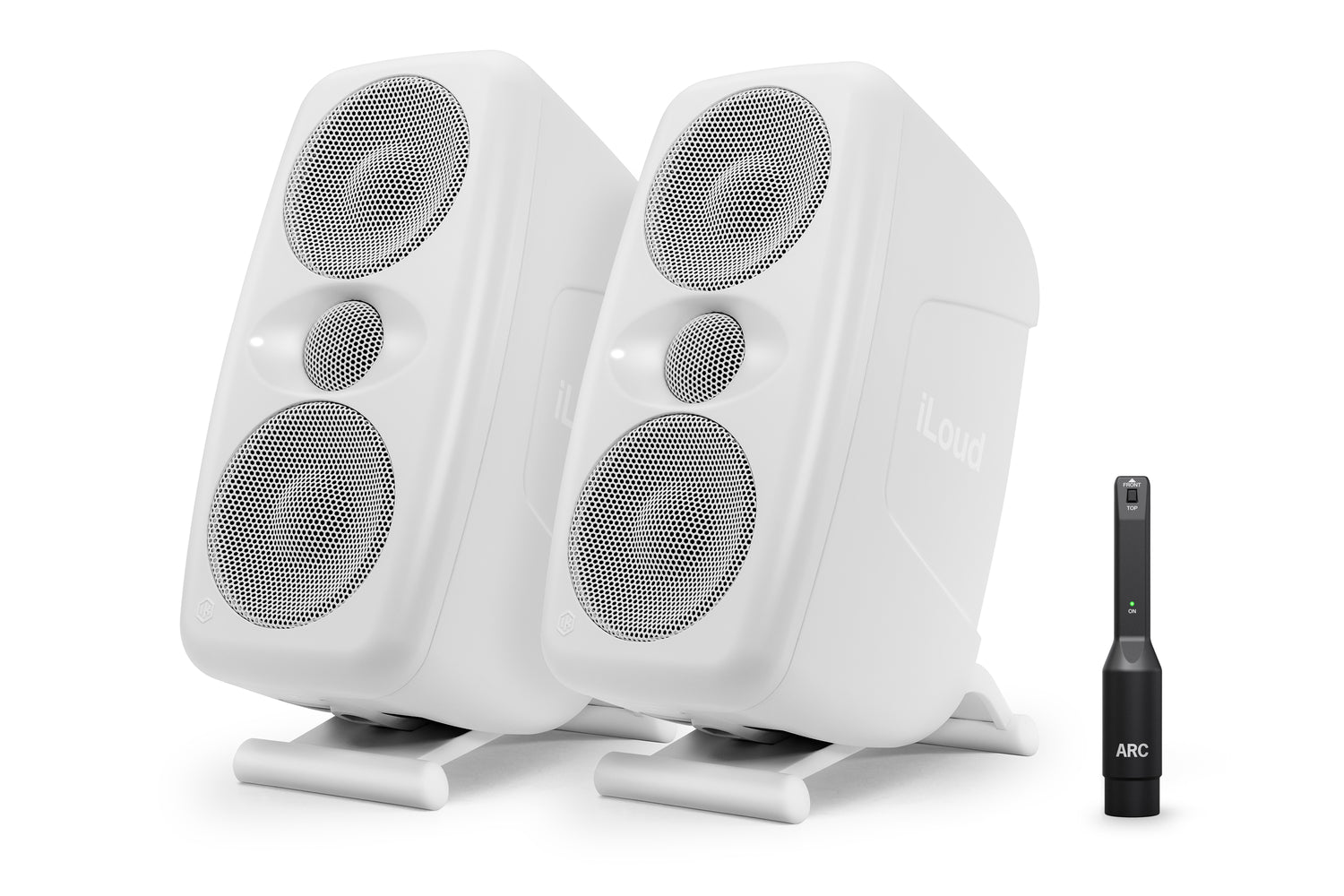

iLoud MTM MKII (Pair) - White

White Stereo Pair
A matched white monitor setup designed for accurate stereo monitoring in professional, home, and desktop studios.

Transparent, Detailed Sound
Delivers revealing, true-to-life monitoring that helps you make confident mixing and production decisions.

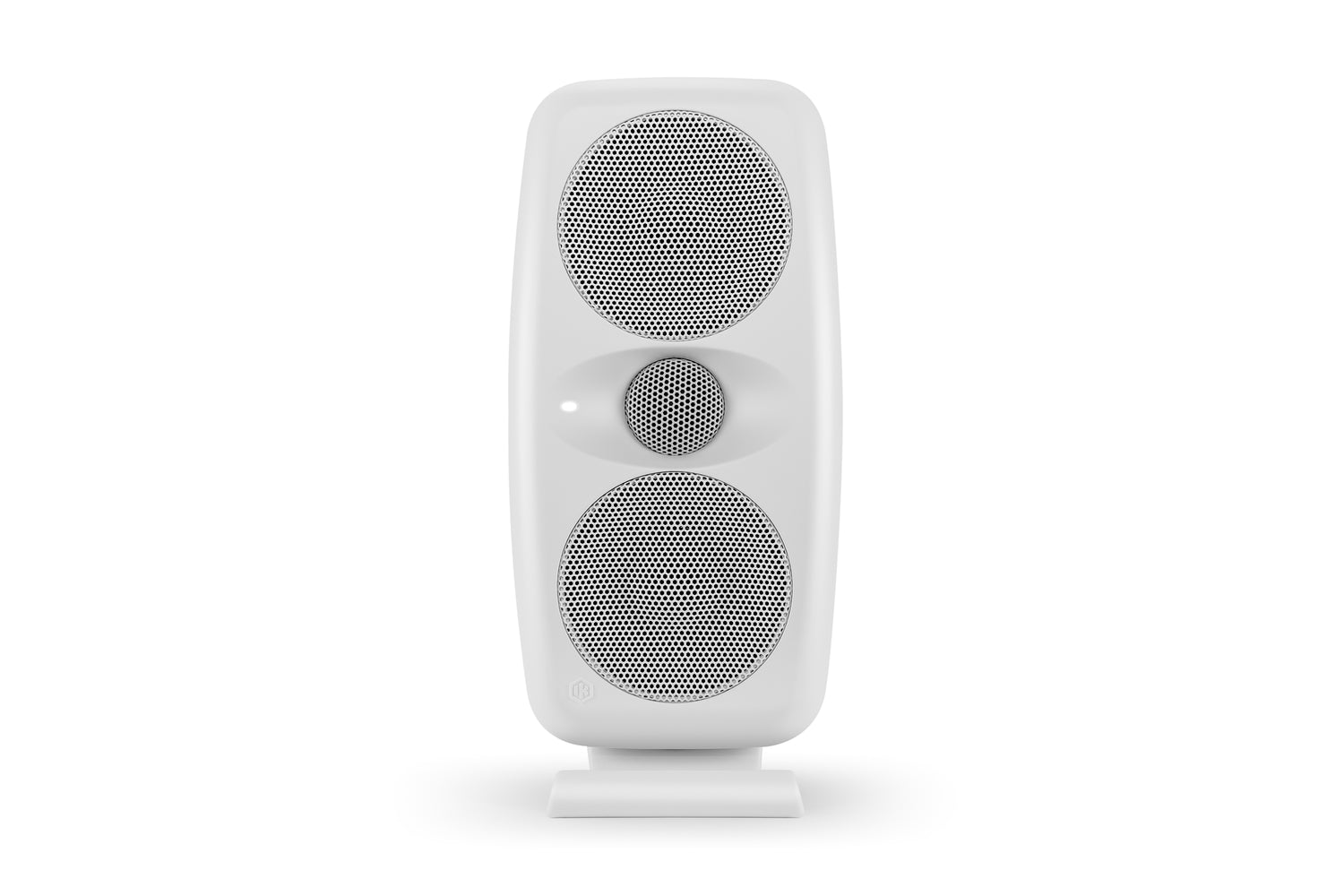

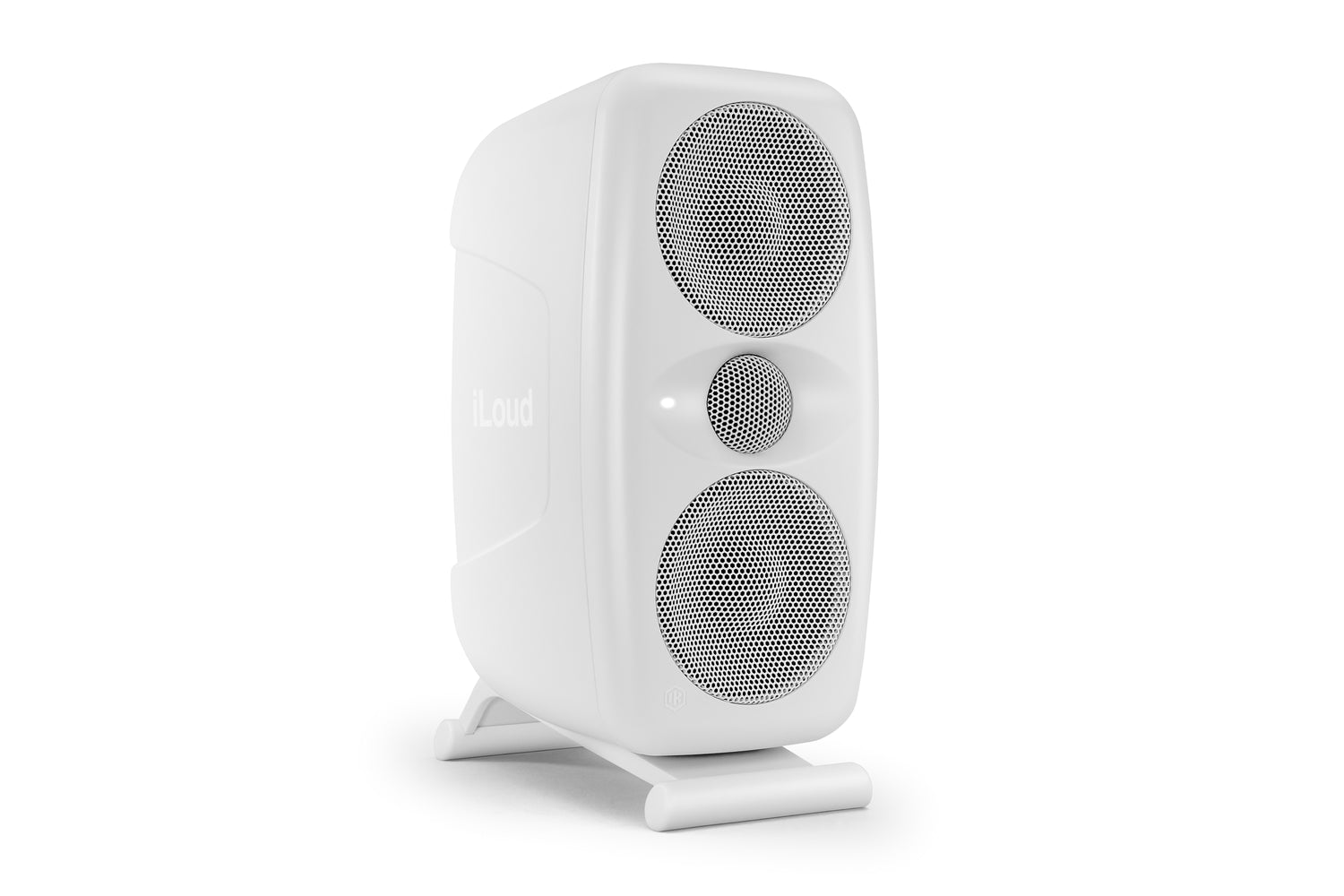

MTM Driver Design
The symmetrical driver layout provides focused sound with smooth horizontal coverage and reduced unwanted reflections.

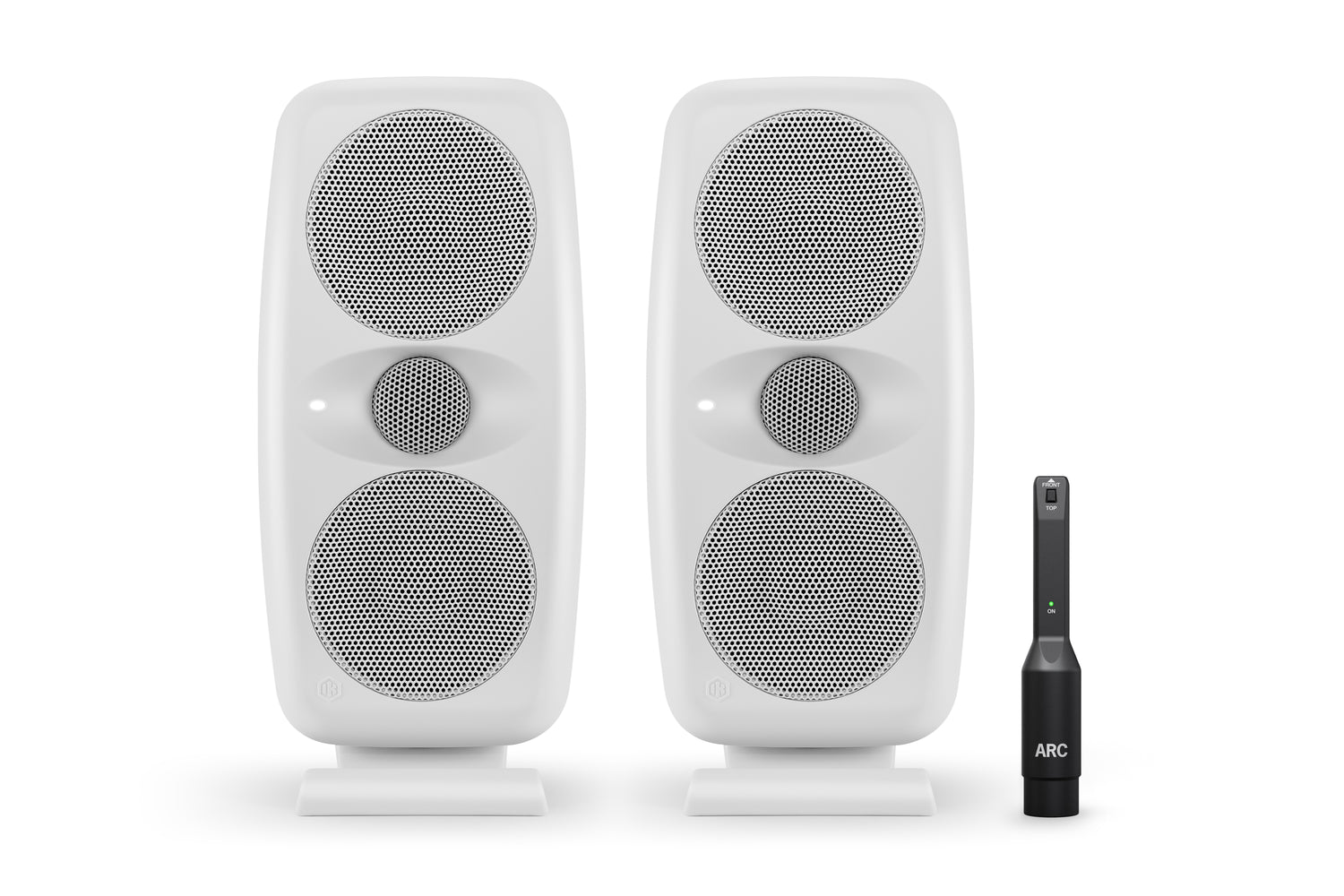

ARC Calibration Microphone Included
Includes an ARC measurement microphone for room calibration and more accurate monitoring.

Built-In Room Calibration
Integrated ARC technology adapts each monitor to your listening environment for more accurate monitoring.

ARC X Compatibility
Connects with ARC X software for guided room correction, monitor control, custom voicing, and calibration management.

Adjustable Sound Tuning
Rear controls let you tailor the monitors to suit your room, desktop placement, or subwoofer setup.

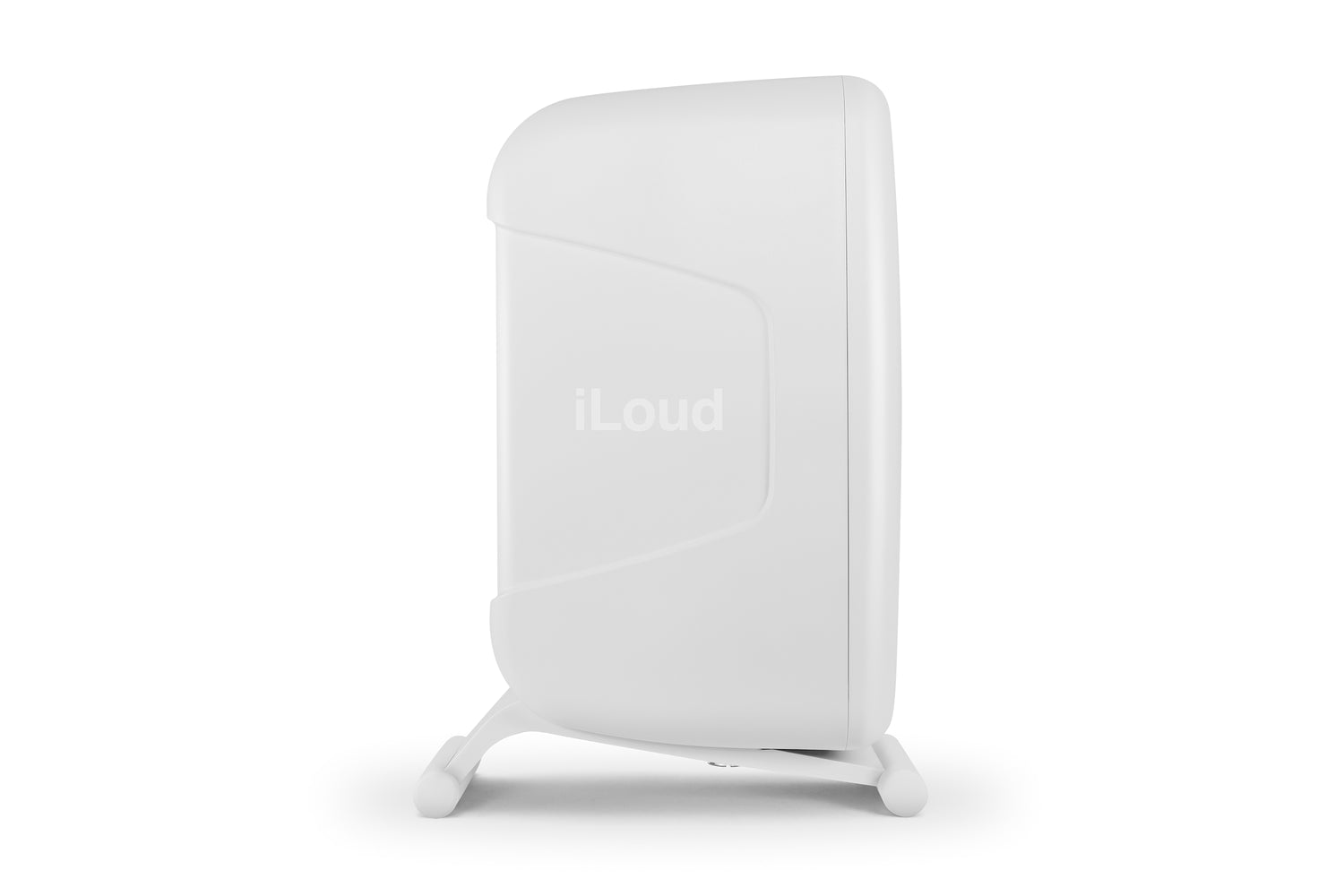

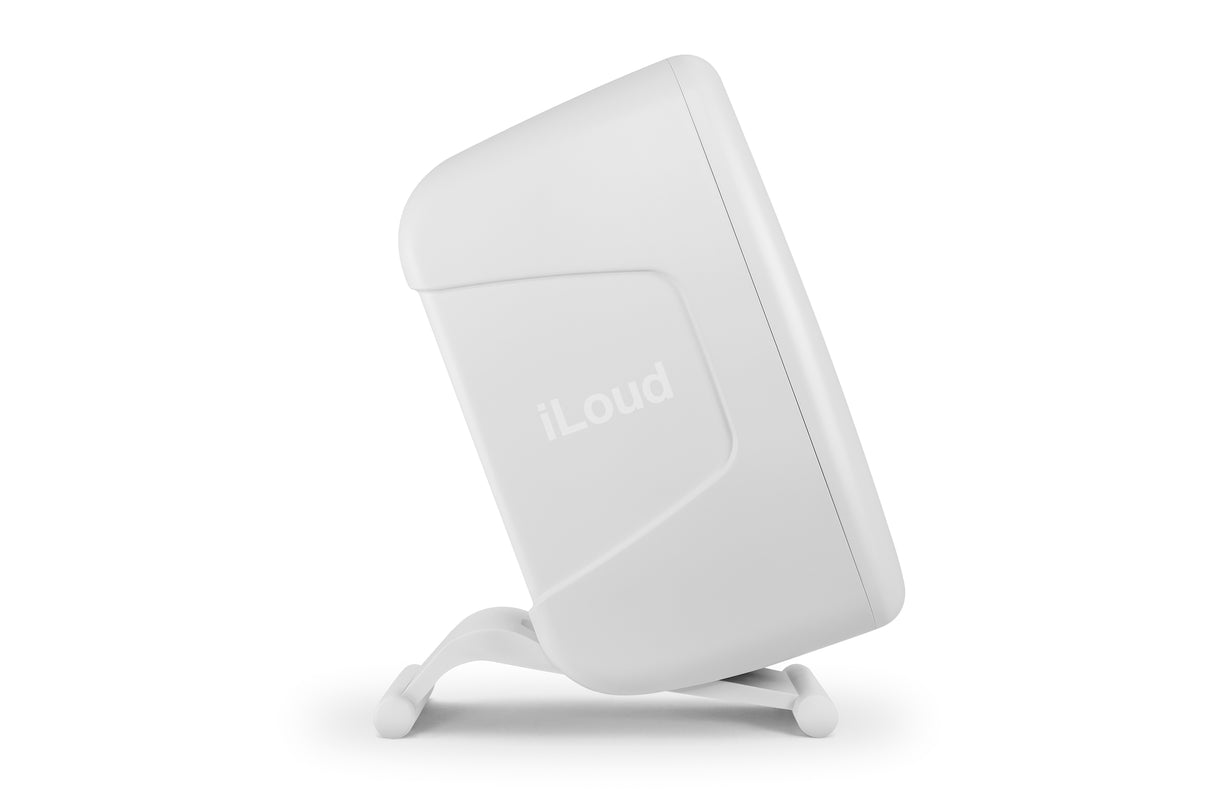

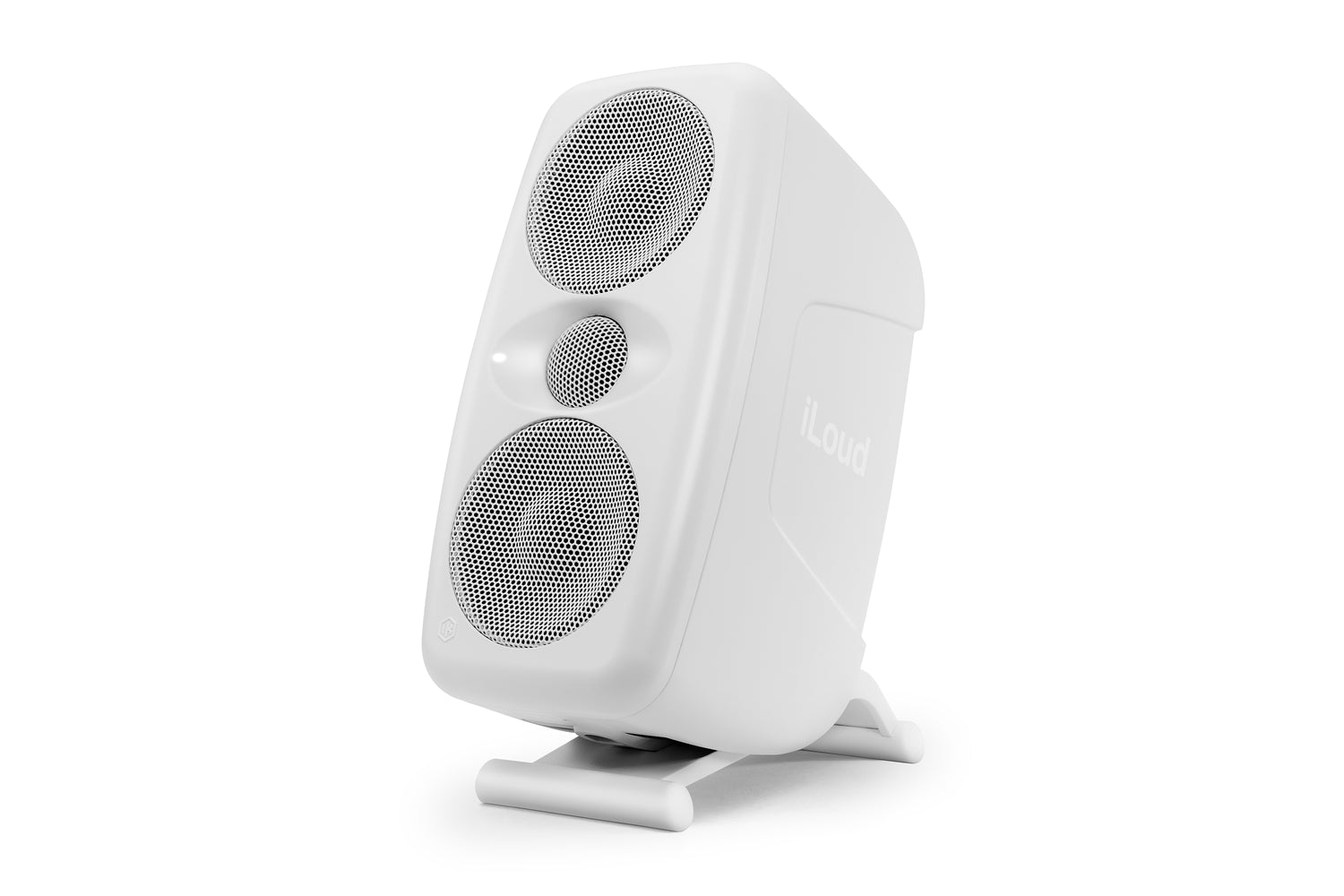

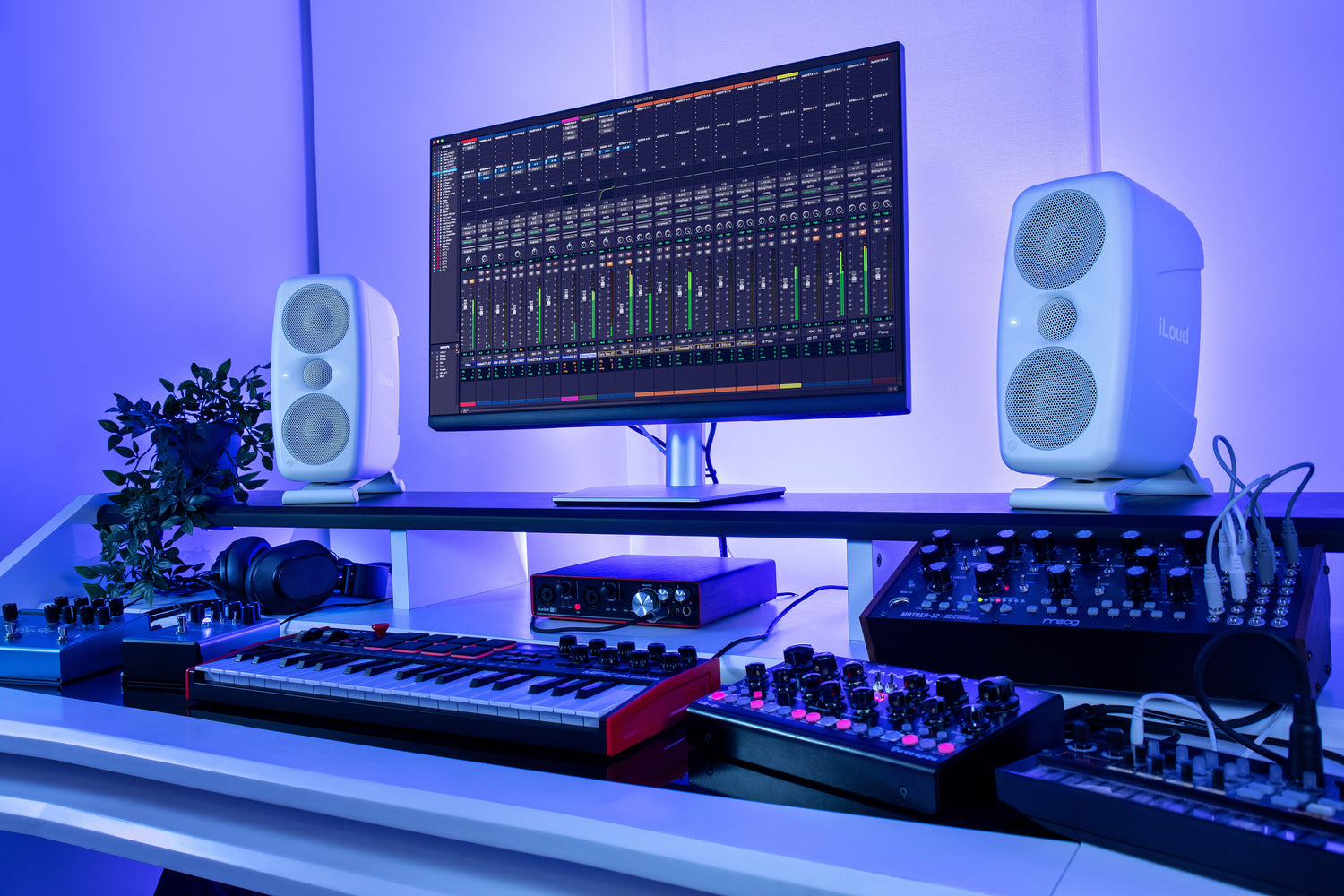

Desktop-Friendly Positioning

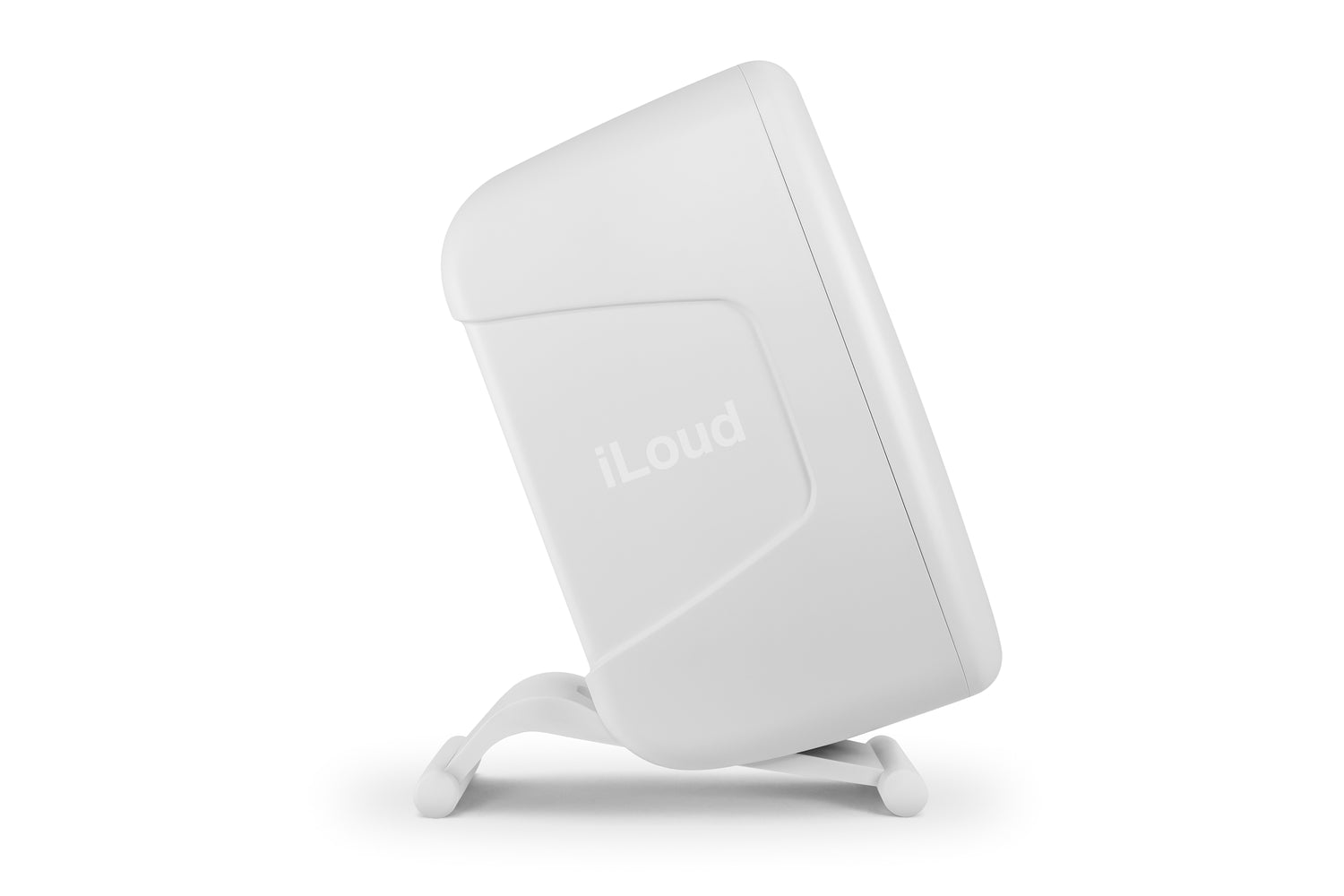

The integrated tilting stand helps aim each monitor toward your listening position while reducing vibrations from the surface.

Flexible Placement
The monitors can be used vertically, horizontally, or mounted on compatible microphone stands to suit different studio layouts.

Reduced Desk Reflections
A dedicated desktop setting helps compensate for the tonal changes that can occur when monitors are placed on a desk or console.

Subwoofer Integration
Built-in bass management makes it easy to combine the monitors with a subwoofer for an expanded monitoring system.

Professional Audio Connectivity
Balanced audio inputs make the monitors easy to connect to common studio interfaces, mixers, and other professional equipment.

Precise Stereo Imaging
When properly positioned, the pair creates a focused listening sweet spot for accurate placement of sounds across the stereo field.

Firmware-Upgradeable
Computer connectivity allows the monitors to receive firmware updates and maintain access to current features.

General Specifications
Configuration: Matched Pair
Finish: White
Device Type: 2-way, 3-speaker, bi-amped digitally controlled studio monitors
Acoustic Design: DSP-tuned bass reflex
Amplifiers Per Speaker: 2
Amplifier Type: High-efficiency Class-D
Calibration: Fully automatic built-in digital calibration
DSP Control: Full DSP control
ARC Measurement Microphone: Included
ARC X Compatibility: Supported

Drivers
LF Drivers: 2 × 3.5 in composite cellulose fiber custom mid-woofers per speaker
HF Driver: 1 × 1 in low-distortion back-chambered silk-dome tweeter per speaker
Driver Configuration: Midwoofer-Tweeter-Midwoofer

Amplification
Total Power: 100 W RMS per speaker
LF Power: 70 W RMS per speaker
HF Power: 30 W RMS per speaker

Frequency and Phase
Frequency Response: 48 Hz–28 kHz ±2 dB
Extended Frequency Response: 36 Hz–32 kHz at -10 dB
Phase Response: Within ±15° from 200 Hz–20 kHz
Crossover Type: Digital, linear phase
Crossover Frequency: 2.8 kHz
Total Latency (TOF): 2.44 ms

Sound Pressure Level
Continuous Long-Term SPL: 97 dB at 1 m, free field, one speaker, ANSI-2034 weighted pink noise
Peak SPL Free Field: 110.5 dB at 1 m, one speaker, ANSI-2034 weighted pink noise
Peak SPL Half Space: 112.5 dB at 1 m, one speaker, ANSI-2034 weighted pink noise

Input Sensitivity
Professional Setting: +4 dBu
Sensitivity at +4 dBu: -6 dBu input produces 94 dB SPL at 1 m
Consumer Setting: -10 dBV
Sensitivity at -10 dBV: -17 dBu input produces 94 dB SPL at 1 m
Volume Range: -∞ dB to +6 dB

Acoustic Controls
LF Extension: 40 Hz / 50 Hz / 60 Hz / 80 Hz LFE
LF Extension Function: Selectable high-pass filtering
LF Trim: Low shelf, +2 dB / -3 dB from 100 Hz downward
Desk Filter: -4 dB at 160 Hz and +1 dB at 1.8 kHz
Calibration Presets: Desktop / Flat / Custom ARC calibration

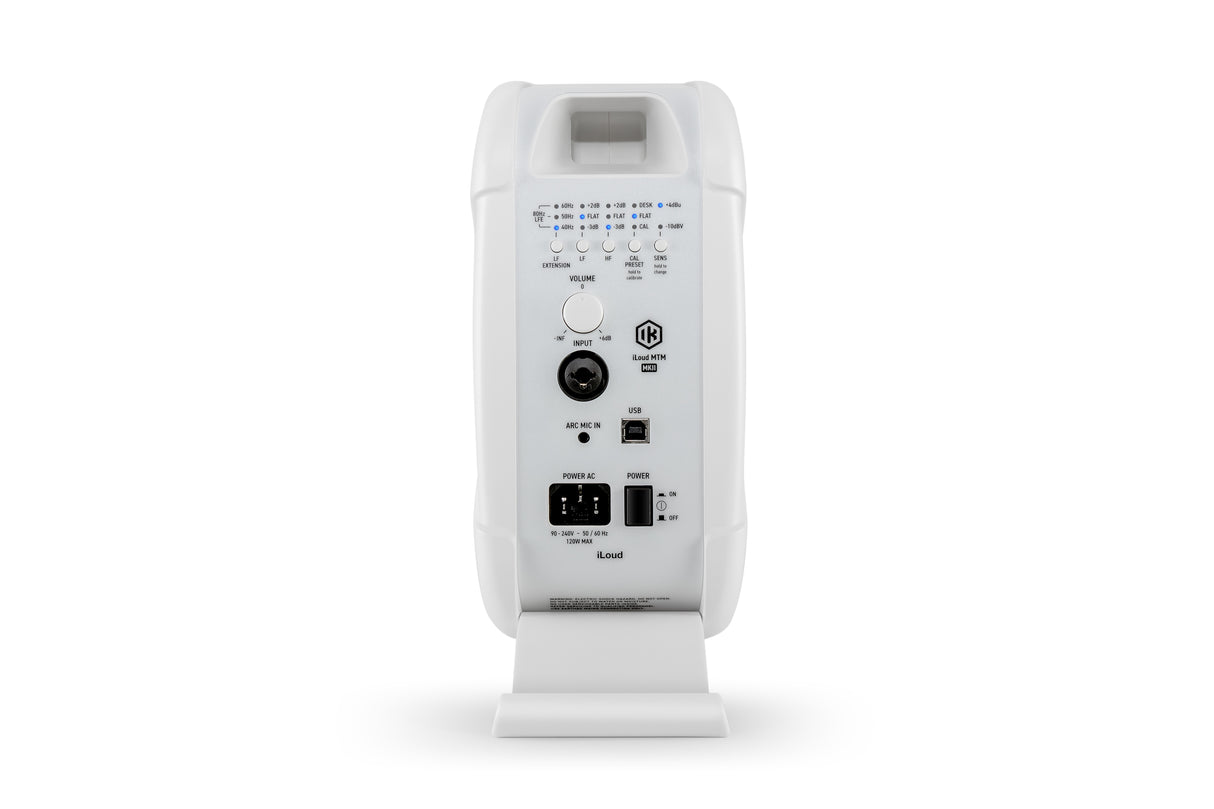

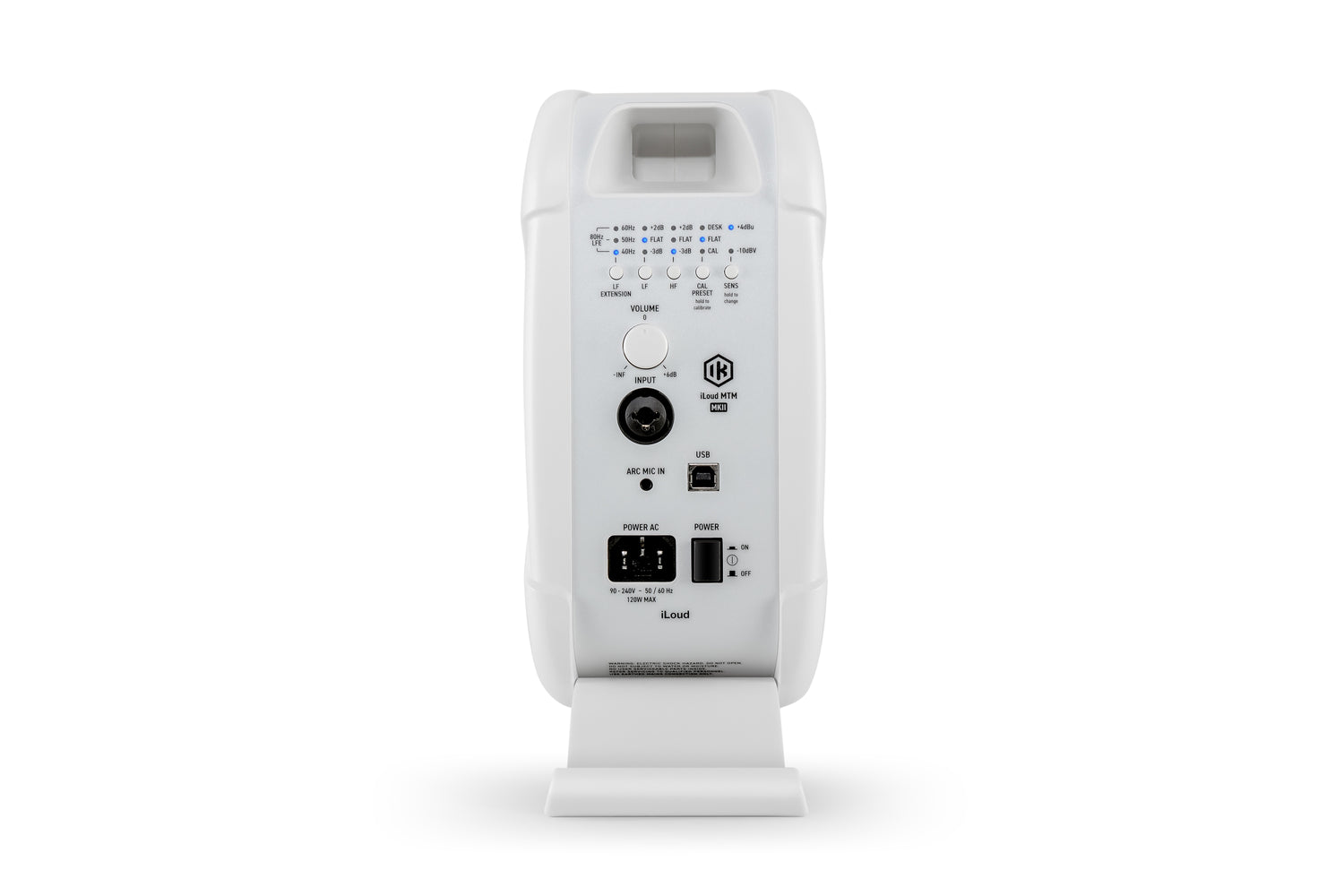

Connectivity
Analog Audio Input: Combo XLR / 1/4 in TRS balanced
ARC Microphone Input: 1/8 in TS
Computer Connection: USB Type-B
Power Connection: AC power socket

Electrical
Input Voltage: 90–240 V AC
Power Supply: Auto-ranging
Mains Frequency: 50 / 60 Hz
Maximum Power Consumption: 120 W per speaker

Physical Specifications
Dimensions Per Speaker: 264 × 160 × 130 mm
Dimensions Per Speaker: 10.39 × 6.3 × 5.12 in
Weight Per Speaker: 2.5 kg including tilting base
Weight Per Speaker: 5.5 lb including tilting base
Tilting Range: 0°–20°
Microphone Stand Mount: Standard 3/8 in thread
Orientation: Vertical or horizontal
Recommended Wall Clearance: Minimum 20 cm / 8 in

Included Components
Studio Monitors: 2
ARC Measurement Microphone: 1
Power Cords: 2
Tilting Stands: 2
