iLoud MTM MKII (Single) - White

White Single Monitor
A single white studio monitor designed for accurate nearfield listening in professional, home, and desktop studios.

Transparent, Detailed Sound
Delivers revealing, true-to-life monitoring that helps you make confident mixing and production decisions.

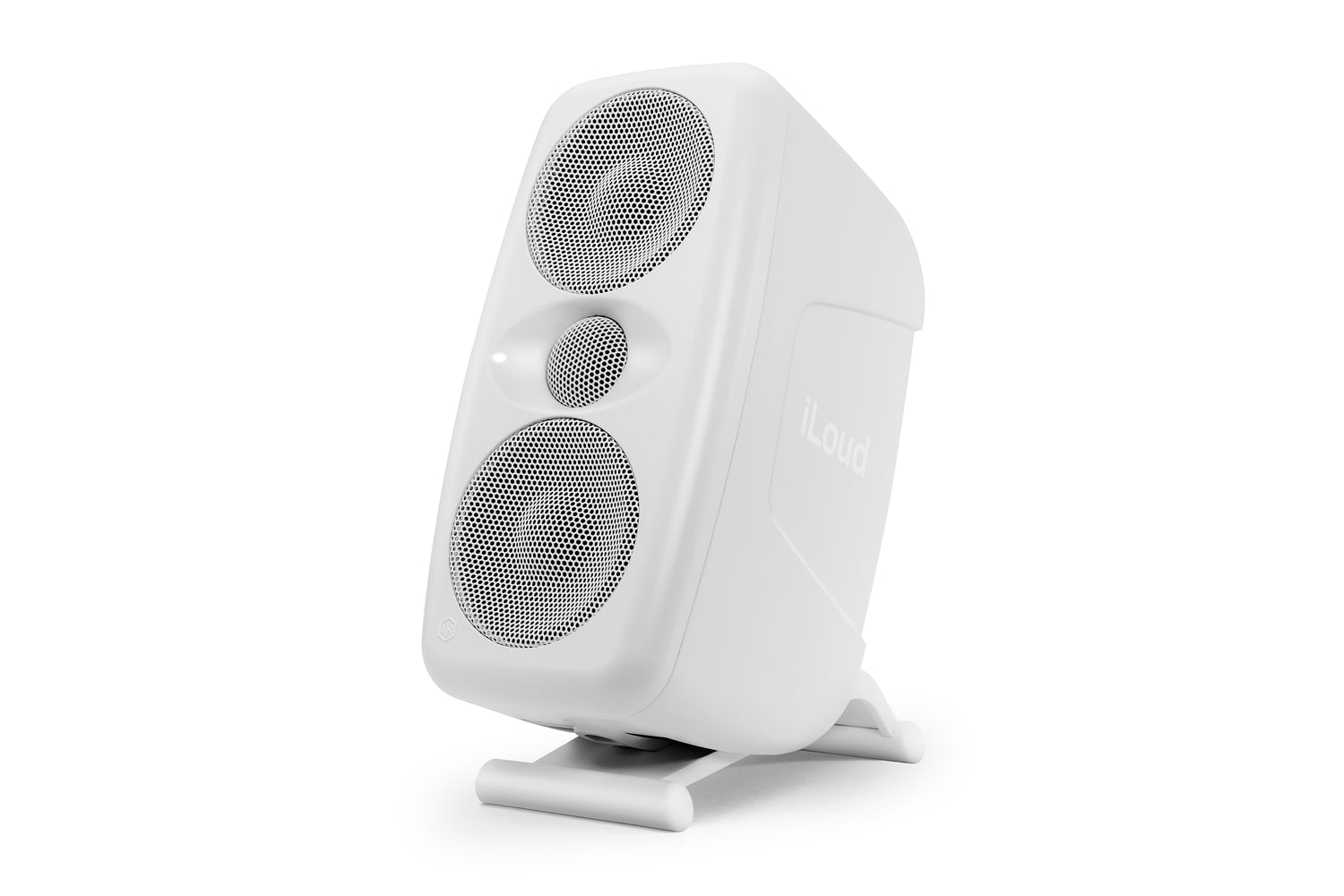

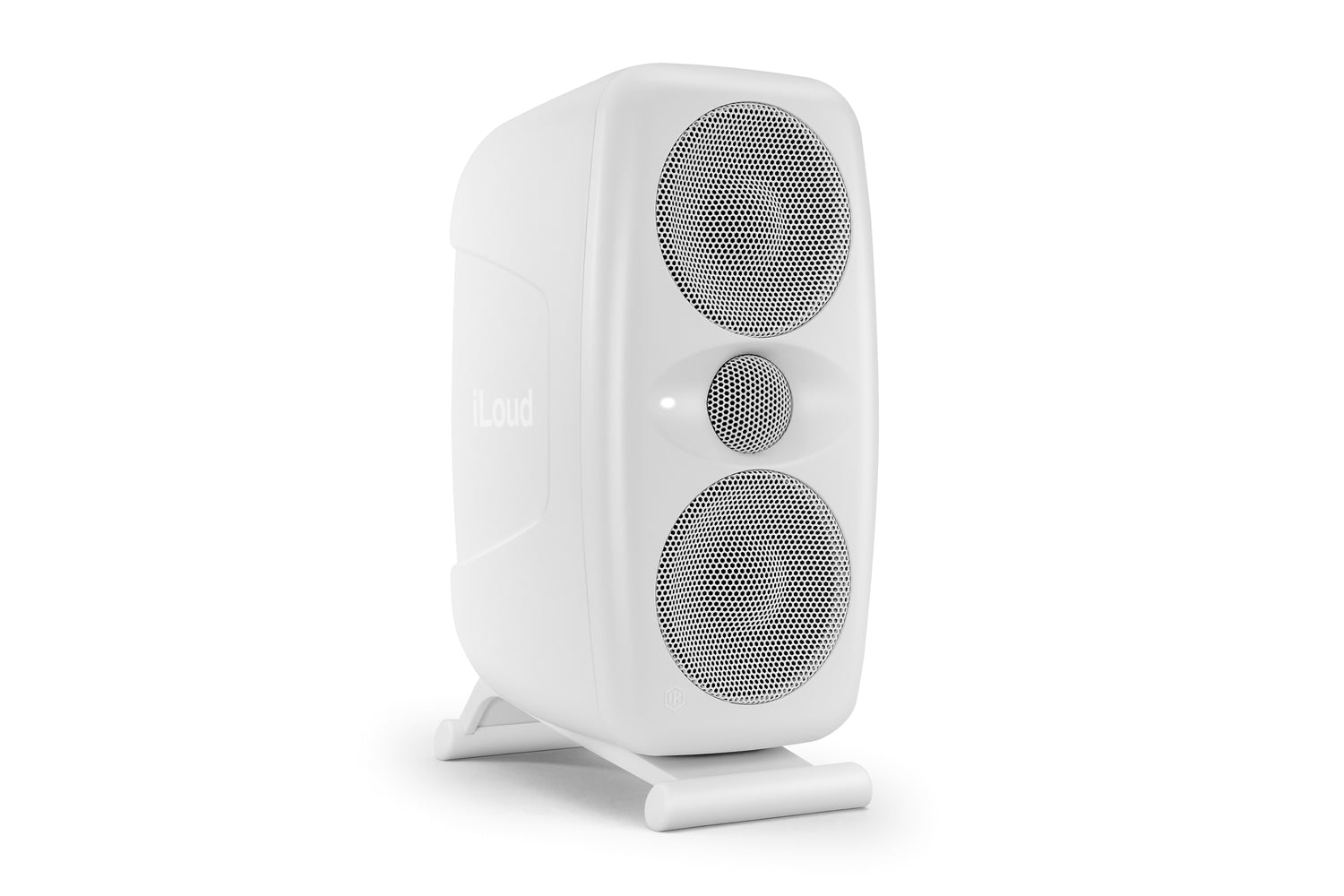

MTM Driver Design
The symmetrical driver layout provides focused sound with smooth horizontal coverage and reduced unwanted reflections.

Built-In Room Calibration
Integrated ARC technology lets the monitor adapt to your listening environment when used with a compatible ARC measurement microphone.

ARC Calibration Microphone Sold Separately
The microphone required for custom ARC room calibration is not included with the monitor.

ARC X Compatibility
Connects with ARC X software for guided room correction, monitor control, custom voicing, and calibration management.

Adjustable Sound Tuning

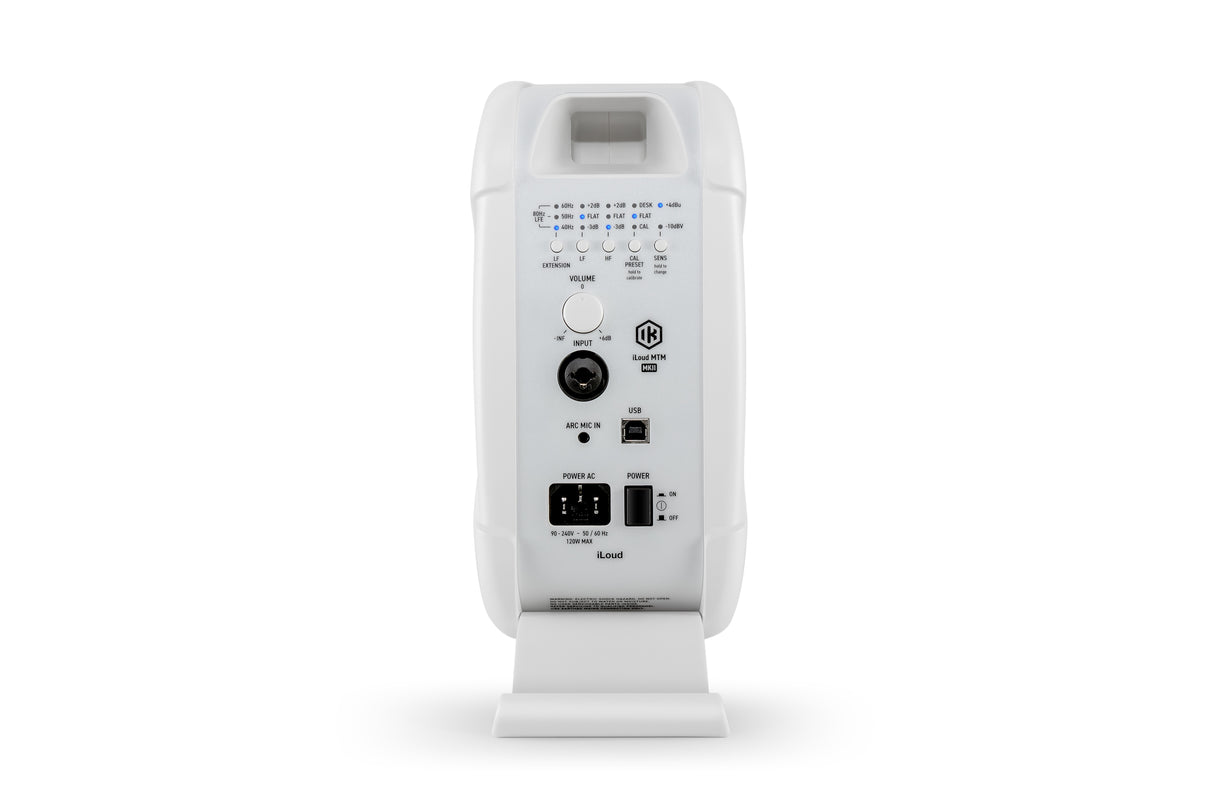

Rear controls let you tailor the monitor to suit your room, desktop placement, or subwoofer setup.

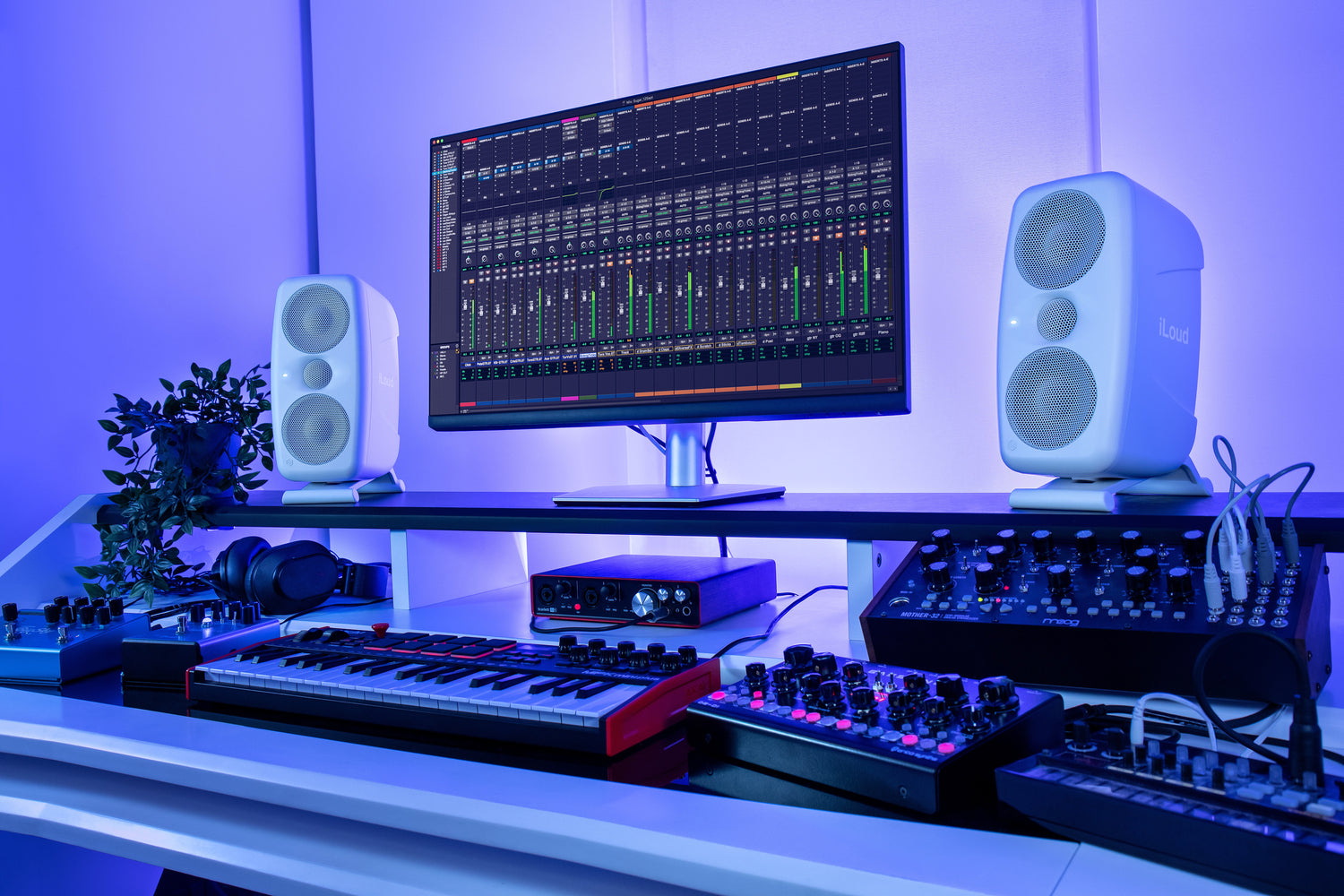

Desktop-Friendly Positioning

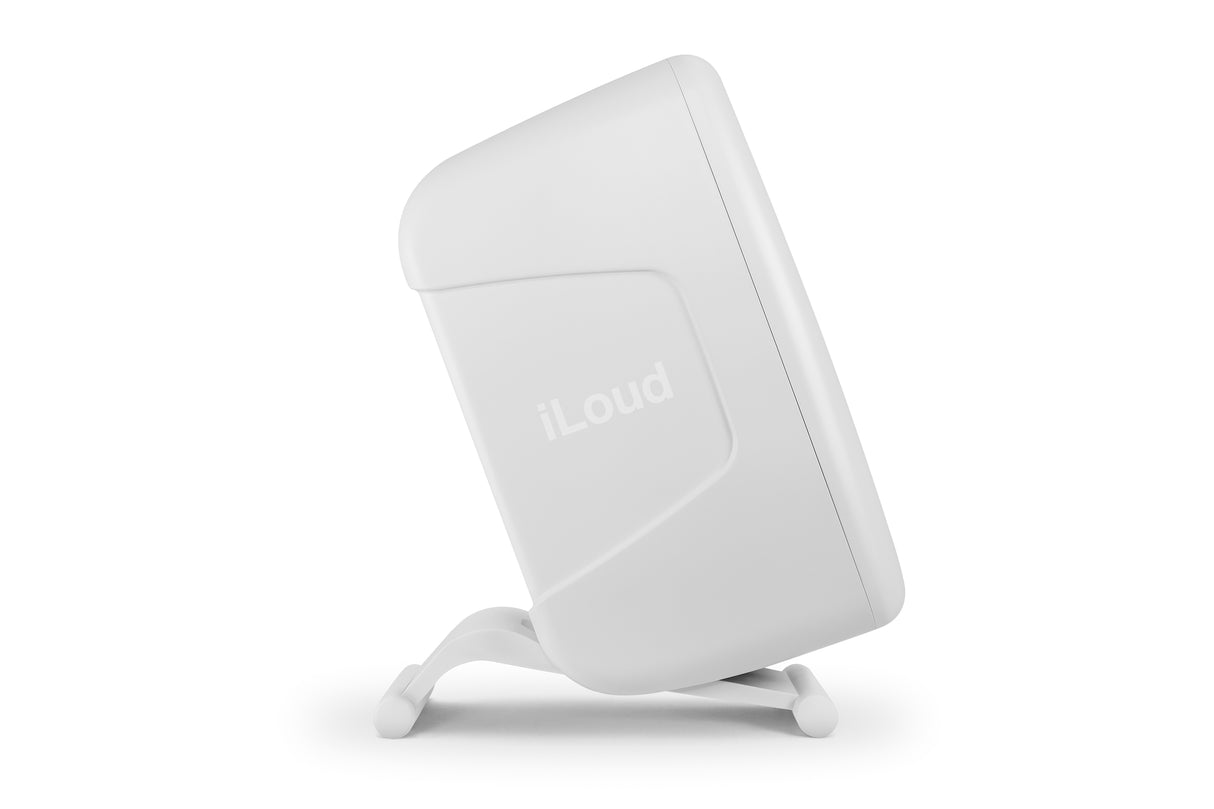

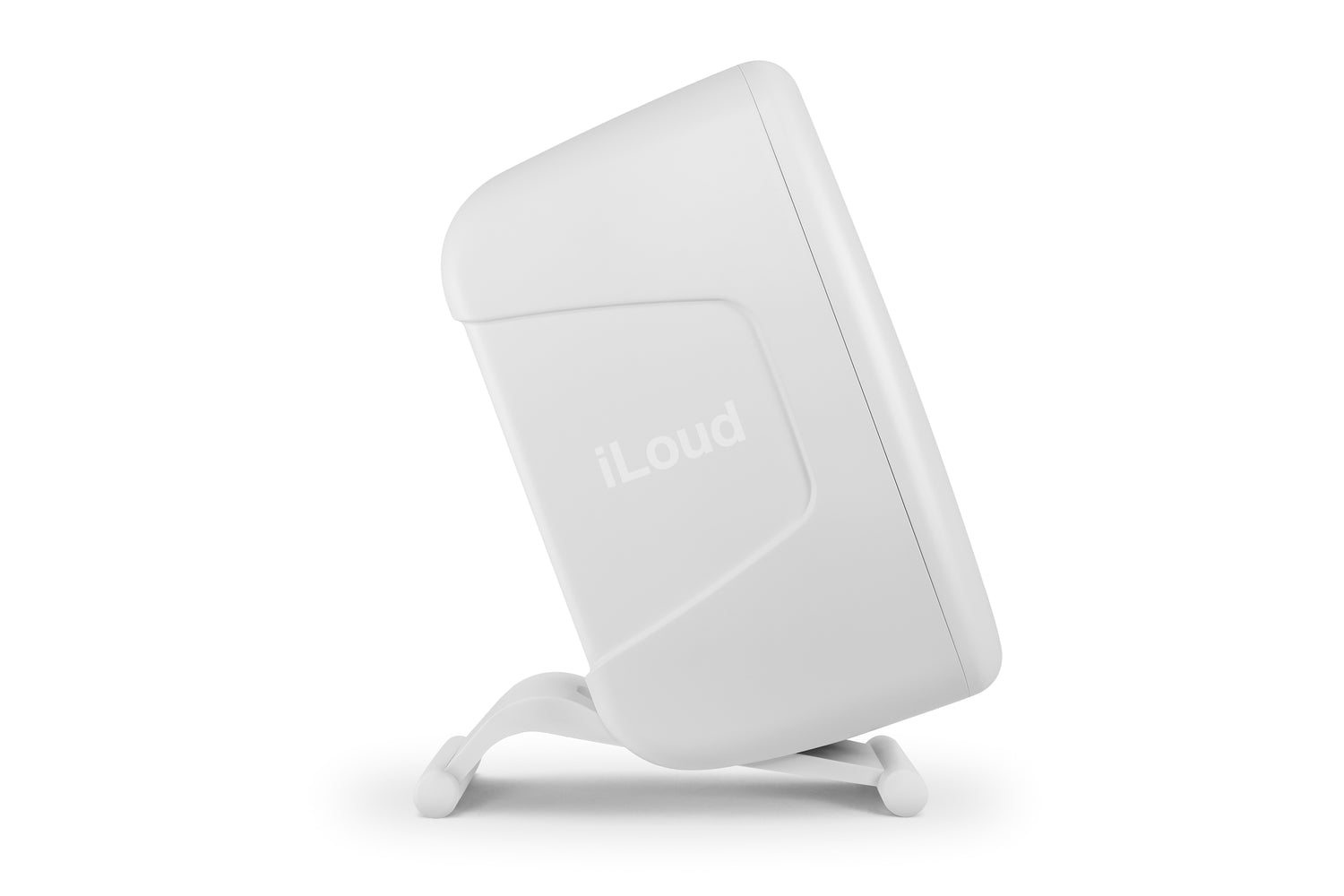

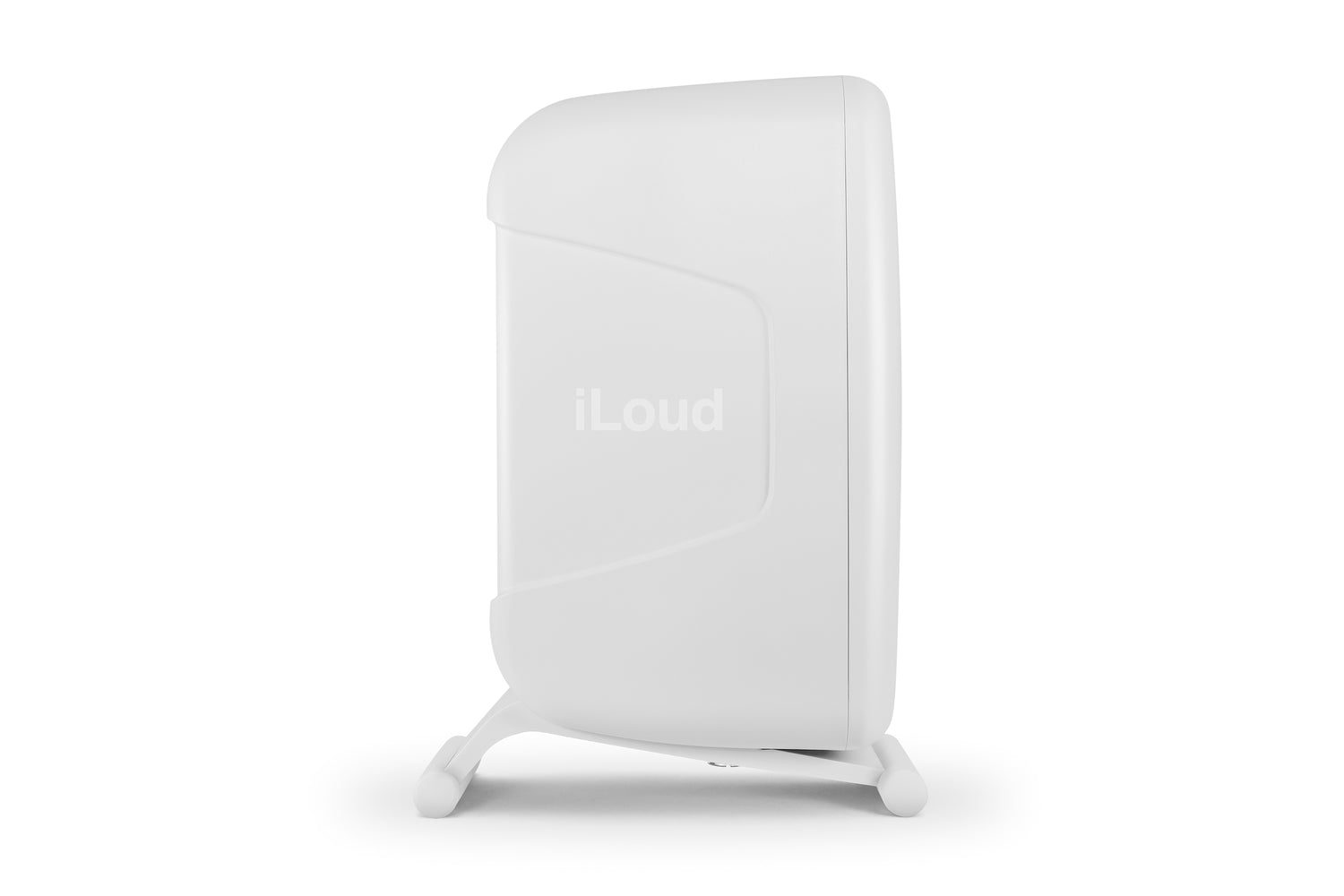

The integrated tilting stand helps aim the monitor toward your listening position while reducing vibrations from the surface.

Flexible Placement
The monitor can be used vertically, horizontally, or mounted on a compatible microphone stand.

Reduced Desk Reflections
A dedicated desktop setting helps compensate for tonal changes caused by placement on a desk or console.

Subwoofer Integration
Built-in bass management makes it easy to combine the monitor with a subwoofer.

Professional Audio Connectivity
Balanced audio input support makes it easy to connect to studio interfaces, mixers, and other professional equipment.

Firmware-Upgradeable
Computer connectivity allows firmware updates and access to current monitor features.

General Specifications
Configuration: Single Studio Monitor
Color: White
Device Type: 2-way, 3-speaker, bi-amped digitally controlled studio monitor
Acoustic Design: DSP-tuned bass reflex

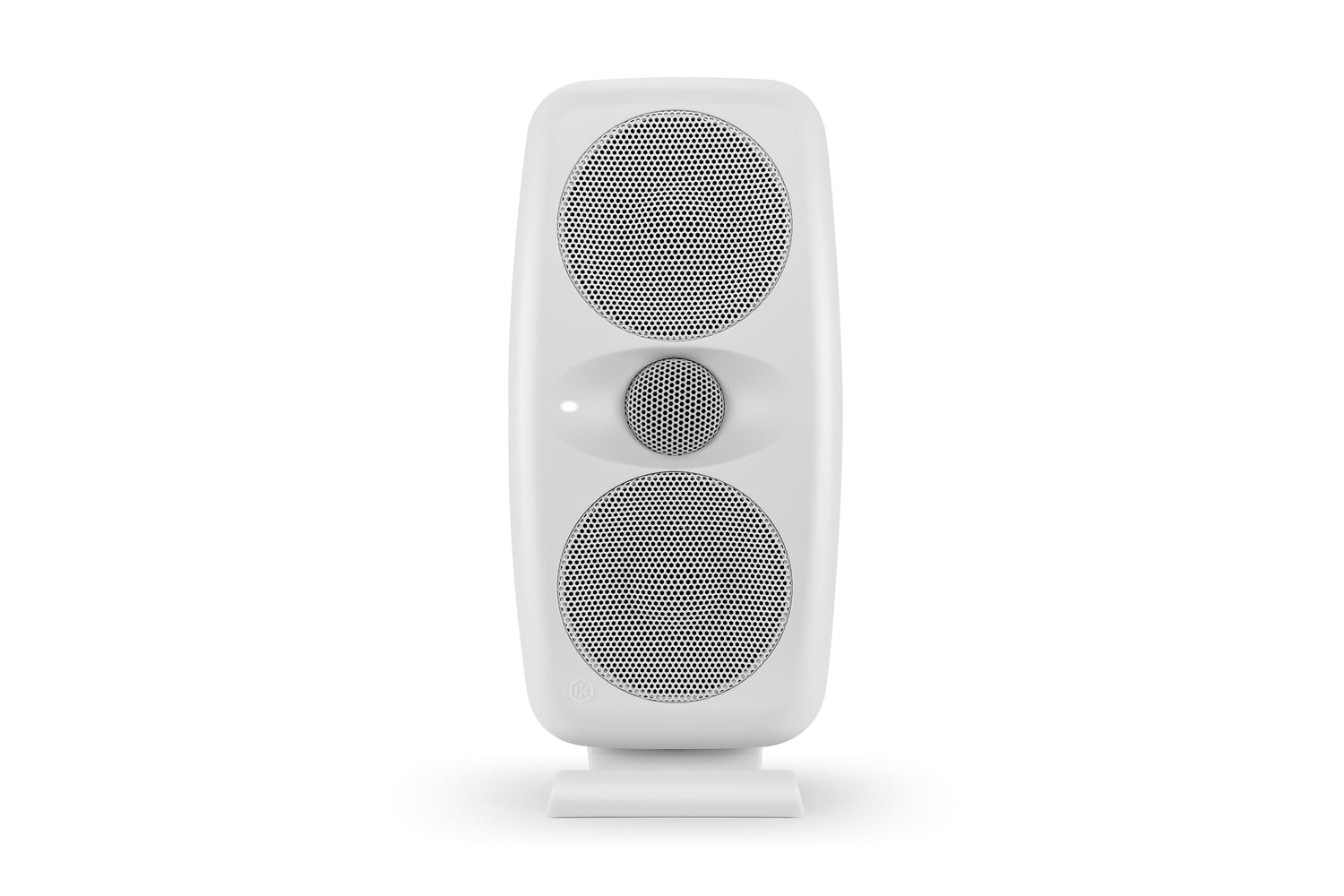

Speaker Configuration: Midwoofer-Tweeter-Midwoofer
Amplifiers: 2
Amplifier Type: High-efficiency Class-D
Calibration: Fully automatic built-in digital calibration
ARC X Compatibility: Supported

Drivers
LF Drivers: 2 × 3.5 in composite cellulose fiber custom mid-woofers
HF Driver: 1 × 1 in low-distortion back-chambered silk-dome tweeter

Amplification
Total Power: 100 W RMS
LF Power: 70 W RMS
HF Power: 30 W RMS

Frequency and Phase
Frequency Response: 48 Hz–28 kHz ±2 dB
Extended Frequency Response: 36 Hz–32 kHz at -10 dB
Phase Response: Within ±15° from 200 Hz–20 kHz
Crossover Type: Digital, linear phase
Crossover Frequency: 2.8 kHz
Total Latency: 2.44 ms

Sound Pressure Level
Continuous Long-Term SPL: 97 dB at 1 m, free field, ANSI-2034 weighted pink noise
Peak SPL Free Field: 110.5 dB at 1 m, ANSI-2034 weighted pink noise
Peak SPL Half Space: 112.5 dB at 1 m, ANSI-2034 weighted pink noise

Input Sensitivity
Professional Input Setting: +4 dBu
Sensitivity at +4 dBu: -6 dBu input for 94 dB SPL at 1 m
Consumer Input Setting: -10 dBV
Sensitivity at -10 dBV: -17 dBu input for 94 dB SPL at 1 m
Volume Adjustment: -∞ dB to +6 dB

Acoustic Controls
LF Extension: 40 Hz / 50 Hz / 60 Hz / 80 Hz LFE
LF Trim: 0 dB / +2 dB / -3 dB from 100 Hz downward
HF Trim: 0 dB / +2 dB / -2 dB from 8 kHz upward
Desktop Filter: -4 dB at 160 Hz and +1 dB at 1.8 kHz
Calibration Modes: Desktop / Flat / Custom
Room Correction: ARC calibration with optional ARC measurement microphone

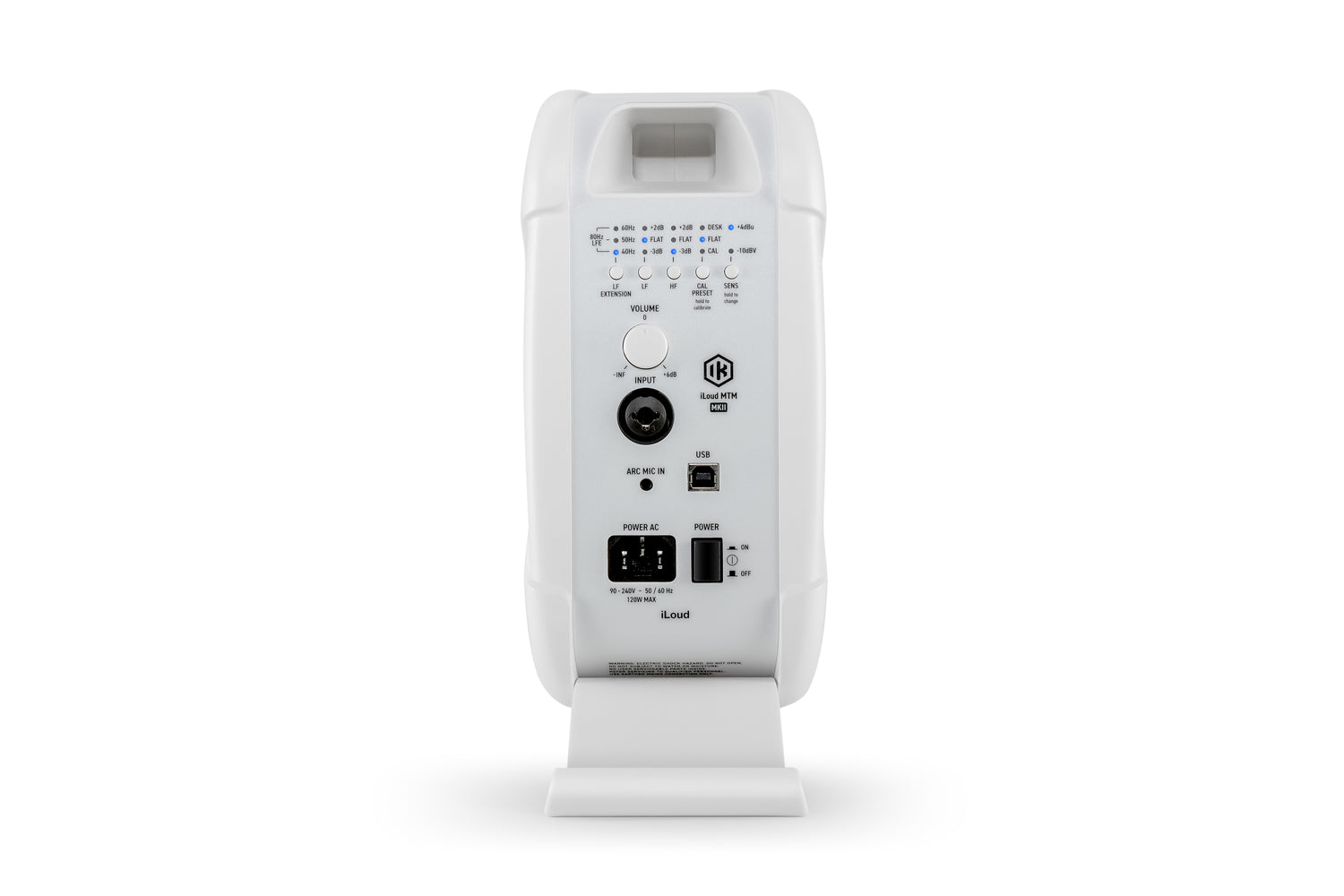

Connectivity
Analog Input: 1 × combo XLR / 1/4 in TRS balanced
ARC Microphone Input: 1 × 1/8 in TS
USB: 1 × USB Type-B
Power Connection: AC socket

Electrical
Input Voltage: 90–240 V AC
Power Supply: Auto-ranging
Mains Frequency: 50 / 60 Hz
Maximum Power Consumption: 120 W

Dimensions and Weight
Dimensions: 264 × 160 × 130 mm
Dimensions: 10.39 × 6.3 × 5.12 in
Weight: 2.5 kg / 5.5 lb including tilting base
Tilting Range: 0°–20°
Microphone Stand Mount: Standard 3/8 in thread
Placement Orientation: Vertical or horizontal

Included Components
Studio Monitor: 1
Power Cord: 1
Tilting Stand: 1
ARC Measurement Microphone: Not included
