WAVES

WA-76PB

Guitar/Bass Effects

All-analog FET compressor pedal, limited-edition blue finish, CineMag transformer, 76-style controls, DI out with gain modes, true/buffered bypass, VU meter, studio tone on stage

$439.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

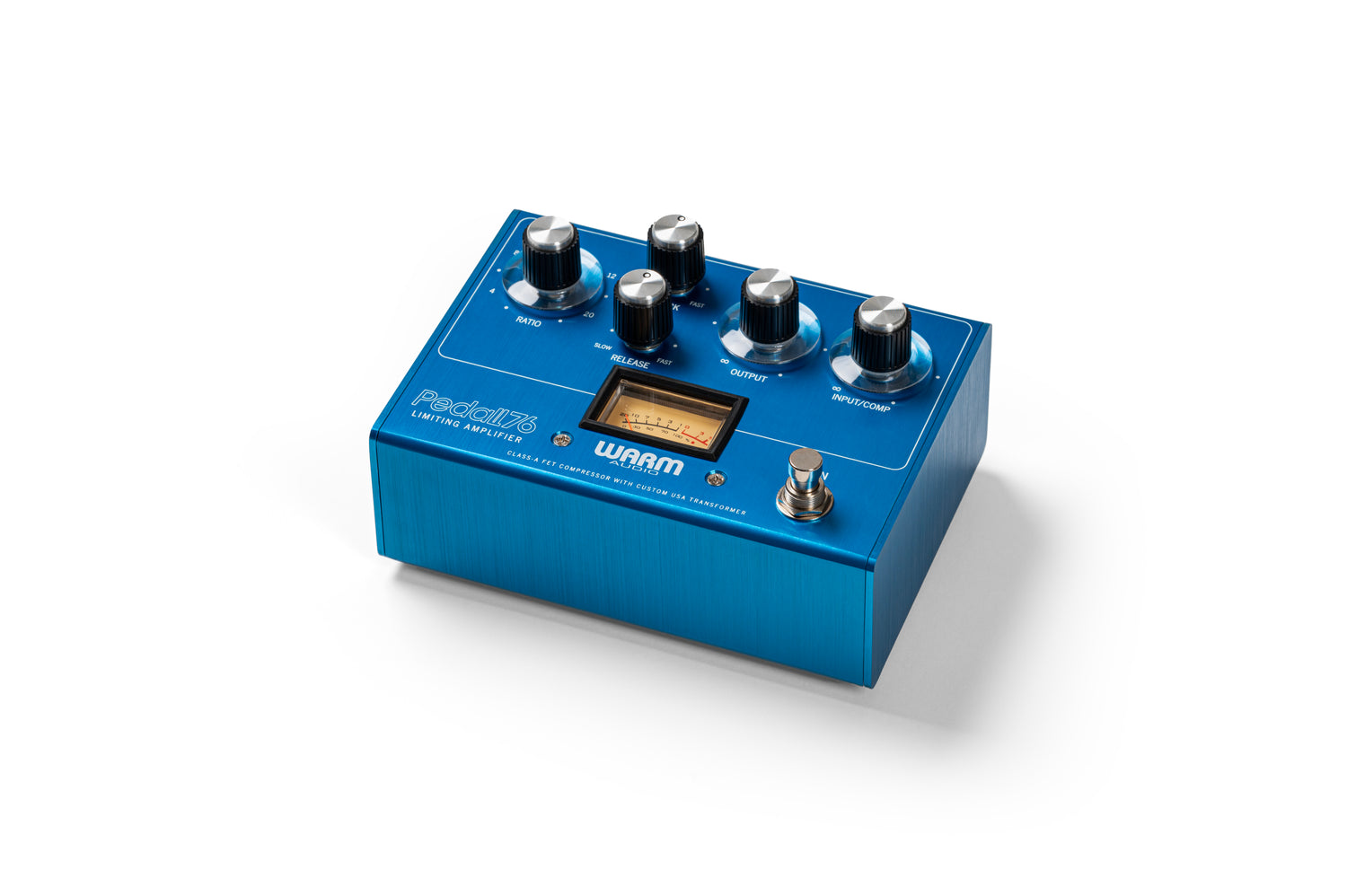

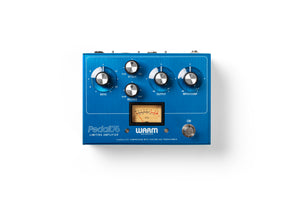

The Warm Audio Pedal76 – Limited Edition Blue is a premium, all-analog FET compressor pedal that faithfully recreates the sound and feel of one of the most iconic studio compressors of all time and is now available in a striking metallic blue finish. Designed for guitar and bass players who want studio-grade tone on stage, the Pedal76 delivers ultra-responsive dynamic control, added harmonic richness, and the unmistakable punch of classic 76-style compression.

Equipped with essential studio-style controls including ratio, attack, release, input, and output, the Pedal76 lets you dial in everything from subtle sustain to aggressive squish. A custom CineMag USA transformer, premium components, and true/buffered bypass options ensure uncompromising sound and pedalboard integration. With balanced DI output, high/low gain modes, and gig-ready switching options, the Pedal76 bridges studio-quality tone with stage-ready flexibility, all in a beautifully finished, limited-run blue enclosure, hand-tested in Austin, TX.

Features

Studio-Grade Compression in a Pedal
Faithful recreation of the classic 76-style FET compressor, delivering legendary dynamics and rich analog tone for stage and studio use.

All-Analog Circuit
Transformer-balanced design featuring premium discrete components, including a custom CineMag USA transformer for added harmonic content and warmth.

Comprehensive Controls
Includes Ratio, Attack, Release, Input, and Output controls, plus advanced functions like input sensitivity, DI pad, ground/lift, and DI gain mode.

Versatile Bypass Options
Toggle between true or buffered bypass for flexible integration into any signal chain.

Balanced DI Output
Send signal directly to a mixer or recording rig, with high gain mode available for added transformer grit and saturation.

Limited Edition Finish
Stunning metallic blue enclosure with vintage-style amber VU meter which looks as good as it sounds.

Tested in Austin, TX
Hand-inspected by expert techs and real musicians for consistent quality and tone.

Specifications

General Specifications
Product Name: Pedal76 – Limited Edition Blue
Model Number: WA76-PB
Brand Name: Warm Audio
Color: Metallic Blue
Bypass Type: Switchable True/Buffered
Power: 9V battery or DC adapter (external supply included)
Power Draw: 125mA (external power)
Signal Path: 100% Analog / Discrete

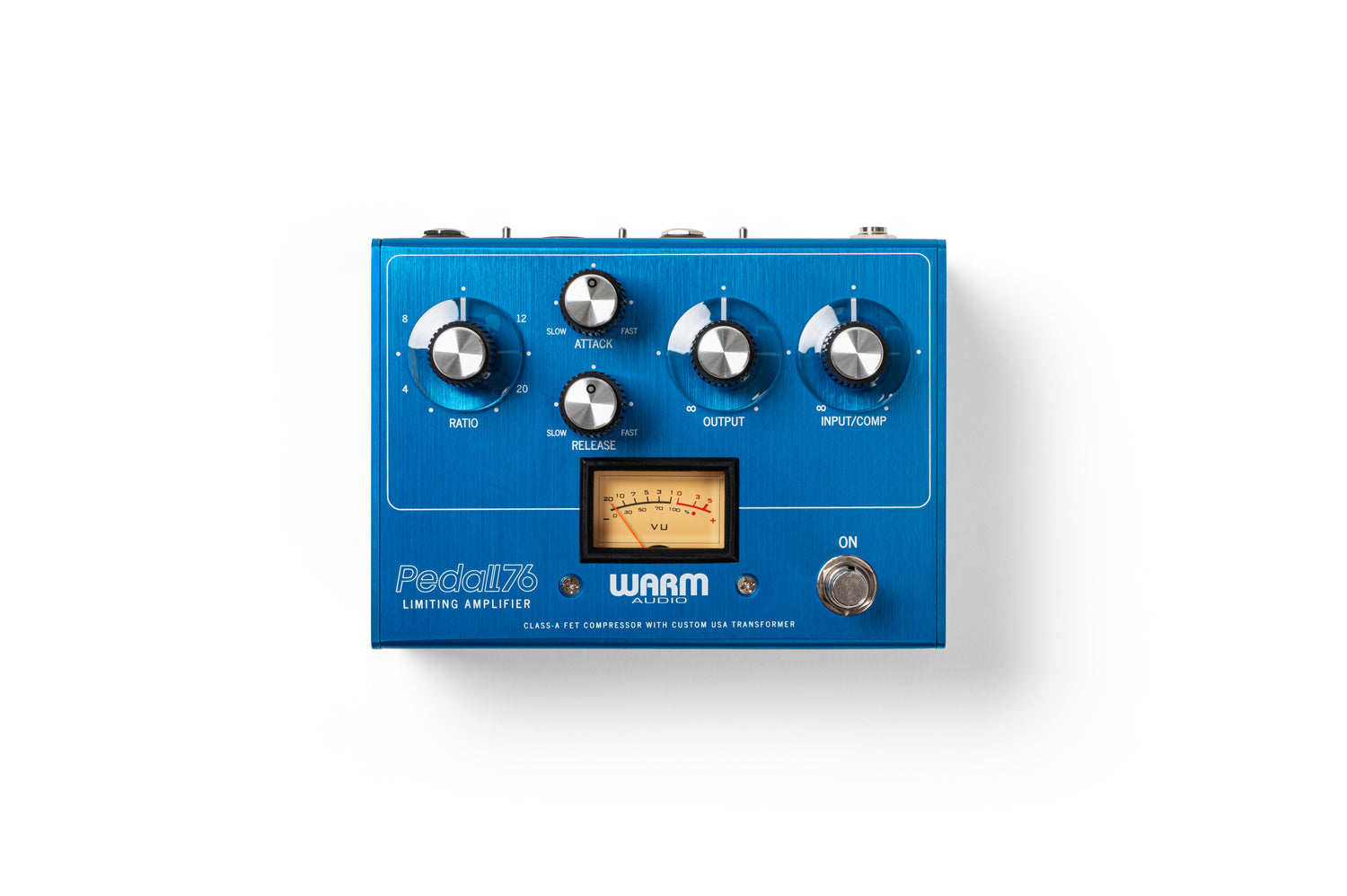

Controls
Compression Controls: Ratio, Attack, Release, Input, Output
Additional Switches: Input Sensitivity, Ground/Lift, DI Pad, DI Gain (Hi/Low), External Bypass Selector
VU Meter: Vintage-style amber LED for gain reduction monitoring

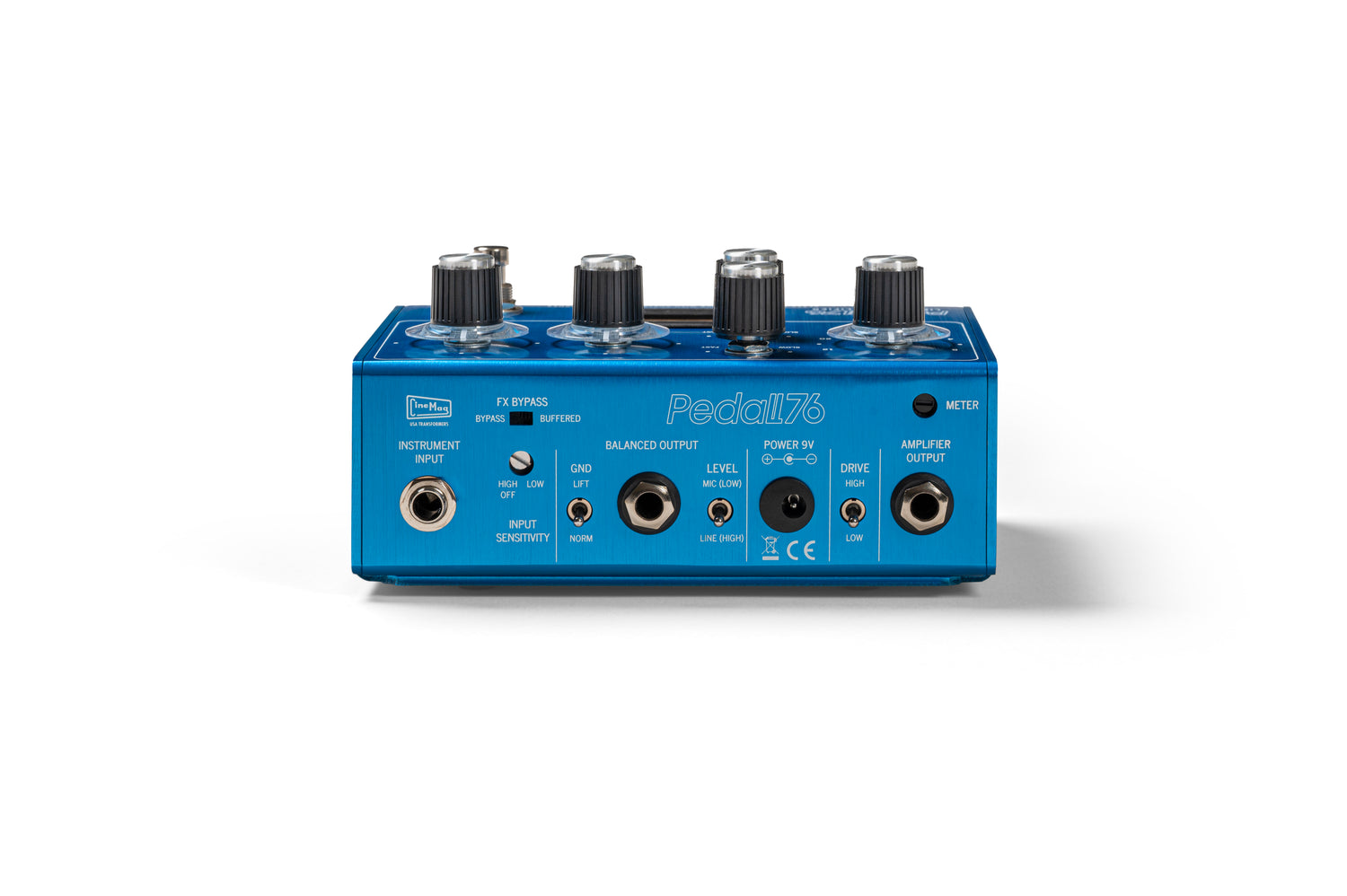

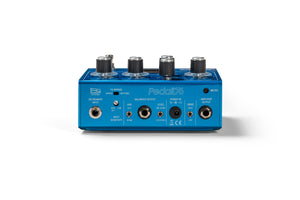

Connectivity
1x 1/4" Input (Instrument)
1x 1/4" Output (Amp)
1x Balanced DI Out

Dimensions & Weight
Unit Dimensions (In): 5.9 x 4.1 x 1.9
Unit Dimensions (mm): 150 x 104 x 48
Unit Weight: 1.65 lbs / 0.3 kg

Packaging(Retail Box)
Dimensions (In): 7.7 x 5.8 x 4.9
Dimensions (mm): 195 x 147 x 125
Weight: 2 lbs / 0.9 kg

Packaging(Master Pack)
Dimensions (In): 12.6 x 8.5 x 25.8
Dimensions (mm): 320 x 215 x 655
Weight: 22 lbs / 10 kg

Compliance & Certifications
CE: Yes
WEEE: Yes
Prop 65: Yes
Hazmat: No
Lithium Batteries: No
