LEWITT AUDIO  |  SKU: 19328

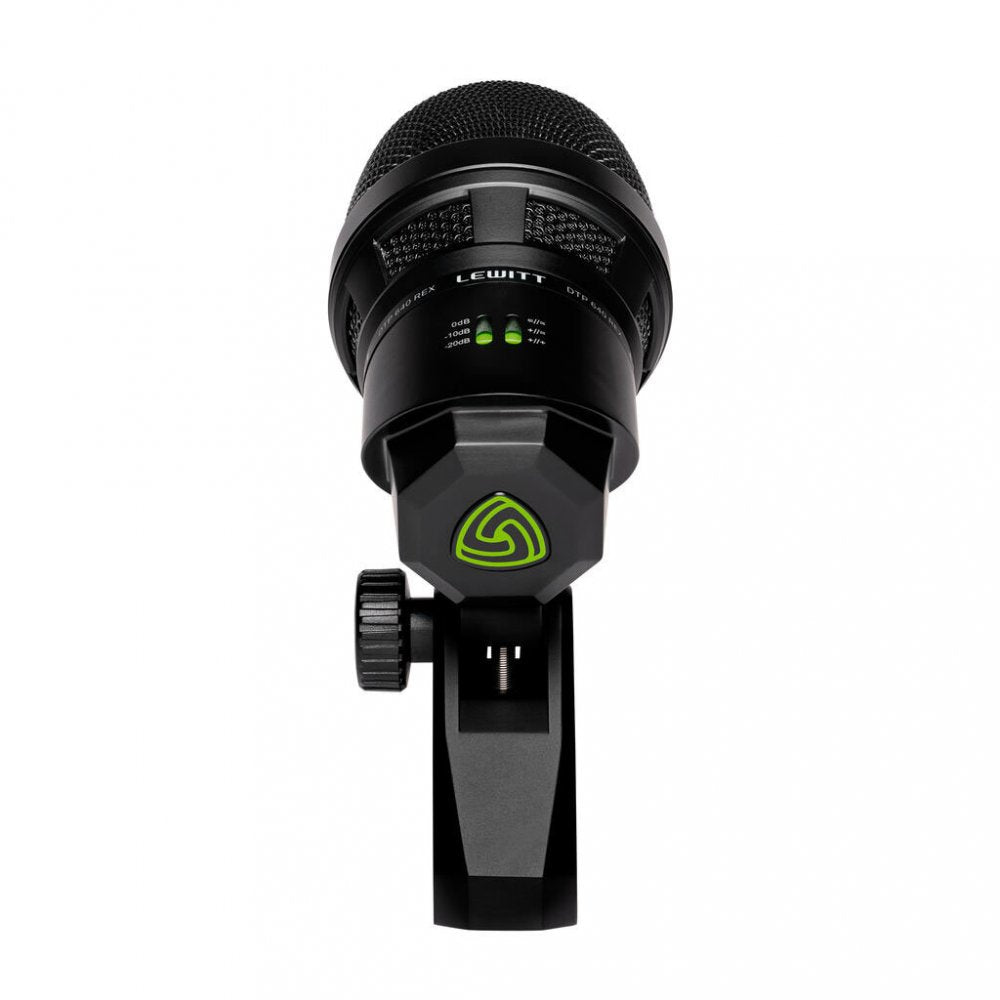

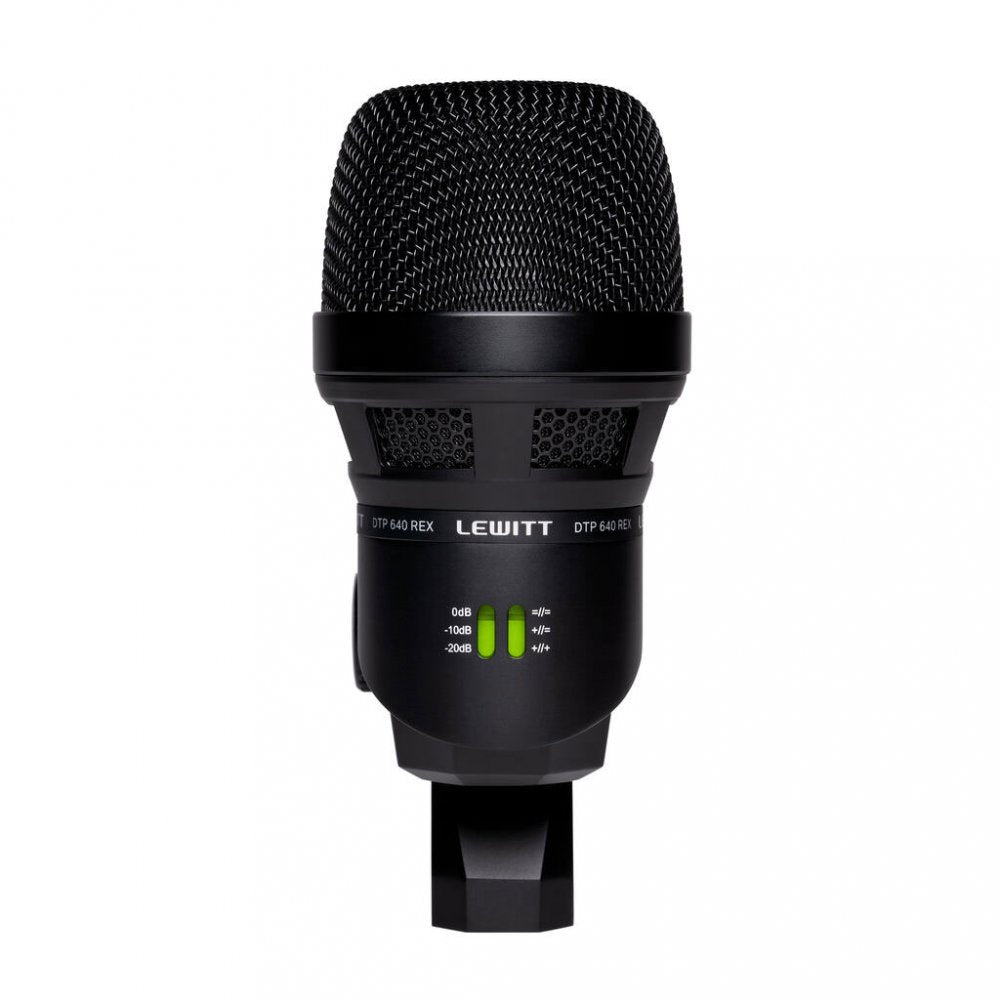

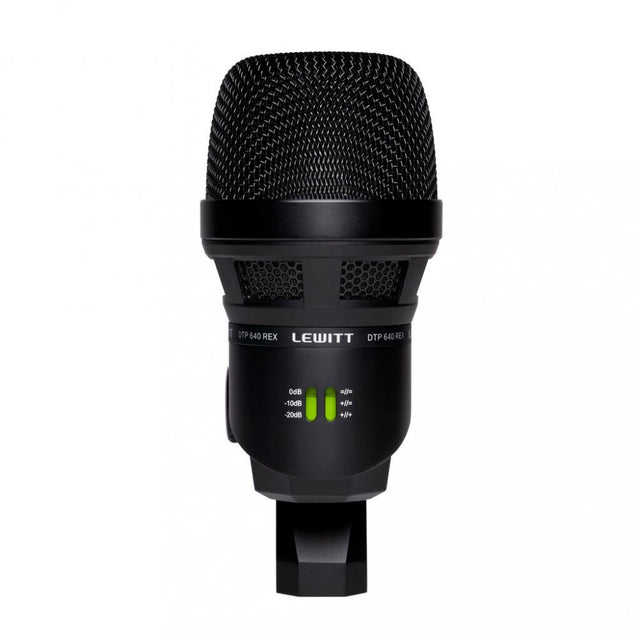

DTP640REX

Dual-capsule kick drum microphone, cardioid pattern, switchable sound characteristics


$499.99 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The DTP 640 REX is a dual-element microphone specifically designed to capture the sound of your drums and percussion instruments. It consists out of two phase-aligned capsules, a condenser and a dynamic one. You can switch between three sounds for more flexibility for studio and live applications.

Unique sound for bass drums and other bass-heavy instruments.

Two capsules for the best of your source. We put two phase-aligned microphones in a single housing. The dynamic side ensures accurate attack reproduction of the kick drum, while the condenser element captures the drum's low end. Each element has a dedicated output.

This enables you to shape the kick drum sound in unique ways.

Cuts a good figure on your drums and bass. With the DTP 640 REX, you get massive yet clear kick drum and bass recordings, in the studio and on stage.

The capsule is specifically designed to replicate low frequencies with precision and punch.

Hear and feel that kick. Dynamic =//= Condenser Both elements with neutral frequency response.

Dynamic +//= Condenser Dynamic element boosts low frequencies; condenser stays neutral.

Dynamic +//+ Condenser Dynamic boosts the range of 4-6 kHz, condenser boosts low frequencies.

Features

Dual-element instrument microphone

Dynamic and condenser capsule in one housing

Separate outputs for both capsules

For kick drum and other bass-heavy sources

Three switchable sound characteristics

Cardioid polar pattern

Specifications

Type: Dynamic, moving coil, Condenser, permanently polarized
Acoustical operating principle: Pressure gradient transducer
Transducer Ø: 31.7 mm, 1.25 in
Transducer Ø: 22.4 mm, 0.88 in
Polar pattern: Cardioid
Frequency range (dynamic): 20 ... 16,000 Hz
Frequency range (condenser): 20 ... 20,000 Hz
EFR, ‘Enhanced Frequency Response' settings
Sensitivity, = // = FFR:
0.4 mV/Pa (-69 dBV), dynamic
2 mV/Pa (-54 dBV), condenser
Sensitivity, + // = Dynamic EFR:
0.4 mV/Pa, -69 dBV/Pa, dynamic
2 mV/Pa, -54 dBV/Pa, condenser
Sensitivity, + // + Dual EFR:
Condenser and dynamic matched at 1 mV/Pa, -60 dBV
Self-noise: 28 dB (A)
Max. SPL for 0.5 % THD: 150 dBSPL, 0 dB attenuation
Dynamic range of mic. amp. (condenser): 122 dB
Pre-attenuation pad:
0 dB
-10 dB
-20 dB
Rated impedance dynamic: 500 Ω
Rated impedance condenser: 200 Ω
Supply voltage: 48 V ± 4 V
Current consumption: 2 mA
Connector: Gold plated 3-pin and 5-pin XLR

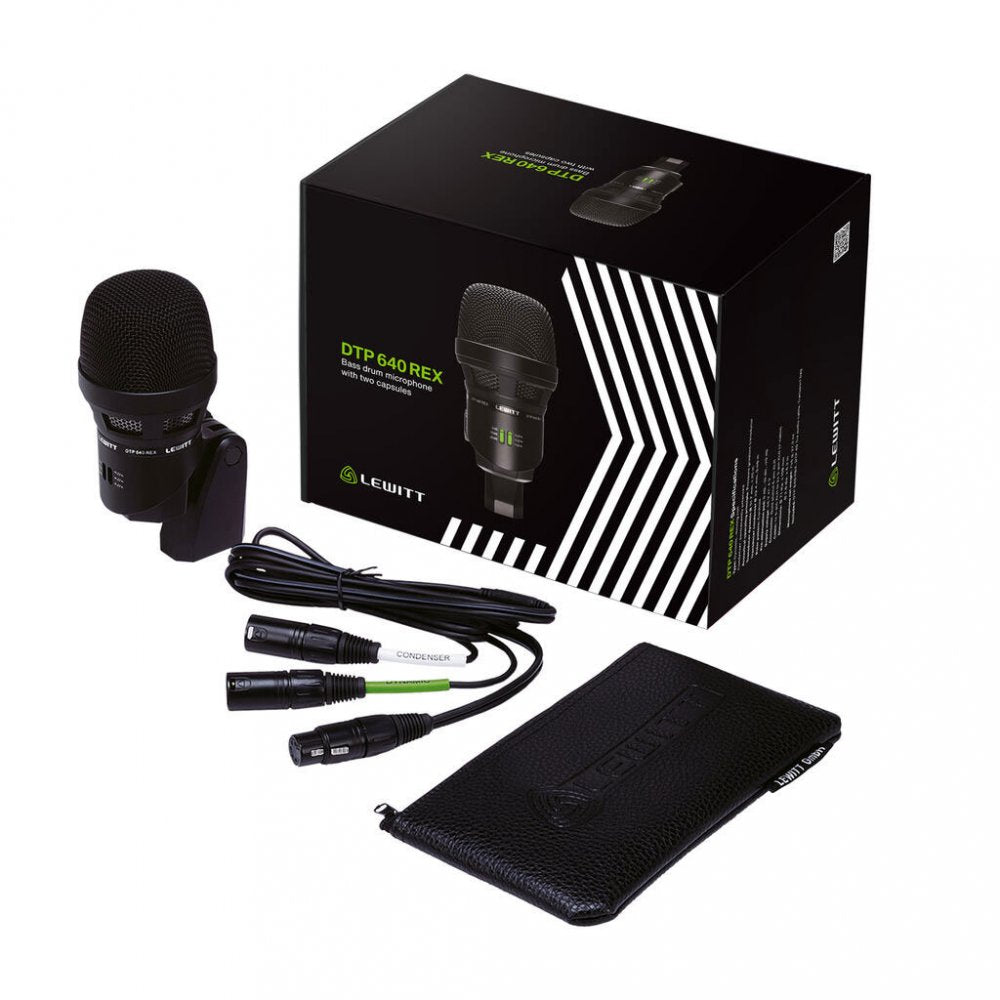

Cable: 1.5 m (4.95') dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs
Microphone dimensions: 71 dia. x 158 mm, 2.8 dia. x 6.2 in
Microphone net weight: 755 g, 27.3 oz
