AUDIO-TECHNICA

ATW-CHG7

Batteries & Power Distribution

Four-bay charging station, D50 desk stand transmitter compatibility, rapid charging, station linking, network monitoring, firmware update support

$1,779.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

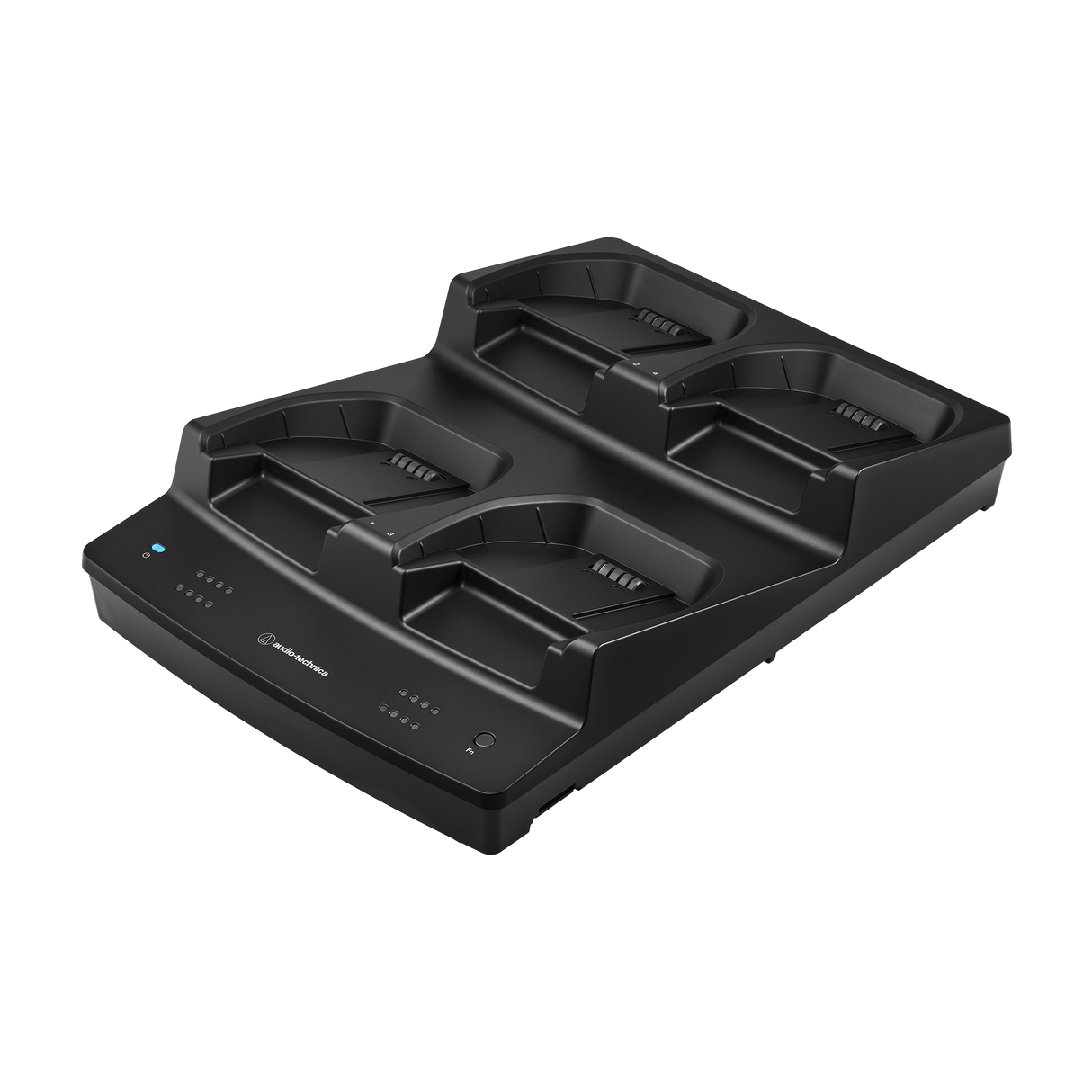

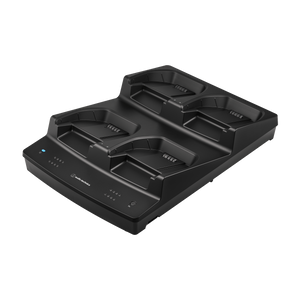

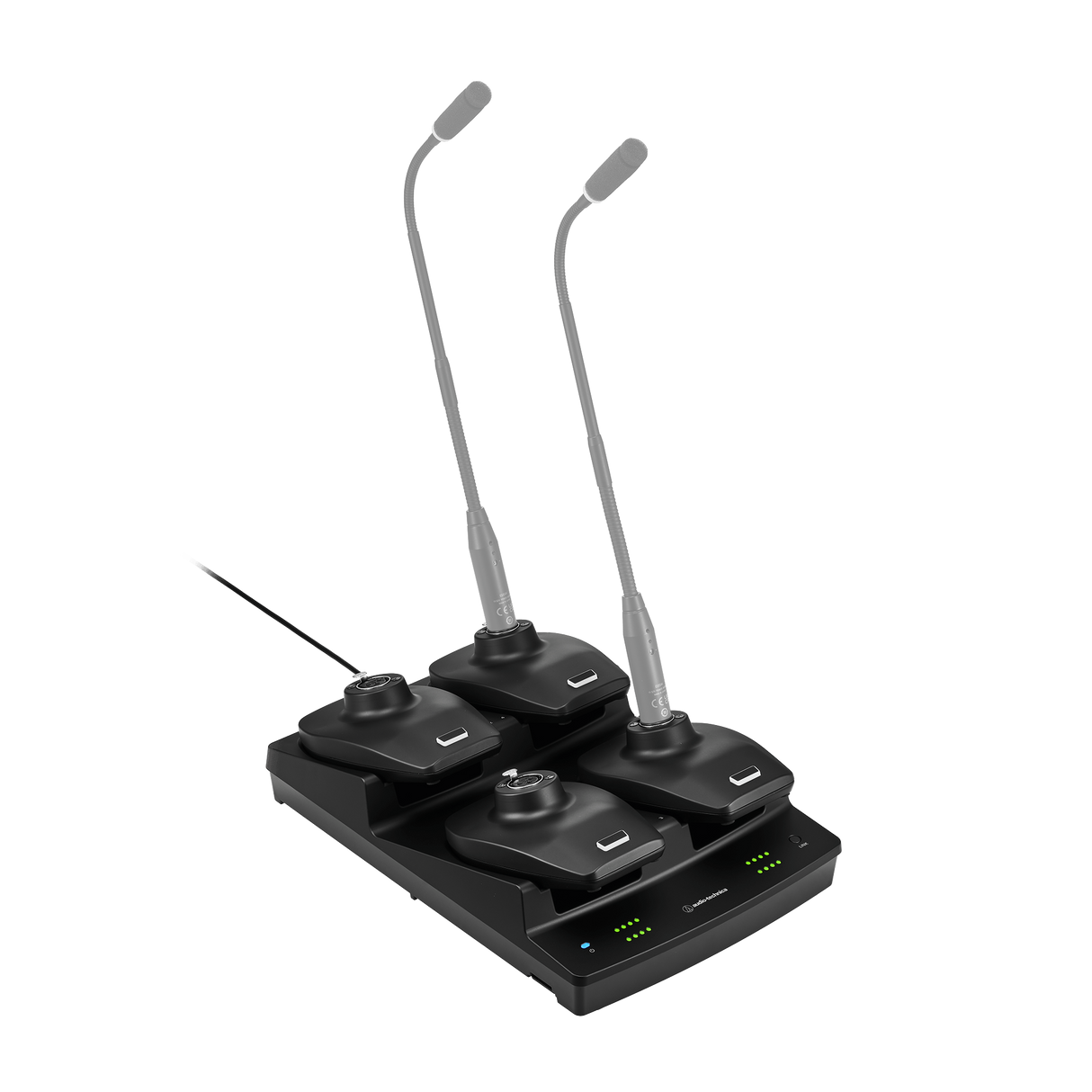

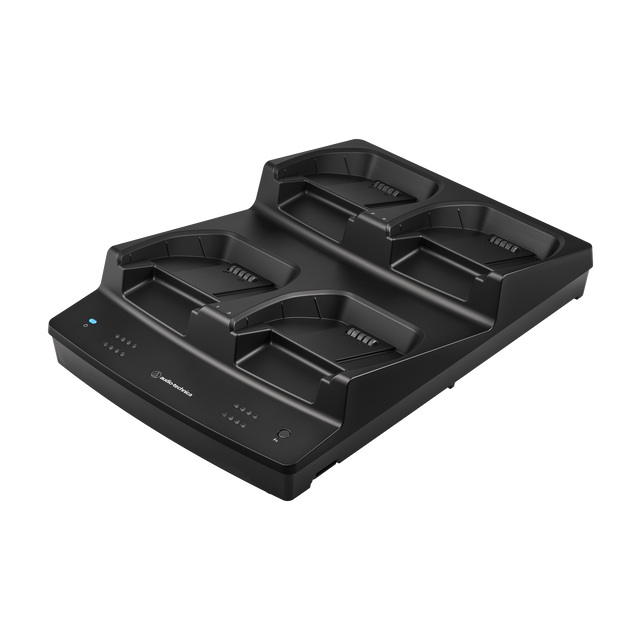

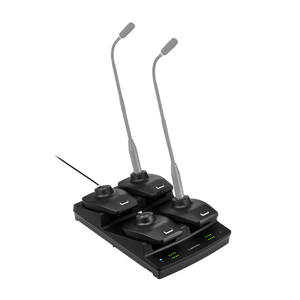

This four-bay charging station provides convenient desktop charging for D50 wireless system desk stand transmitters. It supports rapid charging and displays charging progress through built-in indicator lamps, making battery status easy to check during daily operation.

Two stations can be connected by Cat5e cable and powered from a single compatible AC adapter for expanded charging capacity. Wireless Manager integration enables remote charging and battery monitoring, while docked transmitters can receive firmware updates without being removed from the station.

Features

Four-Bay Charging
Charges multiple compatible desk stand transmitters in one convenient station.

Rapid Recharge
Restores transmitter batteries quickly for efficient turnaround between sessions.

Expandable Capacity
Connects with a second matching station to support larger wireless installations.

Shared Power
Linked stations can operate from a single compatible AC adapter.

Clear Status Indicators
Built-in lights provide an immediate view of charging progress.

Software Monitoring
Charging status and battery levels can be checked through Wireless Manager.

Docked Firmware Updates
Supports transmitter firmware updates while compatible units remain in the charging bays.

Installation Accessories
Includes the connection and mounting hardware required for linked configurations.

Specifications

General Specifications
Device Type: Four-bay transmitter charging station
Charging Bays: 4
Compatibility: D50 wireless system desk stand transmitters
Linked Station Support: 2 charging stations
Maximum Linked Capacity: 8 transmitters

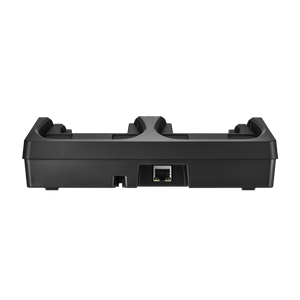

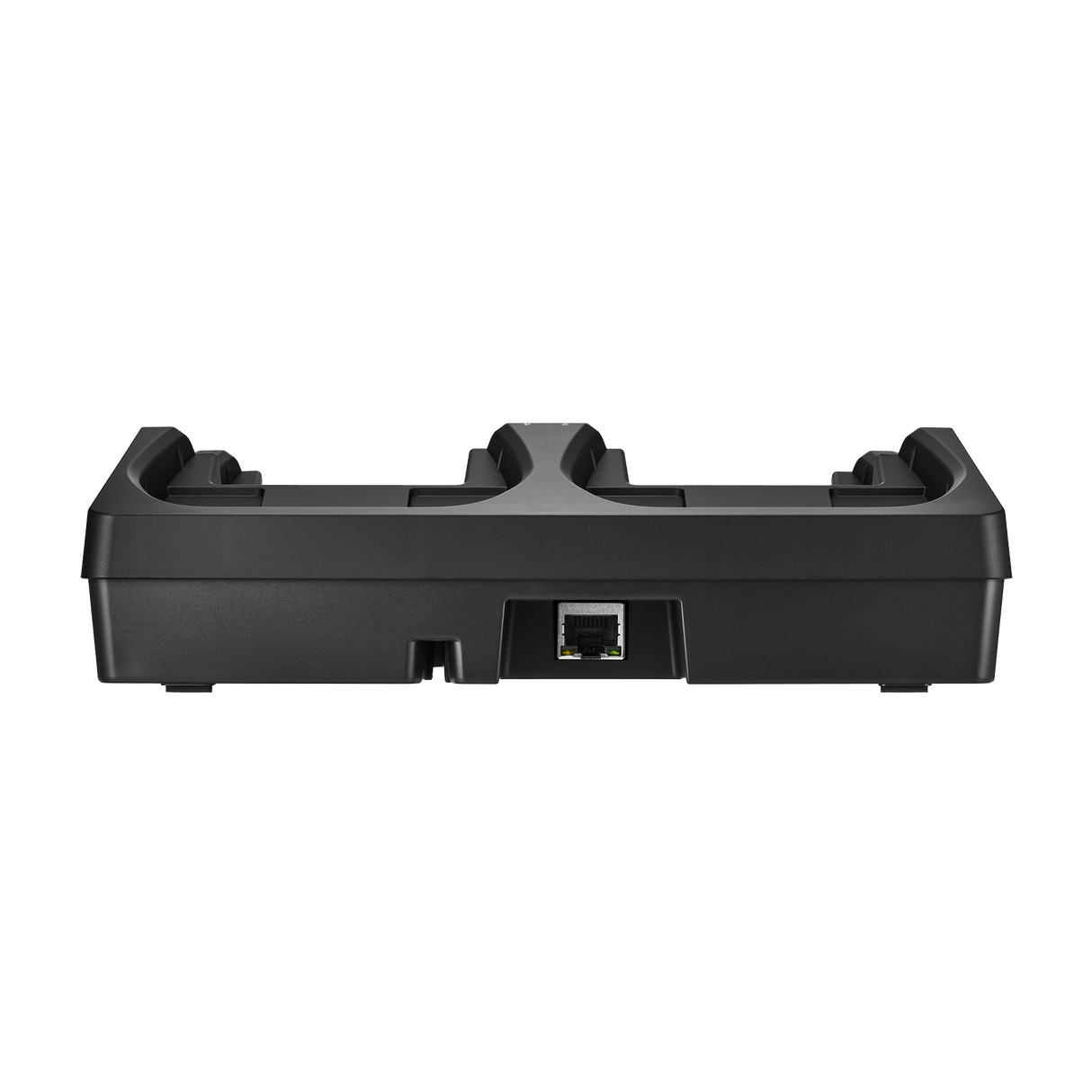

Station Connection: Cat5e cable
Linked Power Configuration: Single compatible AC adapter
Charging Status Monitoring: LED indicators, Wireless Manager software
Battery Level Monitoring: Wireless Manager software
Docked Firmware Updates: Supported
Cross-Series Station Linking: Not supported

Power Specifications
Power Supply: 12 V DC, 3.0 A
Maximum Power Consumption: 30.6 W when charging four transmitters

Charging Output
One to Four Transmitters: 4.2 V DC, 1.5 A
Five to Six Transmitters: 4.2 V DC, 1.1 A
Seven to Eight Transmitters: 4.2 V DC, 0.7 A

Charging Time
One to Four Transmitters: Approximately 2 hours
Five to Six Transmitters: Approximately 2 hours 50 minutes
Seven to Eight Transmitters: Approximately 3 hours 40 minutes
Energy-Saving Mode: Approximately 3 hours 40 minutes

Network Specifications
Network Speed: 100 Mbps

Environmental Specifications
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 55°C (-4°F to 131°F)

Physical Specifications
Dimensions: 209.9 × 303.9 × 65.4 mm (8.3 × 12 × 2.6 in), W × D × H
Weight: 866 g (31 oz)

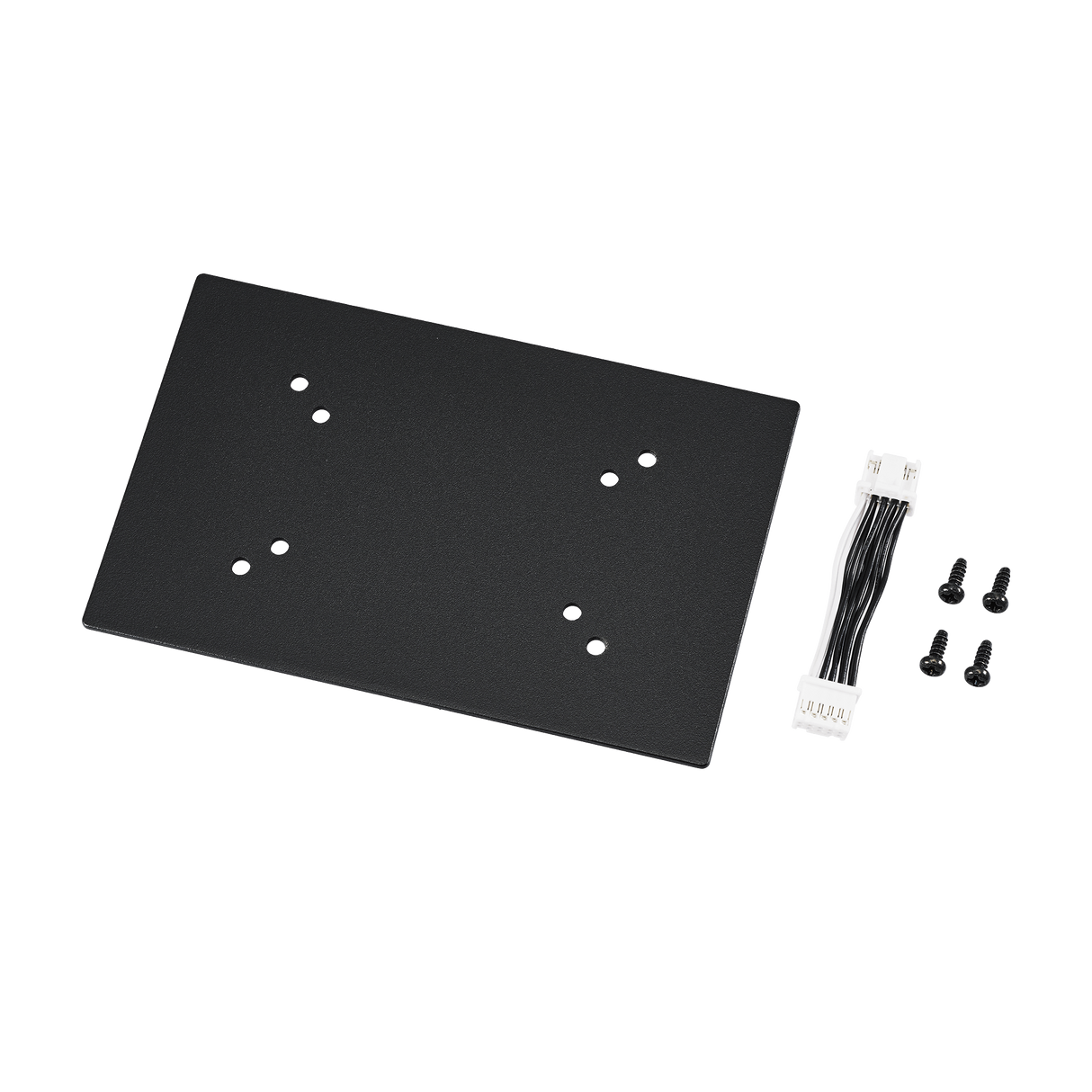

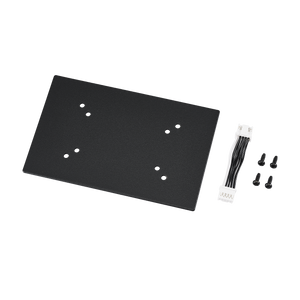

Included Items
Charging Station: 1
Mounting Plate: 1
Link Cable: 1
Link Plate Screws: Included
