MANLEY LABS  |  SKU: 21617

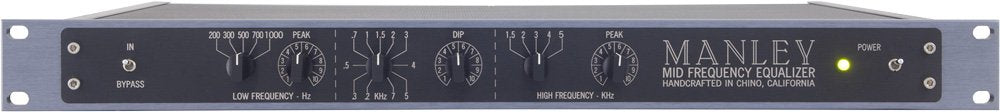

Mid Frequency EQ

Stereo EQs

Tube equalizer for midband oriented instruments such as guitars, vocals, harmonicas, and violins

$4,420.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Specially useful for midband oriented instruments such as guitars, vocals, harmonicas, and violins, the MID FREQUENCY ENHANCED PULTEC EQ (MEQ-5 type) shares the same features and specifications as our 'EQP-1A' version. The differences lie in the passive EQ section: In the MID EQ, the DIP and PEAK controls function on much sharper bell-shaped curves centered on the selected frequencies, which gives the engineer-producer more precise control over the vitally important midrange and makes this unit indispensable for mastering engineers. The MID EQ also completely fills the frequency gaps between the low frequency and high frequency sections of our Enhanced Pultec EQP-1A type EQ; thus the combination of the two provides a most flexible palette of possibilities for tracking or mastering.

Specifications

Vacuum Tubes: 1 x 12AU7 gain and 1 x 12BH7 (or 6414 or 5965) White Follower Dual Triodes

MANLEY input transformer with pure nickel laminations potted in mu-metal case. 3K Ohm input Z

PHASE REVERSE switch for balanced XLR input

Alternate transformerless 1/4" HI-Z (5K Ohm) input

BYPASS switch & AUTO-MUTE w/warmup delay

Silent conductive plastic PEAK & SHELF controls

Sealed gold-contact Greyhill frequency select switches

Hi-current drive <50 Ohm LO-Z XLR & 1/4" outputs

Balanced Transformer Coupled XLR Outputs

Flat frequency response from 10Hz-70KHz

<0.01% THD @ 1kHz

S/N Ratio: 116 dB

Adjustable FEEDBACK / GAIN: Unity ±5 dB

Max. output: +30 dBv

Power consumption: 18 watts

Operating mains voltage: Units are purpose built for original destination country's mains voltage: 100V, 120V, or 220-240VAC as indicated on the serial number badge. Power transformer must be replaced in order to change mains operating voltage. 120VAC units may NOT be rewired to put the primaries of the power transformer in series for 220-240V operation or a large radiated field of hum will develop. If changing locations/voltages, the power transformer must be replaced with the dedicated one for the voltage at which it will operate.

Mains Voltage Frequency: 50~ 60Hz

Dimensions: 19" x 1 3/4" x 10" (occupies 1u)

Shipping weight: 12 lbs.
