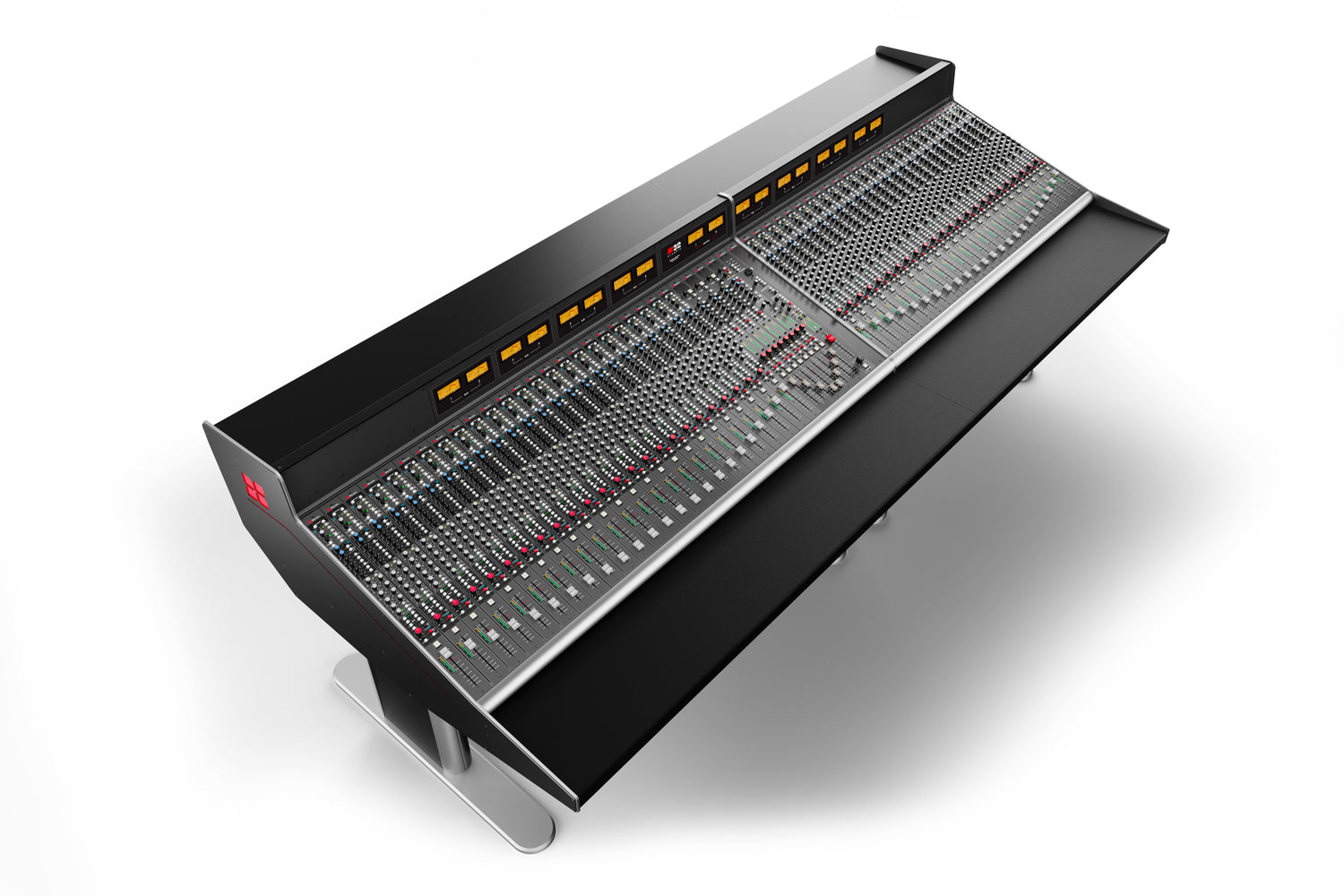

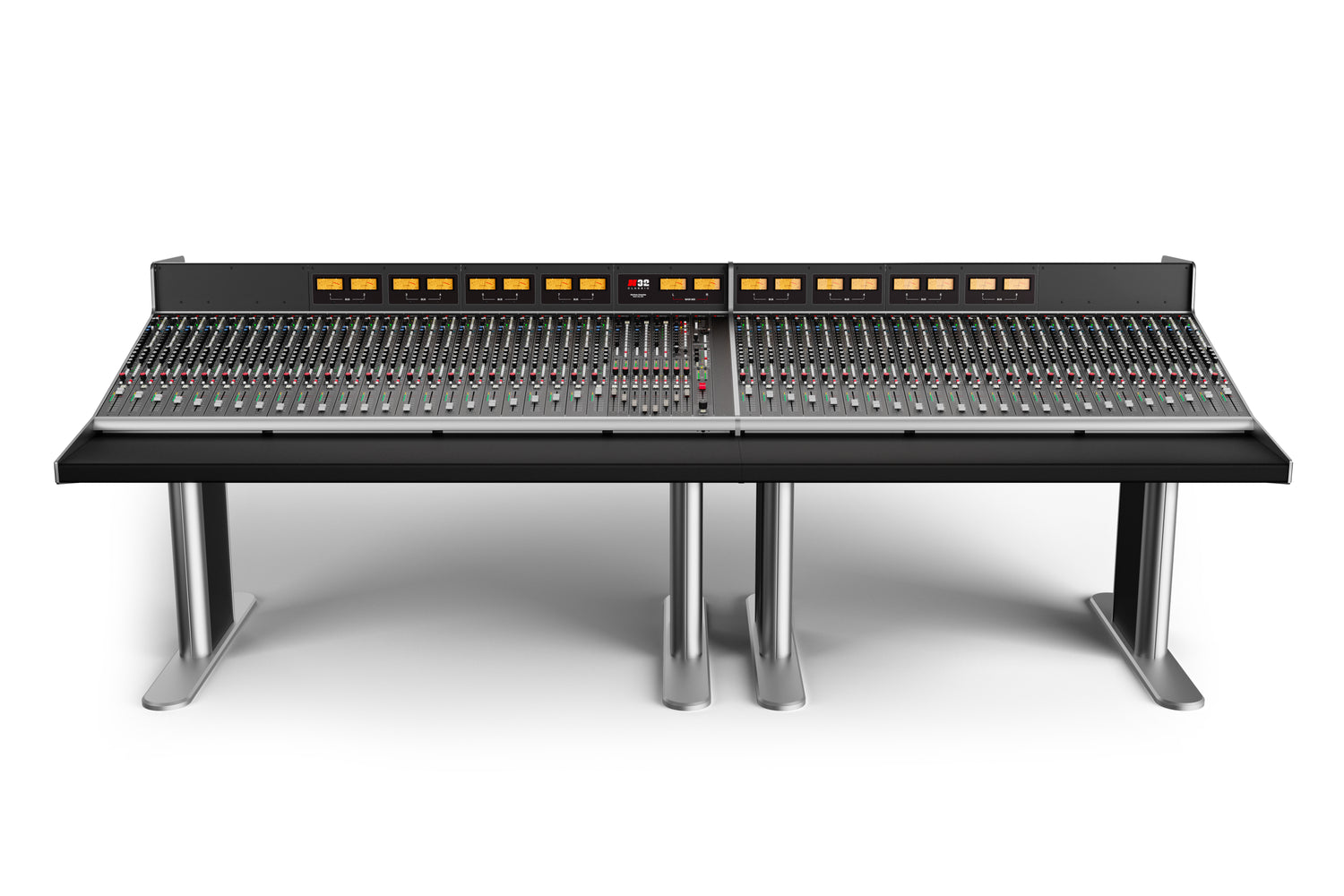

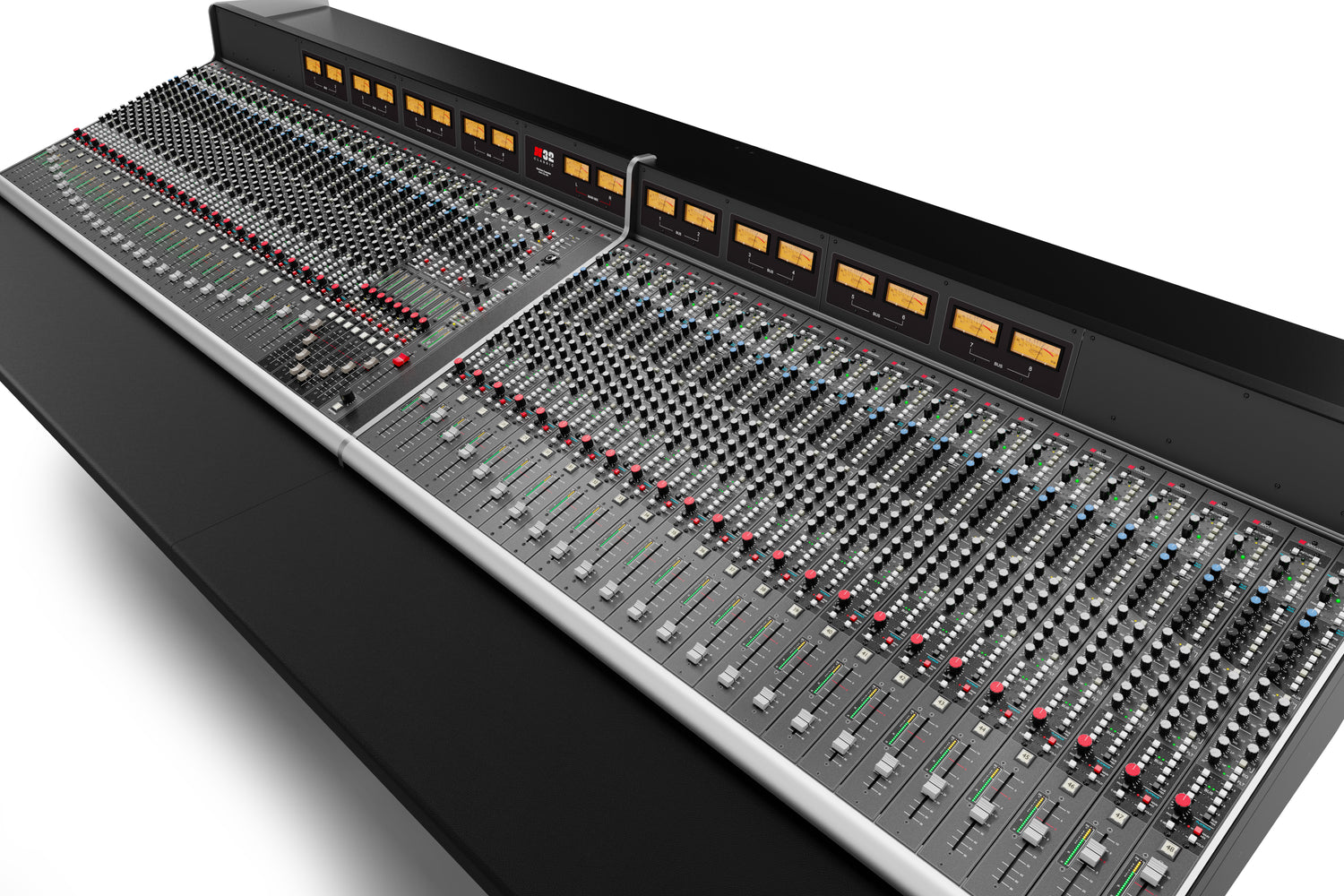

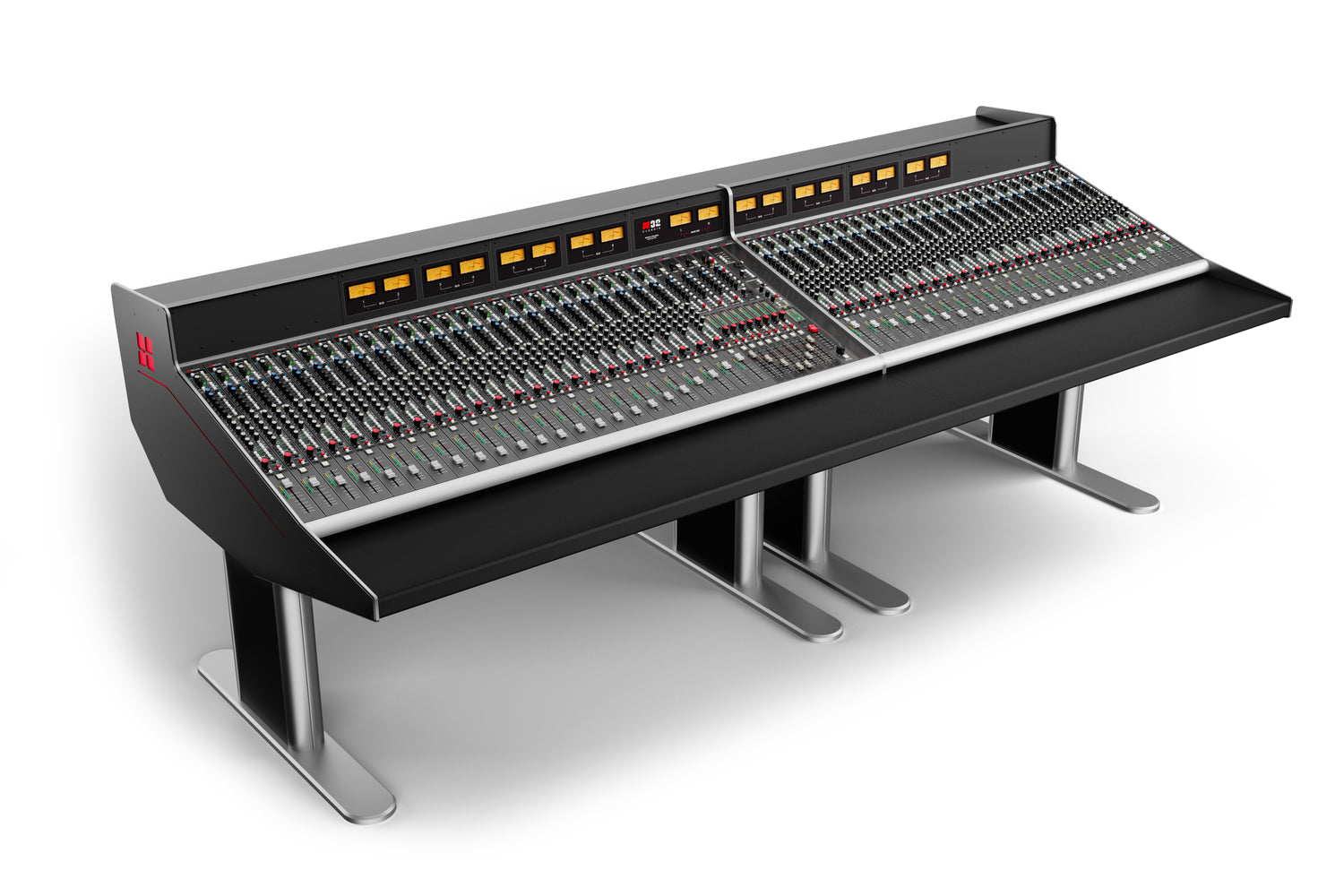

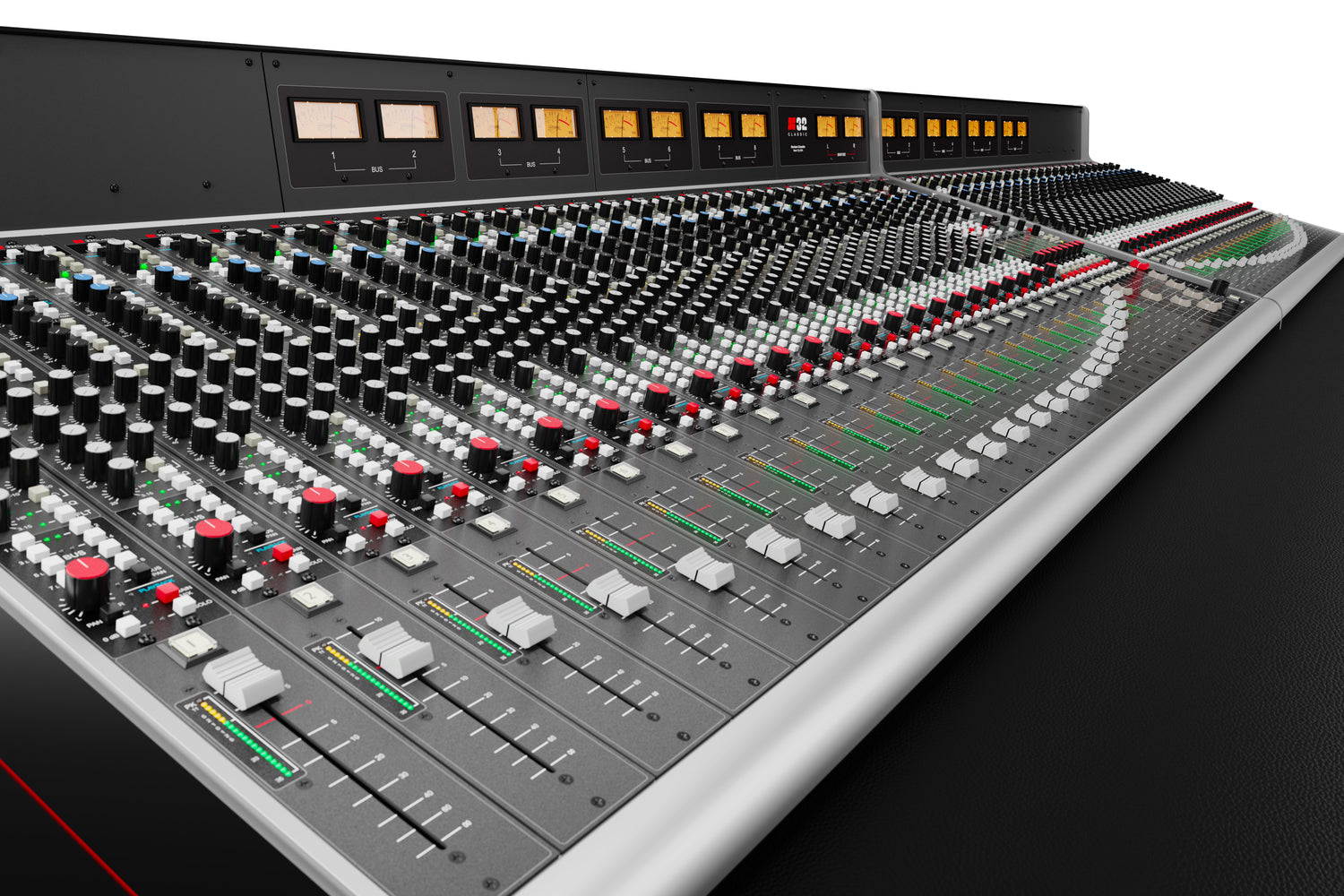

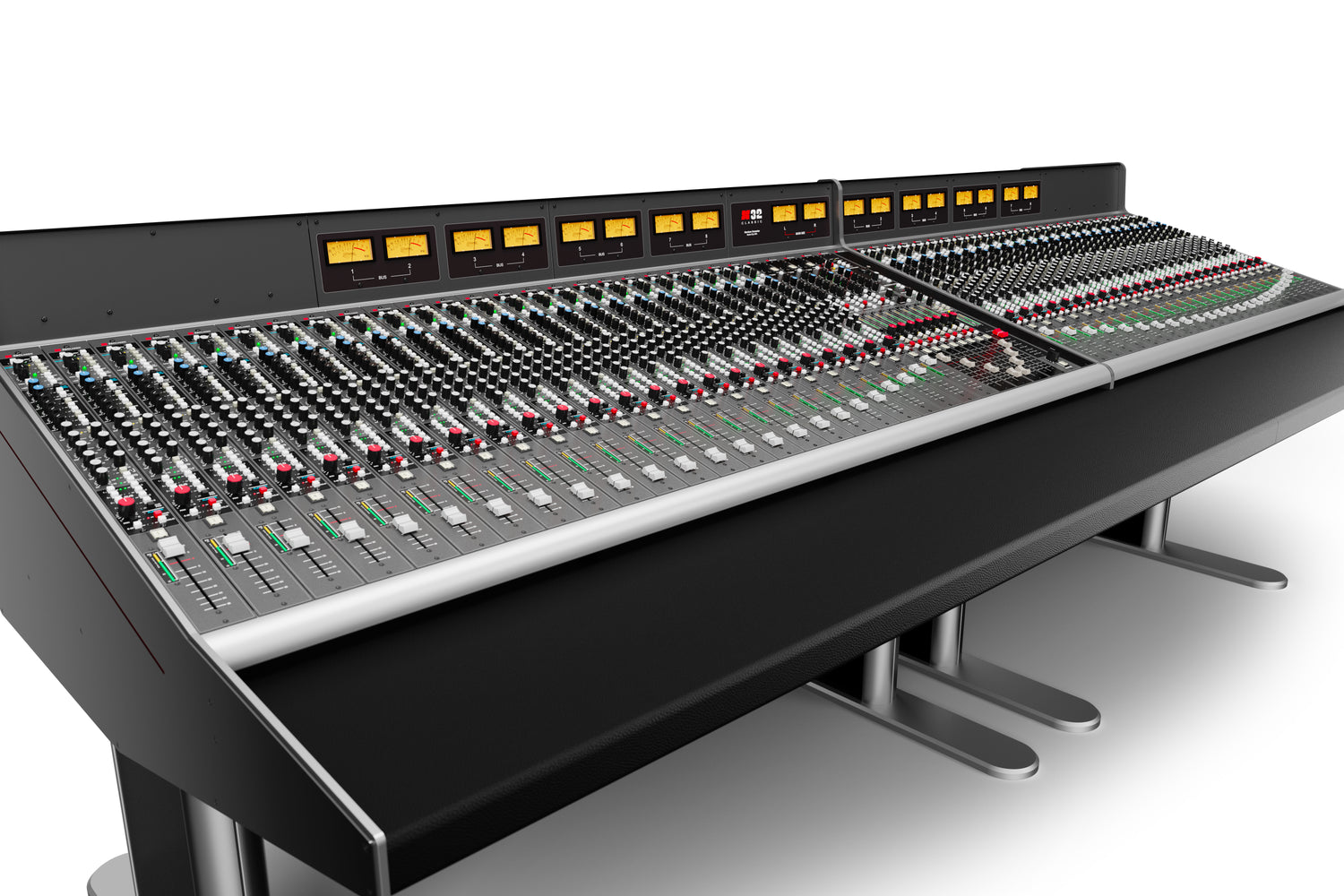

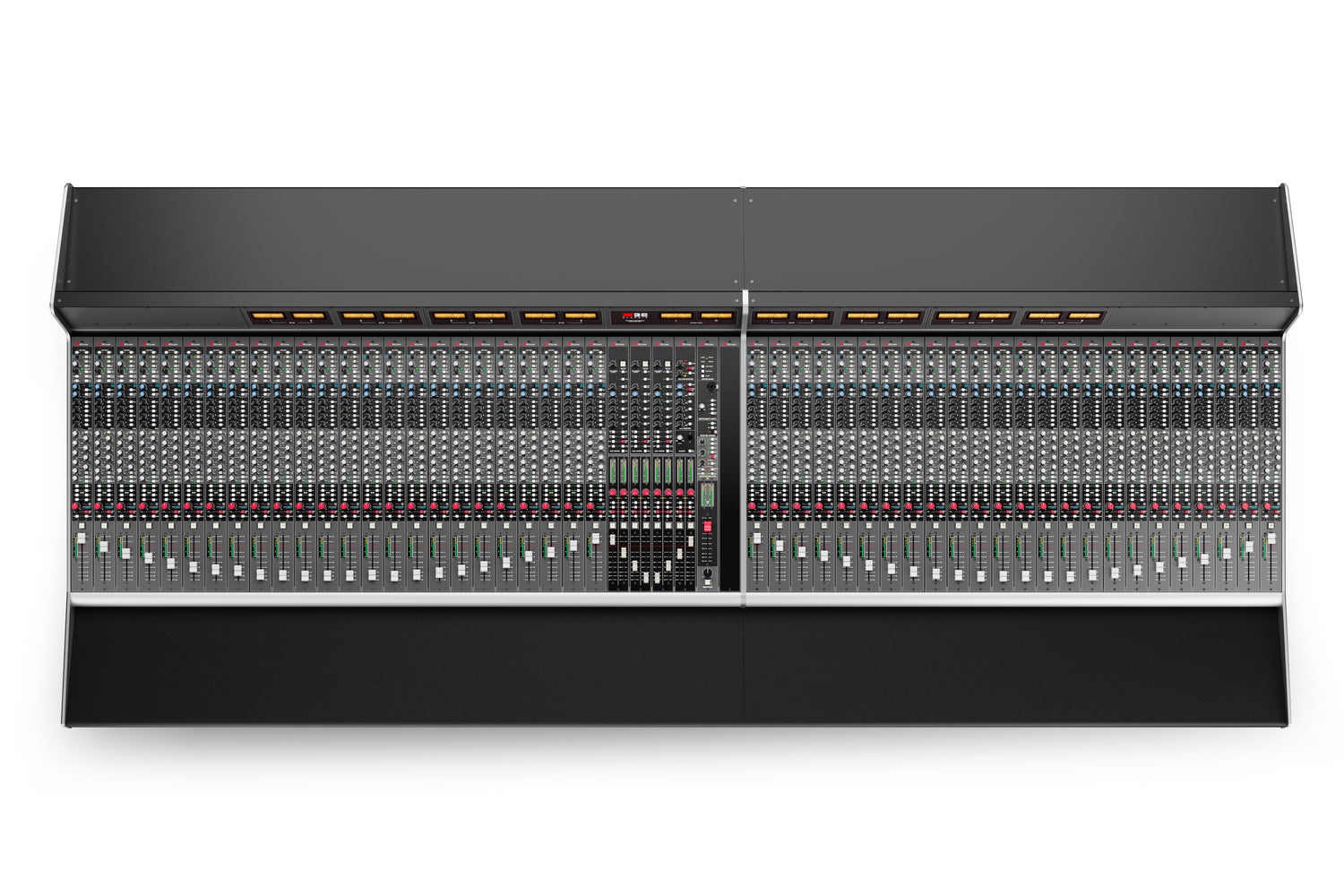

32Classic 48Ch console, pre-wired for Dante

Signature Harrison Analog Sound
Features transformer-balanced mic preamps and the classic 32C four-band EQ with smooth high-pass and low-pass filters for warm, musical tone.

48 Analog Input Channels
Flagship configuration offering maximum channel count for high-end tracking, mixing, and immersive production environments.

Pre-Wired for Dante Integration
Internally pre-wired to support 64 channels of premium AD/DA conversion over Dante AoIP, enabling streamlined digital routing to and from your DAW or network.

Versatile Signal Flow
Supports both in-line and split recording workflows, with independent playback and monitoring paths via Dante for flexible hybrid operation.

Expanded Routing Options
Equipped with 8 multitrack buses, 4 mono aux sends, 1 stereo cue send, insert points, balanced direct outs, and transformer-balanced main mix outputs.

Immersive Monitoring System
12-wide monitor section supports Dolby Atmos 7.1.4 and other immersive formats, with dedicated surround level control for professional monitoring setups.

Studio-Optimized Frame Design
Ergonomic DAW-compatible layout with deep-set armrest and rear shelf for control surface gear, nearfields, and monitors that are designed for large control rooms.

High-Precision Console Interface
Includes long-throw 100mm faders, full 20-segment metering per channel, fader lock, solo/mute functions, and illuminated control switches.

Silent, High-Efficiency Operation
Fanless power supply, efficient heat dissipation, and rugged aluminum construction ensure quiet and reliable performance over long sessions.

Built-In Studio Tools
Includes instrument input on front panel, integrated talkback mic with assignable routing, cue matrix, headphone and alternate monitor outputs.

General Specifications
Harrison 32Classic 48-Channel Analog Console (Pre-Wired for Dante)
Large-format analog console with legendary 32C architecture
Fully modular in-line signal flow design for hybrid and immersive studio workflows
Classic transformer-balanced analog circuitry
Pre-wired for Dante AoIP integration with 64-channel internal AD/DA conversion
Designed for seamless DAW connectivity and patch-free operation
Passive-cooled with internal power supply (fanless, low-noise operation)

Channel Count & Configuration
48 Mono Input Channels (transformer-balanced mic/line inputs)
Each channel includes:
– Harrison 32C 4-band parametric EQ (Proportional-Q design)
– Switchable bell/shelf curves on high and low bands
– Variable High-Pass and Low-Pass Filters
– Balanced Line Input
– Balanced Insert Point
– Balanced Direct Output
– In-line/Playback switching with signal from Dante DA
– 100 mm premium fader
– Zero Fader Lock switch for DAW unity gain routing
– Mute, Solo, 8-Bus assignment, Main Mix assignment
– Pan control for Bus and Mix routing
– 20-segment LED input meter

Routing & Bussing
8 Multitrack Buses (mono or stereo pairs with pan)
4 Mono Auxiliary Sends
1 Stereo Auxiliary Send
Stereo Cue Send
Transformer-balanced Main Mix Output
Balanced bus and mix insert points
Stereo Return with level, mute, solo, bus/mix routing

Monitoring & Metering
12-Wide Atmos Monitoring Section (Dolby Atmos 7.1.4 capable)
Monitor Outputs: Main, Alternate, Headphone
Monitor Sources:
– Main Mix
– External Stereo 1 & 2
– External 7.1.4
– Dante Stereo
Monitor Controls:
– Large Master Level Pot
– Mono, Dim, L/R Mute, All Monitor Mute
Main Mix VU meters
20-segment LED metering for all inputs and buses
Solo Active indicator

Integrated Dante AoIP System (Pre-Wired)
Internal dual Dante 32×32 interfaces (96 kHz sample rate)
Total 64-channel AD/DA conversion
I/O grouped into Channel and Bus/Monitor paths
Internal Ethernet switch for single-cable connection to DAW
Presents as two Dante devices in Dante Controller
Dante DA signal routable to Playback path on each channel
Zero-latency routing between console and DAW

Foldback / Cue Matrix
3 Stereo Foldback/Cue Outputs
Per-output matrix source selection: Aux Sends, Buses, Stereo Return, External Inputs, Main Mix
Each output includes:
– Level control
– Mute
– Solo
– 0 dB Lock
Integrated Talkback Mic with gain and master “All Talk” switch

Instrument Input
Hi-Z or Mic-selectable input on Monitor Section
Features: 48V Phantom, -20 dB Pad, Gain, LED Meter
Routable to Main Mix or Input Channels

EQ & Processing
32C EQ with 4 fully parametric bands per channel
Proportional-Q curves for musical sculpting
Switchable bell/shelf on high and low bands
Independent HP and LP Filters per channel

Modular Design & Construction
Frame Width: 94 inches / 239 cm (3848 model – one piece)
Weight: ~500–600 lbs (approximate)
Power Supply: Internal, <600W max
Passive cooling (fanless operation)
Build Features:
– Double-sided PCBs with optimized grounding
– Gold-plated switches, conductive plastic potentiometers
– PCB-based summing (no ribbon cables)
– Extruded aluminum frame
– Standard D-Sub I/O connectors
– Integrated cable raceways

Included Modules
48 Input Modules
8 Bus Master Modules
Stereo Return & Aux Master Module
Cue/Foldback Matrix Output Module
Main Monitor Module with Atmos monitoring controls
Main Mix Module with transformer switch and VU metering
Talkback Module with per-output routing

Studio Integration & Compatibility
Pre-wired Dante interface with full DAW integration
Patchless I/O routing, including playback and monitoring
Supports Atmos 7.1.4 monitoring out of the box
Ideal for large-scale hybrid studios, immersive music, and post-production
Custom console configurations available upon request
