ALLEN & HEATH

DT164-W

Digital Stage Boxes

96kHz Dante wall-mount expander, 16 mic preamps with phantom power, 4 line outs, EtherCon redundancy, 3 power options, 3.2 kg, AES67, DT control ready.

$4,399.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

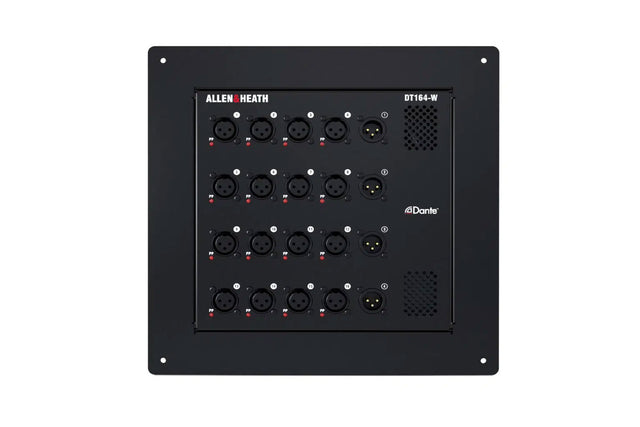

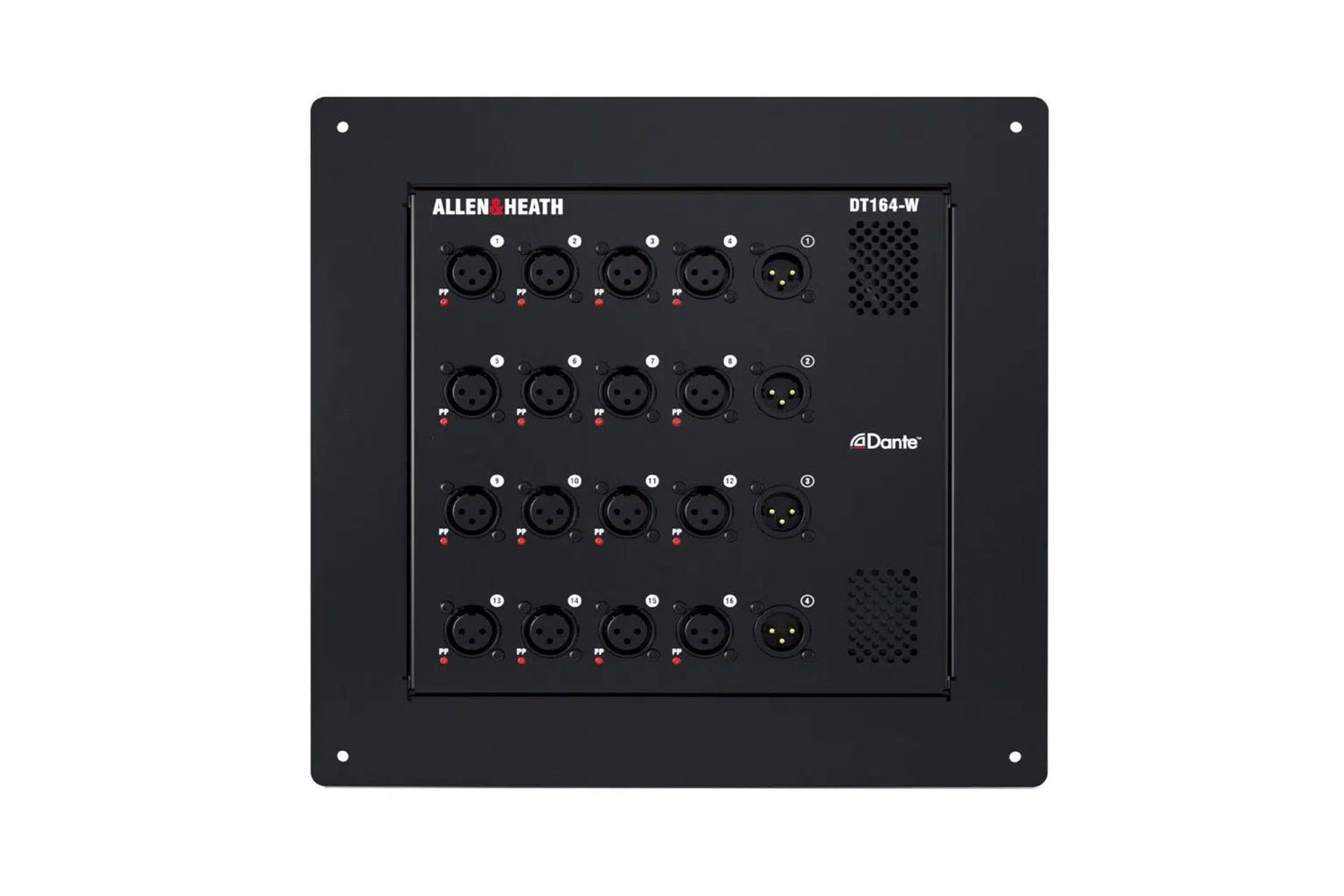

The Allen & Heath DT164-W is a Dante-enabled audio interface designed specifically for permanent installation in venues like theatres, education facilities, houses of worship, and corporate spaces. It offers 16 high-quality mic preamps and 4 balanced line outputs, all accessible via XLR connectors on the front panel. Unlike the portable DT168, the DT164-W is built for wall or floor trap mounting, featuring a compact, steel chassis compatible with standard NEMA 12x12” enclosures and custom brackets for flush or surface mounting.

This unit operates at 48kHz or 96kHz, offering studio-grade audio performance with a +60dB gain range, -20dB pad, and maximum input level of +30dBu. Each input includes phantom power with status LEDs, and the Ethernet-based Dante interface includes Primary and Secondary locking EtherCon ports for redundant or daisy-chained networking. The DT164-W can be powered via AC mains (100–240V), a fixed screw terminal, or 12V DC, giving it great flexibility for installations with backup power needs.

Features

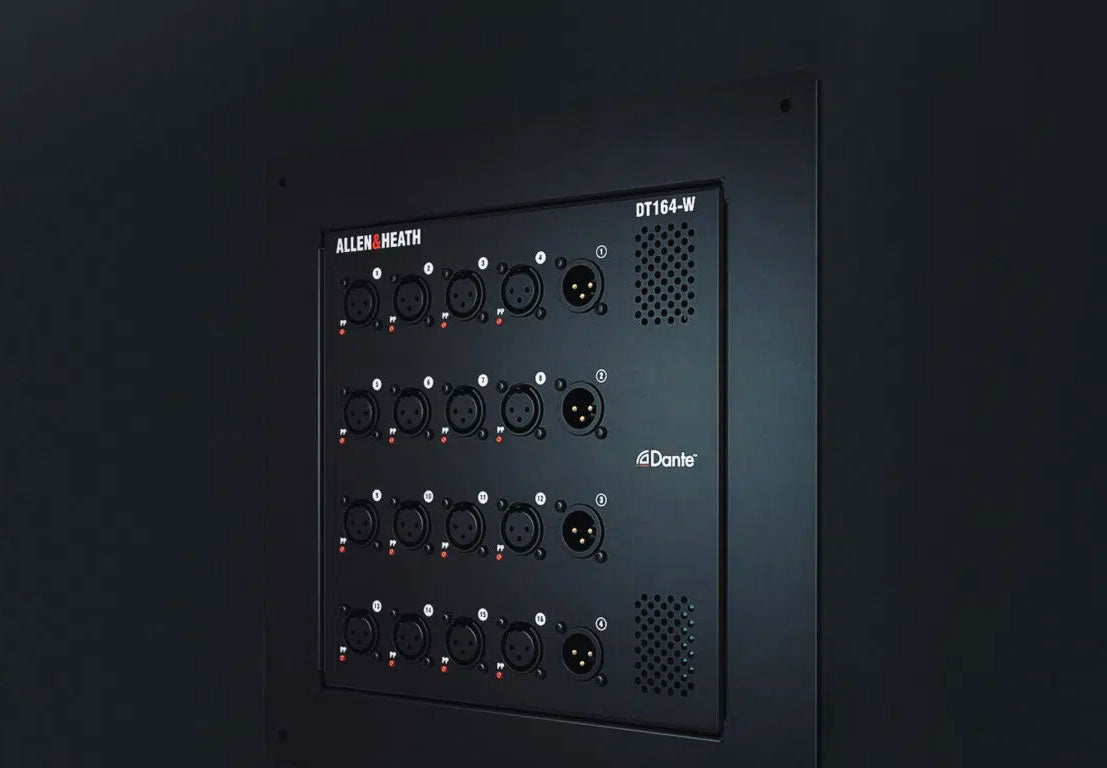

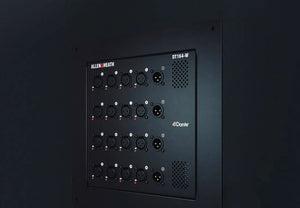

Wall-Mount Dante Audio Expander
Provides remote I/O with 16 mic inputs and 4 line outputs in a compact, install-ready format.

Professional Mic Preamps
Features fully recallable Allen & Heath mic preamps with +48V phantom power, -20 dB pad, and signal LEDs.

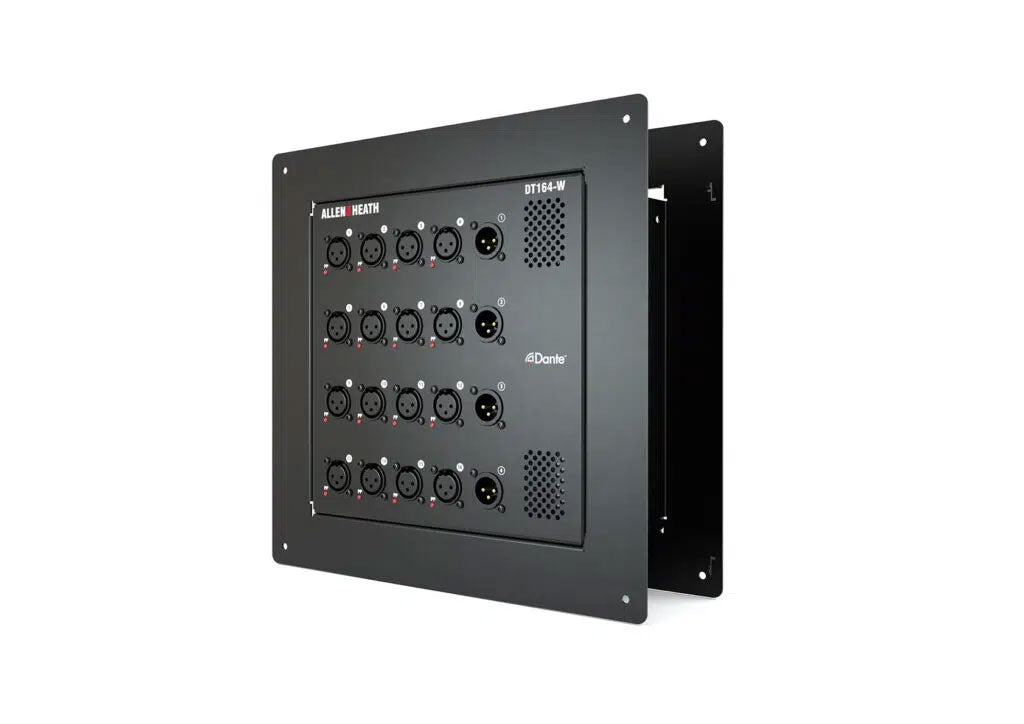

Flexible Mounting Options
Designed for wall or floor trap installation with support for NEMA 12x12” boxes and compatible with ACE Backstage stage pockets.

Dual Dante Connections
Includes Primary and Secondary EtherCon ports for daisy-chaining or redundancy, compatible with 48kHz and 96kHz Dante networks.

Compact and Durable
Steel chassis with small footprint and passive cooling which is ideal for permanent installations.

Multiple Power Options
Supports IEC AC input, screw terminal power, and 12V DC for redundant power configurations.

Remote Preamp Control

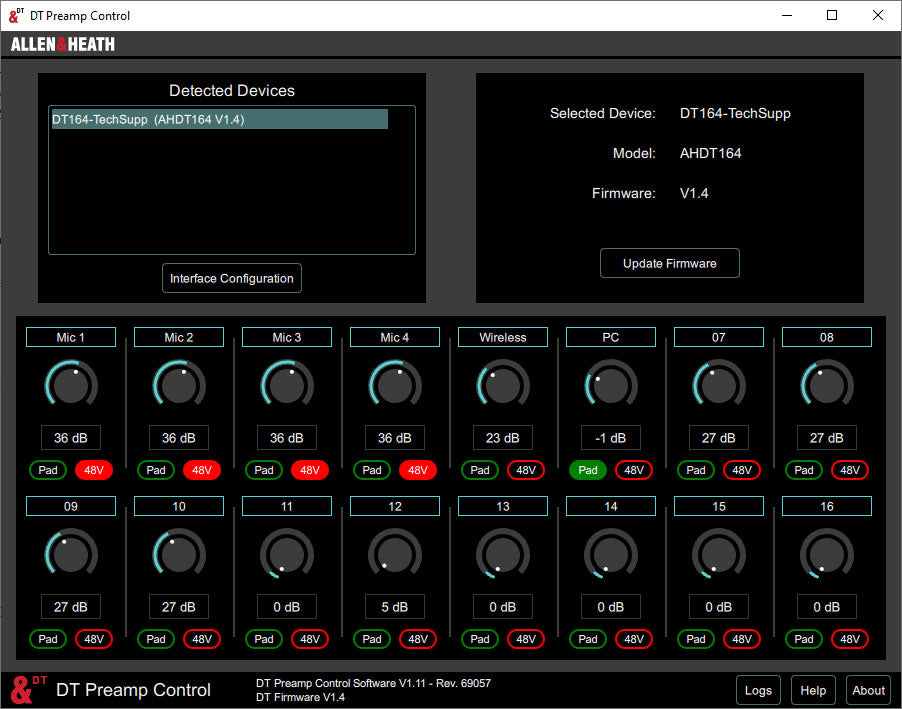

Gain, pad, and phantom power can be adjusted remotely via Allen & Heath mixers or DT Preamp Control software.

Third-Party Compatible
Can be used with any Dante-enabled system using DT Preamp Control and Dante Controller software.

Compact Dimensions & Lightweight
Measures 210 x 87 x 210 mm and weighs just 3.2 kg (7 lbs) without box.

Specifications

General Specifications
Device Type: Dante Audio Expander (Wall/Floor Mount)
Application: Fixed Installation in Venues, Houses of Worship, Education, Theatres
Construction: Steel Chassis
Form Factor: Wall Mount, Floor Trap, or NEMA 12"x12" Box
Mounting: Flush, Straight, or Vertical/Horizontal Orientation

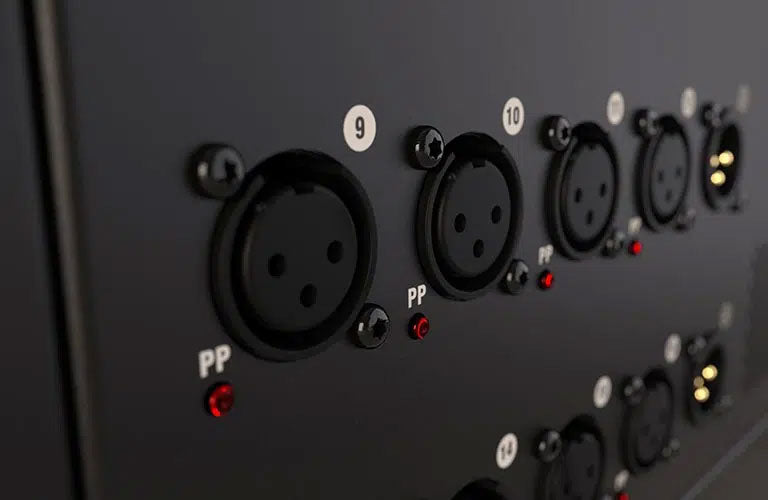

Phantom Power: +48V Phantom Power with LED Indicator per Input
Sample Rates: 48 kHz / 96 kHz
Bit Depth: 24-bit

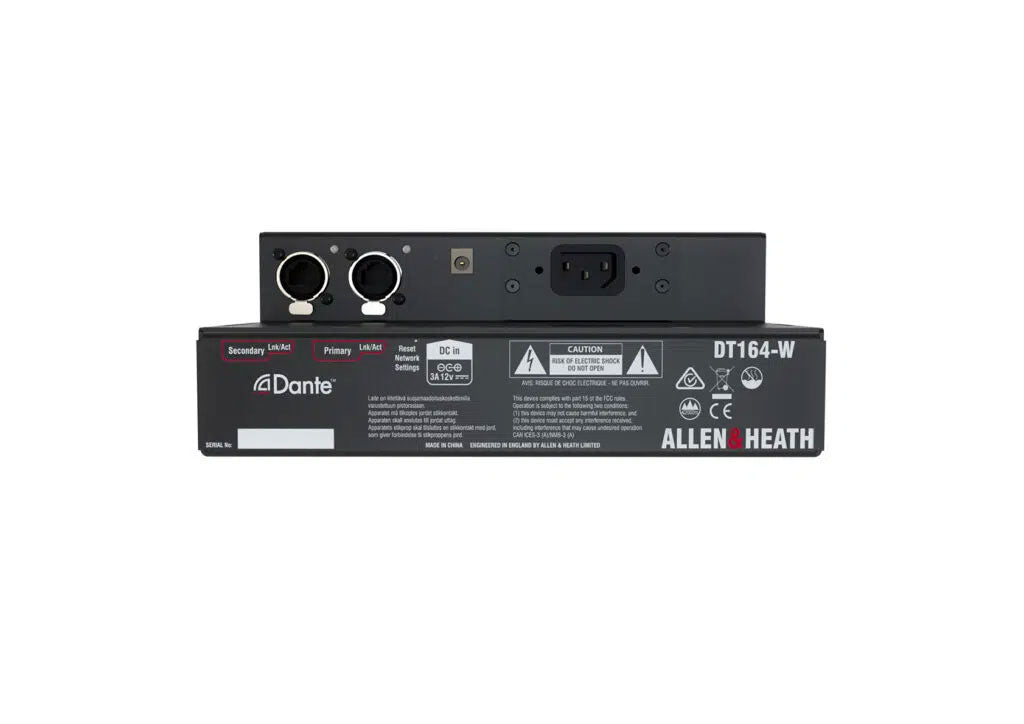

Dante Ports: 2x Locking EtherCon (Primary and Secondary)
Network Modes: Redundant or Switched
Preamp Control: Direct (dLive, Avantis, SQ, AHM) or via DT Preamp Control Software
AES67 Compatible: Yes
Dante Domain Manager Ready: Yes

Input/Output
Mic/Line Inputs: 16x XLR (Balanced, Recallable Preamps)
Input Sensitivity: –60 dBu to +15 dBu
Gain Range: +5 to +60 dB (1 dB steps)
Pad: –20 dB Active PAD
Input Impedance: >4 kΩ (Pad Out), >10 kΩ (Pad In)
Max Input Level: +30 dBu (PAD In)
Mic EIN: –127 dB (150 Ω source)
Line Outputs: 4x XLR (Balanced, Relay Protected)
Output Impedance: <75 Ω
Nominal Output Level: +4 dBu
Max Output Level: +22 dBu
Residual Output Noise: –92 dBu (20–20 kHz), –90 dBu (20–40 kHz)

Power
Mains Input: 100–240V AC, 50/60 Hz, 40W Max
Alternative Input: Screw Terminal Block with Gland
DC Backup: 12V DC, 3A

Environmental
Operating Temperature: 0°C to 40°C

Dimensions & Weight
Unit Dimensions: 210 mm (W) x 87 mm (D) x 210 mm (H)
Unit Weight: 3.2 kg (7 lbs)
Shipping Dimensions: 375 mm (W) x 415 mm (D) x 250 mm (H)
Shipping Weight: 5.65 kg (12.5 lbs)

Included Items
Included Components: DT164-W Wall-Mount Dante Stagebox
Note: Mounting brackets, dust cover, and accessories sold separately.
