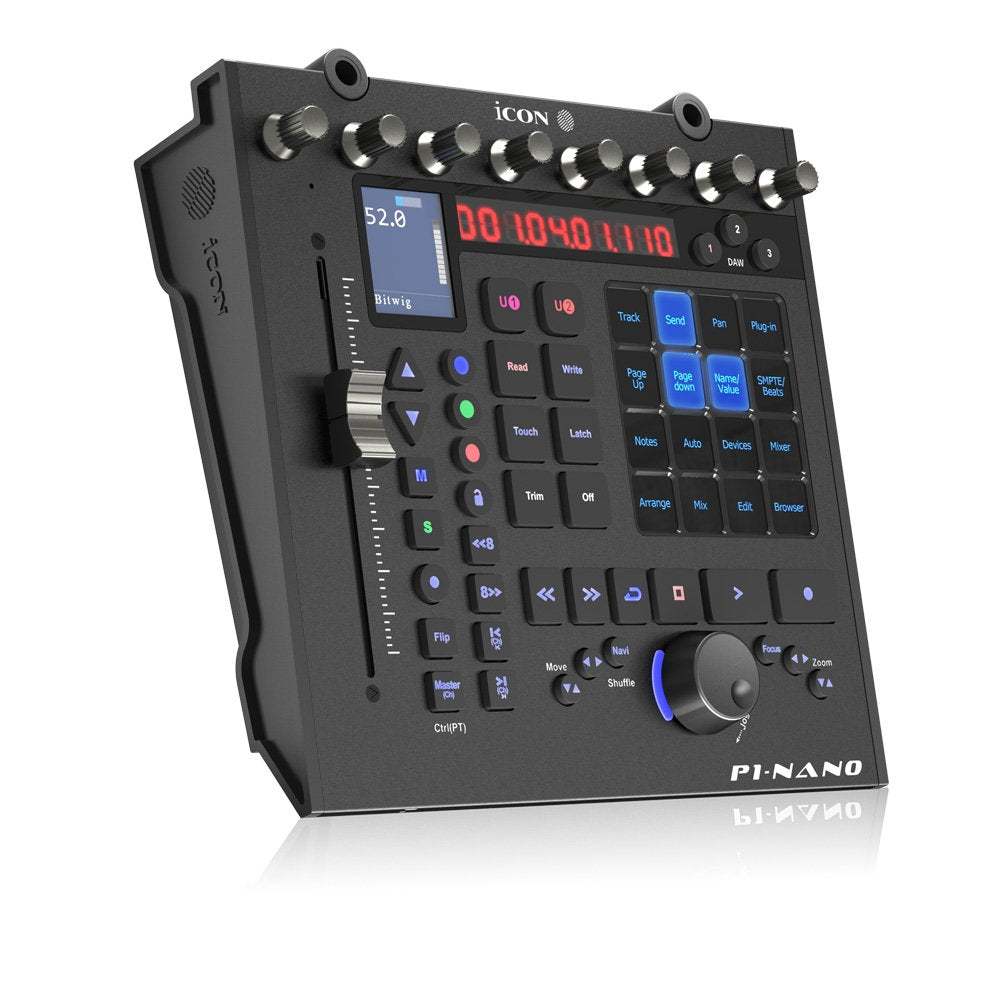

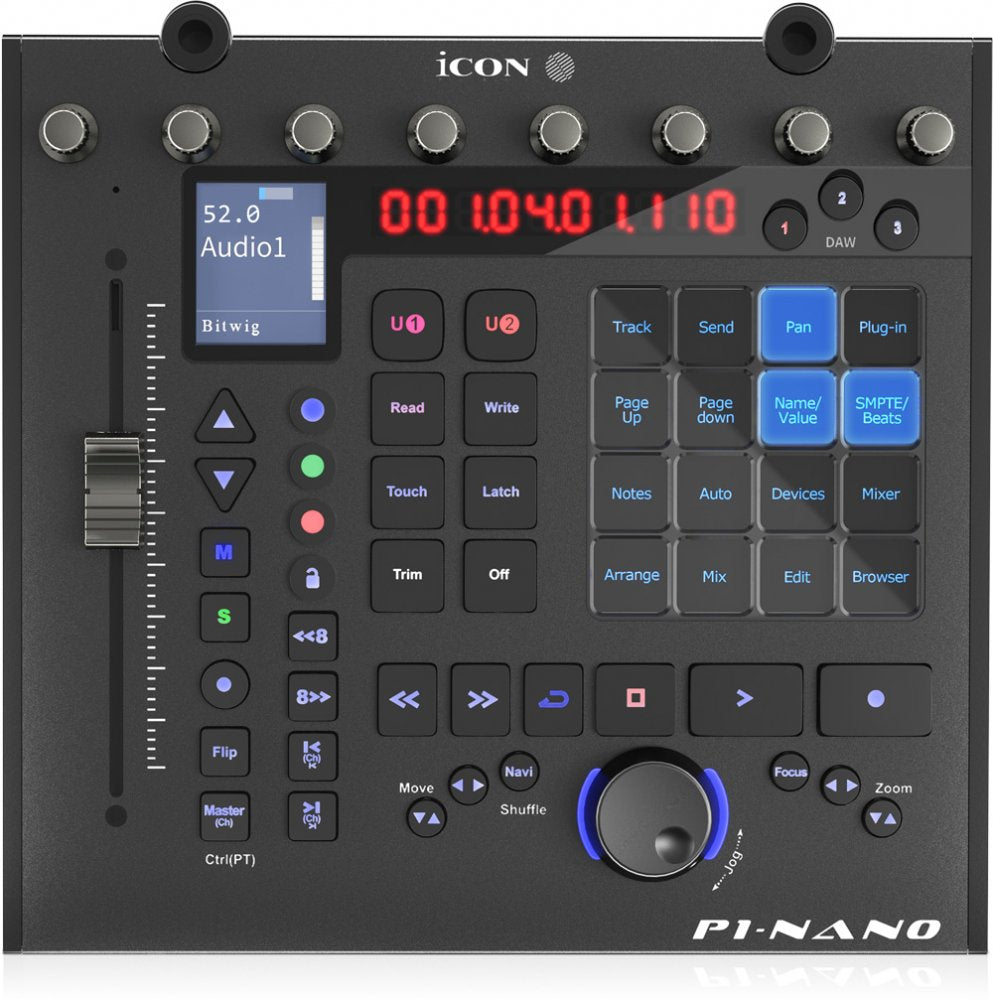

P1-Nano

Motorized Fader Control
One touch-sensitive motorized fader provides hands-on control for channel or master levels.

16-Panel Touchscreen
Programmable touchscreen with up to 80 assignable DAW functions across 5 color-coded layers.

Multi-DAW Connectivity
Switch instantly between up to three DAWs with dedicated buttons.

Real-Time Customization
Easily drag and drop functions in the iMAP software and see changes instantly on the touchscreen.

Plug-In and EQ Control
Use the jog wheel and focus button for interactive control of plug-ins and EQ parameters.

Rotary Encoders with Push Function
Eight silent, smooth knobs double as PAN controls and function selectors.

LED Time Display
View project position in SMPTE or beat clock formats on a clear 10-segment LED display.

Channel Controls
Dedicated illuminated buttons for Mute, Solo, and Record functions.

Transport Controls
Six backlit buttons for Play, Stop, Record, Rewind, Fast Forward, and Loop.

Zoom and Navigation
Use zoom keys and the jog wheel to navigate through tracks and GUI elements quickly.

Custom Hotkeys and MIDI Mapping
Assign QWERTY hotkeys or MIDI messages to the touchscreen and encoders via iMAP.

Universal Software Compatibility
Supports major DAWs using Mackie Control or HUI protocols, including Logic, Cubase, Pro Tools, Ableton Live, and more.

Compact and Durable Design
Metal casing with a small footprint, suitable for any workspace.

Footswitch Support
Two rear ports for connecting foot pedals for hands-free control.

Optional D-5 Display Expansion
Add-on screen provides detailed track names, metering, and control values for each channel.

General Specifications
Connector: USB C to computer
Power Supply: 5V DC
Current Consumption: 0.9A or less
Dimensions: 213mm x 196mm x 60mm (8.38” x 7.1” x 2.36”)
Weight: 0.896 kg (1.97 lb)
Operating Systems: macOS 10.15 or above, Windows 10 or above
Protocol Support: Mackie Control, HUI
Build: Robust metal casing with Kensington lock port

Control Interface
1x Touch-sensitive motorized fader (12-bit resolution)
1x 4" programmable 16-panel digital touchscreen (5 color modes, 80 assignable functions)
8x Dual-function endless rotary encoders (rotate + push for enter)
1x Jog wheel (smooth-action, non-stepped)
10-segment LED display for SMPTE / beat clock (bars:beats:ticks)
On-board OLED display for parameters, values, and metering

Buttons and Functionality
Illuminated transport controls: Play, Stop, Rec, Rewind, Fast Forward, Loop
Channel controls: Mute, Solo, Rec Arm (illuminated)
Automation mode buttons: Read, Write, Touch, Latch, Trim, Off
Flip & Master channel access buttons
Zoom navigation with 2-direction keys (Up/Down, Left/Right)
Focus button for jog wheel parameter control
Track select (2) and Bank shift (2) buttons (8-channel banks)
3x DAW selector buttons for simultaneous DAW control

Touchscreen Functionality
Assignable via iMAP software (drag-and-drop interface)
Supports 80 DAW/MIDI/Hotkey functions (16 buttons × 5 layers)
Color Modes: Blue, Green, Orange (default MIDI); Purple, Red (default Hotkey)
Real-time updates—no manual syncing required

Connectivity
1x USB C port (data + power)
1x USB C port (5V DC external power optional)
2x 1/4" TRS pedal inputs (User A, User B)
1x Proprietary port for optional D-5 Display Unit

Optional Accessory: D-5 Display Unit
Large LCD display for channel names, pan values, metering
Adjustable tilt angle, magnetic slot-in mounting
Connects via included USB C cable
