ALLEN & HEATH

SQ SLINK

Digital mixers

128×128 audio and preamp control, 96/48 kHz, gigaACE, GX, DX, dSnake support, dual protocol use, SRC enabled, SQ and AHM compatible, plug-and-play

$349.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

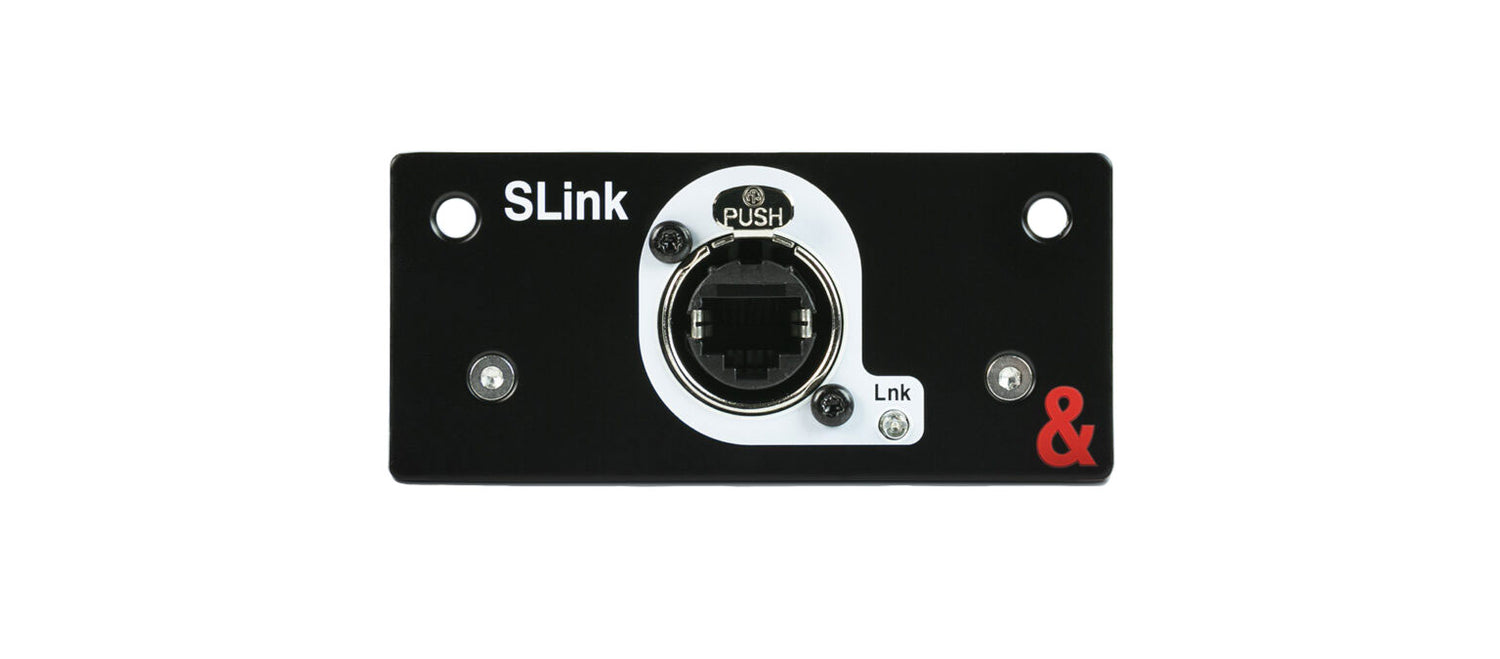

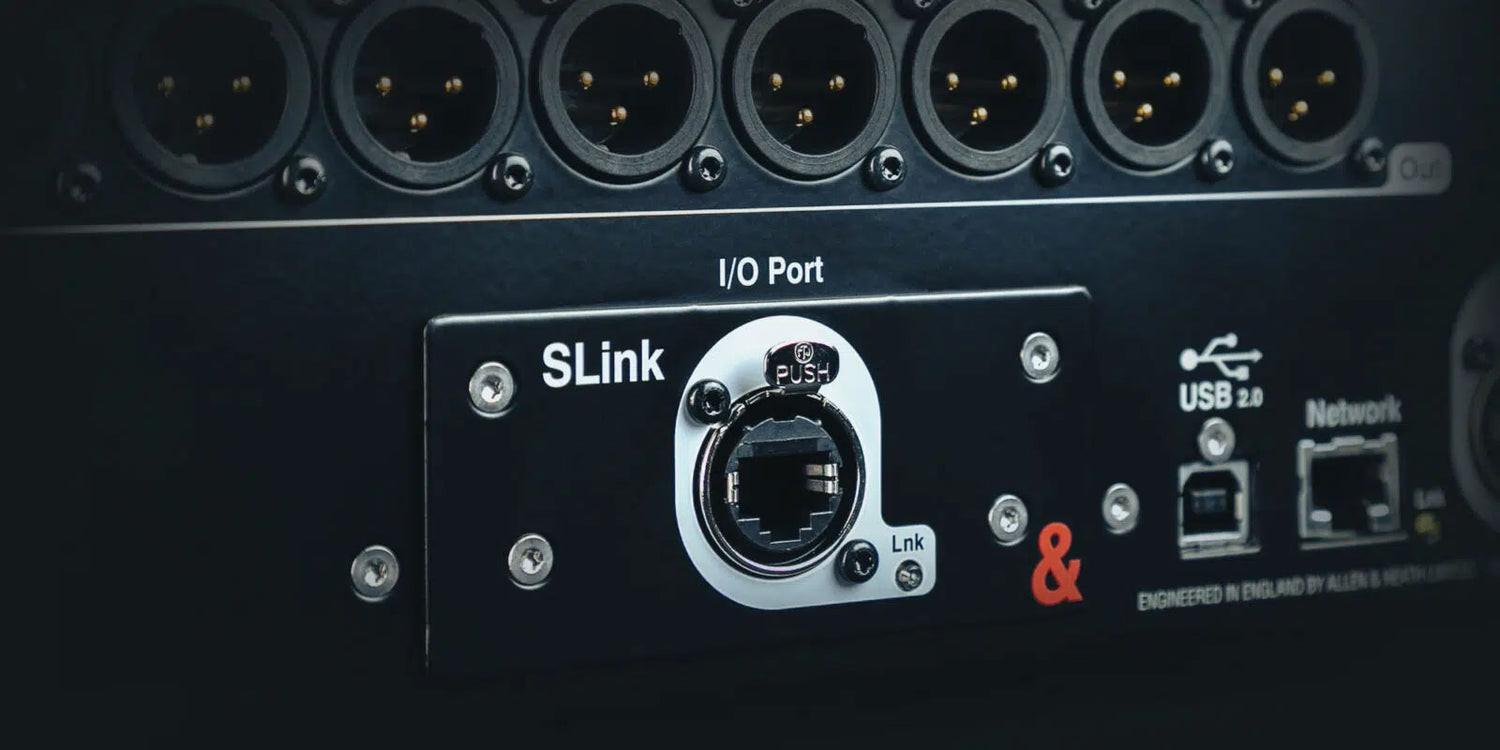

The SQ SLink card is a flexible audio networking option that adds an additional SLink port to SQ mixers or AHM matrix processors, significantly expanding their I/O and system integration capabilities. This plug-and-play module supports a wide range of Allen & Heath digital audio protocols, including gigaACE, dSnake, DX, and GX, at either 96kHz or 48kHz, offering up to 128×128 channels of audio and preamp control.

On SQ mixers, the SQ SLink card operates independently from the onboard SLink port, allowing users to connect to multiple protocols simultaneously. This means an SQ can, for example, connect to DX or GX expanders and a ME personal monitoring system at the same time. It also enables direct digital splits between SQ and other Allen & Heath consoles such as Qu, Avantis, or dLive, making it ideal for FOH/monitor splits, broadcast feeds, or installations requiring multiple mix engines.

For AHM-16 and AHM-32 processors, the SQ SLink card unlocks access to the full Everything I/O ecosystem, allowing connection to Allen & Heath’s full range of stageboxes and remote expanders. On AHM-64, it functions as a second, independently clocked SLink port, opening the door to more complex routing scenarios and dual-protocol operation within a single system.

Features

Adds a Second SLink Port
Expands SQ or AHM mixers with an additional SLink connection for more flexibility.

Connects to Allen & Heath Ecosystem
Supports GX, DX, dSnake, and gigaACE expanders, as well as ME personal monitor systems.

Dual Protocol Operation
Allows two different A&H protocols to run at once which is ideal for complex system setups.

Enables Cross-System Connection
Directly links SQ to Qu, Avantis, dLive, or other SQ mixers for FOH/monitor splits and broadcast feeds.

128×128 Audio Channels
Provides up to 128 input and 128 output channels with full preamp control.

Sample Rate Conversion
Supports both 96kHz and 48kHz with built-in conversion for seamless integration.

Plug-and-Play Setup
Simple installation with intelligent mode switching so no manual configuration required.

Expands AHM Processor I/O
Adds more audio I/O options to AHM-16, AHM-32, and enhances 0AHM-64 connectivity.

Specifications

General Specifications
Device Type: Intelligent Audio Expansion Interface Card
Compatibility: Allen & Heath SQ Series Mixers, AHM-16, AHM-32, AHM-64 Matrix Processors
Port Type: SLink (Intelligent Audio Port)
Maximum Channel Count: 128×128 (Audio and Preamp Control)
Sample Rate Support: 96kHz, 48kHz (Selectable)
Protocol Support: gigaACE, GX, DX, dSnake
Mode Switching: Intelligent Auto-Switching Between Protocols
Sample Rate Conversion: Independent SRC for Dual Protocol Operation
Installation: Plug-and-Play
Operation: Independent from Built-in SLink Port (on SQ and AHM-64)
Form Factor: Expansion Card for SQ/AHM Slot

Connectivity & Integration
Supported Devices: Qu Series, SQ Series, Avantis, dLive Systems
Supported Expanders: DX, GX, dSnake, ME Personal Mixing Systems
Applications: FOH/Monitor Splits, Broadcast Feeds, I/O Expansion
