MOJAVE AUDIO  |  SKU: 17502

MA-1000 DS

Tube Microphones

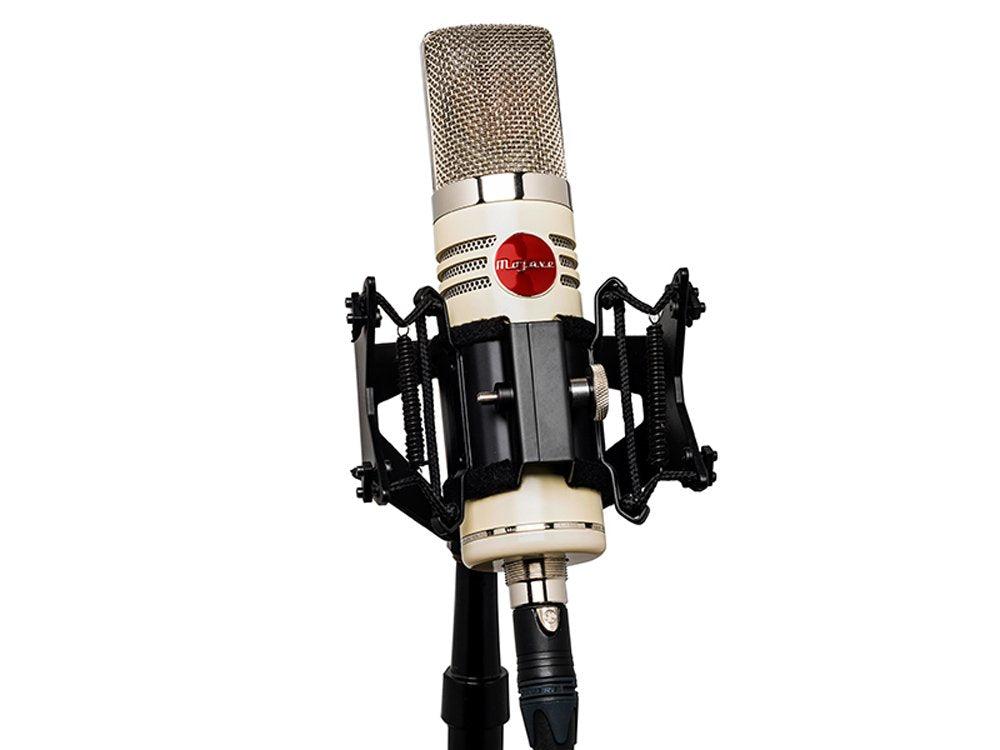

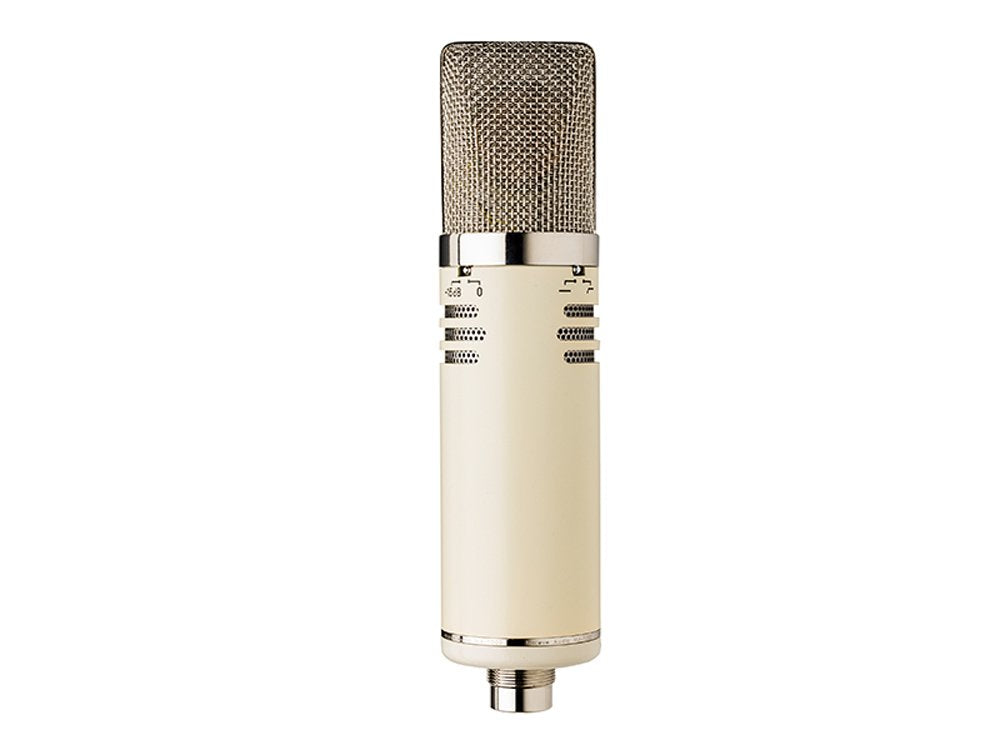

Signature Series multi-pattern large diaphragm tube condenser, Desert Sand

$4,749.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Drawing inspiration from some of yesterday's most revered microphones, TECHNICAL GRAMMY Award-Winning microphone designer David Royer has created a thoroughly modern tube microphone that features an original new old-stock 5840 tube, 251-style capsule, and custom designed transformer built by Coast Magnetics. The result A sweet, airy top end, "you-are-there" realism in the mids and an accurate yet authoritative bottom end.

The Signature Series has been exhaustively field tested against microphones often costing $20K or more - universally evoking the same "Wow" response usually reserved for only the most prized vintage mics. Push up the fader and say "Ahhh!" With performance, reliability, and quality like this, we are sure you'll agree that Mojave's new Signature Series microphone is a New American Classic.

Features

Original new old-stock 5840 tube

251-style capsule

Custom designed transformer by Coast Magnetics

Remotely controlled, continuously variable polar

pattern selector, located on power supply

Switchable 15dB pad

Switchable Bass Roll-off

Internal switchable power supply voltage

American Classic Design

Comes with Sling-Shock licenced from Royer Labs

Premium Cable made with Mogami Cable

and Neutrik connectors

Specifications

TRANSDUCER TYPE:

Externally polarized, pressure gradient capacitor - double diaphragm.

DIAPHRAGM:

1-inch diameter, gold sputtered

DIAPHRAGM THICKNESS:

3-microns

POLAR PATTERN:

Continuously variable from omnidirectional to figure-eight.

FREQUENCY RESPONSE:

20 Hz to 20KHz 3 dB

SENSITIVITY:

Omni -37.5 dB, Cardioid -36.0 dB, Figure-8 -34.0 dB re. 1V/pa

MAXIMUM SPL:

120 dB with pad off, 135 dB with pad on.

DISTORTION:

< 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off
< 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on

SELF NOISE:

14dB nominal, not to exceed 16dB (A weighted)

PAD:

15 dB

BASS CUT:

6 dB per octave below 100 hertz.

IMPEDANCE:

200

POWER REQUIREMENT

: 6 VDC @ 150 mA. 125 VDC @ .7 mA
(from dedicated power supply)

DIMENSIONS AND WEIGHT:

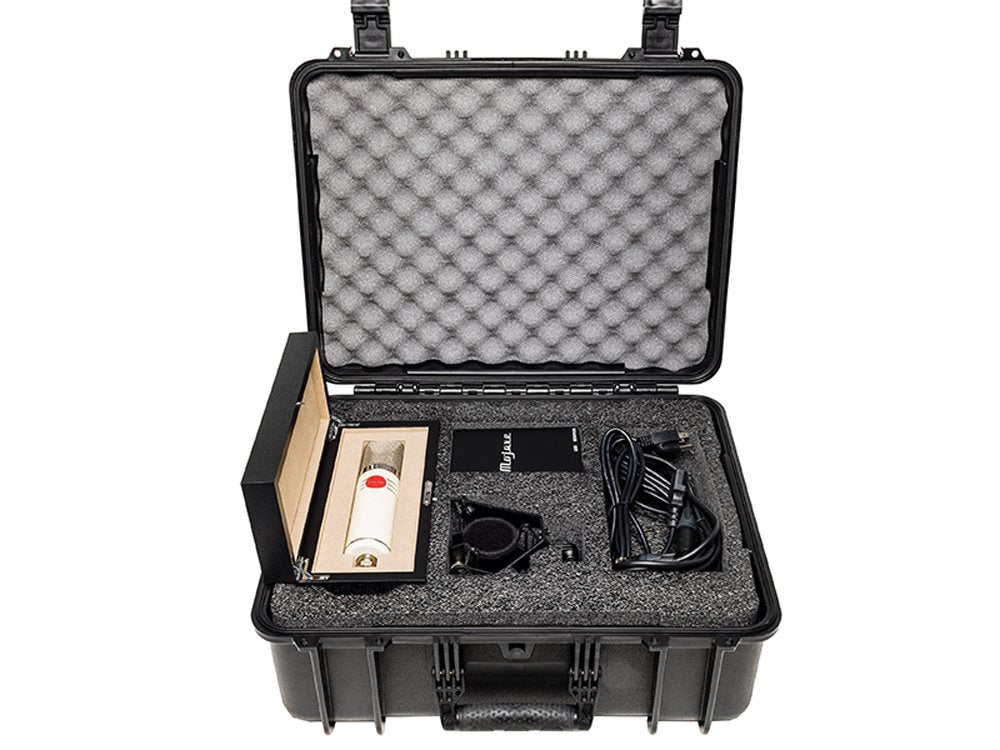

Carrying case with microphone, power supply, shock mount and cables:

13 lbs. (5.9Kg)

Microphone:

7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)

Recommended Applications:


Vocals and Voice-overs
Broadcast
Acoustic Instruments
Piano
Drum Overheads, Drum Rooms
Orchestral Recording
Choral Recording
