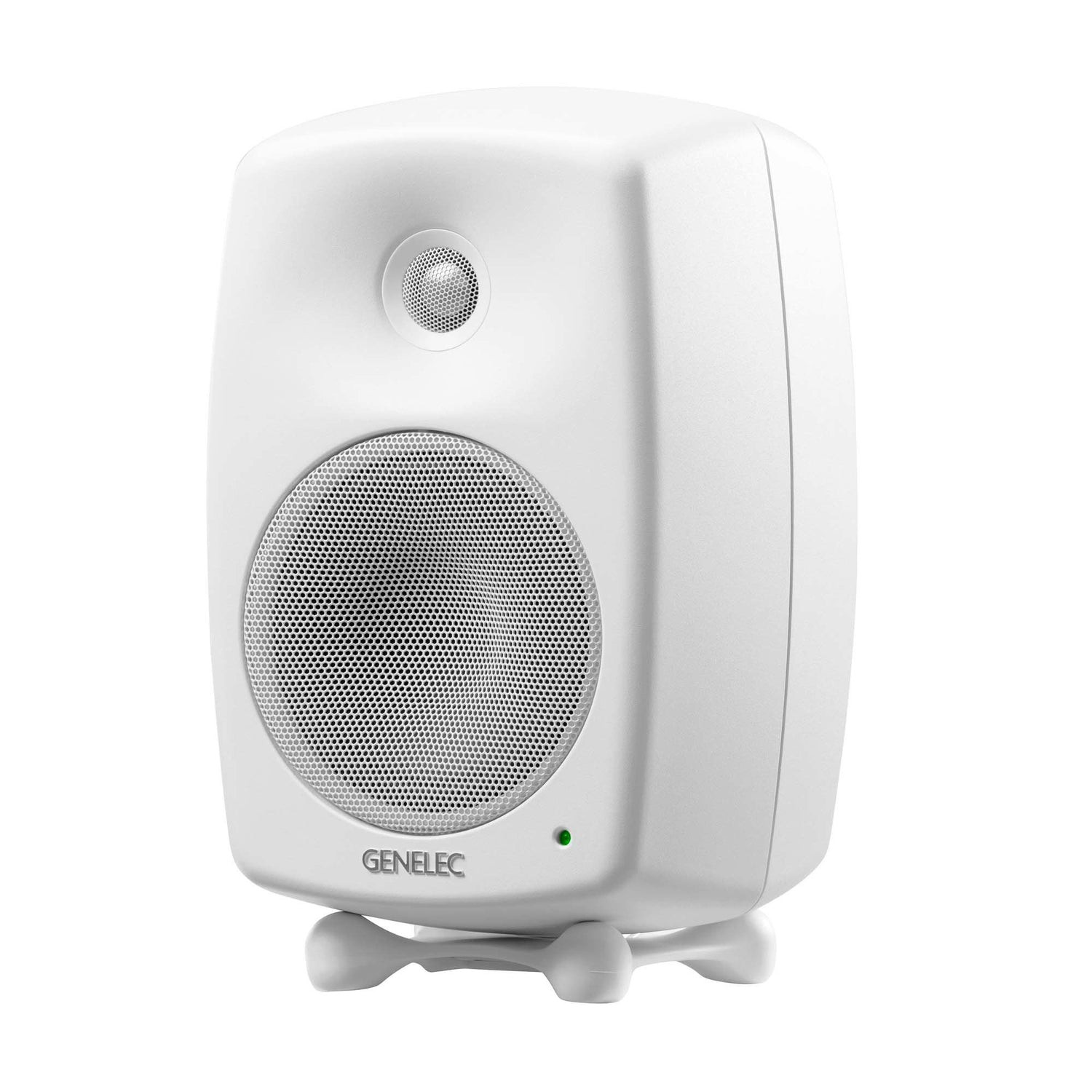

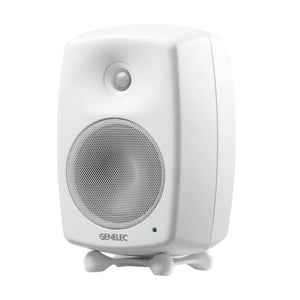

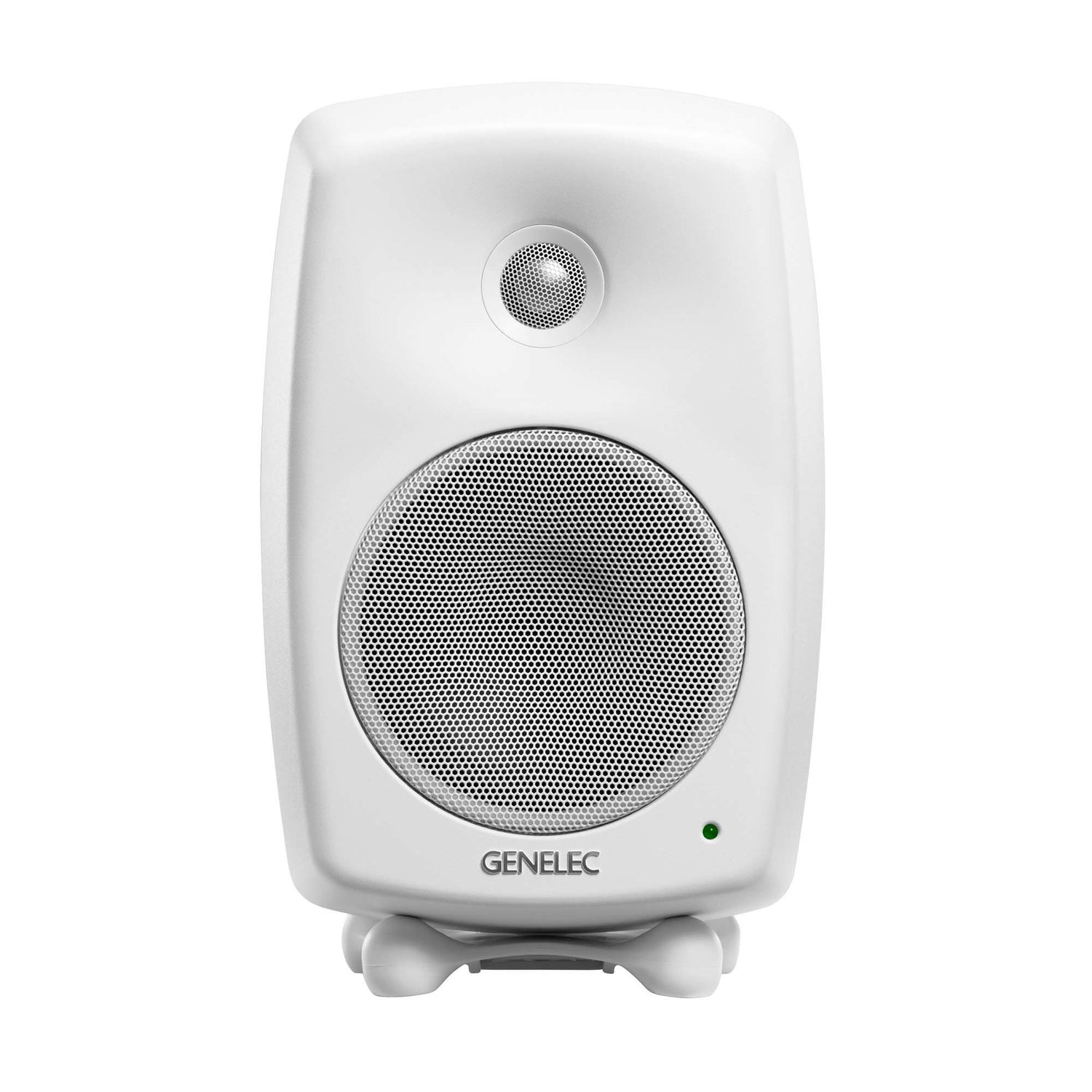

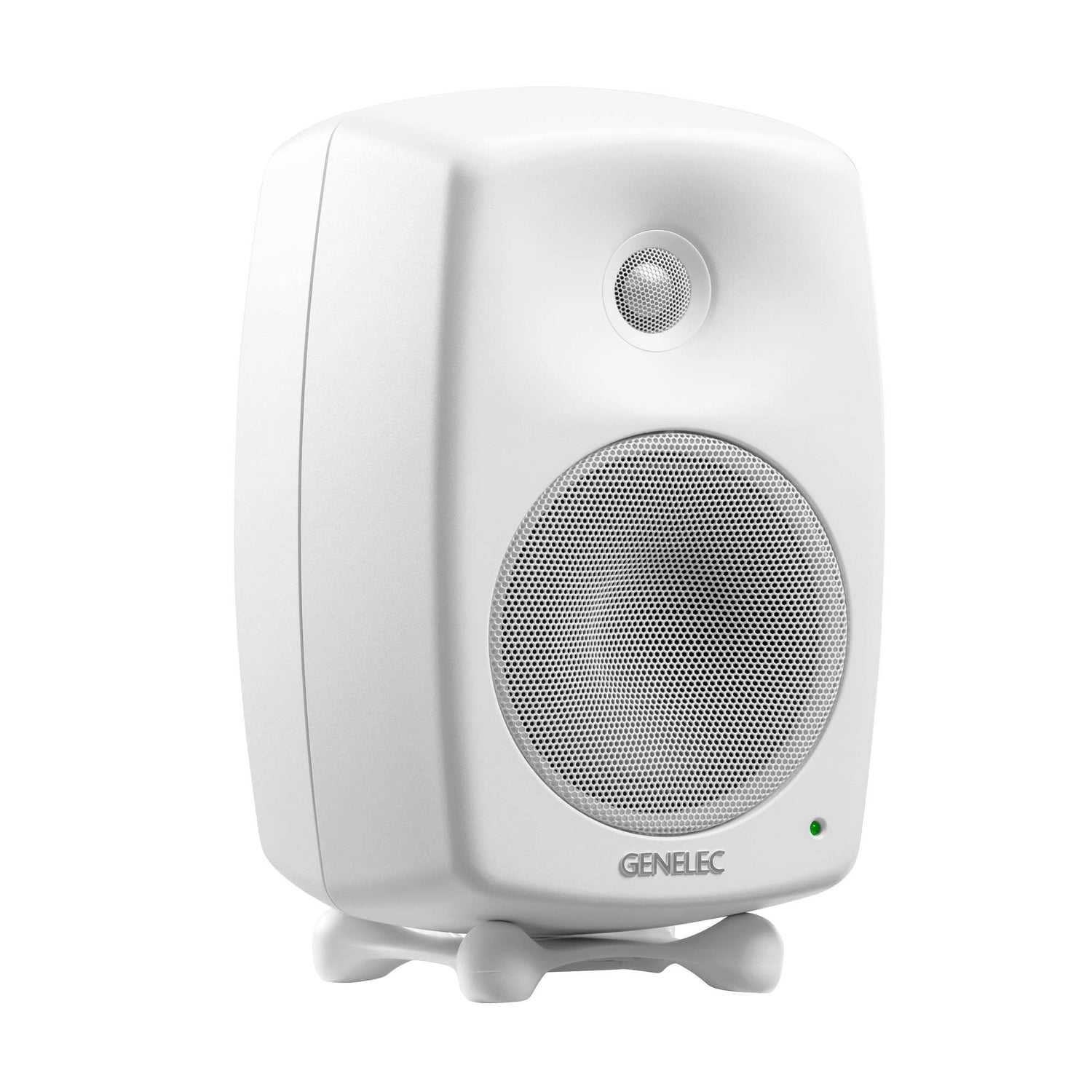

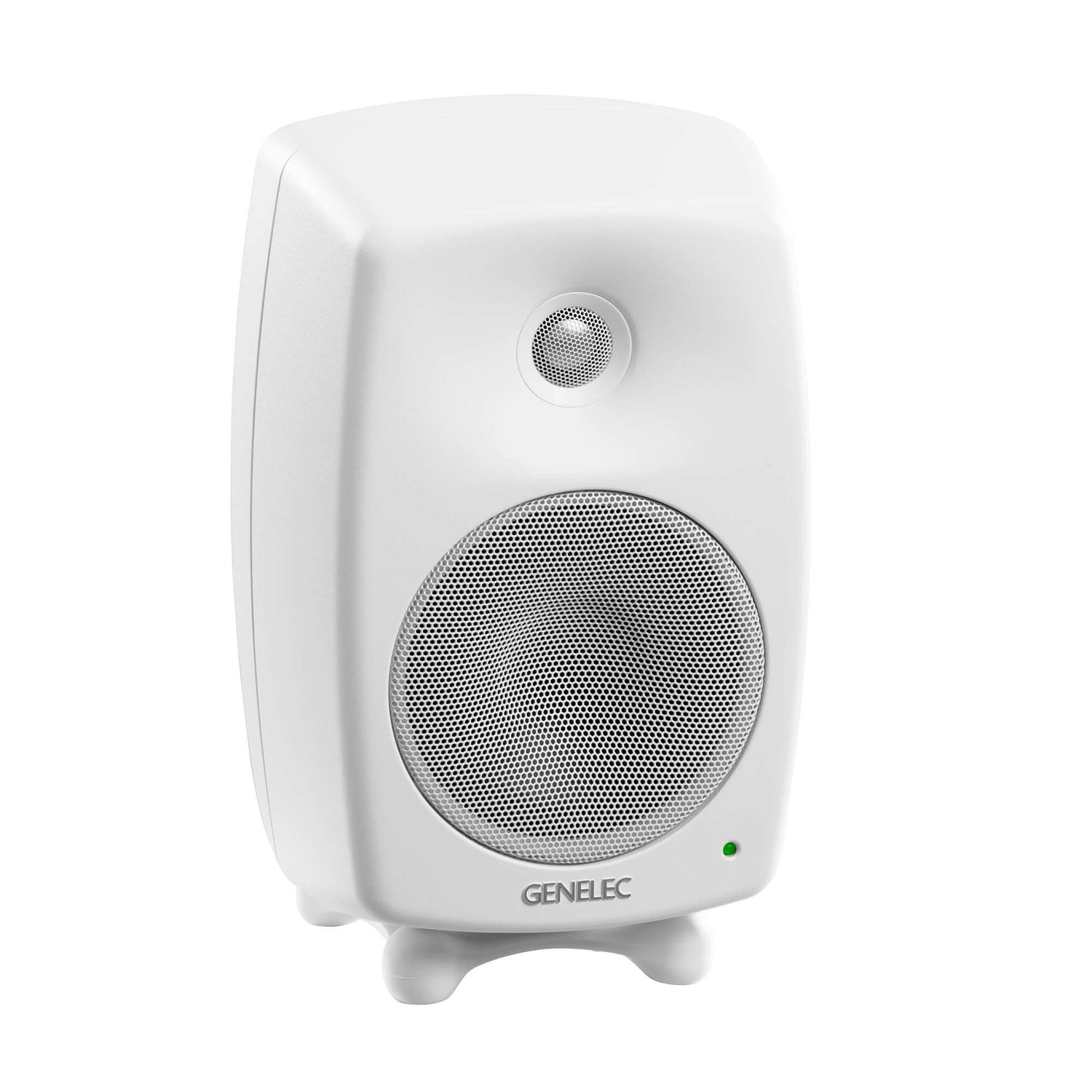

8030CWM

Compact but Powerful
Delivers up to 104 dB SPL, combining big sound output with a small footprint which is ideal for home, project, or professional studios.

Extended Frequency Response
Covers a wide range from 47 Hz to 25 kHz (−6 dB), providing deep bass and clear highs for full-spectrum monitoring.

Accurate Sound Reproduction
±2 dB response from 54 Hz to 20 kHz ensures mixes translate well across different playback systems.

White Aesthetic Finish
Sleek matte white enclosure blends into modern studio spaces while maintaining professional performance.

Precision Monitoring Design
DCW™ (Directivity Control Waveguide) technology delivers precise imaging and consistent sound on and off axis.

Built-in Amplification
Equipped with dedicated 50 W Class D amplifiers for both bass and treble drivers, offering high efficiency and clarity.

Smart Power Management
ISS™ technology reduces energy use by switching to standby mode when the monitor is idle.

Integrated Iso-Pod™ Stand
Improves placement flexibility, stability, and isolation on studio desks or surfaces.

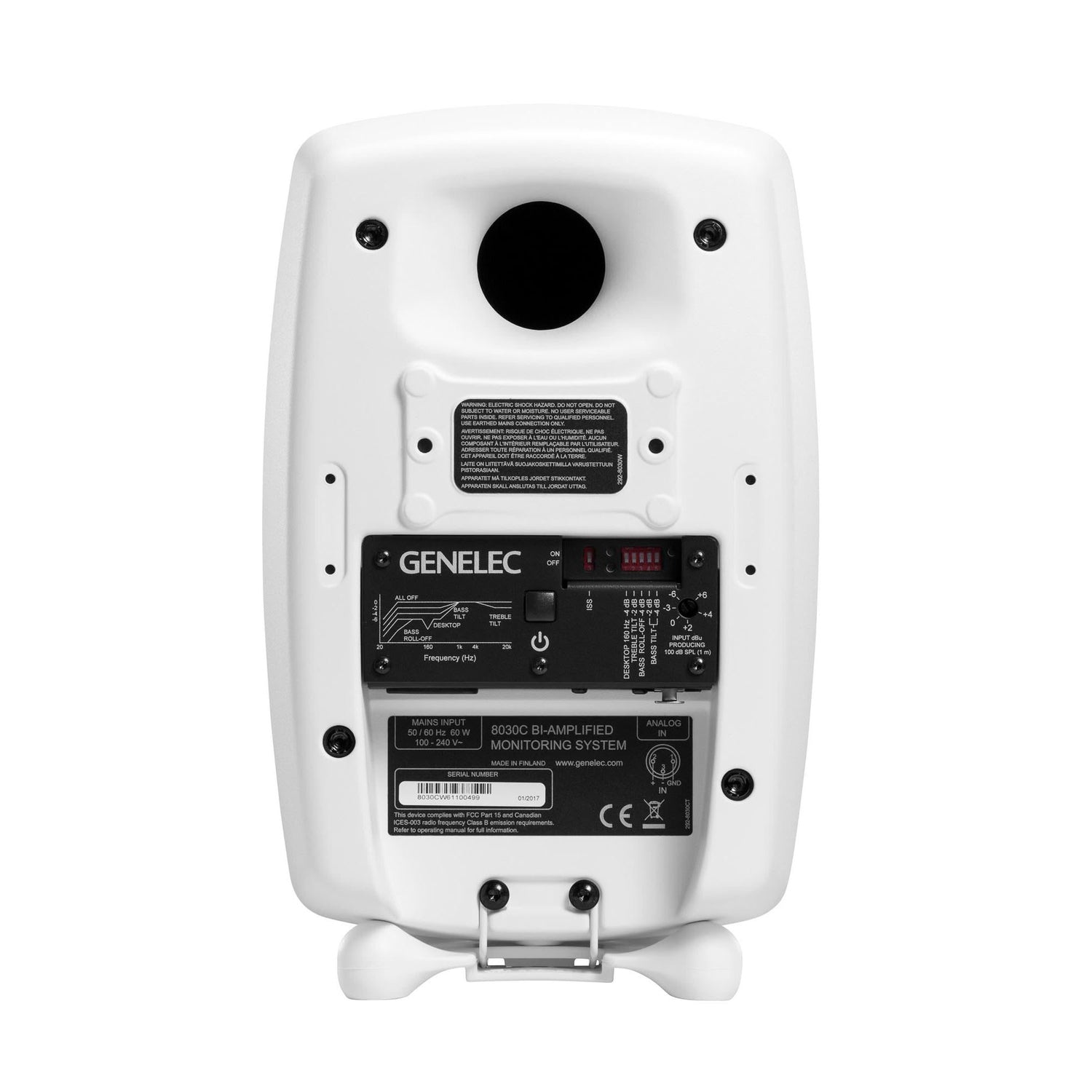

Room Response Controls
Rear panel switches let you tailor the monitor’s output to match your acoustic environment.

All-in-One Package
Includes the 8030CWM monitor, Iso-Pod kit, mains cable, and operating manual for quick setup.

General Specifications
Device Type: Compact 2-Way Active Nearfield Monitor
Model: 8030CWM
Color: White
Finish: Matte White
Enclosure Type: Reflex Port
Enclosure Material: Die-Cast Aluminium
Mounting Options: Iso-Pod™ Stand Included, Compatible with Genelec Stand Accessories
Included Accessories: Mains Cable (1.8 m), Operating Manual, IsoPod Kit

Frequency Specifications
Frequency Response: 54 Hz – 20 kHz (±2 dB)
Low Cutoff (-6 dB): 47 Hz
High Cutoff (-6 dB): 25 kHz

SPL
Maximum SPL: 104 dB (Short Term, sine wave, 100 Hz – 3 kHz @ 1 m)
Peak SPL: ≥110 dB (per pair with music material @ 1 m)
Long Term Max SPL: ≥96 dB (RMS with IEC weighted noise @ 1 m)
Self-Generated Noise: ≤5 dB SPL (A-weighted, free field @ 1 m)

Amplifier Section
Bass Amplifier Power: 50 W (Class D)
Treble Amplifier Power: 50 W (Class D)
Crossover Frequency: 3000 Hz
Power Consumption (Full Output): 60 W
Power Consumption (Idle): ≤3 W
Power Consumption (ISS Active): ≤0.5 W
Mains Voltage Range: 100–240 VAC, 50/60 Hz

Drivers
Bass Driver: 130 mm (5 1/8 in) Cone
Treble Driver: 19 mm (3/4 in) Metal Dome

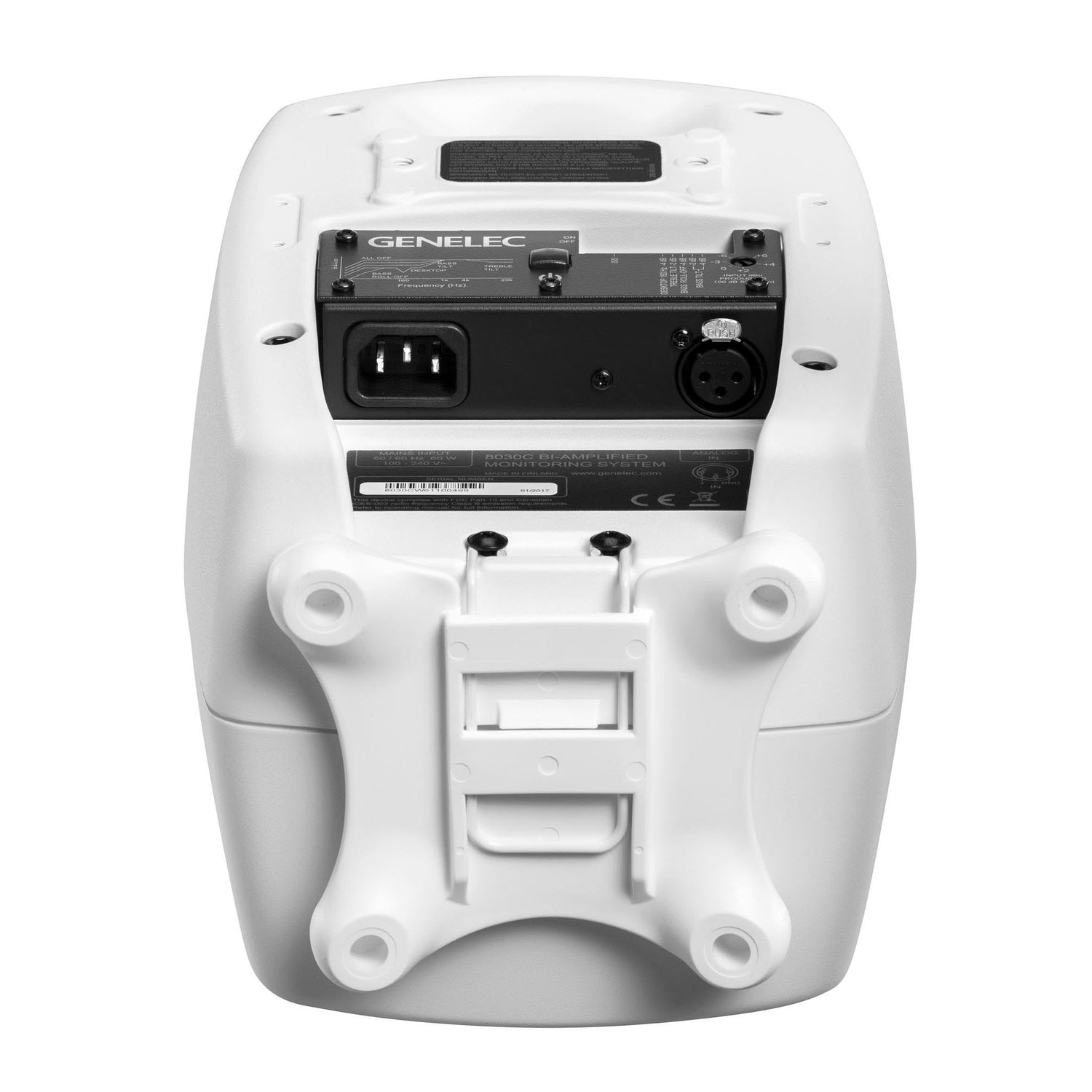

Connectivity
Input: 1 x XLR Analog Input (Female, Balanced, 10 kΩ Input Impedance)

Dimensions
Height: 299 mm (11 3/4 in, with Iso-Pod™)
Width: 189 mm (7 1/2 in)
Depth: 178 mm (7 in)

Weight
Weight: 5 kg (11.0 lb)

Key Technologies
Active Crossovers
Directivity Control Waveguide (DCW™)
Intelligent Signal Sensing (ISS™)
Iso-Pod™ Stand
Minimum Diffraction Enclosure (MDE™)
Optimised Amplifiers
Protection Circuitry
Reflex Port Design
Room Response Compensation
Versatile Mounting Options
