RME

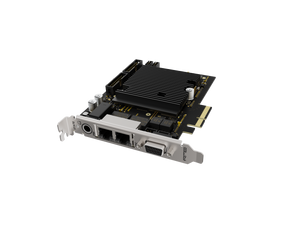

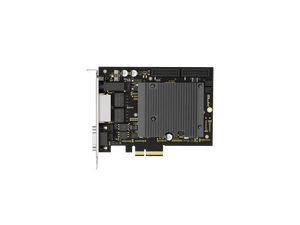

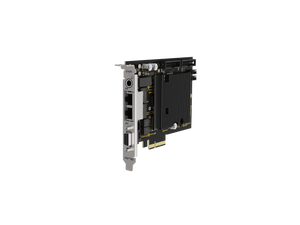

HDSPe AoX-D

PCI/PCIe

512-channel PCIe x4 interface, dual Dante ports, optional MADI expansion, AES3, MIDI, headphone out, TotalMix FX, low-latency mixing, Thunderbolt-compatible.

$2,978.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

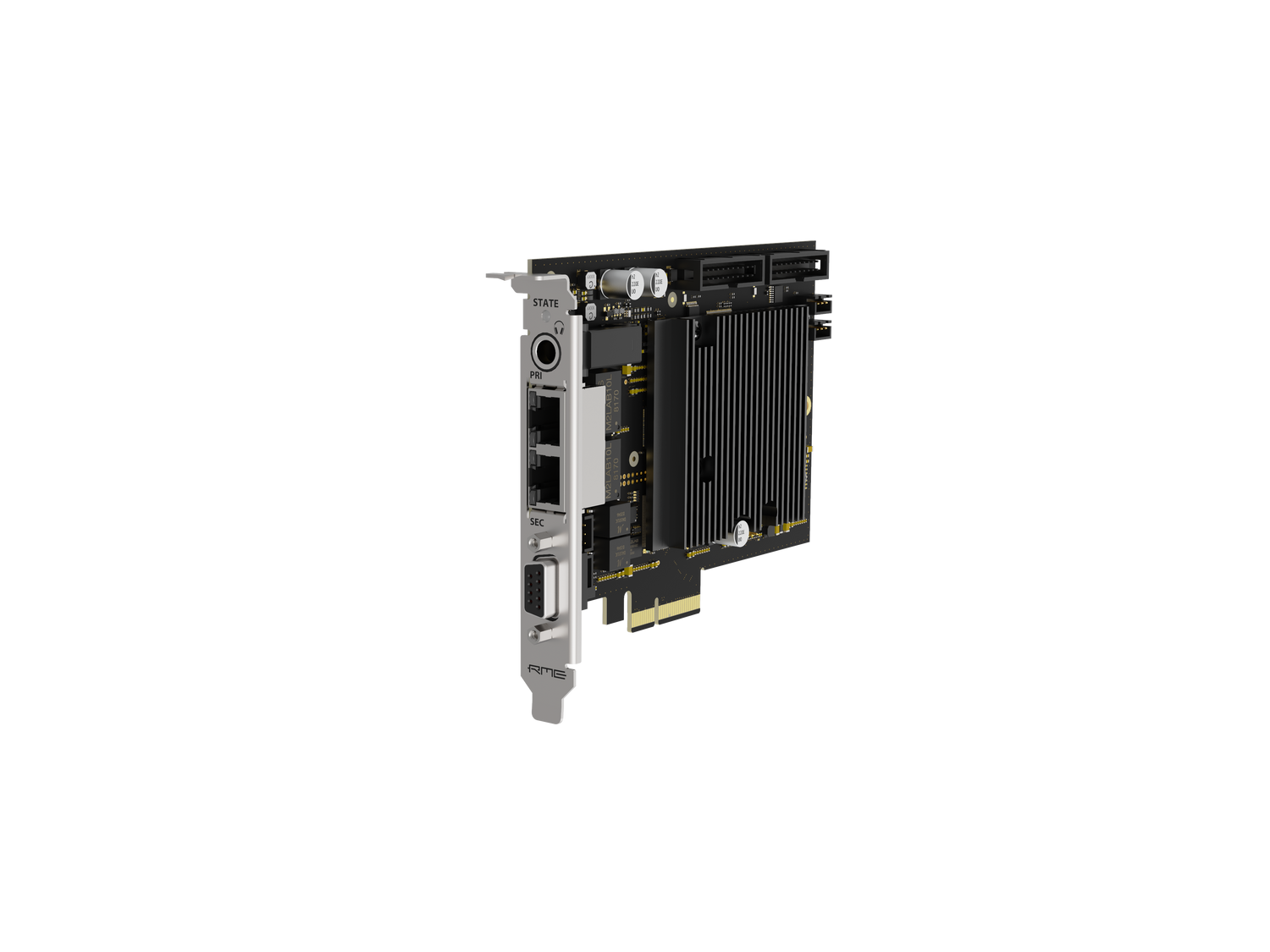

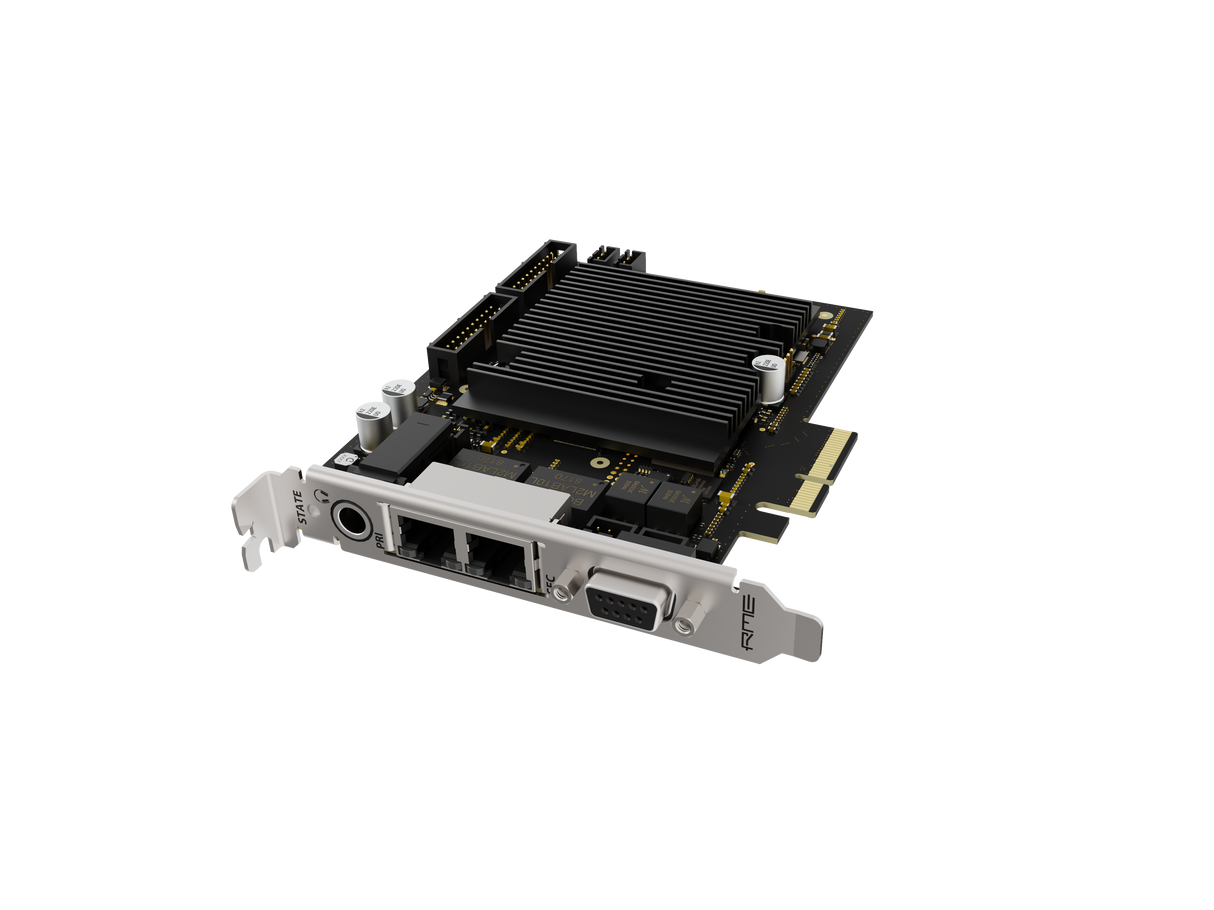

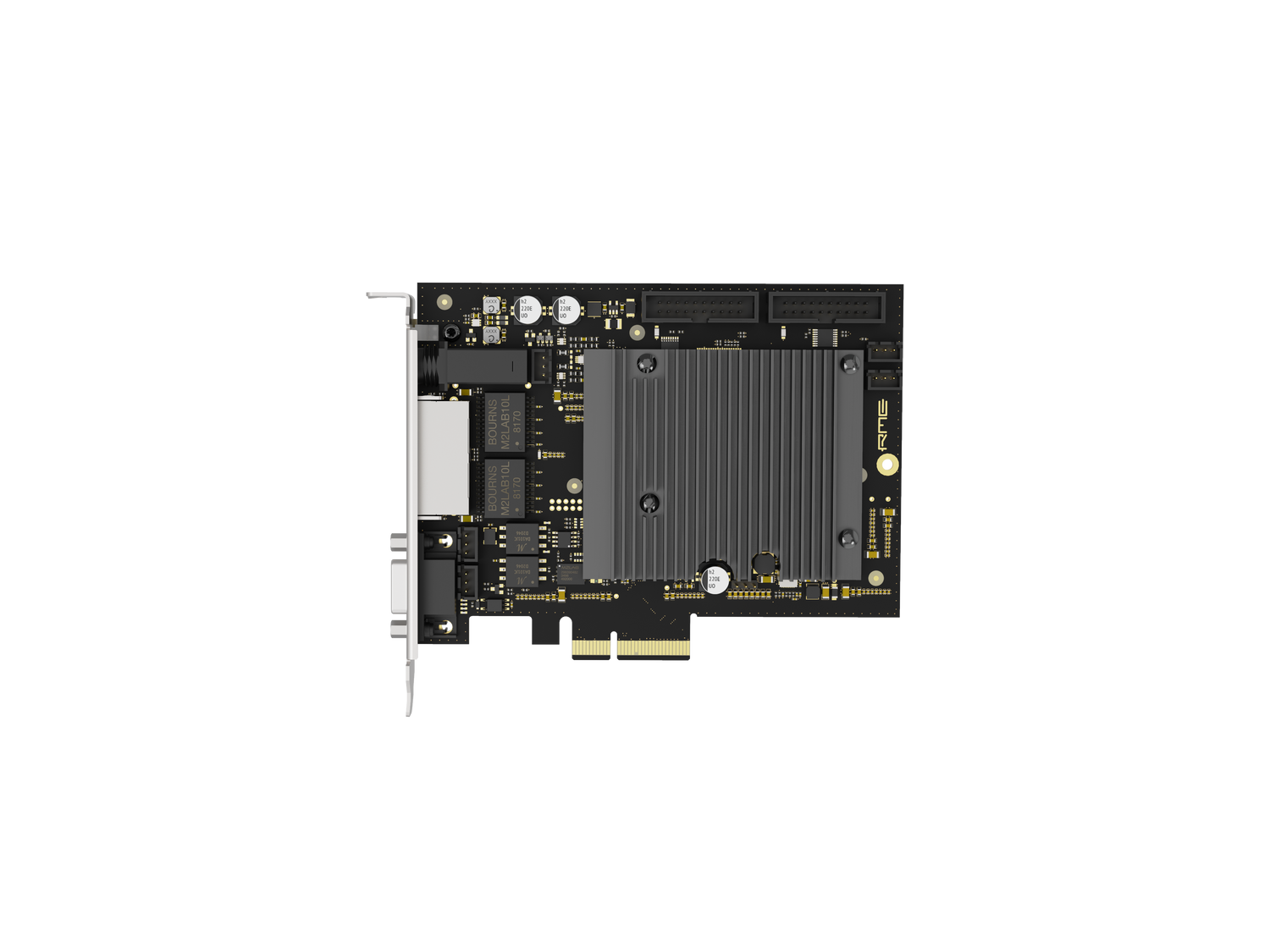

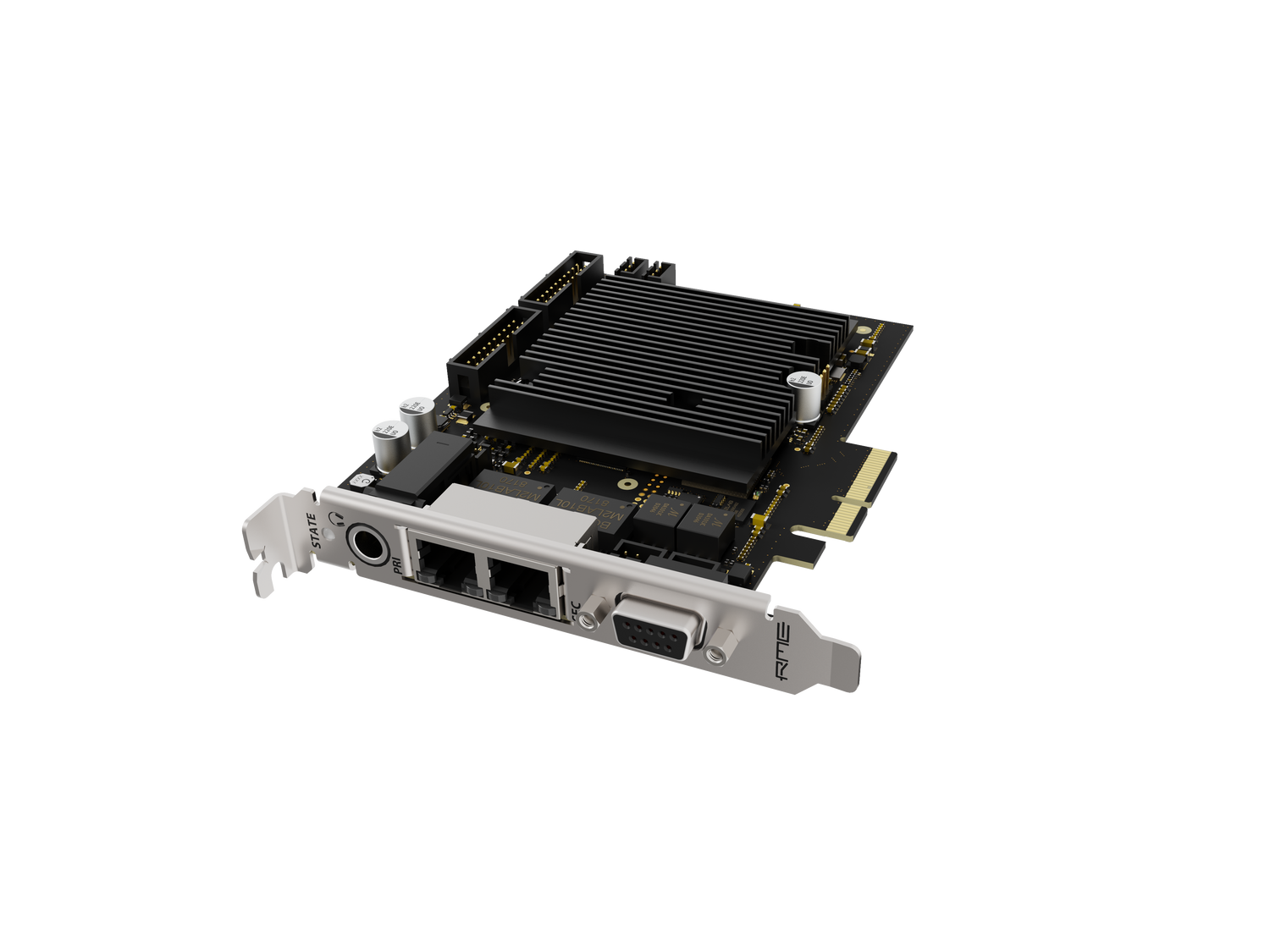

The RME HDSPe AoX-D is a high-performance PCIe x4 audio interface card engineered for professional studios, live sound systems, and high-channel-count environments. Designed around Dante audio networking, this compact yet powerful card offers up to 512 channels of audio at 48 kHz, making it one of the most robust PCIe audio solutions on the market. Whether integrated into a desktop DAW or mounted in a Thunderbolt™ expansion chassis for mobile use, the HDSPe AoX-D is built to deliver uncompromising connectivity and flexibility.

At its core, the HDSPe AoX-D includes dual Gigabit Ethernet ports, AES3 I/O, headphone monitoring, and MIDI I/O, all managed through RME’s powerful TotalMix FX mixing and routing environment. Its functionality is further expandable via optional AoX-MADI-EXT boards, supporting up to four MADI ports, either BNC (coaxial) or SFP (optical), for an additional 256 channels in and out. This hybrid configuration allows up to 256 Dante channels and 256 MADI channels per direction to coexist on a single interface, a breakthrough for networked audio integration.

Ideal for both fixed installations and mission-critical mobile rigs, the HDSPe AoX-D offers latency-free submixing, full monitoring control, and RME’s renowned stability and clocking. The card’s headphone output allows you to monitor any audio source on the system, whether from the DAW, the Dante network, or connected MADI gear. For users seeking to unify networked audio and traditional digital formats in a single, professional-grade interface, the HDSPe AoX-D is a future-proof solution with unmatched routing capabilities.

Features

Massive Channel Count
Handles up to 512 channels of Dante or Milan® network audio in a single PCIe slot.

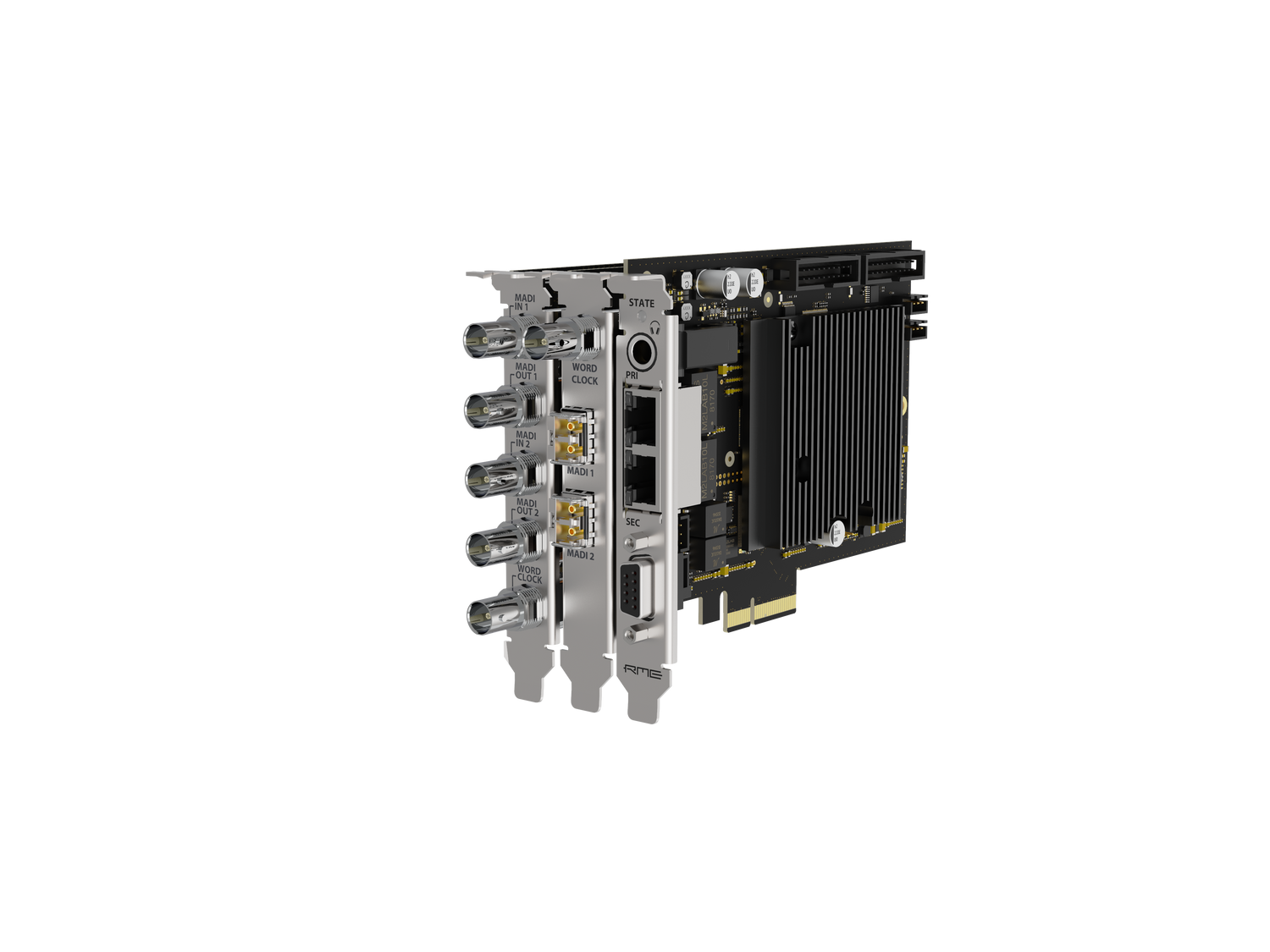

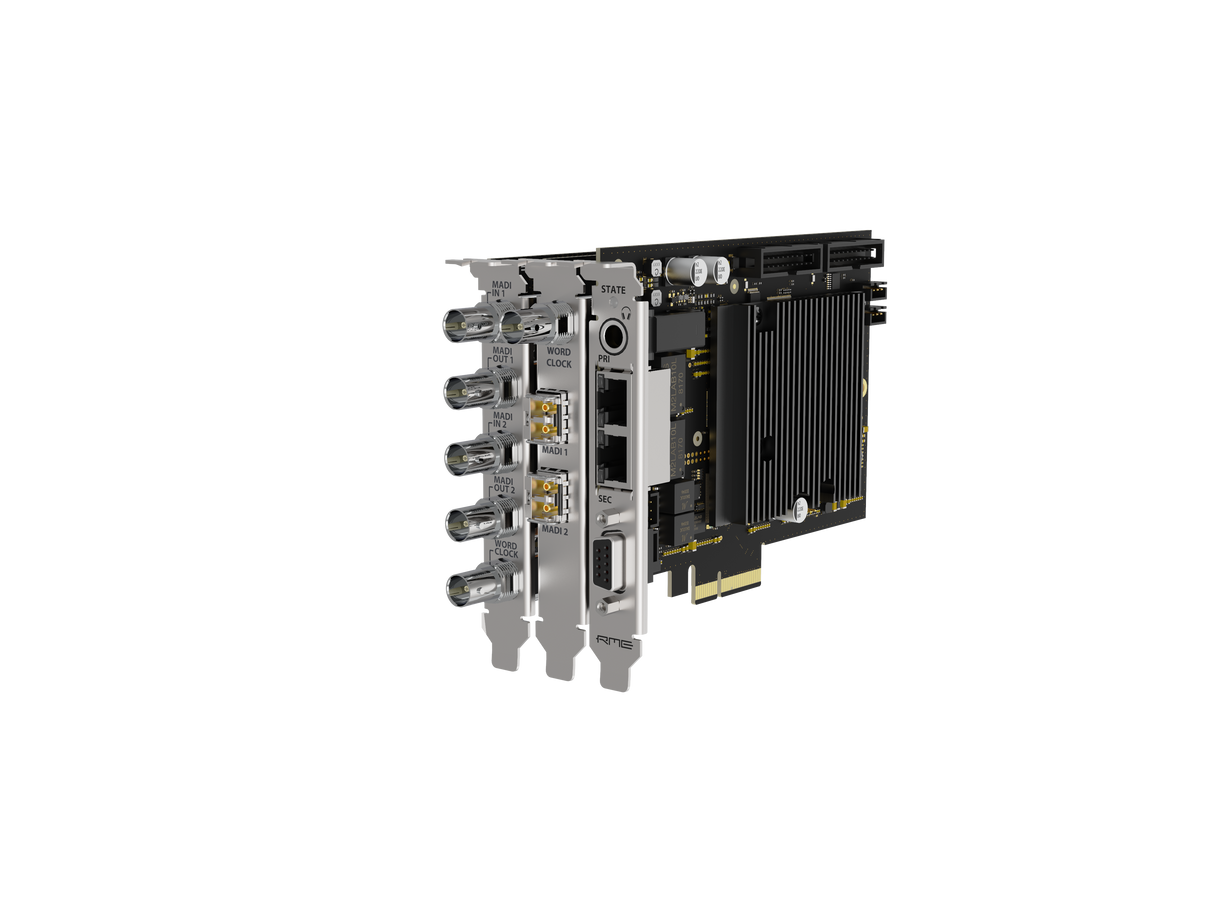

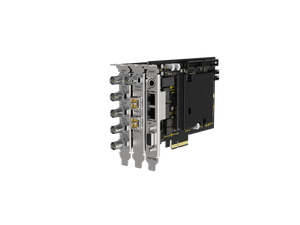

Expandable with MADI
Add up to 4 MADI I/O ports via optional expansion cards for hybrid Dante + MADI systems.

Dual Network Ports
Two gigabit Ethernet ports for high-reliability network audio transmission and redundancy.

Onboard Monitoring
Built-in headphone output lets you directly monitor any incoming or outgoing signal.

AES3 and MIDI Included
Includes stereo AES/EBU digital I/O and full MIDI I/O via breakout cable for studio integration.

Powerful TotalMix FX Routing
Route and mix up to 256 channels per direction with latency-free, flexible submixing.

Fits Standard or Mobile Setups
Install in desktops or external Thunderbolt™ enclosures for mobile or fixed use.

High-Resolution Audio Support
Supports sample rates up to 192 kHz with scalable channel counts across formats.

Rock-Solid RME Reliability
Engineered for pro studios and mission-critical live or broadcast environments.

Specifications

General Specifications
Device Type: PCIe x4 Audio Interface Card
Model: RME HDSPe AoX-D
Connectivity Type: Dante (Primary), Optional MADI Expansion
Form Factor: Single PCIe Slot (x4), Thunderbolt™ Enclosure Compatible
Platform Support: macOS, Windows
Use Case: High-Density Networked Audio I/O for DAWs, Broadcast, Live Sound, and Post Production

Digital Audio I/O
Dante Channels: 512 In / 512 Out @ 48kHz
AES3 I/O: 1 x Stereo AES/EBU (2 Channels @ up to 192kHz)
Headphone Output: 1 x ¼″ Stereo (Any Signal Monitoring: DAW, Dante, MADI)
MIDI I/O: 1 x MIDI In, 1 x MIDI Out (16 Channels, High-Speed)
Optional MADI I/O:
– AoX-MADI-EXT-BNC: 4 x BNC (Coaxial)
– AoX-MADI-EXT-SFP: 2 x MADI SFP Module Slots (Optical), 1 x Word Clock BNC
Maximum MADI Channels: 128 In / 128 Out (x2 cards = 256 ch per direction)
Sampling Rates Supported: 48kHz, 96kHz, 192kHz
Channel Count: 512 Ch @ 48kHz, 256 Ch @ 96kHz, 128 Ch @ 192kHz

Routing & Mixing
Internal Mixer: TotalMix FX
Mixer Channel Count: 256 x 256
Internal Resolution: 46-bit
Matrix Routing: 770 x 256 matrix (input to mix), 256 x 772 matrix (mix to output)

Control & Integration
Software Control: TotalMix FX, ARC USB Compatible
DAW Integration: ASIO, CoreAudio, etc.
Computer Interface: PCIe (x4) Slot, Thunderbolt™ Enclosure Compatible
Control Protocols: MIDI-over-USB, Ethernet for Dante

Mechanical
Power Source: PCIe Slot Power
Rack Mountable: No (internal card or external enclosure use)
Manufacturer: RME
Model Number: HDSPe AoX-D

Optional Expansion
Expansion Compatibility: AoX-MADI-EXT-BNC (4x BNC MADI), AoX-MADI-EXT-SFP (2x SFP Optical MADI + Word Clock)
Supported MADI Sample Rates and Channel Modes: 128/64/32 Channels at 48/96/192 kHz

Signal Flow Overview
Dante 512 ch, AES3, and optional MADI inputs feed into a 770x256 input matrix
Mixed via TotalMix (256 channels)
Routed out via a 256x772 output matrix
Signals can flow bi-directionally between Dante, MADI, AES3, Headphones, and DAW via PCIe
Supports full-duplex 512-channel DAW I/O via PCIe interface

Model Identifier
Manufacturer Part Number: WLF-PROPATCH-200 (based on source context)
Actual RME Model: HDSPe AoX-D
