PMC

PMC10-4 XBD

Active Monitors

3-way dual-cabinet monitor, 8x10" LF, 75mm mid, 34mm tweeter, 9600W Class-D power, ATL™ with LaminairX™, SoundAlign2 DSP EQ, built for elite control rooms.

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

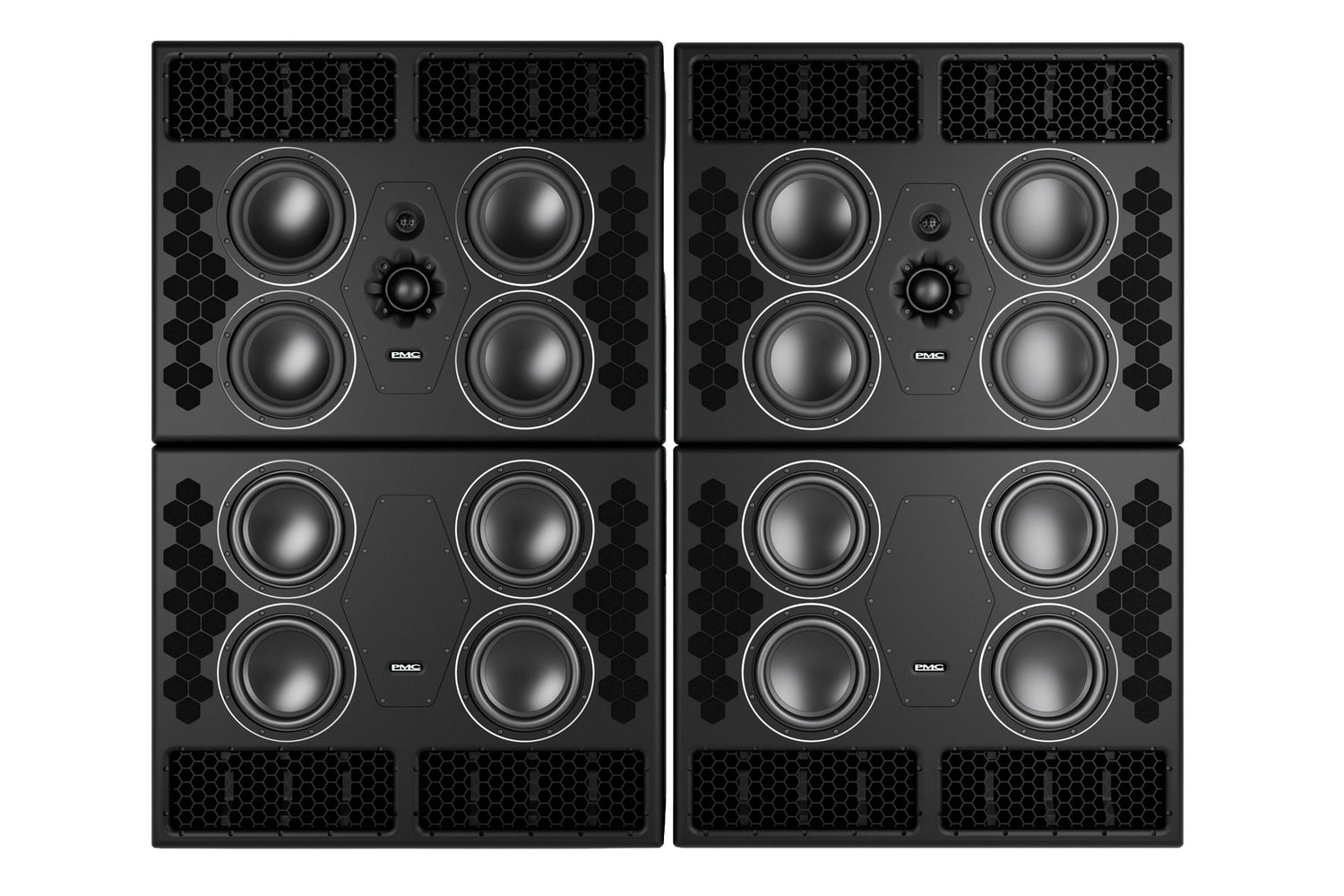

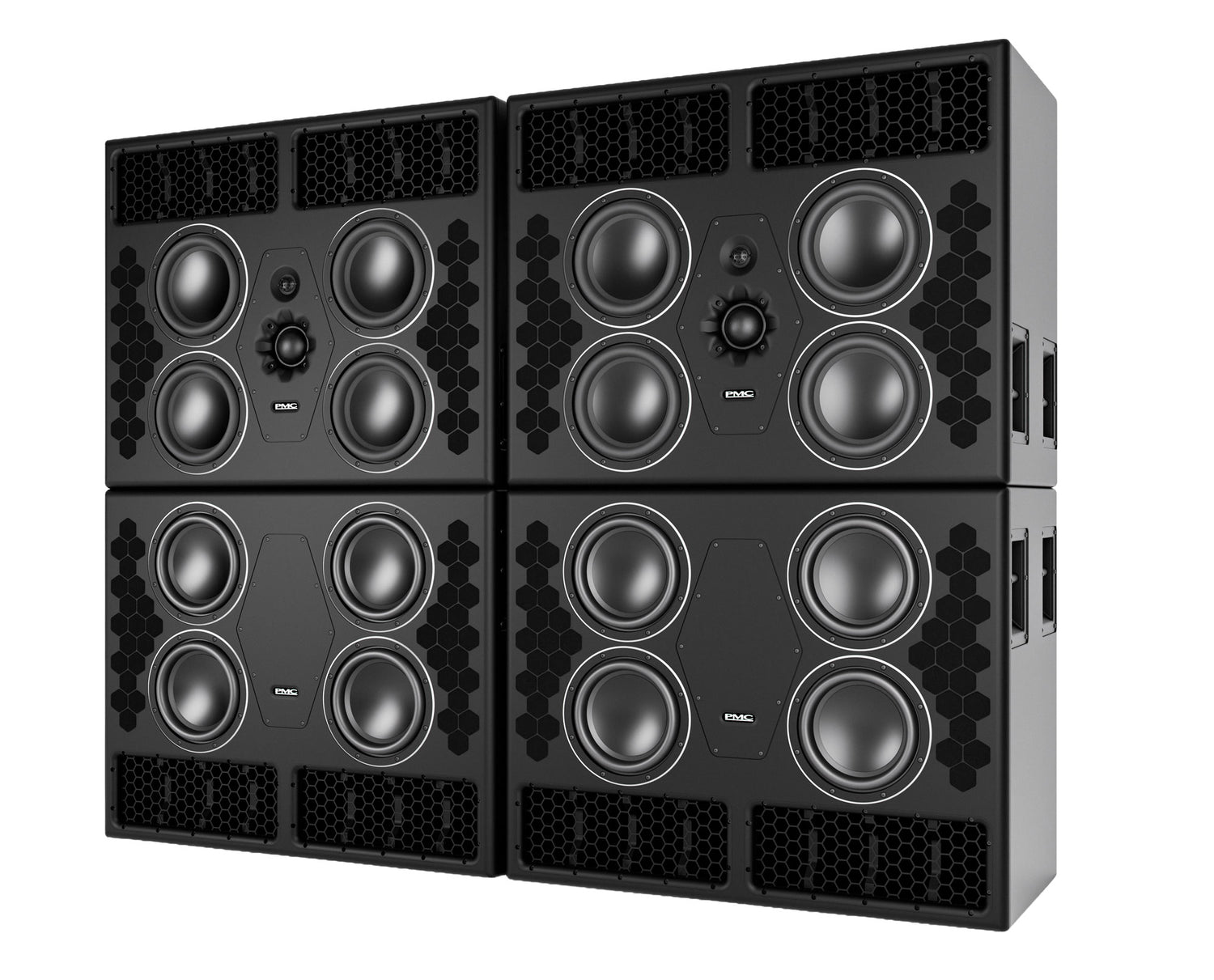

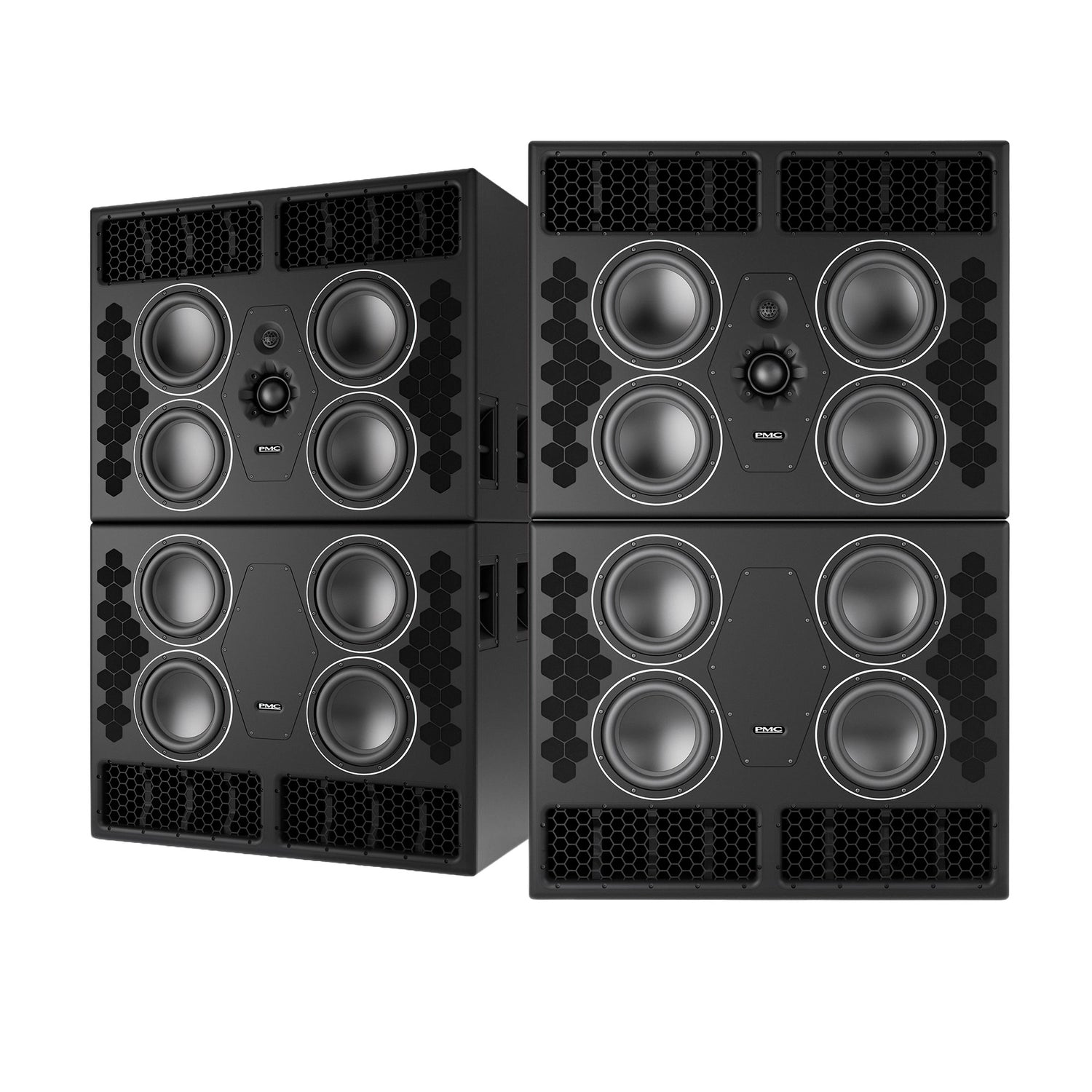

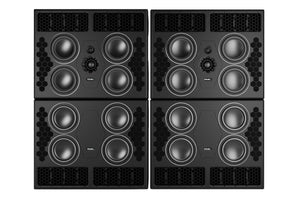

The PMC10-4 XBD is a flagship main monitoring system crafted for elite studios that demand nothing short of sonic perfection. As the ultimate evolution of the PMC10-4 concept, this dual-cabinet, ten-driver monitor system offers staggering headroom, immense SPL capability, and powerful low-frequency control. Inspired by the visual and acoustic architecture of PMC’s iconic QB1-originally developed with Capitol Studios-the 10-4 XBD delivers both monumental presence and precise audio fidelity, ensuring complete confidence in every production decision.

This system integrates eight custom-built 10-inch ultra-long-throw bass drivers housed in two advanced ATL™ cabinets featuring LaminairX™ venting for superior airflow and accuracy. Complemented by PMC’s acclaimed 75mm soft-dome midrange and 34mm tweeter-both enhanced by the proprietary n-compass™ waveguide-the 10-4 XBD ensures detailed, phase-coherent audio with consistent imaging. Its amplification is just as impressive: 9.6kW of Class-D power is managed across a Master36 DSP amplifier and three power20 units, all configured via PMC’s SoundAlign2 interface. Designed for large control rooms that demand uncompromising performance, the PMC10-4 XBD stands as a true reference for critical listening at any scale.

Features

Monumental Studio Monitoring
Designed for elite control rooms requiring extreme SPL, deep bass, and absolute precision.

Dual-Cabinet Reference System
Combines main and sub cabinets with ten drivers total for immense scale and authority.

Eight 10-Inch Bass Drivers
Delivers powerful, ultra-controlled low end with speed, impact, and tonal accuracy.

Optimized ATL™ with LaminairX™
Dual transmission lines and airflow control ensure fast, clean bass across both cabinets.

Advanced Mid–High Performance
PMC75v3 dome midrange and 34mm soft-dome tweeter offer detailed imaging and clarity.

Wide and Even Dispersion
n-compass™ waveguide delivers consistent soundstage and phase coherence throughout the room.

Massive 9.6kW Amplification

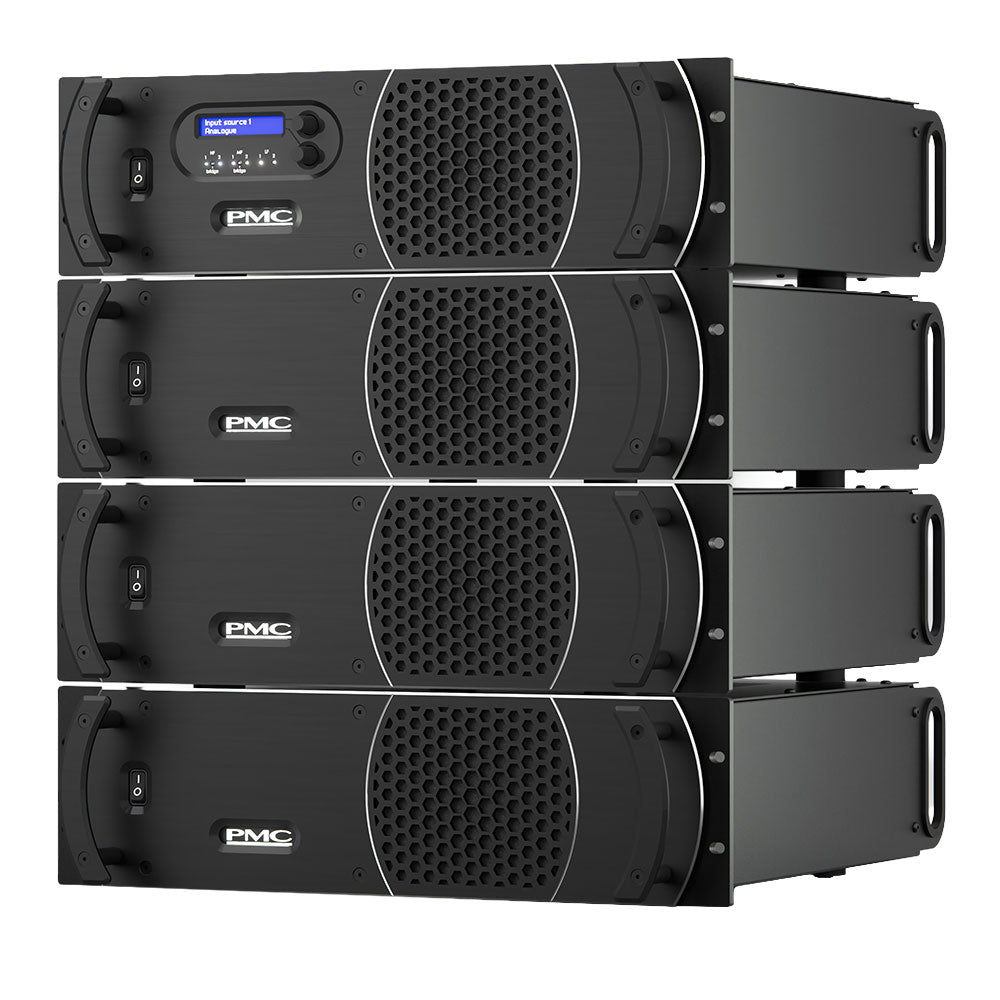

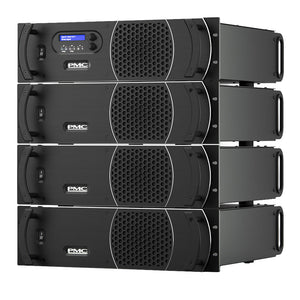

Powered by Master36 and three Power20 amps, providing unmatched headroom and dynamic control.

Precision DSP Integration
SoundAlign2 interface enables fine-tuned EQ, crossover alignment, and transparent protection.

True Main Monitor Design
Based on the visual and acoustic principles of PMC’s iconic QB1, trusted by world-class studios.

Flexible System Management
Masterlink connectivity and visual status indicators ensure seamless operation and monitoring.

Specifications

General Specifications
Device Type: 3-way, 10-driver, dual-cabinet ATL™ active reference monitor
Cabinet Configuration: PMC10-4 (main) + PMC10-4 SUB (XBD)
Cabinet Size: H 1640 mm x W 1040 mm x D 523 mm (+10 mm LF driver surround)
Weight per Cabinet: 270 kg
Cabinet Construction: ATL™ with LaminairX™ venting
Finish: Studio Black
Waveguide: PMC n-compass™ for tweeter and midrange
System Management: PMC Master36 DSP/Amplifier
Control Interface: SoundAlign2 with full DSP Room Alignment EQ
Amplifiers Included: 1 x Master36, 3 x Power20 per channel
Total System Power: 9600 W per cabinet
Amplifier Class: Class-D
Masterlink: Proprietary connection system for amplifier synchronization

Drive Units
Low Frequency: 8 x 10-inch ultra-long-throw LF drivers
Mid Frequency: 1 x PMC75mm midrange driver
High Frequency: 1 x 34mm soft-dome tweeter

Amplification
HF Power: 800 W
MF Power: 800 W
LF Power: 8 x 1000 W

Transmission Line
Effective ATL™ Length: 2 x 3.4 m (11.2 ft)

Input/Output
Inputs: Analogue & Digital (up to 192 kHz)
System Status: Discreet illuminated logos per cabinet
