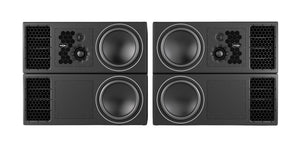

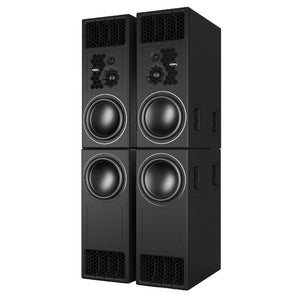

PMC15 XBD

Active Monitors

3-way dual-cabinet monitor, 2x15" LF, 75mm mid, 34mm tweeter, 5600W Class-D power, ATL™ with LaminairX™, SoundAlign2 DSP EQ, built for elite large-format studios.

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The PMC15 XBD is a flagship large-format monitoring system designed to deliver uncompromising accuracy, deep low-frequency authority, and exceptional dynamic range for the most elite recording, mixing, and mastering environments. Evolving from the iconic BB5/6 XBD systems, the PMC15 XBD features a dual-cabinet configuration, with each cabinet housing one of PMC’s largest-ever 15-inch bass drivers. These drivers are engineered for massive power handling and minimal distortion, using double-stacked magnet assemblies and advanced 3-inch, three-layer voice coils to deliver truly effortless LF extension and headroom.

Sharing its high- and mid-frequency components with the PMC10 and PMC12 systems, the PMC15 XBD includes a hand-crafted 34mm soft-dome tweeter and the PMC75v3 midrange driver, both integrated through PMC’s n-compass™ waveguide for wide, stable dispersion and precise stereo imaging. System control and amplification come from PMC’s Master36 DSP amplifier and a companion power20 unit, providing a total of 5600W per channel. This includes 800W each to the tweeter and midrange, and 2000W to each of the two bass drivers. All DSP functions, such as crossovers, protection, and room EQ are managed via the SoundAlign2 web interface. Designed for flexible installation (freestanding, stacked, or soffit-mounted), the PMC15 XBD is a true reference-grade solution where absolute sonic truth is essential.

Features

Flagship Dual-Cabinet Monitoring System
Combines two high-performance cabinets for extreme LF authority, scale, and transparency.

Designed for Large-Format Studios
Engineered for mastering, mixing, and recording environments demanding absolute sonic truth.

Massive 15-Inch Bass Drivers
Each cabinet houses a custom 15" woofer, the largest PMC has ever built, for deep, distortion-free low end.

Advanced ATL™ with Dual 4m Lines
Transmission Line design with extended length provides efficient, phase-accurate bass performance.

Shared High/Mid Components
Features the same hand-built tweeter and midrange as PMC10/12, with wide dispersion and precise imaging.

n-compass™ Waveguide Technology
Ensures smooth crossover transitions and a stable soundstage throughout the listening area.

Total Power Output of 5.6kW
Driven by one Master36 and one Power20 amplifier, with 2000W to each bass driver and 800W each to mid and high.

Precision DSP with SoundAlign2
Offers digital crossover tuning, excursion protection, and room EQ via a browser-based interface.

Modular Orientation Options

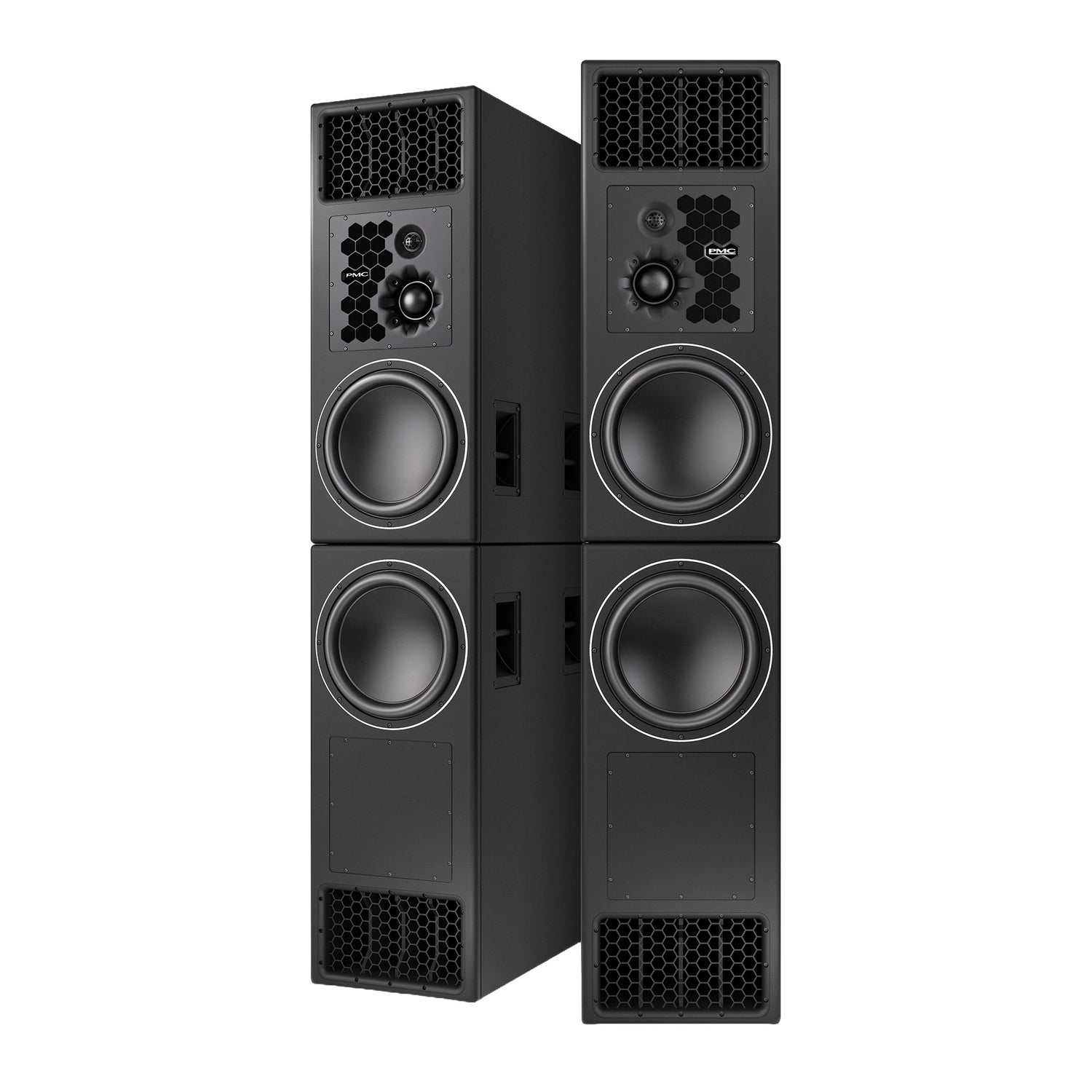

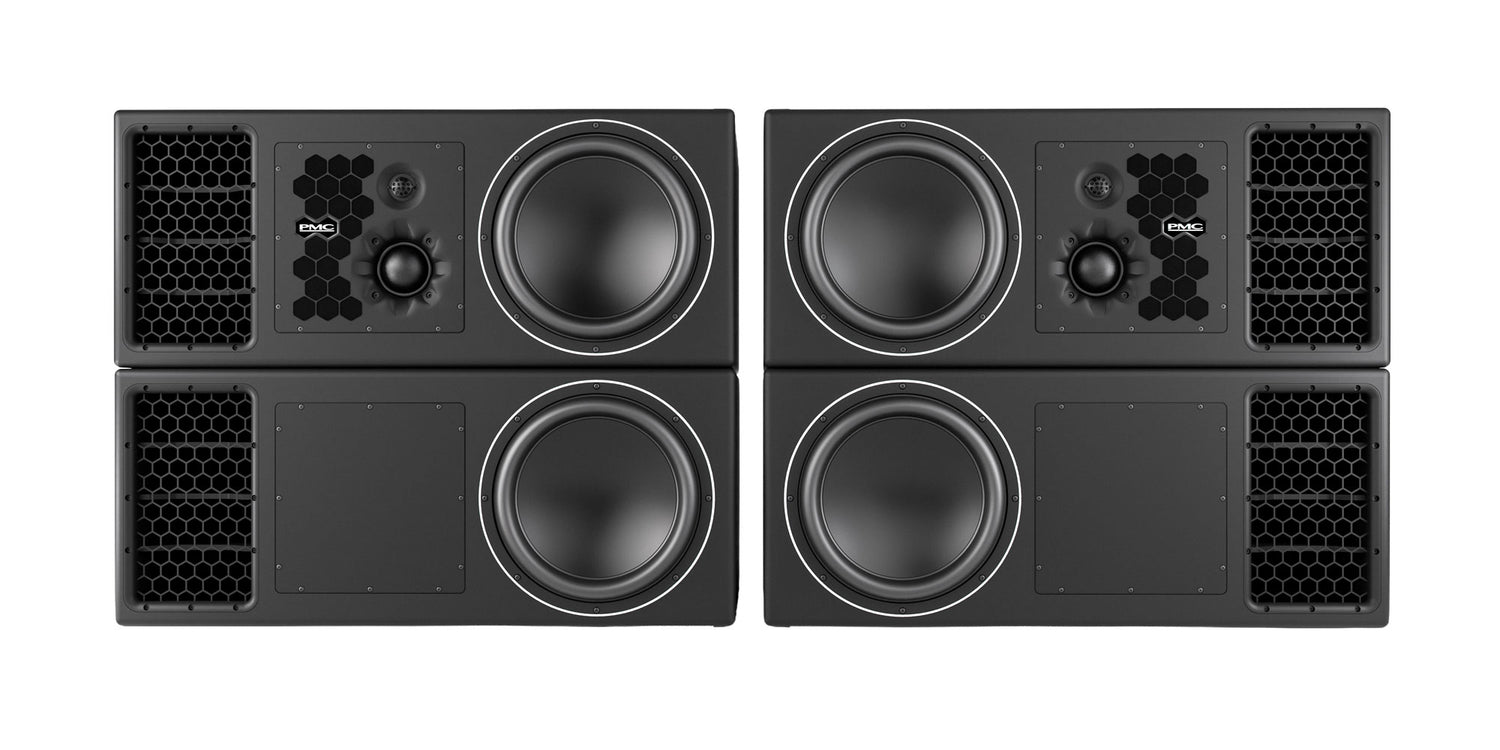

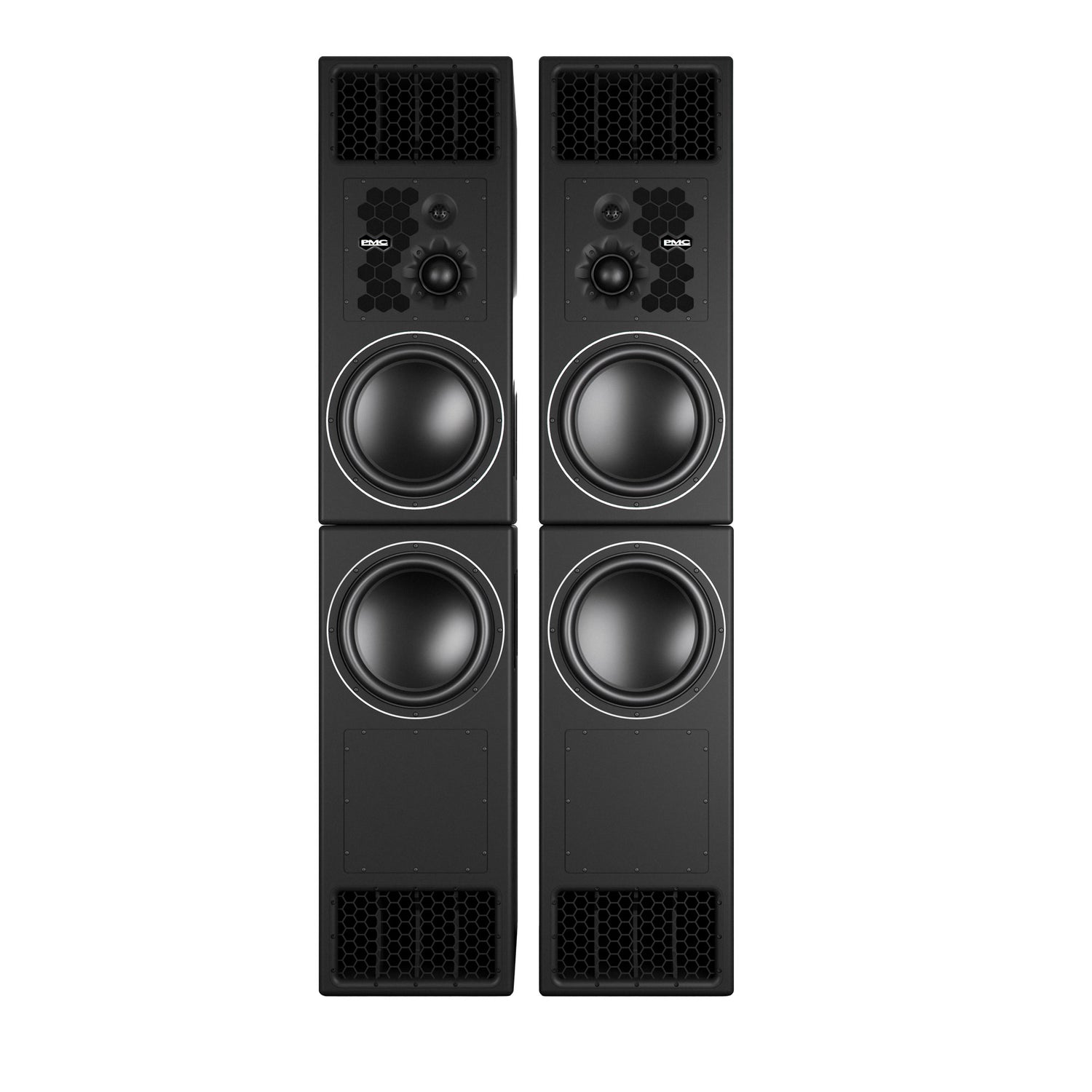

Supports vertical, horizontal, tandem, and centre configurations, including soffit-mounting.

Professional Build and Finish
Studio black cabinets with visual system indicators ensure premium integration into top-tier facilities.

Specifications

General Specifications
Device Type: 3-way, 4-driver, dual-cabinet ATL™ active reference monitor
Cabinet Configuration: PMC15 (main) + PMC15 SUB (XBD)
Cabinet Size: H 1040 mm x W 432 mm x D 790 mm (+20 mm LF driver surround)
Weight per Cabinet: Master 3-way: 97 kg, SUBxbd: 87 kg
Cabinet Construction: ATL™ with LaminairX™ venting
Waveguide: PMC n-compass™ dual-profile for tweeter and midrange

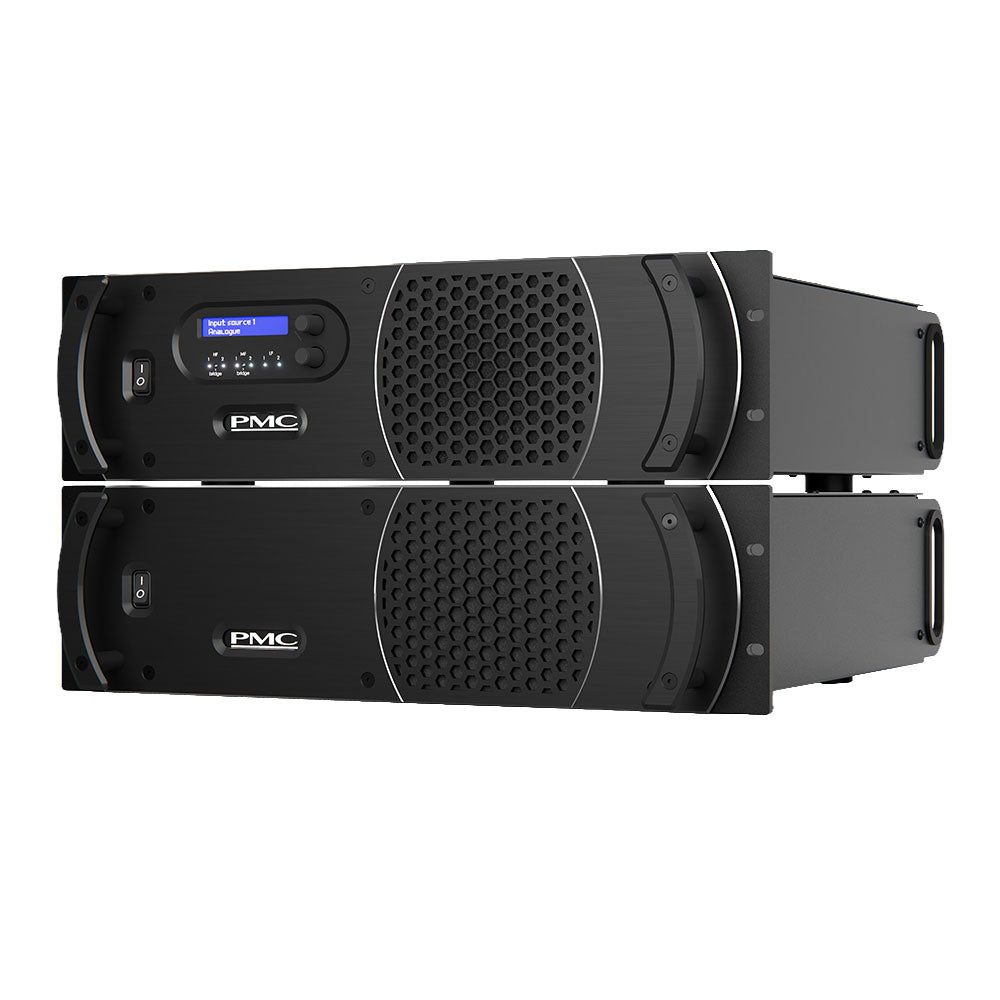

System Management: PMC Master36 DSP/Amplifier
Control Interface: SoundAlign2 with full DSP Room Alignment EQ
Amplifiers Included: 1 x Master36, 1 x Power20 per channel
Total System Power: 5600 W per cabinet
Amplifier Class: Class-D
Finish: Studio Black

Drive Units
Low Frequency: 2 x 15-inch in-house-designed LF drivers with double-stacked magnets and 3-layer, 3-inch voice coils
Mid Frequency: 1 x 75 mm soft-dome midrange (PMC75v3)
High Frequency: 1 x 34 mm soft-dome tweeter

Amplification
HF Power: 800 W
MF Power: 800 W
LF Power: 2 x 2000 W

Transmission Line
Effective ATL™ Length: 2 x 4 m (2 x 13.1 ft)

Input/Output
Inputs: Analogue & Digital (up to 192 kHz)
System Status: Illuminated logo on main cabinet
