QUAGLIARDI PRO AUDIO  |  SKU: 25029

QUAG-576

500 Series EQs/Compressors

500 Series FET compressor with custom transformers, XREL mode, BOOM mode, mix knob, stereo link, and classic 1176-style punch for tracking and mix bus.

$975.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

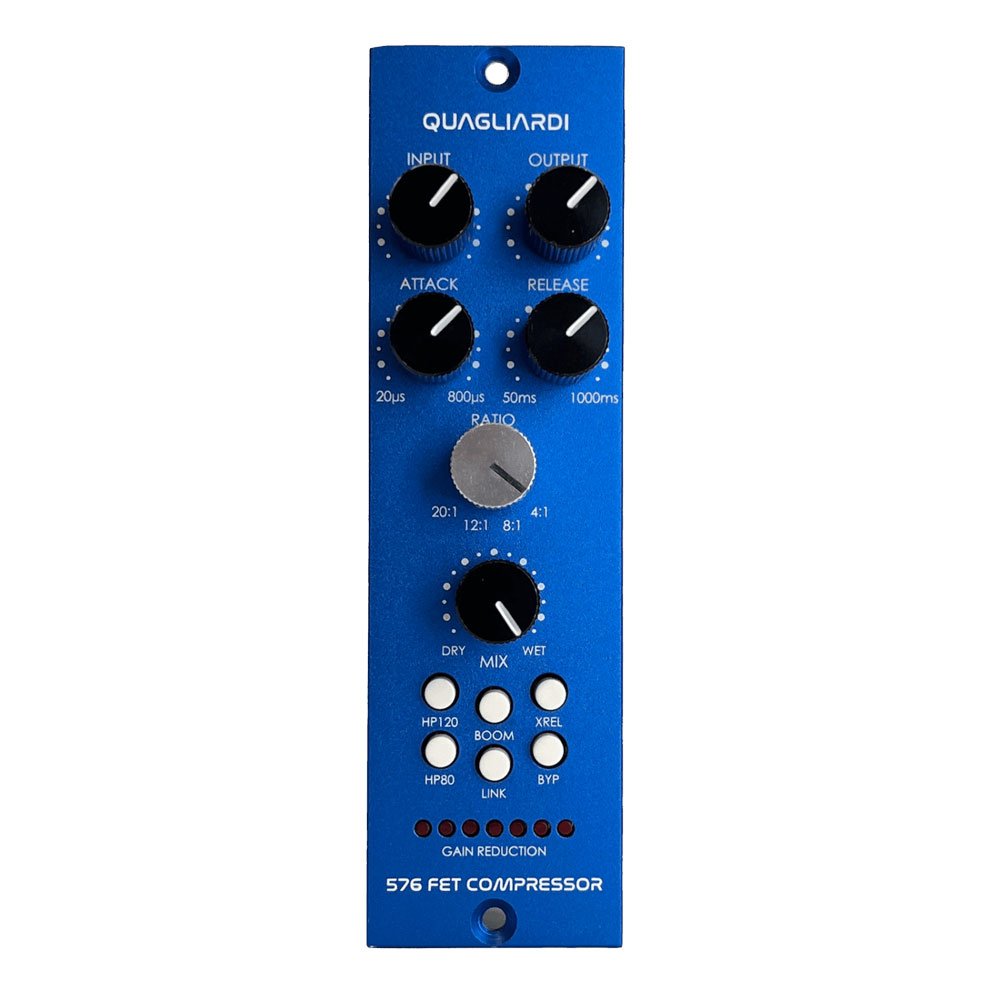

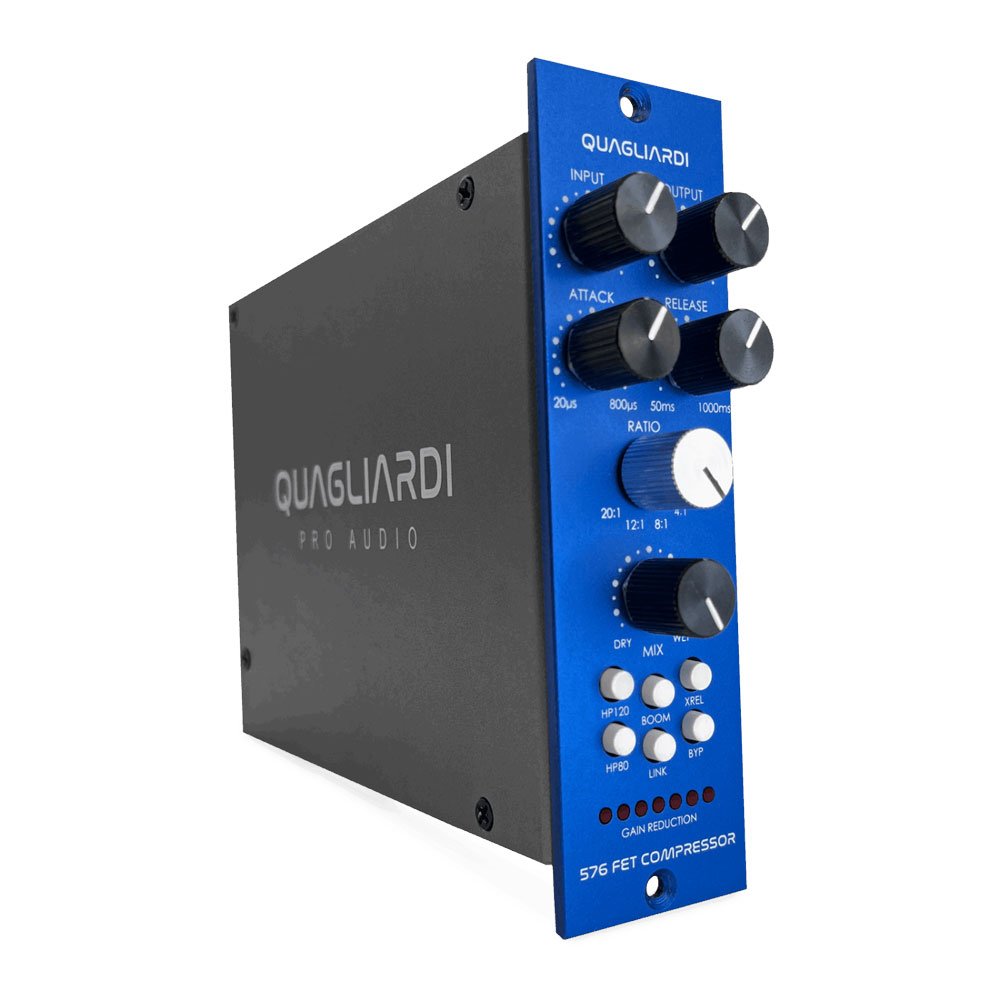

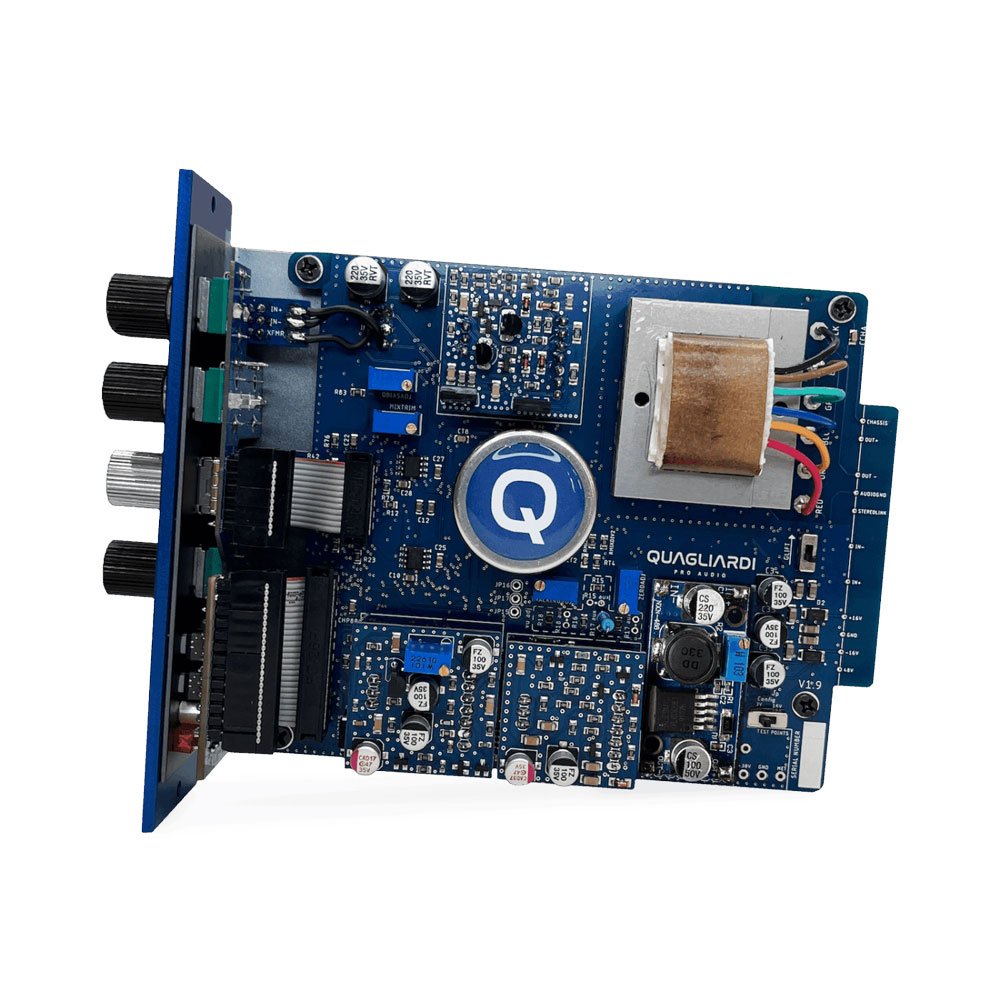

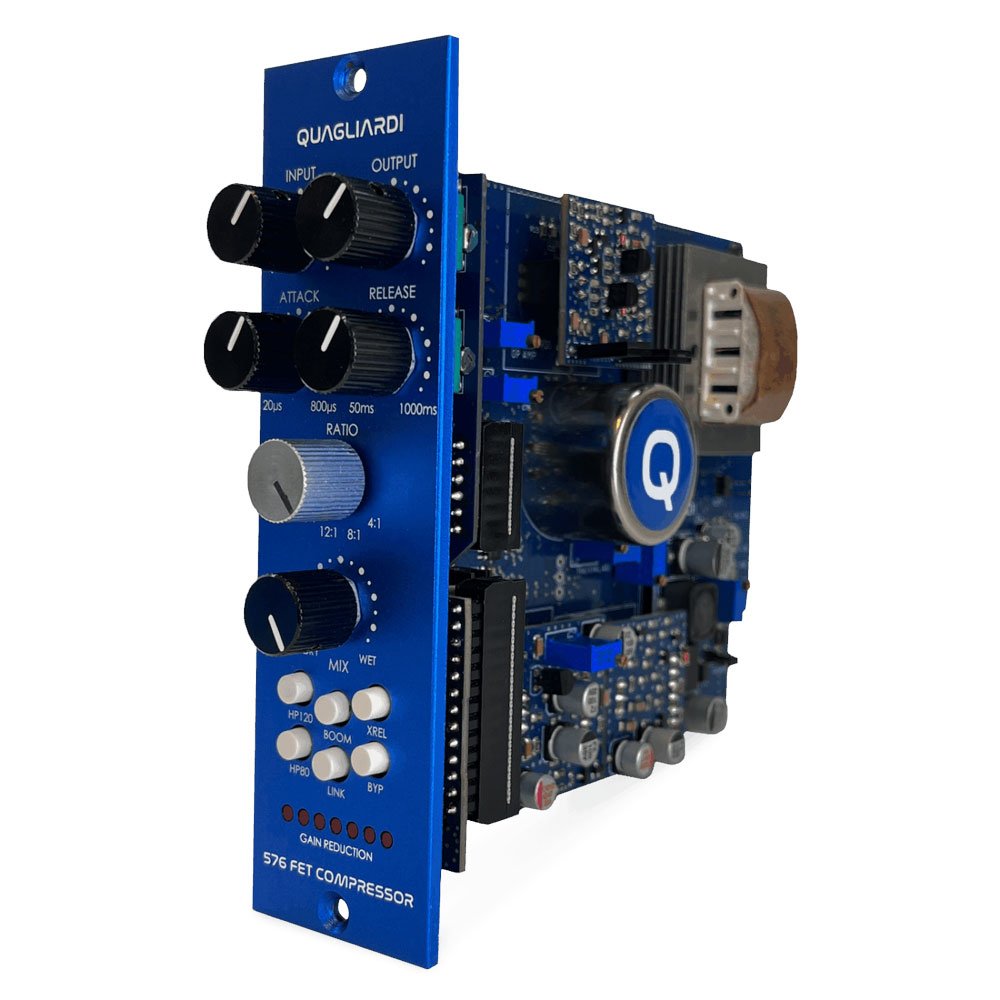

The 576 FET Compressor is a 500-series dynamics processor built to the VPR Alliance standard, offering both vintage-inspired tone and modern flexibility. Ideal for tracking individual channels or as part of a mix bus chain, it can be linked with a second unit for true stereo operation.

At its core, the 576 employs a BF245 FET transistor for gain control, the same topology that powered the legendary UREI 1176. But rather than simply replicate a classic, Quagliardi pushes further"integrating custom transformers, a 2520-style op-amp, parallel compression, and unique circuitry that expands tonal versatility while preserving ease of use. Key controls include Input and Output gain, Attack and Release times, and selectable ratios up to 8:1 for anything from subtle leveling to aggressive limiting. A Dry/Wet mix knob makes parallel compression effortless, while XREL mode minimizes harmonic distortion and extends flat frequency response to 30 kHz for maximum clarity.

Additional features like high-pass sidechain filters at 80 Hz and 120 Hz, a Bypass mode that retains transformer coloration, and full stereo link capability make the 576 a dynamic and flexible tool for modern engineers. Powerful, musical, and unmistakably distinctive, the 576 FET Compressor is designed to stand out in a crowded field of clones and deliver character that inspires.

Features

500 Series compatibility: Works with any chassis that follows the VPR Alliance standard

Classic FET compression topology: Inspired by the legendary UREI 1176, using a BF245 FET transistor

Custom hybrid design: Incorporates custom transformers, a 2520-style op-amp, and parallel compression for unique sonic character

Input and Output controls: Adjust input gain for compression intensity and output gain post-compression

Attack and Release controls: Fine-tune compression timing for fast or smooth response

Ratio control: Select compression ratios (e.g., 4:1, 8:1) for flexible dynamic control

Dry/Wet Mix knob: Built-in parallel compression without external routing

XREL circuit: Reduces THD and extends flat frequency response up to 30 kHz for transparent operation

Bypass mode: Disables compression but retains the module's analog circuitry coloration

HPF sidechain filters: Selectable 80 Hz and 120 Hz high-pass filters prevent low-frequency pumping

Stereo Link function: Pairs with another 576 FET Compressor for mix bus use; links control parameters for true stereo compression

Specifications

General Specifications

500 Series module

VPR Alliance compatible

Fits all standard 500 series chassis

Power

Requires +/-16V from chassis

Maximum current draw: approx. 120mA per rail (typical for 500 series compressors)

Circuit Type

Class A FET Compressor

Custom hybrid design

Based on BF245 FET transistor

Discrete 2520-style operational amplifier

Custom transformers (input/output)

Compression Controls

Input Gain: Controls signal level into the compression circuit

Output Gain: Makeup gain after compression

Attack Time: Adjustable " Fastest setting approx. 20 microseconds (doubles to 40 µs in stereo LINK mode)

Release Time: Adjustable

Ratio Settings: Selectable (e.g., 4:1, 8:1, etc.)

Special Features

Parallel Compression: Dry/Wet mix control knob

High-Pass Filters (Sidechain): 80 Hz, 120 Hz

XREL Switch: Reduces Total Harmonic Distortion (THD), Extends flat frequency response up to 30 kHz

Bypass Switch (BYP): Disables compression, retains analog circuit coloration

Stereo Link (LINK): Connects two 576 units for stereo operation, Shared compression controls (Input, Output, Ratio, Attack, Release)

Build

All-metal front panel

Professional-grade components

Designed for high headroom, low noise, and studio reliability

Applications

Mono or stereo tracking

Drum buses, vocals, bass

Mix bus compression

Coloration without compression (via bypass mode)
