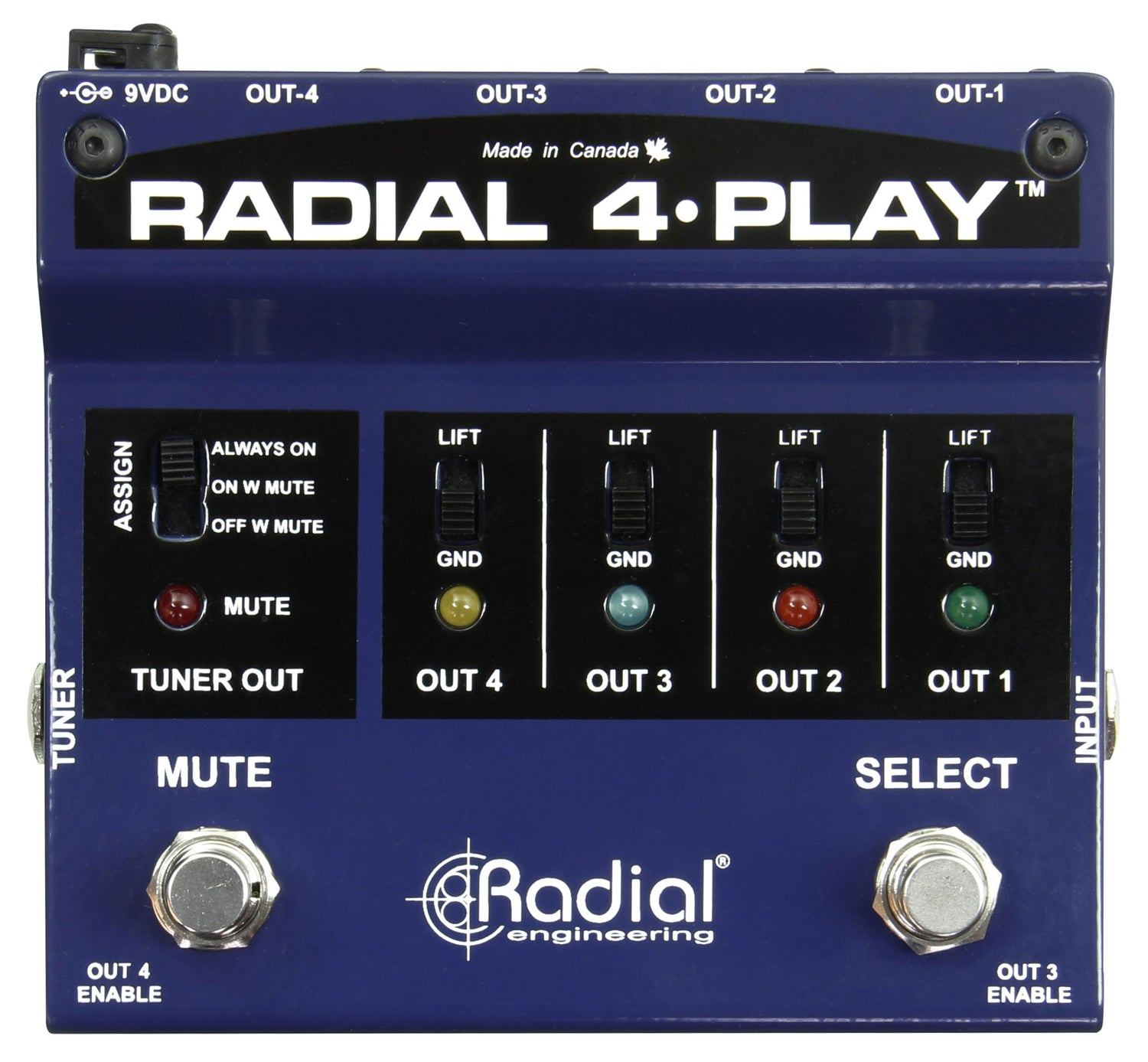

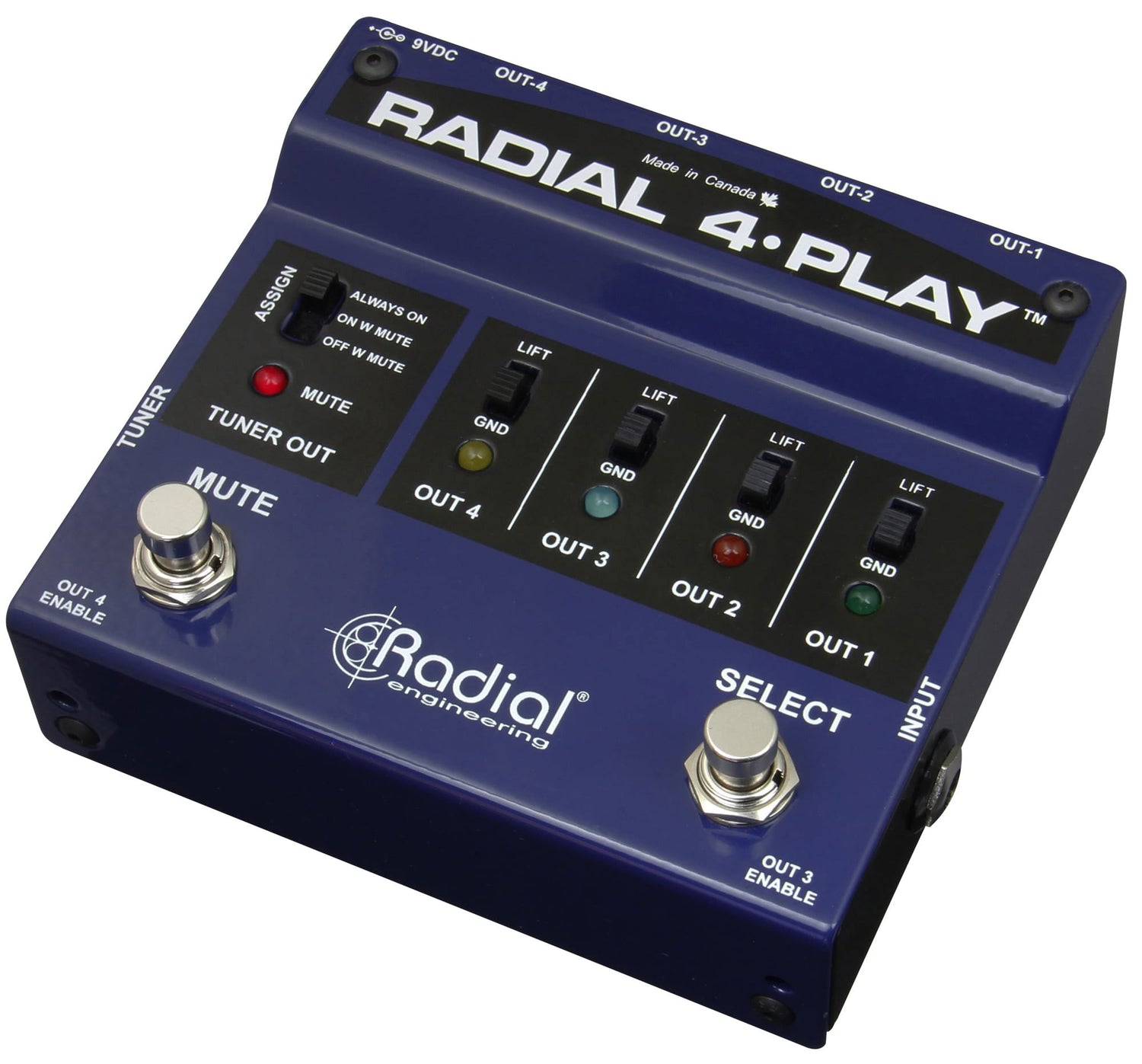

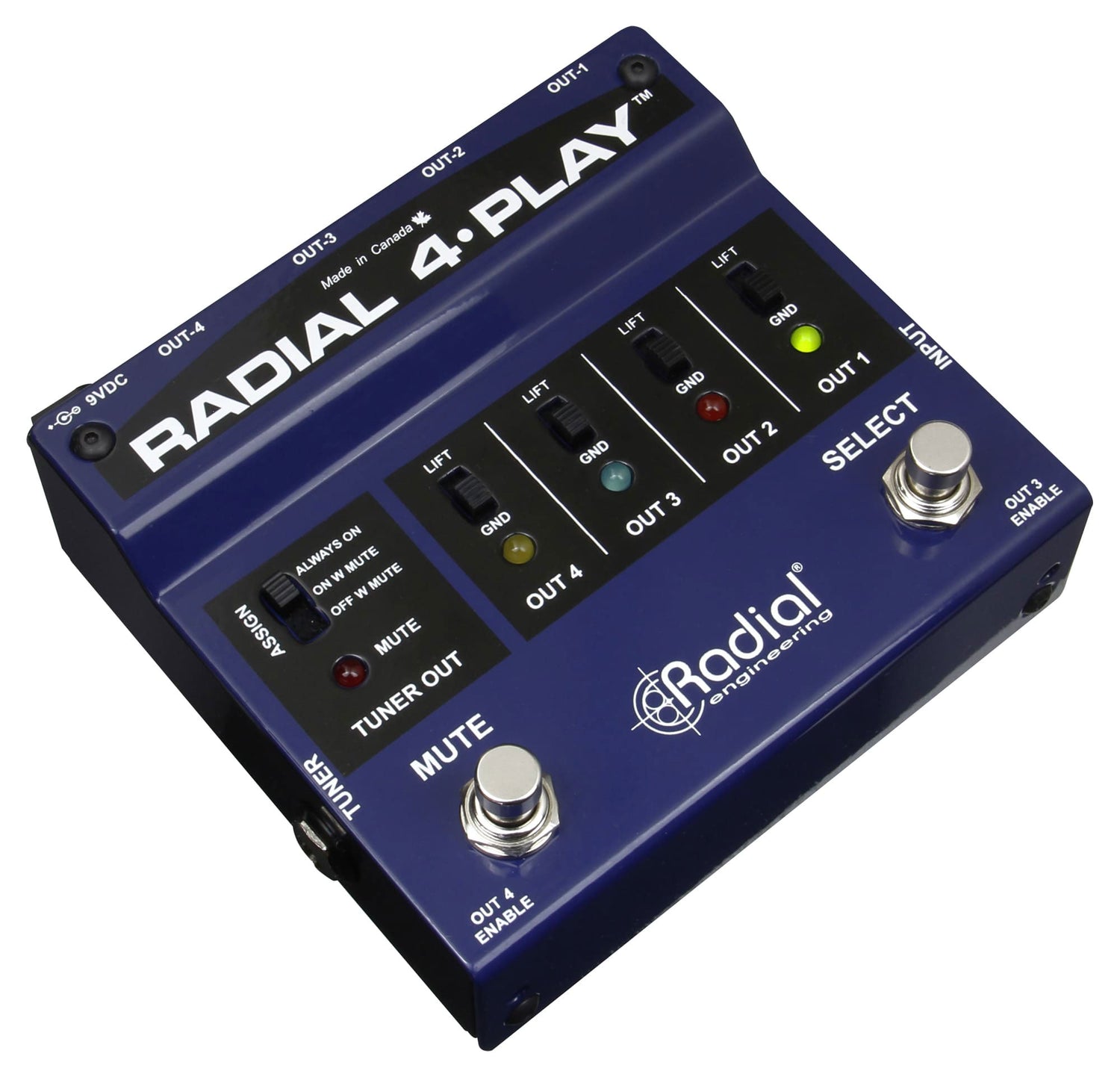

4-Play

Four DI Outputs in One Box
Switch between four balanced XLR outputs from a single instrument input which is ideal for multi-instrument setups.

One Cable, Multiple Channels
Eliminates the need for multiple DI boxes and cables on stage by routing one input to four different channels in the PA system.

Footswitch Output Selection
Use the footswitch to toggle through enabled outputs; bright LEDs show which channel is active.

Dedicated Mute Switch
Silences all outputs instantly which is perfect for quiet instrument changeovers or tuning between songs.

Assignable Tuner Output
Connects to a tuner pedal and can be set to always-on or active only during mute, keeping your signal clean and convenient.

Ground Lift on Every Output
Each XLR output includes a ground lift switch to eliminate hum and buzz caused by ground loops.

Use Cases for Performers

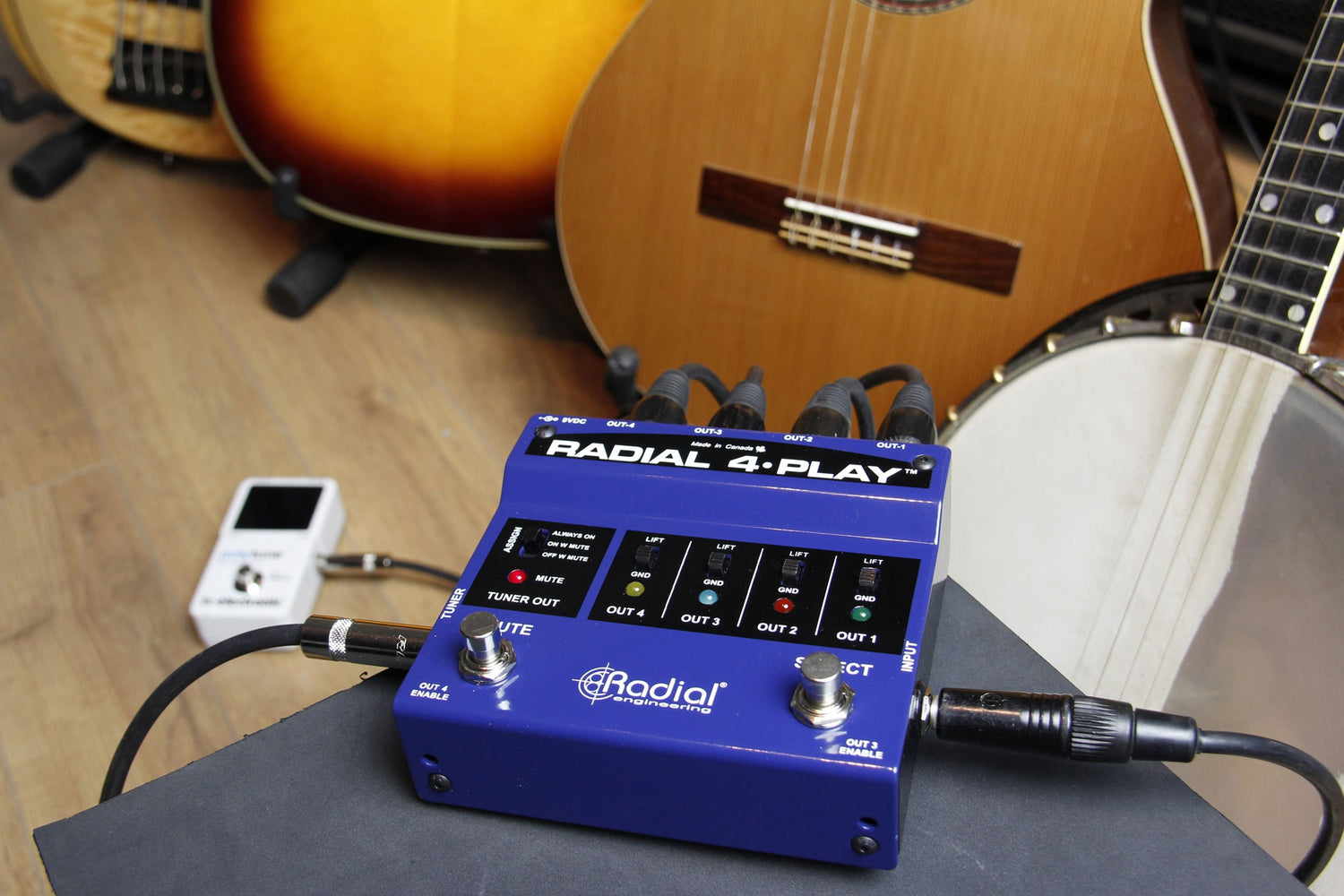

Perfect for switching between basses, acoustic guitars, mandolins, or even using multiple DI channels for tonal variety with a single instrument.

Compact and Road-Ready
Built with a tough 14-gauge steel chassis, sized to fit on pedalboards, and powered by standard 9V pedal power.

General Specifications
Product Name: Radial 4-Play
Device Type: Multi-Output Active DI Box
Audio Circuit Type: Classic Class-A FET Input with Balanced Audio Grade Op-Amp Output
Number of Channels: 4
Construction: 14-Gauge Steel Chassis with Outer Coating
Power Requirement: 9V DC (Center Pin Negative, 80 mA)
Operating Conditions: Dry Locations, 5°C to 40°C
Dimensions (L x W x D): 5" x 4.7" x 2"
Weight: 2 lb
Shipping Dimensions (L x W x H): 6.5" x 5.1" x 2.5"
Shipping Weight: 2.4 lb

Audio Performance
Frequency Response: 20 Hz – 20 kHz
Dynamic Range: 113 dBu
Gain: 0 dBu
Maximum Input Level: +8 dBu
Clip Level: +13 dB
Input Impedance: 10 MΩ
Output Impedance: 5.4 kΩ
Noise Floor: –100 dBu
THD: 0.03%
IMD: 0.02%
Phase Deviation: –0.12° @ –20 dBu / 1 kHz

Connectivity
Input Connectors: 1 x ¼" Instrument Input

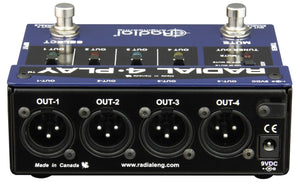

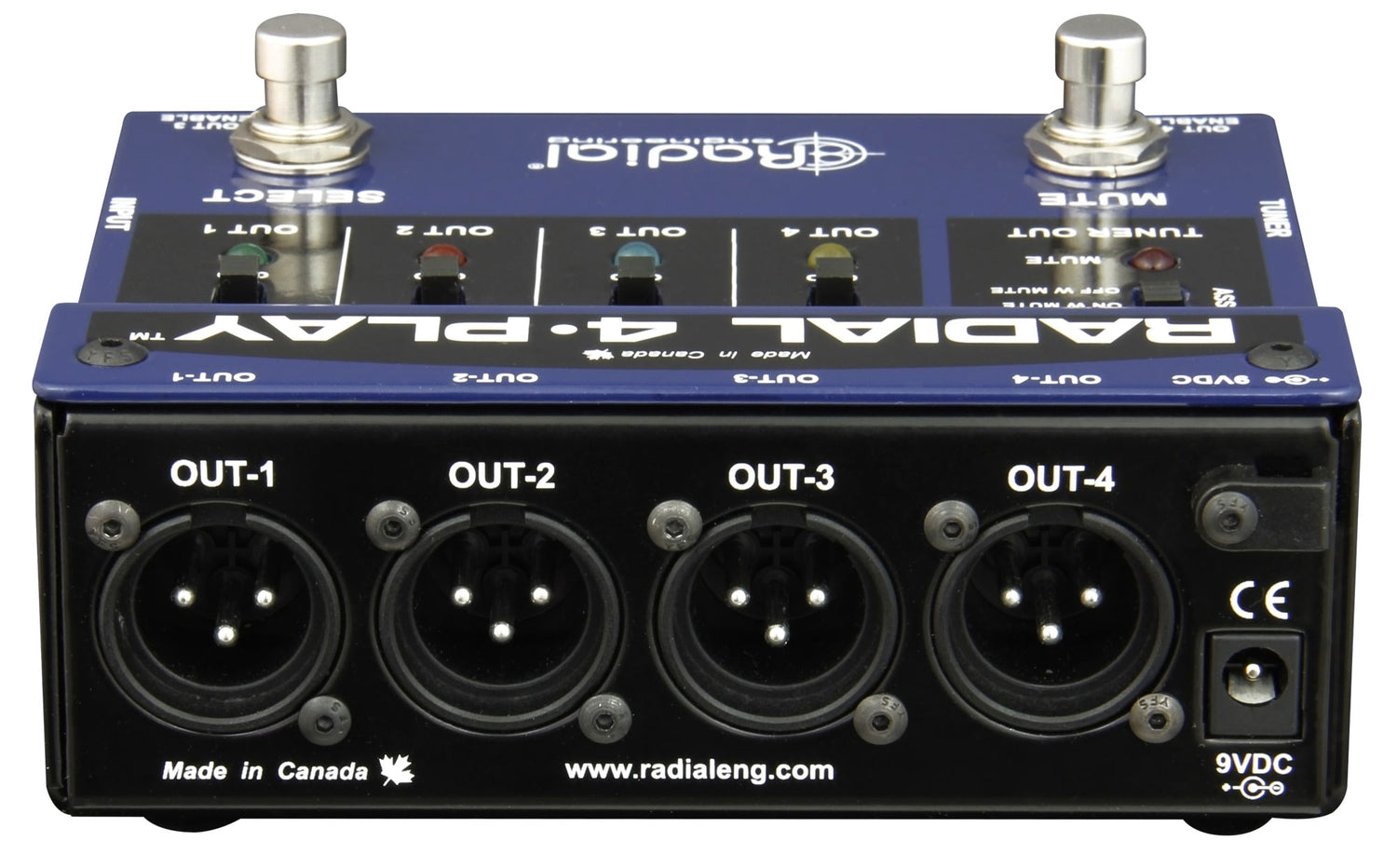

Output Connectors: 4 x Balanced XLR (Mic Level)
Tuner Output: Assignable; Selectable Always-On, Mute-Only, or Active-Only
Ground Lift: On Each Output

Controls & Features
Select Footswitch: Toggles sequentially through enabled outputs
Mute Footswitch: Silences all outputs for silent instrument changeovers or tuning
Enable Switches: Allows OUT-3 and OUT-4 to be included in toggle rotation
LED Indicators: Super-Bright LEDs Display Active Channel & Mute Status
Cable Lock: Secures Power Supply Cable to Prevent Accidental Disconnection

Use Cases

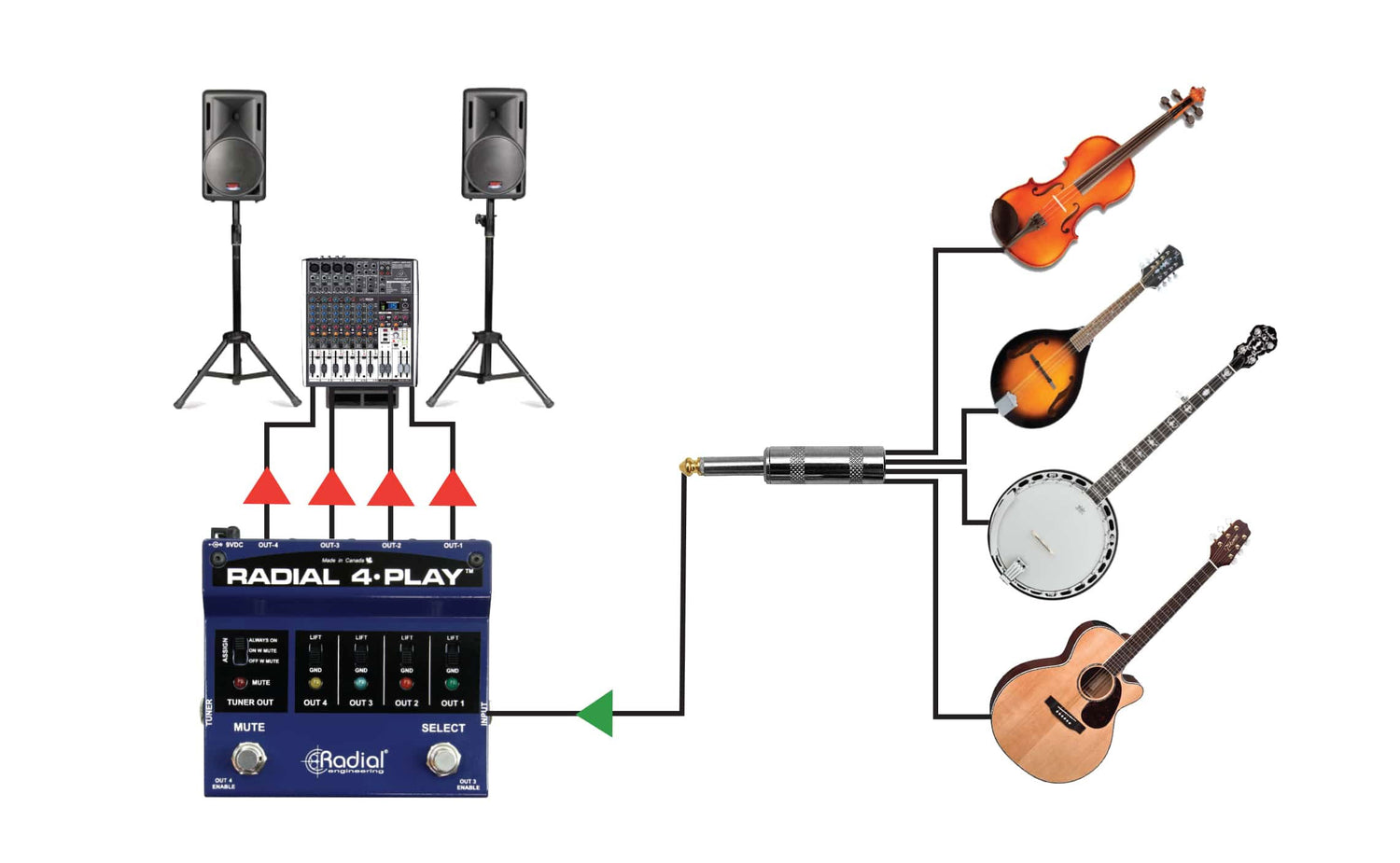

Instrument Switching: Quickly switch between up to 4 instruments on stage
Multi-Channel DI: Assign individual DI output channels to different instruments or performance modes
Tuner Integration: Maintain silent tuning capability or use tuner out for amp feed
