RADIAL ENGINEERING

McBoost

Mic signal booster, class-A fet with 25dB gain, load adjust and filter


$189.99 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The 100% discrete class-A circuit design begins with a dual-transistor J-FET circuit to produce up to 25dB of gain without introducing noise, color or artifact. Each individual transistor is carefully measured and batch-sorted to comply with the design specification to certify performance. As with all Radialβ„’ products, the circuit board is then loaded into a 14-gauge, I-beam, reinforced steel enclosure to prevent outside stress from torquing which otherwise could lead to premature part failure. A book-end cover creates protective zones at each end to safeguard the switches, potentiometer and connectors from the rigours of the road.

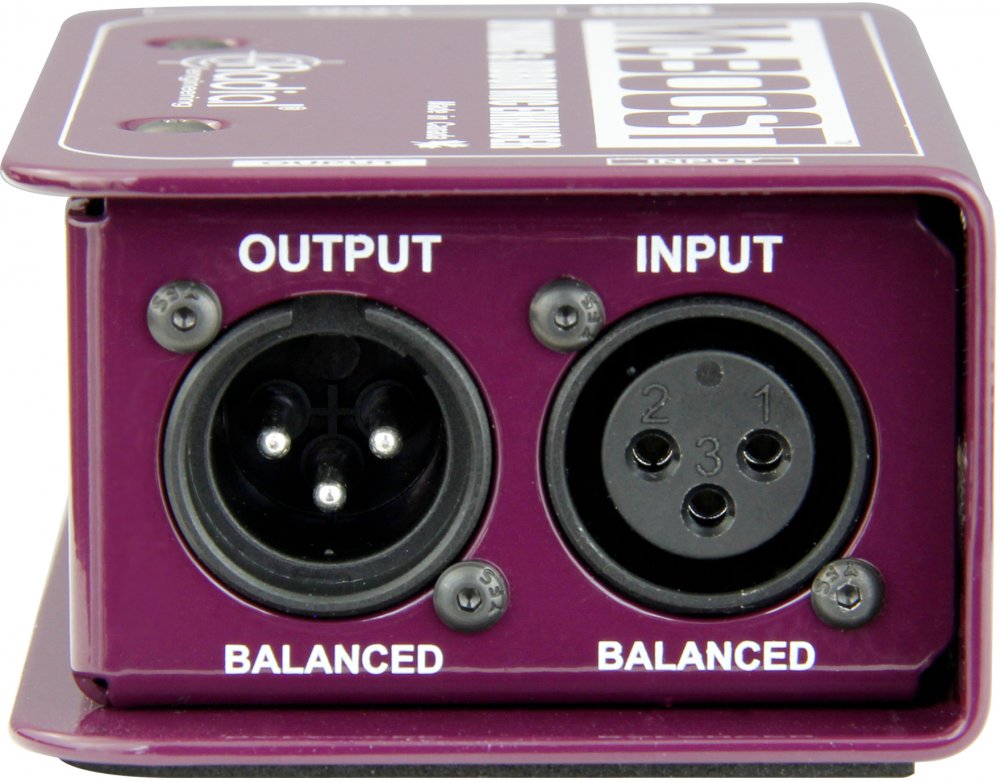

Merely connect the McBoost in-line using standard 3-pin XLRs and activate 48V phantom to provide power. Select between three impedance settings to optimize the response and then reduce low-frequency clutter with the 3-position high-pass filter. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage or in a broadcast center.

Features

25dB signal booster for dynamic & ribbon mics

Extends dynamic range and microphone reach

Uses standard 48V phantom for power

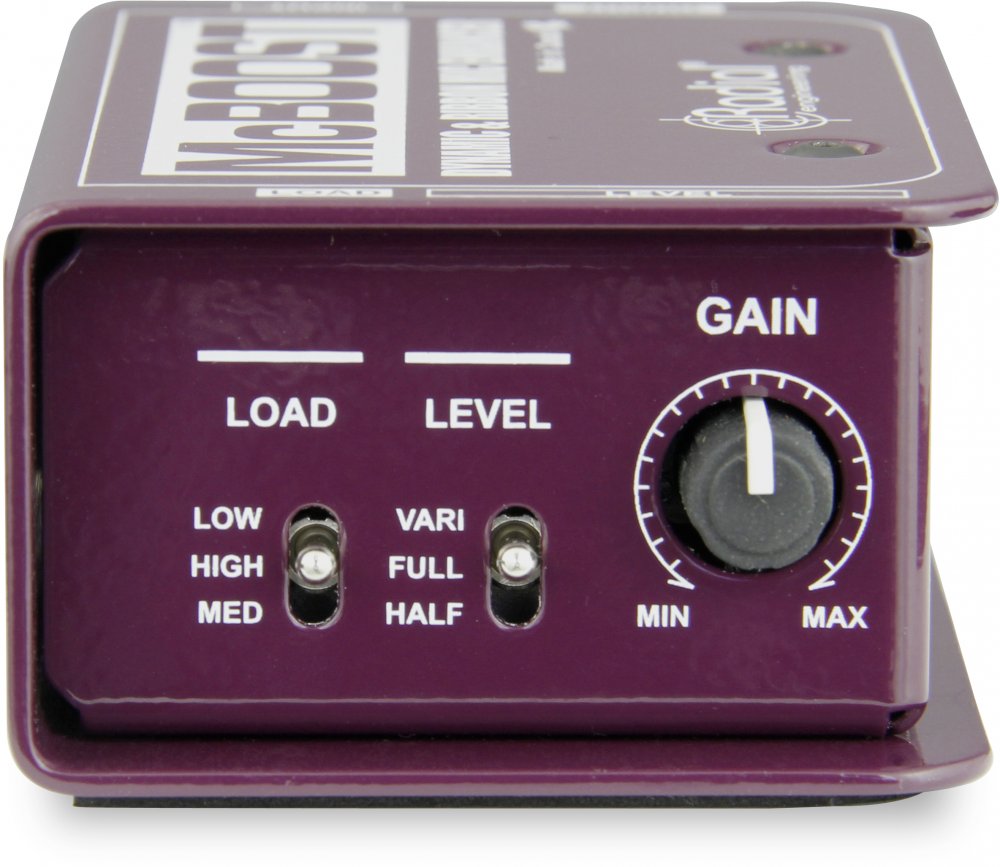

3-position load switch and high-pass filter

Specifications

Specifications


Audio circuit type: Class-A Differential FET/Bipolar Hybrid
Frequency response: 7Hz to 30kHz
Total harmonic distortion: 0.005% @-30dB
Dynamic range: 105dB
Maximum input: -6dBu
Maximum gain: +25dB
Equivalent input noise: -120dBu
Input impedance: 600 , 2.7k , 30k
Clip level - input: -17dBu / -14Bu / -9dBu
Clip level - output: +10dBu
Noise floor: -95dBu / -98dBu / -113dBu
Output impedance: 2.2k
Intermodulation distortion: 0.01%
Phase Deviation: 0 @ 20Hz, <10 @ 20kHz

Features


Gain control: Variable from +4dB to +25dB
High-pass filter: 100Hz and 55Hz @-3dB
Filter slope: 6dB / Octave
XLR configuration: Pin 2 + / Pin 3 - / Pin 1 Ground

General


Construction: 14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size: (L x W x H)4.2" x 2.76" x 1.68" (106.7 x 70.1 x 42.7mm)
Weight: .5 lbs (0.23kg)
Shipping size: (L x W x H)6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
Shipping weight: 1.4lbs (0.64kg)
Power: 48V phantom
Conditions: For use in dry locations only between 5C and 40C
