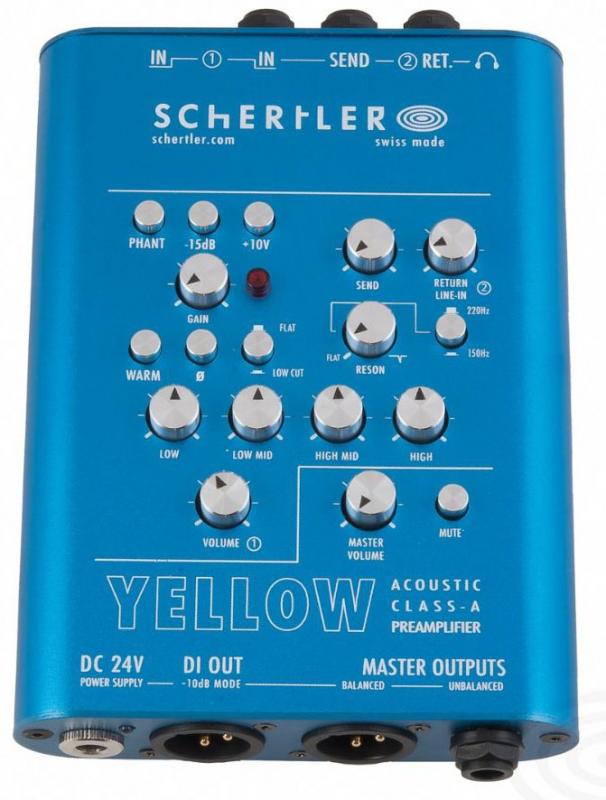

SCHERTLER  |  SKU: 11586

YELLOW SINGLE

Pickups

YELLOW series preamps have been specially developed to offer musicians and sound engineers flexible solutions that meet a range of performing and recording requirements.

$835.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The preamps combine CLASS-A electronics with a modern, sophisticated design and lightweight yet robust aluminium housing. Every single section has been engineered to ensure maximum potential from any kind of sound source.

As its name suggests, YELLOW SINGLE has one dedicated input channel that accommodates a range of microphones, pickups and instruments. The Return socket can also be used as a second input for line sources. Output options and other features are similar to its larger sibling.

Yellow Single is included in all STAT-PRO sensor packages. Yellow Blender is included in all STAT-ROAD packages.

Features

Modern, sophisticated design, built in a robust and light aluminum case.

Two input channels (maximum) for all kind of microphones and pickups.

Four output lines (maximum) with multiple connections

Headphone output

Send & Return for effect loop

Four band EQ and extra dedicated filters on the main channel to ensure awide range of tonal controls and maximum flexibility.

Hi-end pure class A electronics for the best possible sound performance

Specifications

Weight :


0.32 kg (0.68lb)

Dimensions :


15x10x3.8cm (5.9x4.25x1.49 in)

Frequency Response :


10 Hz to 25 kHz (+/- 3dB)

Construction :


Anodized aluminium box

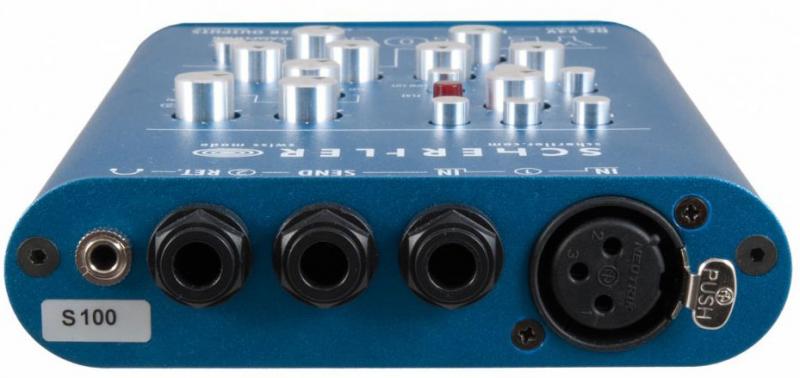

MIC IN:


XLR balanced
Sensitivity: -56 dB
Impedance: 4.7 Kohm

LINE IN:


1/4" Jack
Sensitivity: -52 dB
Impedance: 3 Kohm with 10V on
Impedance: 200 Kohm with 10V off

RETURN/LINE input :


1/4" stereo balanced Jack
Sensitivity: -30 dB
impedance 22 Kohm

EQ :


4 band EQ + adjustable notch filter
warm and low cut

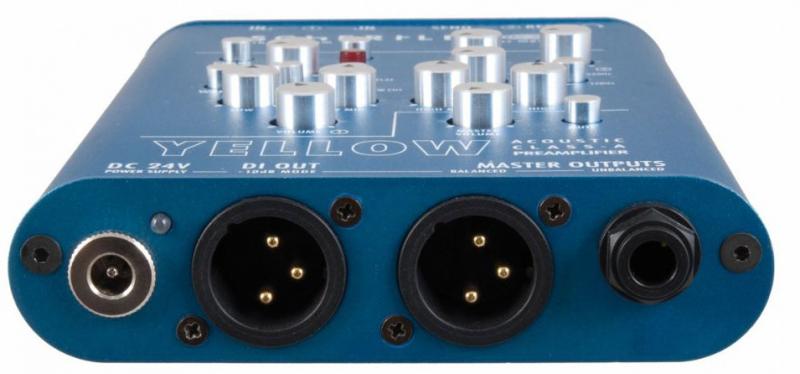

Master Outputs :


XLR balanced, output level +20 dBu
Impedance 100 ohm
1/4" Jack unbalanced, output level +14 dBu
Impedance 100 ohm

DI output :


XLR balanced, sensitivity +5 dBu
Impedance 100 ohm

SEND output :


XLR balanced, sensitivity +5 dBu
Impedance 100 ohm

Headphone :


High class headphone preamplifier
1/8" Jack, sensitivity +10 dBu
Impedance 10 ohm

Supply :


24VDC 210 mA regulated power supply
