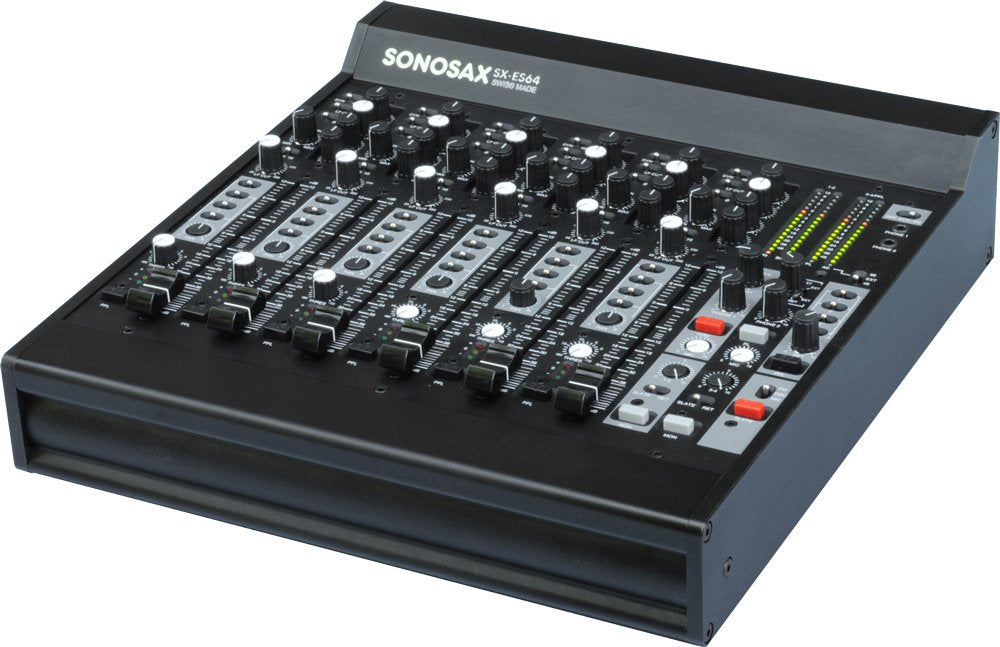

SX-ES64

Small sized and lightweight 6 channels (ES64) or 8 channels (ES84) audio mixer with 4 groups and dual monitoring

Electronically balanced, transformer less inputs and outputs

Large audio bandwidth and high dynamic range

High quality potentiometers, faders and switches, resistant to water projection (IP45)

Ultra low noise microphone preamplifier based on semi-discrete technology

Primary passive LF-Cut (Pre-LF Cut) to protect the microphone preamplifier

48V Phantom power, phase reversal and individual limiter on each input channel

Channel's direct output configurable either Pre-EQ, Post-EQ or Post Fader

3 band semi-parametric Equalizer, available as an option

4 mix groups individually assignable Pre-Pan / Post-Pan or Pre-Fader / Post-Pan

High quality conductive plastic linear fader

LED Meter on each input for level metering, overload and limiter activity indications

4 master groups and dual monitoring section with private line for off line communication

Reference tone oscillator and integrated slate/com microphone

Choice of optional connectors for camera's send/return with confidence monitoring

Analogue to Digital Converter available as an option, for channel's direct outputs and main 1&2

Powered either from internal batteries or external DC voltage 6 to 18Volt

Low power consumption, lightweight and small footprint

APPLICATIONS

Video, TV and cinematography productions
Mobiles or stationary Post-production facilities or recording studios
OB Van, Live Broadcasting, sports events
Analogue or digital recording of acoustical music
High end installations in concert halls or theaters
Home studios

MECHANICAL

SX-ES64: W: 277mm H: 66mm D: 292mm (10.9″ x 2.6″ x 11.5″)
Weight: 3.55 kilos / 7,82lbs (without batteries)

SX-ES84: W: 347mm H: 66mm D: 292mm (13.7″ x 2.6″ x 11.5″)
Weight: 3.9 kilos / 8,6lbs (without batteries)
