AN01

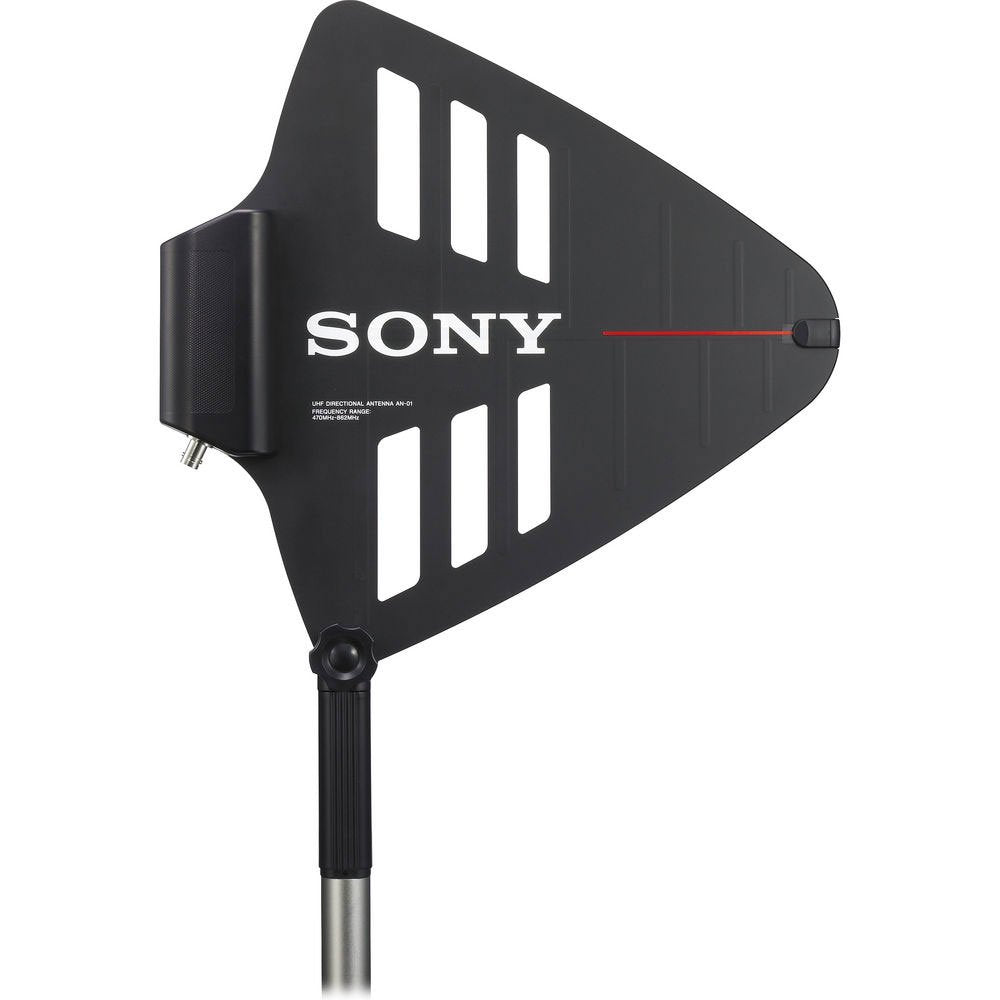

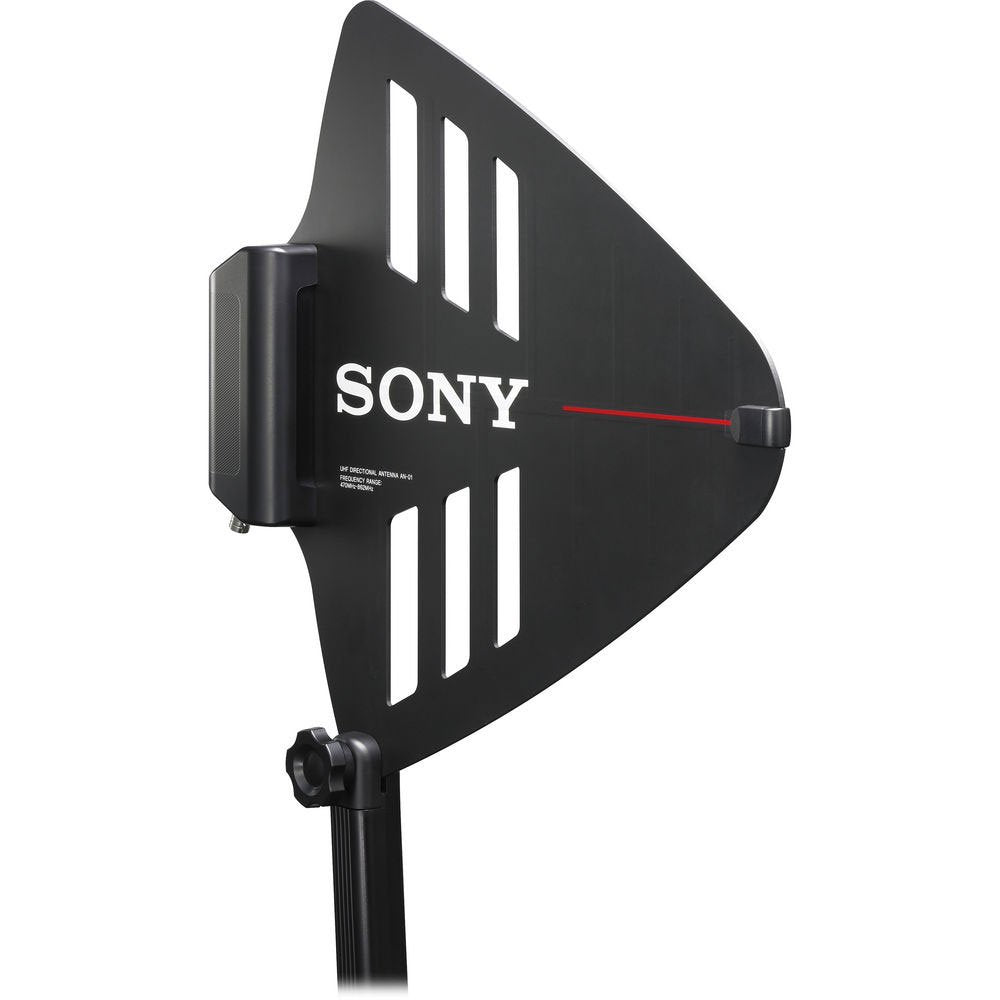

The AN-01 is a uni-directional UHF Antenna, designed to be used with Sony analogue or digital wireless microphone systems.

Two AN-01 should be used for diversity reception.

A single AN-01 can receive a wide frequency range from 470 to 862MHz.

Either DC 9V or 12V can be used for powering.

Selectable booster gain (18 dB/10 dB/0 dB).

The antenna is a log-periodic dipole array.

It is supplied with a hand grip that supports screw mounting onto a microphone stand.

Antenna Section

Antenna TypeLog: periodic dipole array

Directivity: Unidirectional

Frequency Range: 470 MHz to 862 MHz

Antenna Gain: 5 dBi or more

Voltage Standing Wave Ratio: 2.5 or less

Half Power Angle: 150 degrees or less

Front To Back Ratio: 12 dB or more

Booster Section

Frequency Range: 470 to 862 MHz

Booster Gain: 18 dB/10 dB/0 dB, switchable

Voltage Standing Wave Ratio: 3.0 or less

Noise Figure: 6 dB or less

Third Order Intermodulation: 60 dB or more (95 dBμVEMF input)

Input/Output

Output Connector: BNC-R, 50 Ω

General

Power Requirements: 9 V/12 V DC

Power Consumption: 100 mA or less

Operating Temperature: 32F to 122F, 0C to 50C

Storage/Transport Temperature: -4F to +140F, '-20C to +60C

Dimensions *[1]: 343 x 341 x 36 mm (excluding microphone stand attachment pole/grip) (W x H x D), 13 1/2 x 13 5/8 x 1 7/16 inches (excluding microphone stand attachment pole/grip) (W x H x D)

Mass: Approx. 530 g, Approx. 19 oz

Supplied Accessories: Warranty card (1), Warranty booklet (1), Stand Adapter PF1/2 to W5/8 type (1), Stand Adapter PF1/2 to W3/8 type (1), Operating Instructions (1), Microphone stand attachment pole/grip (1 set)
