SONY

AN57

Wireless Antennas

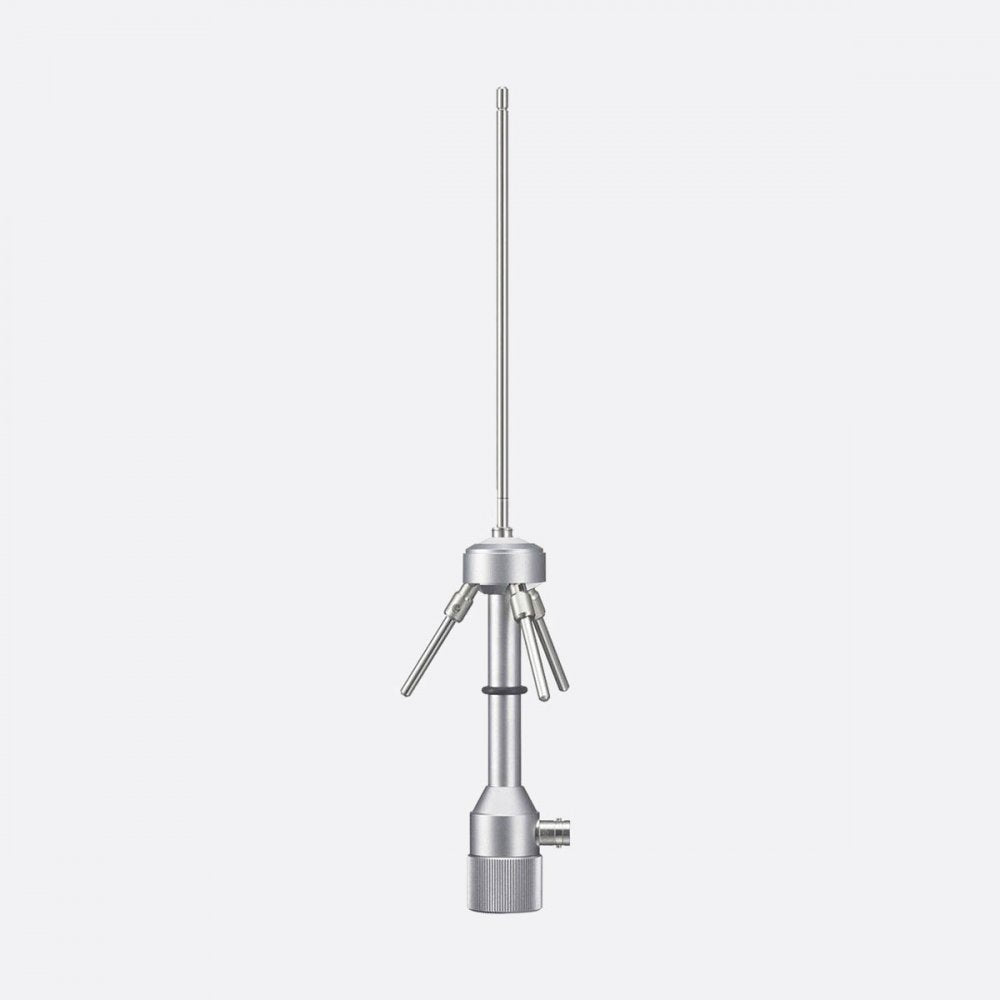

Collapsible omnidirectional UHF Ground Plane Antenna (470MHz-638MHz)

$815.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Designed to be positioned on a stand or suspended from the ceiling, this omnidirectional antenna has a frequency range of 638-810MHz. By attaching the supplied antenna elements, the user can alter the range to 470-638MHz.

Features

UHF Wireless Hall Broadcast Ground Plane Antenna

Collapsible design, non-directional so reception possible from any direction

Suitable for Hall and Broadcast applications

Specifications

General

Antenna type: Ground plane antenna

Frequency range: 638 MHz to 810 MHz (When supplied elements are attached: 470 MHz to 638 MHz)

Polarization: Vertical

Directivity: Horizontal, omnidirectional

Gain: 0 dBi (from center frequency)

Voltage standing wave ratio: 3 or less (from center frequency)

Impedance: 50 Ξ© (representative value)

Output connector: BNC-R type

Stand screw: PF 1/2

Mass: Approx. 280 g (9.9 oz.)

Dimensions: Ø121 - 288 mm (4 7/8 - 11 3/8 in.), (When supplied elements are attached: Ø153 - 320 mm (6 1/8 - 12 5/8 in.))

Supplied accessories: Operating Instructions (1), Antenna Elemens (4)
