SONY

ECM77B

Lavaliers & Headsets

Omnidirectional electret condenser, 40Hz"20kHz range, compact 5.6mm head, 120dB SPL max, XLR output, 9.8ft cable, phantom or AA battery powered.

$605.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Sony ECM-66B is a professional miniature cardioid lavalier microphone crafted for superior audio pickup in live performance, presentation, and broadcast scenarios. Known for its compact design and high audio fidelity, the ECM-66B excels in environments where clarity and discretion are essential. Its cardioid pickup pattern ensures targeted audio capture while minimizing background noise, making it a reliable choice for use in noisy environments or on stage.

This model includes an integrated power supply barrel and comes terminated with an XLR connector, supporting both internal battery power and 48V phantom power for maximum flexibility. With its small capsule (only 10.6 mm in diameter and 24.2 mm long), the ECM-66B can be easily concealed in clothing, making it ideal for interviews and theatrical use. It boasts an extended frequency response from 70 Hz to 14 kHz, high SPL handling (up to 130 dB), and a robust dynamic range of 101 dB or more, allowing it to accurately capture both subtle and powerful sound sources.

The ECM-66B is designed with the end user in mind. It features a 3-meter cable and includes multiple accessories such as windscreen, vertical and horizontal tie clips, and a carrying case for on-the-go convenience. Its cardioid pattern also helps to reduce feedback, a common issue in live sound applications. Whether you're equipping a presenter, a performer, or a corporate speaker, this lavalier microphone delivers clear, consistent sound with minimal fuss.

Features

Miniature lapel microphone designed to be discreet and inconspicuous for on-camera use

Omni-directional pickup pattern captures sound from all directions for natural voice reproduction

Hands-free operation allows presenters to focus on performance without holding a mic

Dual powering options include a single AA battery or 48V phantom power for flexible use

Wide frequency response from 40 Hz to 20 kHz delivers clear and accurate audio

Popular in television production, making it familiar to most sound professionals

Supplied with an XLR connector for professional wired applications

Long 9.8-foot cable provides freedom of movement during recording

Comes with metal-mesh windscreen, tie clips (vertical, horizontal, and double), a case, and instructions

Specifications

General Specifications

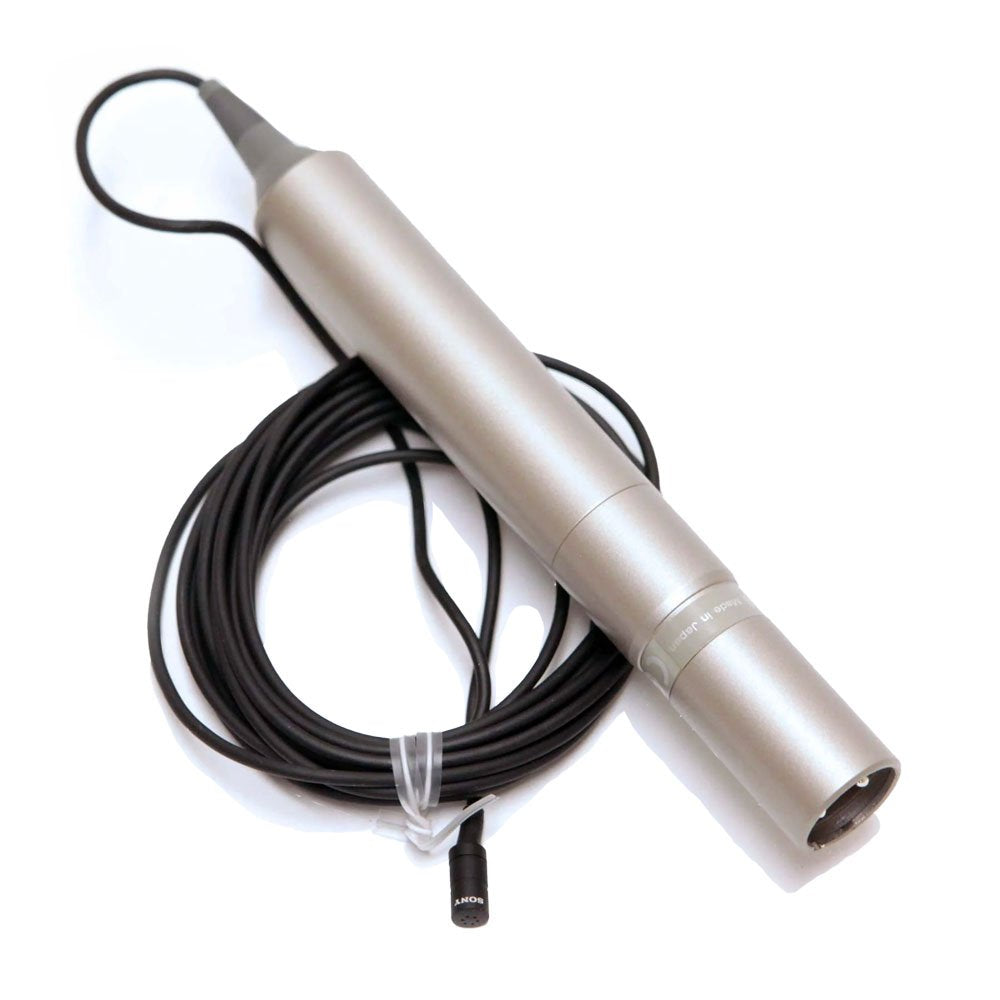

Model: Sony ECM-77B

Microphone Type: Electret condenser

Polar Pattern: Omni-directional

Application: Lavalier microphone for studio, ENG, and EFP use

Mounting: Tie clip (single vertical and horizontal types included, plus double clip)

Dimensions Mic Head: 5.6 mm diameter x 12.5 mm length

Dimensions Power Unit: 20 mm diameter x 133 mm length

Weight: 121.5 grams with power supply unit

Audio Specifications

Frequency Response: 40 Hz to 20 kHz

Sensitivity: -52.0 dB plus minus 2 dB

Output Impedance: 150 ohms plus minus 20 percent, balanced

Dynamic Range: 90 dB or more

Signal to Noise Ratio: 64 dB or more (A-weighted)

Inherent Noise: 30 dB SPL or less

Induction Noise from Magnetic Field: 5 dB SPL or less

Wind Noise (with windscreen): 40 dB SPL or less

Max Input SPL: 120 dB SPL

Connectivity

Connector Type: XLR-3-12C male (in power supply unit)

Cable Length: 3 meters

Power Requirements

Voltage: DC 1.5 V from AA battery or +48 V phantom power

Battery Type: LR6 AA size

Battery Operating Time: Approx 6000 hours

Power Consumption: 0.3 mA or less (internal), 2.0 mA or less (external)

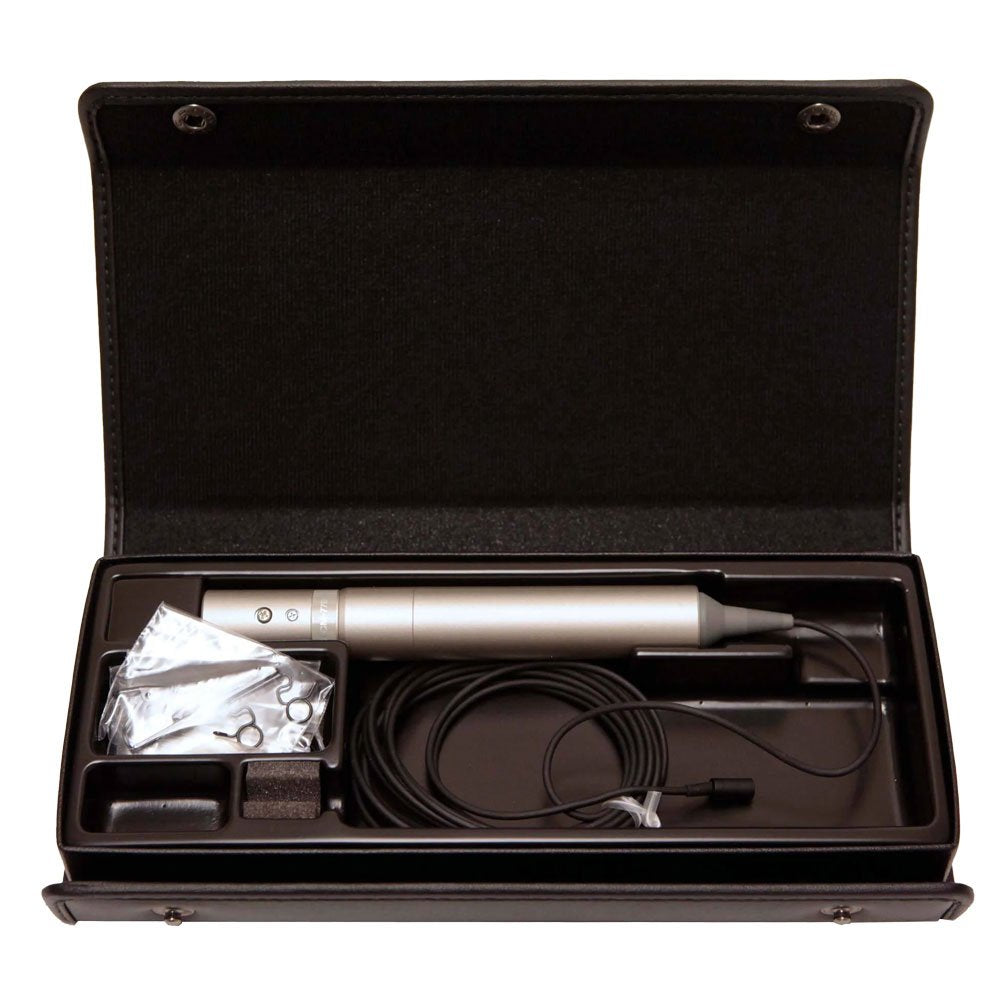

Included Accessories

Metal mesh windscreen

Vertical tie clip

Horizontal tie clip

Double horizontal tie clip

Operating instructions

Microphone case

Optional Accessories

Wind screen pack

Vertical clip pack

Safety pin clip pack

Double horizontal clip pack

Single horizontal clip pack

ECM-77 accessory kit

Colored windscreen kit

Black windscreen for ECM-77
