SONY  |  SKU: 23864

ECM90LM

Lavaliers & Headsets

Omnidirectional electret condenser, ultra-mini 3.5mm size, 20Hz"20kHz response, 125dB SPL max, 5.2ft cable, Lemo 3-pin, shielded for digital wireless.

$640.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

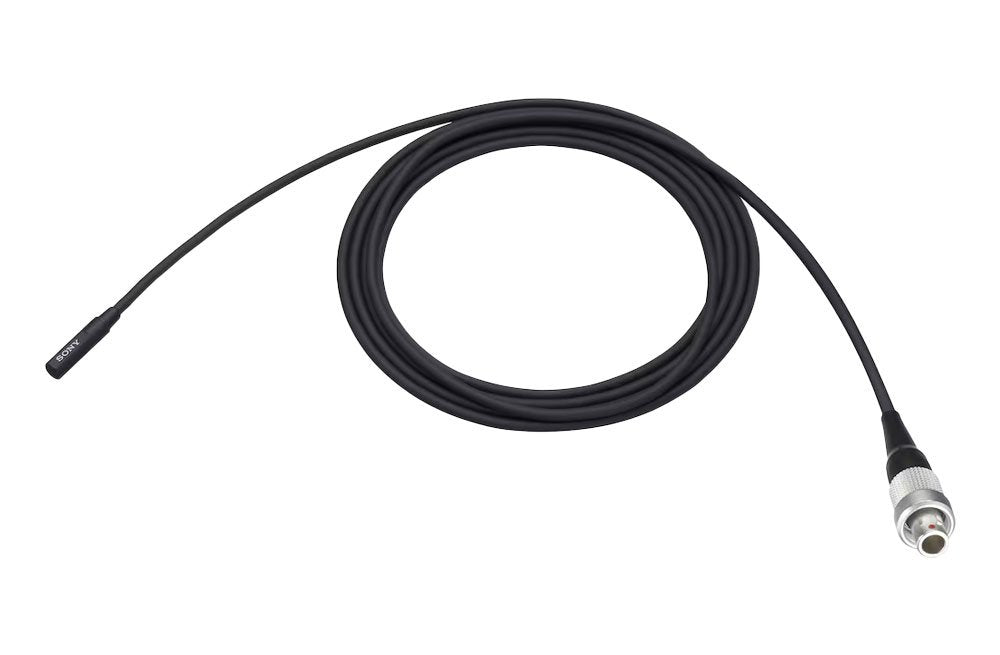

The Sony ECM-90LM is an ultra-miniature, omni-directional electret condenser lavalier microphone designed to meet the rigorous demands of ENG (Electronic News Gathering), studio production, EFP (Electronic Field Production), and location sound applications. With its refined dual-diaphragm design, this model offers high sensitivity, a broad dynamic range, and impressively low noise levels. The flat frequency response from 20 Hz to 20 kHz ensures a transparent, natural sound that faithfully captures voices and ambient audio alike.

Engineered for field reliability, the ECM-90LM features a water-resistant housing and a uniquely constructed diaphragm mount that reduces cable-induced noise-ideal for active or mobile recording situations. Moreover, the microphone is fully shielded, making it compatible with digital wireless transmitters without introducing interference or audio artifacts.

Despite its performance capabilities, the ECM-90LM maintains a compact form factor. The microphone head measures only 3.5 mm in diameter and weighs just 1 gram, allowing for easy concealment under clothing or in costumes-perfect for broadcast and theatrical use. It includes a 3-pin Lemo connector, making it compatible with a wide range of professional wireless systems, particularly those in the Sony DWX Series.

This microphone comes with essential accessories including a windscreen and both vertical and horizontal tie clips, allowing for quick deployment in a variety of setups. Its 1.6-meter cable provides ample length for flexible mic placement in interviews, film shoots, or live presentations.

Features

Ultra-miniature lavalier microphone designed for critical audio work in ENG, studio, EFP, and location sound

Omni-directional pickup captures natural sound evenly from all directions

Dual-diaphragm design provides high sensitivity, wide dynamic range, and low self-noise

Diaphragm mounting minimizes common cable noise found in lavalier microphones

Flat and wide frequency response from 20 Hz to 20 kHz ensures clear, lifelike audio

Water-resistant construction maintains sound quality in diverse environments

Shielded for reliable performance with digital wireless transmitters

Features a 3-pin Lemo connector and 5.2-foot cable

Powered directly through Sony wireless system transmitters

Includes windscreen, vertical and horizontal tie clips, and operating instructions

Specifications

General Specifications

Model: Sony ECM-90LM

Microphone Type: Electret condenser

Polar Pattern: Omni-directional

Application: Lavalier microphone for ENG, studio, EFP, and location sound

Shielding: Compatible with digital wireless transmitters

Water Resistant: Yes

Dimensions Mic Head: 3.5 x 3.5 x 20.5 mm

Weight Mic Only: 1 gram

Audio Specifications

Frequency Response: 20 Hz to 20 kHz

Sensitivity: -40 dB or 10 mV

Output Impedance: 6.3 kiloohms, unbalanced

Dynamic Range: 99 dB

Signal to Noise Ratio: 68 dB (A-weighted)

Inherent Noise: 26 dB SPL

Wind Noise with Windscreen: 45 dB SPL or less

Max Input SPL: 125 dB SPL

Connectivity

Connector Type: 3-pin Lemo connector

Cable Length: 1.6 meters

Power Requirements

Power Source: Supplied from Sony wireless system transmitters

Included Accessories

Windscreen (Urethane type)

Vertical tie clip

Horizontal tie clip

Operating instructions

Optional Accessories

Wind screen pack

Vertical clip pack

Safety clip pack

Horizontal clip pack

Double clip pack

Color windscreen pack

Black windscreen pack

Accessory kit
